Maintenance for off-road driving
Whenever you drive off-road through sand, mud or water as deep as the wheel hub, more frequent mainte-
nance may be required of the following items:

G

Brake pads and discs

G

Brake lining and drums

G

Brake lines and hoses

G

Wheel bearing grease and free-running hub grease

G

Differential, transmission and transfer oil

G

Steering linkage

G

Propeller shafts and front drive shafts

G

Air cleaner filter
Clutch housing (Check water entry.)

PERIODIC MAINTENANCE

Maintenance Under Severe Driving Conditions
(annual mileage > 30,000 km/year) (Cont’d)

MA-16

Fluids and Lubricants

Capacity (Approximate)

Recommended fluids and lubricants

Liter

Imp qt

Engine oil (Refill)

With oil filter

TD27Ti

6.2

5-1/2

API CE, ACEA B2-96 (CCMC PD1), D5 level
SHPD Global DHD-1 (*1) (*4)

Without oil filter

TD27Ti

5.5

4-7/8

With oil filter

ZD30DDTi

6.7

5-7/8

API CF4, ACEA B3-96. 98, ACEA B3/E3-96. 98
Global DHD-1 (*4)

Without oil filter

ZD30DDTi

6.2

5-1/2

Cooling system

Total capacity
(With reservoir tank)

TD27Ti

10.0

8-3/4

Anti-freeze coolant
(Ethylene glycol base)

ZD30DDTi

10.6

9-3/8

Genuine Nissan Anti-freeze Coolant (L250) or
equivalent (*5)

Manual transaxle gear oil

FS5W71C

3.5

6-1/8 pt

API GL-4 (*1)

FS5R30A

3.6

6-3/8 pt

API GL-4 (*1)

Transfer

TX10A

2.3

2

API GL-4 (*1)

Differential oil

R180A

1.3

2-1/4

STANDARD:
API GL-5 (*1)

H233B
(LSD)

2.8

4-7/8

Use only LSD gear oil API GL-5 and SAE 80W-90
(*2) approved for NISSAN LSD

Power steering fluid

1.0

7/8

DEXRON

TM

Brake and clutch fluid

DOT 4 (USFMVSS No. 116)

Multi-purpose grease

NLGI No. 2 (Lithium soap base)

Air conditioner system

refrigerant

R134A
KLH00-PAGRO

lubrication oil

*1: For further details, see “SAE Viscosity Number”.
*2: SAE 90 is acceptable in ambient temperatures above −18°C (0°F)
*3: Do not mix automatic transmission fluid and gear oil.
*4: Never use API CG-4.
*5: Use Genuine Nissan Anti-freeze Coolant (L250) or equivalent in its quality, in order to avoid possible aluminum corrosion within

the engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may
not be covered by the warranty even if such incidents occurred during the warranty period.

RECOMMENDED FLUIDS AND LUBRICANTS

MA-17

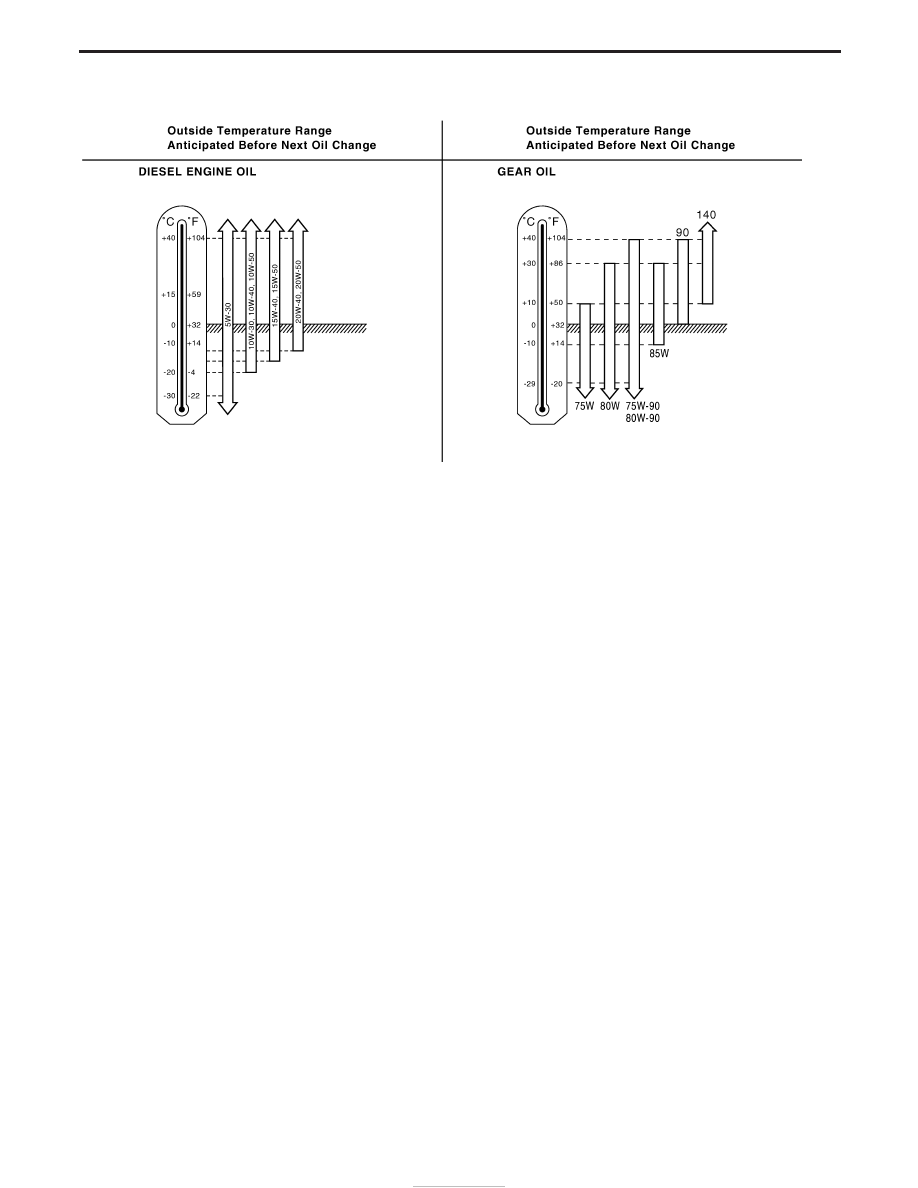

SAE Viscosity Number

I

For cold areas: 5W-30 is preferable.

I

For hot and warm areas: 20W-40 and 20W-50
are suitable.

I

On turbo models, 5W-20 is not recom-
mended.

I

For cold and warm areas:
75W-90 for transmission and 80W-90 for dif-
ferential carrier are preferable.

I

For hot areas:
90 is suitable for ambient temperatures
below 40°C (104°F)

YMA017

RECOMMENDED FLUIDS AND LUBRICANTS

MA-18

Engine Coolant Mixture Ratio

The engine cooling system is filled at the factory with a high-quality,
year-round and extended life engine coolant. The high quality
engine coolant contains the specific solutions effective for the anti-
corrosion and the anti-freeze function. Therefore, additional cooling
system additives are not necessary.

CAUTION:

I

When adding or replacing coolant, be sure to use only
Genuine Nissan Anti-freeze Coolant (L2N) or equivalent.
Because L2N is premixed type coolant (Mixture ratio 50%).

The use of other types of engine coolant may damage your
cooling system.

I

When checking the engine coolant mixture ratio by the coolant
hydrometer, use the chart below to correct your hydrometer
reading (specific gravity) according to coolant temperature.

Mixed coolant specific gravity

Unit: Specific gravity

Engine coolant mixture

ratio

Coolant temperature °C (°F)

15 (59)

25 (77)

35 (95)

45 (113)

30%

1.046 - 1.050

1.042 - 1.046

1.038 - 1.042

1.033 - 1.038

50%

1.076 - 1.080

1.070 - 1.076

1.065 - 1.071

1.059 - 1.065

WARNING:

Never remove the radiator cap when the engine is hot. Serious
burns could be caused by high pressure fluid escaping from
the radiator. Wait until the engine and radiator cool down.

RECOMMENDED FLUIDS AND LUBRICANTS

MA-19
