Nissan Terrano r20e. Manual - part 198





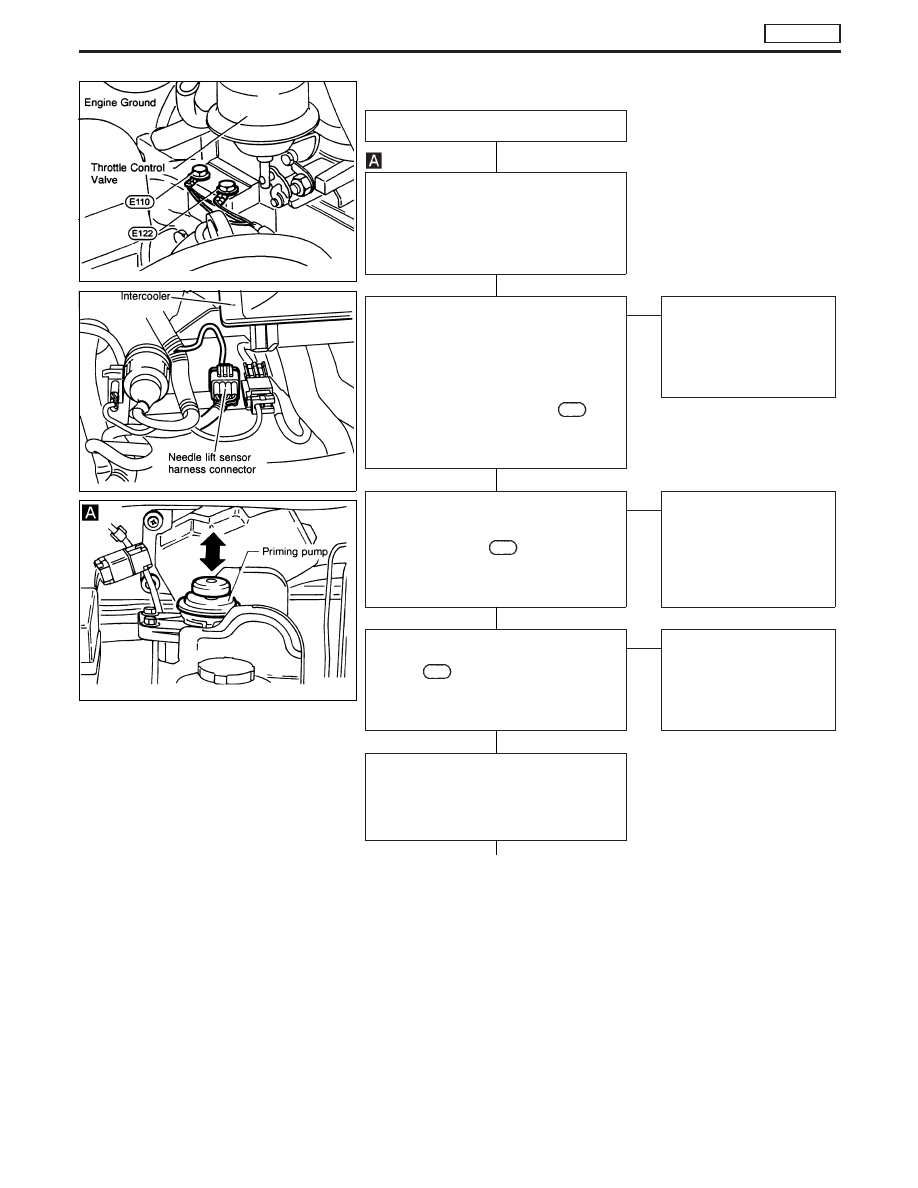

Diagnostic Procedure

INSPECTION START

CHECK FOR AIR IN FUEL FILTER.
1. Move priming pump up and down to

purge air from fuel filter.

2. Perform “DIAGNOSTIC TROUBLE

CODE CONFIRMATION PROCE-
DURE”.

CHECK INPUT SIGNAL CIRCUIT.
1. Turn ignition switch to “LOCK” position.
2. Disconnect ECM harness connector

and needle lift sensor harness connec-
tor.

3. Check harness continuity between

needle lift sensor connector terminal

q

1

and ECM connector terminal

345

.

Refer to wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following:

I

Harness for open circuit
between needle lift sen-
sor and ECM

If NG, repair harness or
connectors.

CHECK GROUND CIRCUIT-I.
Check harness continuity between needle
lift sensor connector terminals

q

2

and ECM

connector terminals

333

. Refer to wiring

diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following:

I

Harness for open or
short-circuit between
ECM and needle lift sen-
sor.

If NG, repair harness or
connectors.

CHECK GROUND CIRCUIT-II.
Check resistance between ECM connector
terminal

346

and engine ground. Refer to

wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following:

I

Harness for open-circuit
between ECM and
engine ground

If NG, repair harness or
connectors.

CHECK NO. 1 INJECTION NOZZLE FOR
CLOGGING.
Refer to spray pattern test of “INJECTION
NOZZLE”.
If NG, replace No. 1 injection nozzle.

q

A

NEF591

NEF690

NEF463

H

H

H

H

H

H

DTC P1240 NEEDLE LIFT SEN, DTC P1242 NEEDLE LIFT SE

(RPM)

TD27Ti

EC-429

q

A

CHECK COMPONENT.
(Needle lift sensor)
Refer to “COMPONENT INSPECTION” on
EC-430.

E

NG

Replace needle lift sensor.

Disconnect and reconnect harness con-
nectors in the circuit. Then retest.

Trouble is not fixed.

Check ECM pin terminals for damage and
check the connection of ECM harness
connector. Reconnect ECM harness con-
nector and retest.

INSPECTION END

Component Inspection

NEEDLE LIFT SENSOR

1. Disconnect needle lift sensor harness connector.
2. Check continuity between needle lift sensor terminals

q

1

and

q

2

.

Resistance: Approximately 105

[at 25°C (77°F)]

If NG, replace needle lift sensor with injection nozzle holder.

MEC962D

H

H

H

H

DTC P1240 NEEDLE LIFT SEN, DTC P1242 NEEDLE LIFT SE

(RPM)

TD27Ti

Diagnostic Procedure (Cont’d)

EC-430

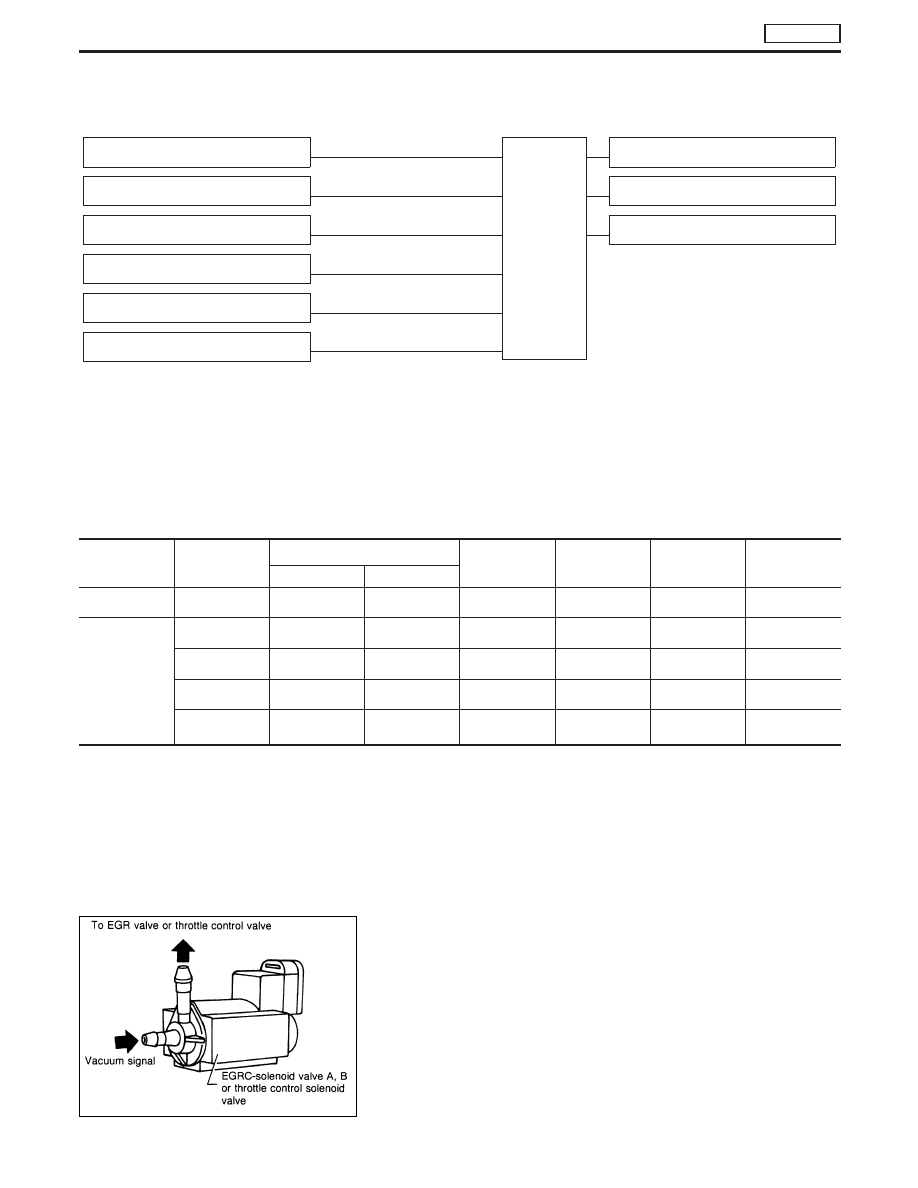

System Description

EGR CONTROL

Camshaft position sensor (TDC)

E

Engine speed

ECM

E

EGRC-solenoid valve A

Mass air flow sensor

E

Mass air flow

E

EGRC-solenoid valve B

Engine coolant temperature sensor

E

Engine coolant temperature

E

Throttle control solenoid valve

Ignition switch

E

Start signal

Atmospheric pressure sensor

E

Atmospheric pressure

Air conditioner switch

E

Air conditioner “ON” signal

The ECM receives signals sent from the engine coolant tempera-
ture sensor, crankshaft position sensor (TDC), ignition switch etc.
to determine engine speed and operating conditions. Based on
these signals, the ECM controls EGRC-solenoid valve (A and B)
operation and throttle solenoid valve operation.
The EGR control stops when engine coolant temperature is below
45°C (113°F), at idling, at starting and when the system compo-
nents and engine speed signals are disordered.

Engine coolant

temperature

°C (°F)

Load

EGRC-solenoid valve

Throttle control

solenoid valve

EGR valve

Throttle control

valve

Amount of EGR

gas

A

B

Below 45 (113)

Any

OFF

(Closed)

OFF

(Closed)

OFF

(Closed)

Fully closed

Fully open

Above 45 (113)

Low load

ON

(Open)

ON

(Open)

ON

(Open)

Fully open

Closed

Large

Medium load-1

ON

(Open)

ON

(Open)

OFF

(Closed)

Fully open

Fully open

Medium

Medium load-2

ON

(Open)

OFF

(Closed)

OFF

(Closed)

Half open

Fully open

Small

High load

OFF

(Closed)

OFF

(Closed)

OFF

(Closed)

Fully closed

Fully open

Component Description

The EGRC-solenoid valves A and B, control vacuum pressure act-
ing on the EGR valve. The EGR control valve will be fully opened,
half-opened or fully closed, as required.
The throttle control solenoid valve controls vacuum pressure acting
on the throttle control valve. Thus, intake air passages are opened
or closed in relation to exhaust gas and intake air. Utilizing the
relationship between exhaust gas pressure and intake air pressure
control, the amount of EGR (exhaust gas recirculated) is regulated
in three approximate measures — large, medium, small.

NEF513

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-431

On Board Diagnosis Logic

DTC

Malfunction is detected when ....

Check Items

(Possible cause)

P1404
0806

I

EGRC-solenoid valve A circuit is open or shorted.

I

Harness or connectors
(EGRC-solenoid valve A circuit is open or shorted.)

I

EGRC-solenoid valve A

P1405
0808

I

EGRC-solenoid valve B circuit is open or shorted.

I

Harness or connectors
(EGRC-solenoid valve B circuit is open or shorted.)

I

EGRC-solenoid valve B

P1407
0808

I

Throttle control solenoid valve circuit is open or
shorted.

I

Harness or connectors
(Throttle control solenoid valve circuit is open or
shorted.)

I

Throttle control solenoid valve

DTC Confirmation Procedure

WITH CONSULT-II

1) Turn ignition switch to “ON” position.
2) Select “DATA MONITOR” mode with CONSULT-II.
3) Wait at least 2 seconds.

WITHOUT CONSULT-II

1) Turn ignition switch to “ON” position and wait at least 2 sec-

onds.

2) Turn ignition switch to “LOCK” position, wait at least 5 seconds

and then turn to “ON” position.

3) Perform “Diagnostic Test Mode II” (Self-diagnostic results).

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-432
