Nissan Terrano r20e. Manual - part 181





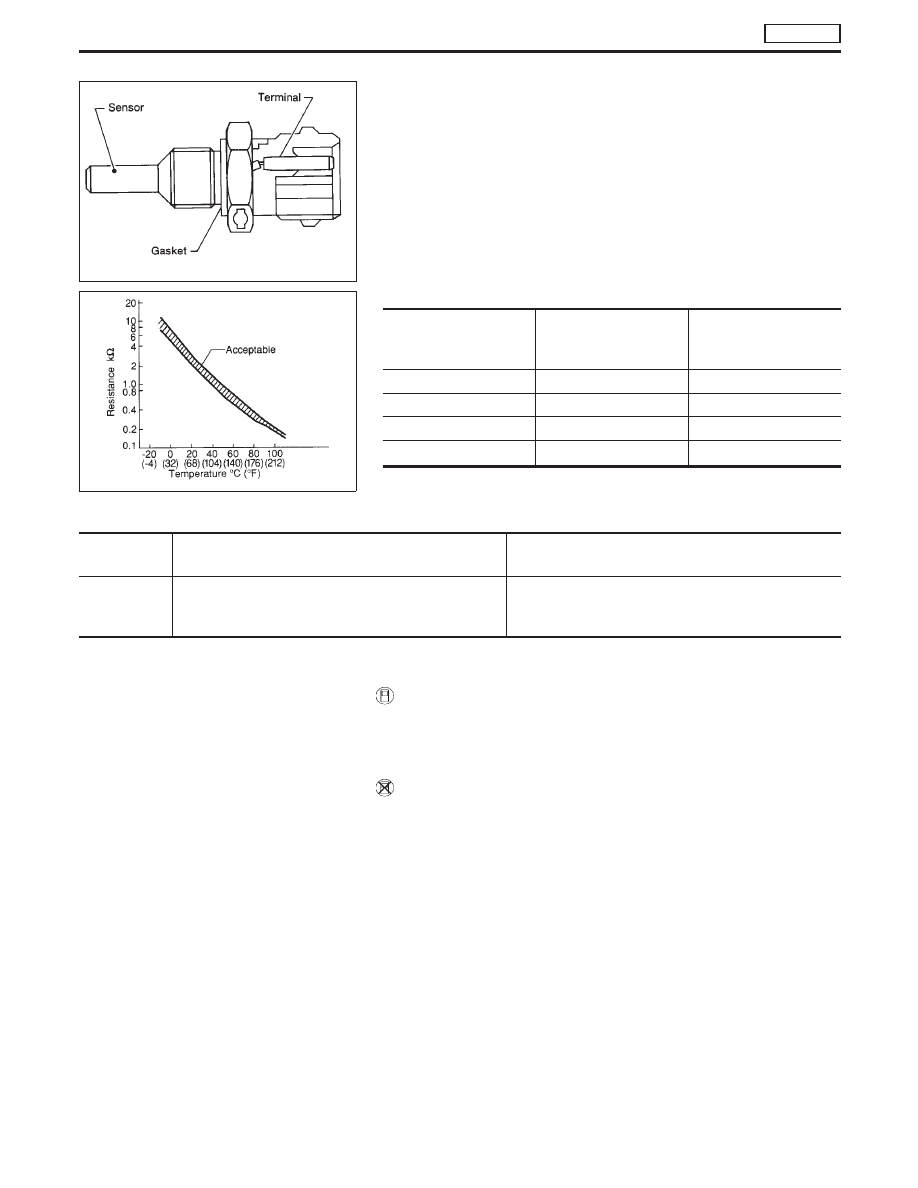

Component Description

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine cool-
ant temperature input. The sensor comprises a thermistor which is
sensitive to the change in temperature. The electrical resistance of
the thermistor decreases as temperature increases.

<Reference data>

Engine coolant

temperature

°C (°F)

Voltage

(V)

Resistance

(k

)

−10 (14)

4.4

7.0 - 11.4

20 (68)

3.5

2.1 - 2.9

50 (122)

2.3

0.68 - 1.00

90 (194)

1.0

0.236 - 0.260

On Board Diagnosis Logic

DTC

Malfunction is detected when ...

Check Items

(Possible Cause)

P0115
0103

I

An excessively high or low voltage from the sensor is
input to ECM.

I

Harness or connectors
(The sensor circuit is open or short-circuited.)

I

Engine coolant temperature sensor

DTC Confirmation Procedure

WITH CONSULT-II

1) Turn ignition switch to “ON” position.
2) Select “DATA MONITOR” mode with CONSULT-II.
3) Wait at least 5 seconds.

WITHOUT CONSULT-II

1) Turn ignition switch to “ON” position and wait at least 5 sec-

onds.

2) Turn ignition switch to “LOCK” position, wait at least 5 seconds

and then turn to “ON” position.

3) Perform diagnostic test mode II (Self-diagnostic results).

SEF594K

SEF012P

DTC P0115 COOLANT TEMP SEN

TD27Ti

EC-361

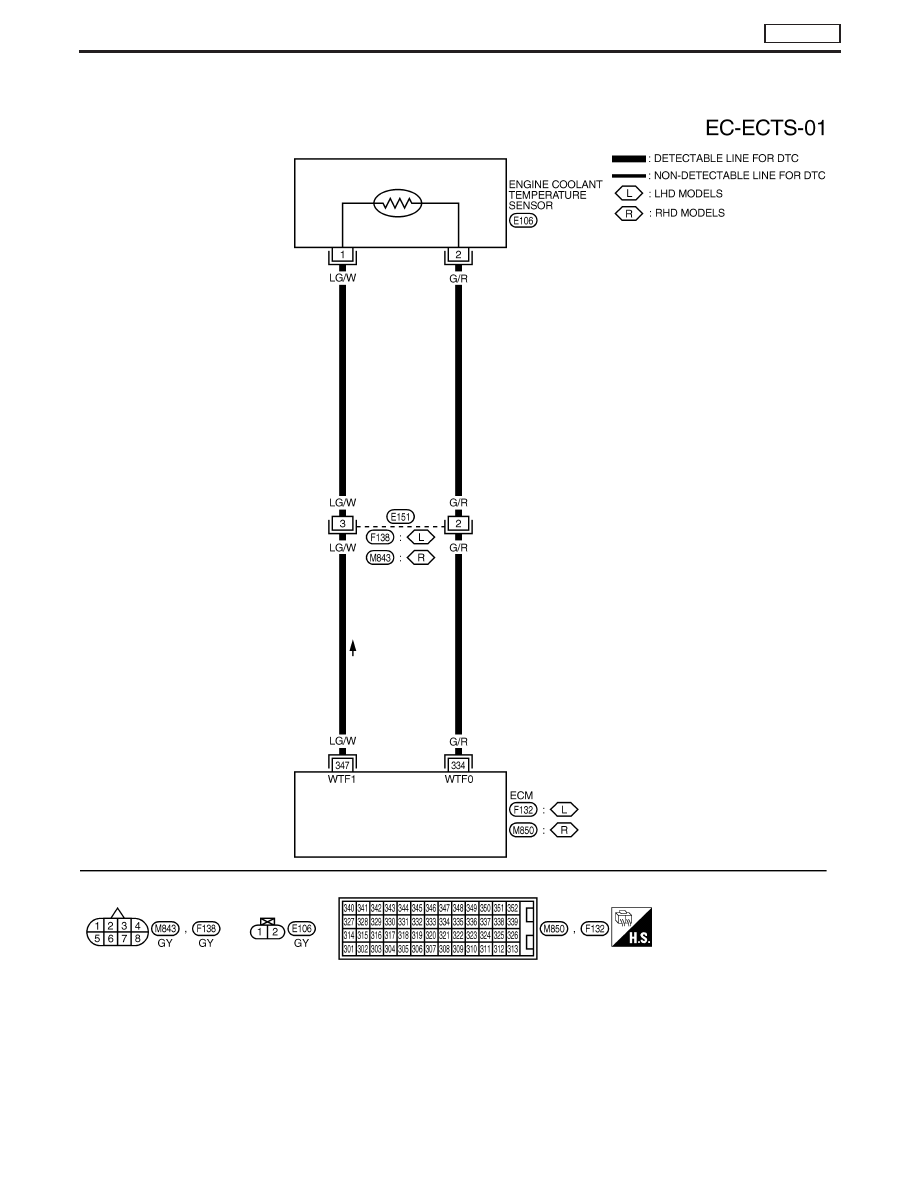

Wiring Diagram

YEC144A

DTC P0115 COOLANT TEMP SEN

TD27Ti

EC-362

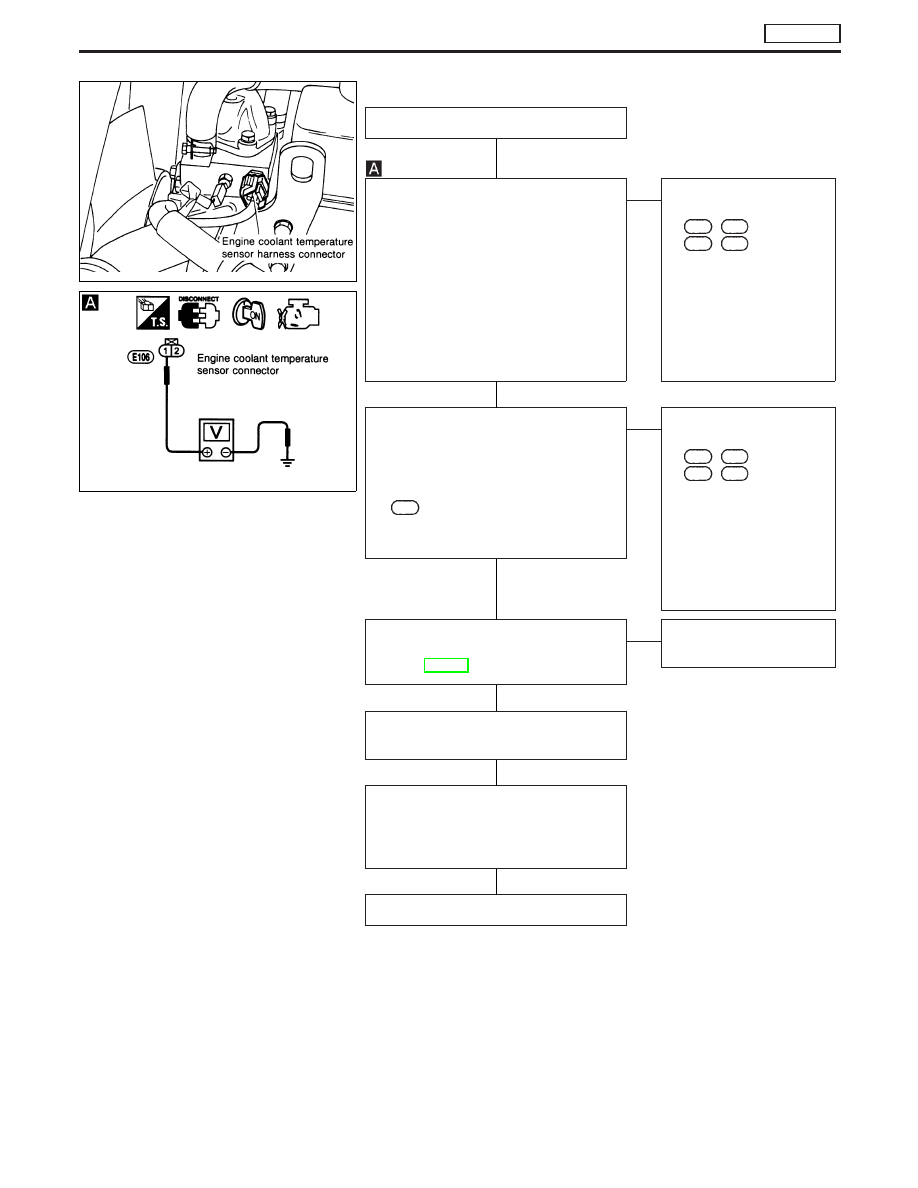

Diagnostic Procedure

INSPECTION START

CHECK POWER SUPPLY.
1. Turn ignition switch to “LOCK” position.
2. Disconnect engine coolant temperature

sensor harness connector.

3. Turn ignition switch to “ON” position.
4. Check voltage between engine coolant

temperature sensor connector terminal

q

1

and engine ground with CONSULT-II

or tester.
Voltage:

Approximately 4.9V

OK

E

NG

Check the following:

I

Harness connectors

E151

,

F138

(LHD model)

E151

,

M843

(RHD

model)

I

Harness for open or
short circuit between
ECM and engine coolant
temperature sensor.

If NG, repair harness or
connectors.

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “LOCK” position.
2. Check harness continuity between

engine coolant temperature sensor
connector terminal

q

2

and ECM terminal

334

. Refer to wiring diagram.

Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following:

I

Harness connectors

E151

,

F138

(LHD model)

E151

,

M843

(RHD

model)

I

Harness for open or
short circuit between
ECM and engine coolant
temperature sensor.

If NG, repair harness or
connectors.

CHECK COMPONENT
(Engine coolant temperature sensor).
Refer to EC-364.

OK

E

NG

Replace engine coolant
temperature sensor.

Disconnect and reconnect harness con-
nectors in the circuit. Then retest.

Trouble is not fixed.

Check ECM pin terminals for damage and
check the connection of ECM harness
connector. Reconnect ECM harness con-
nector and retest.

INSPECTION END

NEF487

NEF670

H

H

H

H

H

H

DTC P0115 COOLANT TEMP SEN

TD27Ti

EC-363

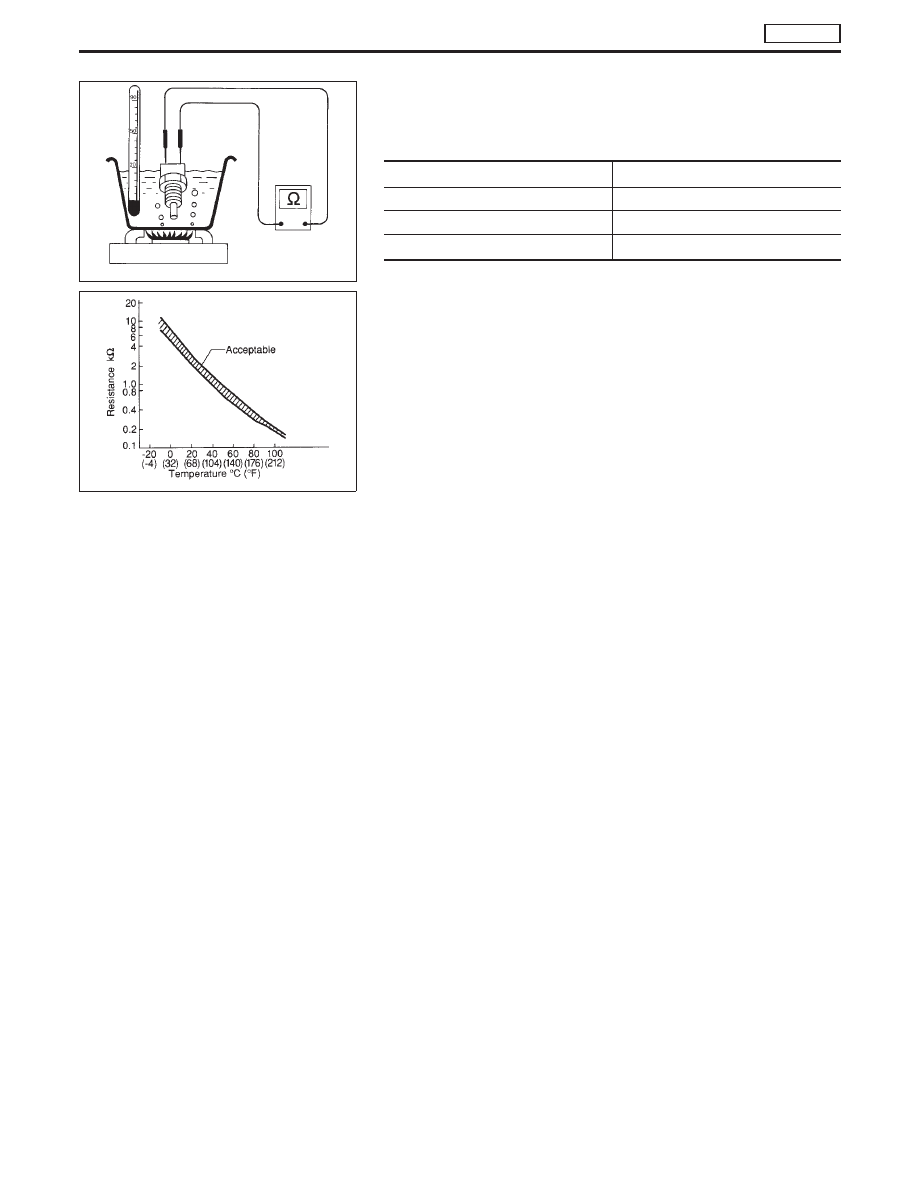

Component Inspection

ENGINE COOLANT TEMPERATURE SENSOR

Check resistance as shown in the figure.

Temperature °C (°F)

Resistance k

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.0

90 (194)

0.236 - 0.260

If NG, replace engine coolant temperature sensor.

SEF152P

SEF012P

DTC P0115 COOLANT TEMP SEN

TD27Ti

EC-364
