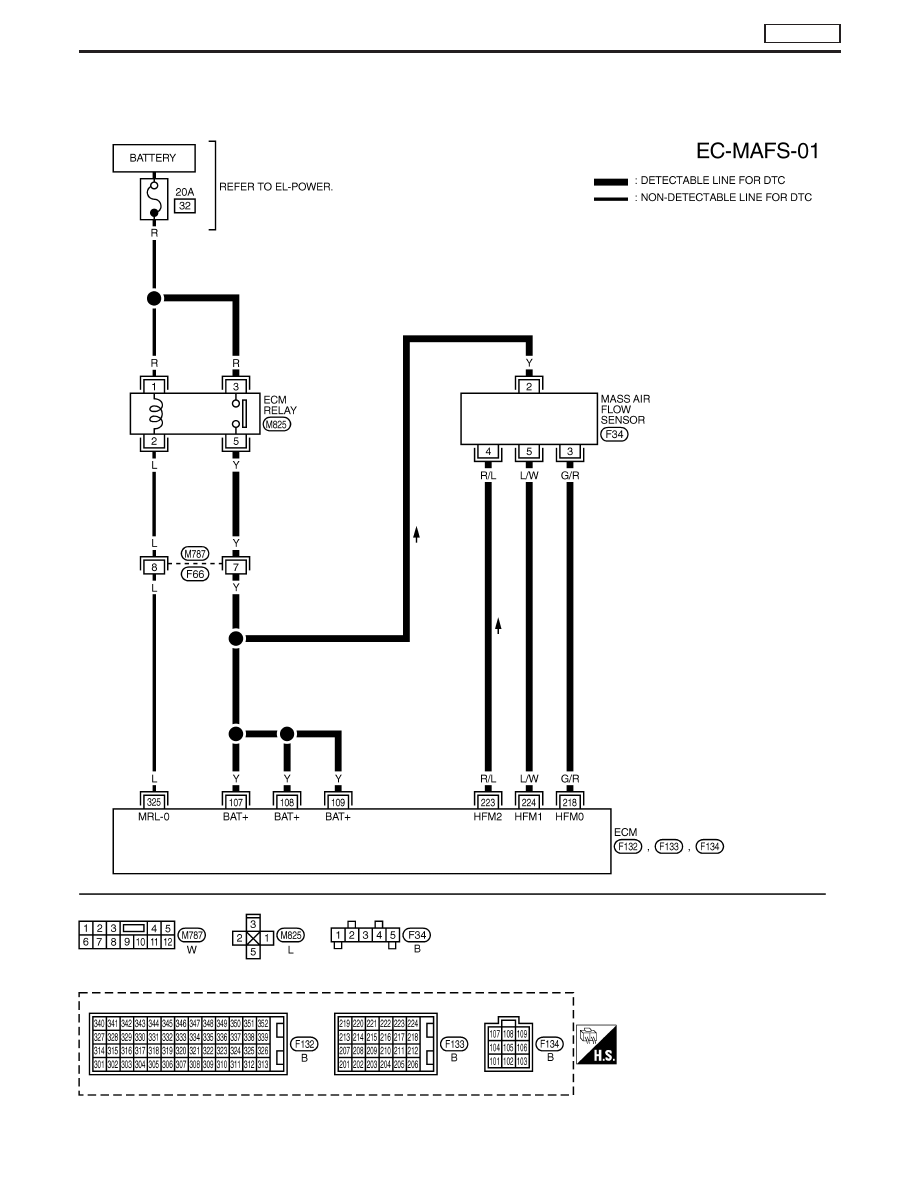

Wiring Diagram

LHD MODELS

YEC142A

DTC P0100 MASS AIR FLOW SEN

TD27Ti

EC-357

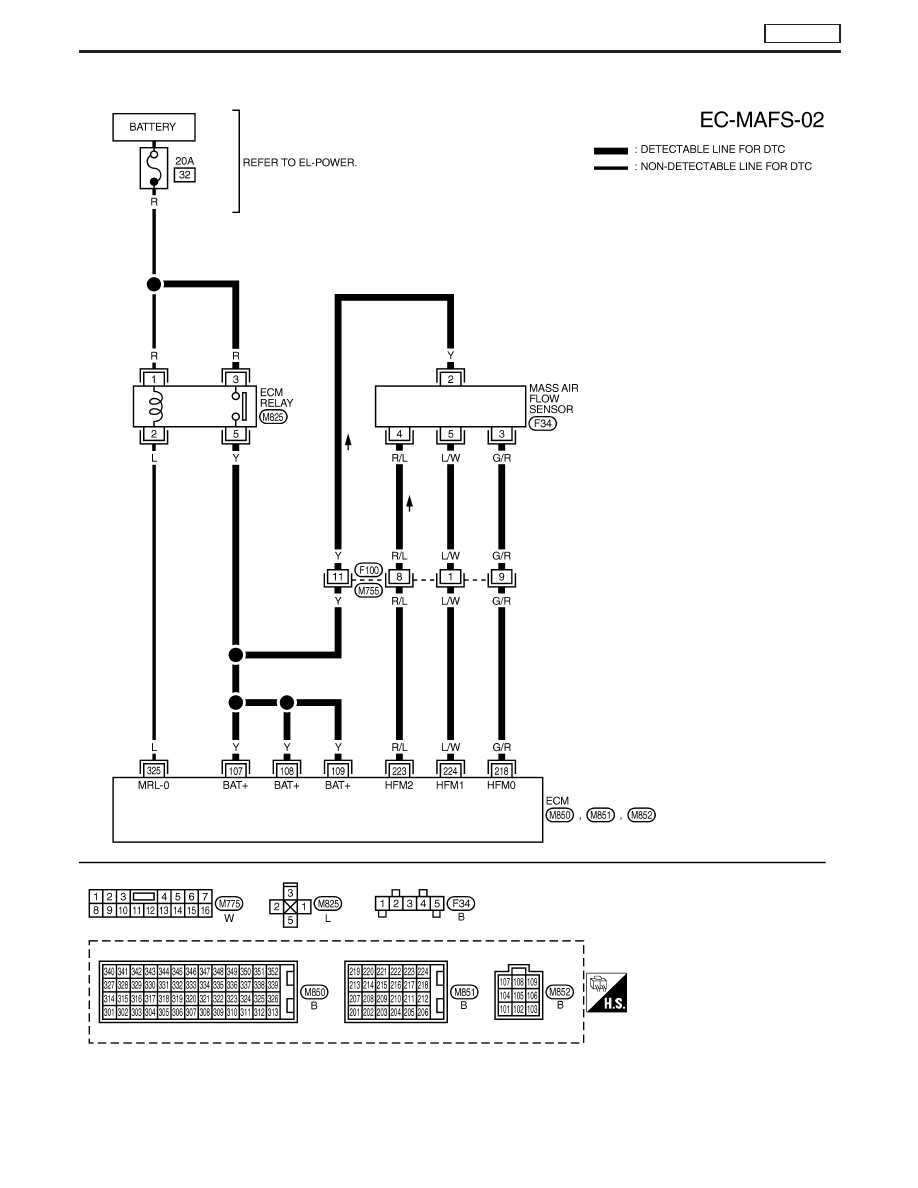

RHD MODELS

YEC143A

DTC P0100 MASS AIR FLOW SEN

TD27Ti

Wiring Diagram (Cont’d)

EC-358

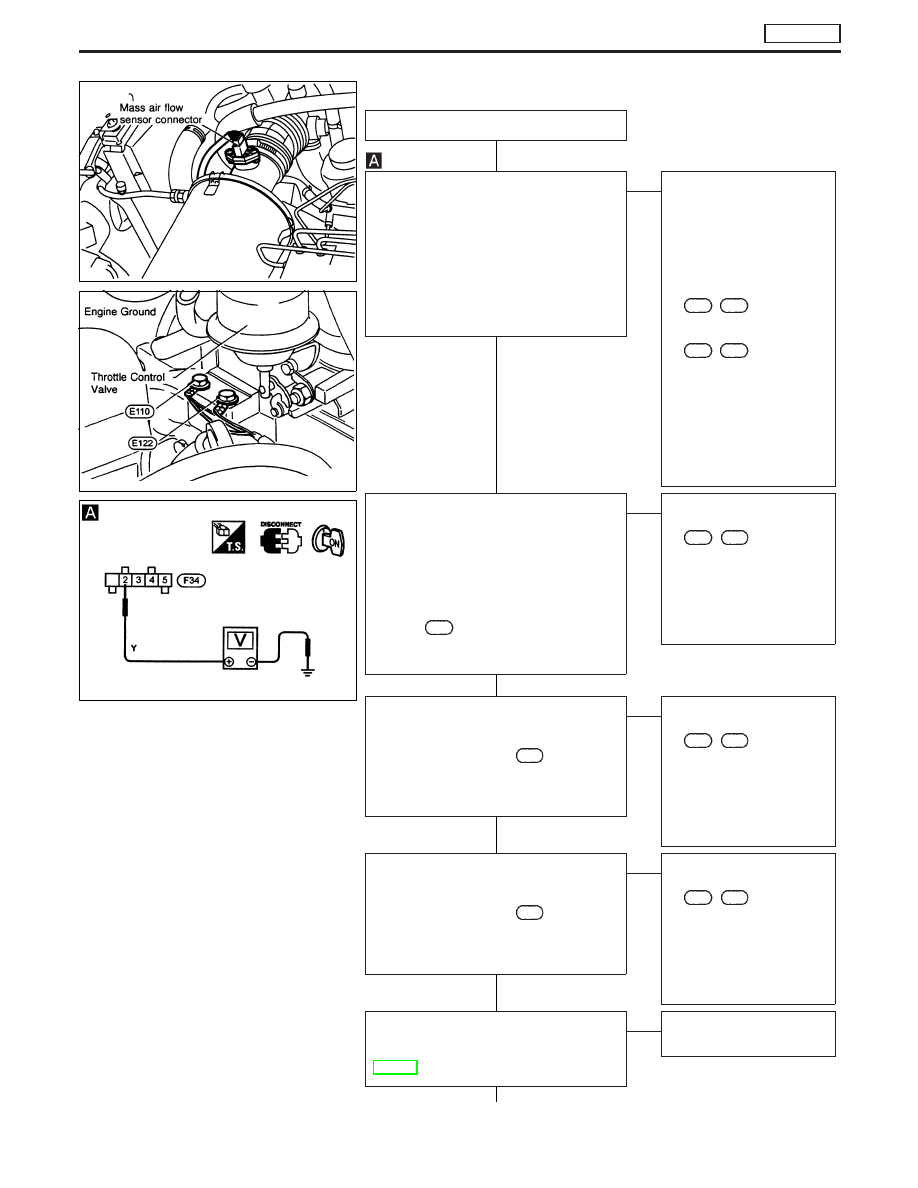

Diagnostic Procedure

INSPECTION START

CHECK POWER SUPPLY.
1. Turn ignition switch to “LOCK” position.
2. Disconnect mass air flow sensor har-

ness connector.

3. Turn ignition switch to “ON” position.
4. Check voltage between mass air flow

sensor connector terminal

q

2

and

engine ground with CONSULT-II or
tester.
Voltage: Battery positive voltage

OK

E

NG

Check the following:

I

20A fuse

I

ECM Relay

I

Harness continuity
between ECM relay (coil
and load side) connector
and battery supply

I

Harness connectors

F100

,

M755

(RHD mod-

els)

I

Harness connectors

M787

,

F66

(LHD mod-

els)

I

Harness continuity
between ECM relay con-
nector and Mass Air
Flow Sensor Connector.

If NG, replace 20A fuse or
ECM relay, or repair har-
ness or connectors.

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “LOCK” position.
2. Disconnect ECM harness connector.
3. Loosen and retighten engine ground

screws.

4. Check harness continuity between

mass air flow sensor harness connec-
tor terminal

q

3

and ECM connector ter-

minal

218

. Refer to wiring diagram.

Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following.

I

Harness connectors

F100

,

M755

(RHD mod-

els)

I

Harness continuity
between mass air flow
sensor and ECM

If NG, repair or replace
harness or connectors.

CHECK INPUT SIGNAL CIRCUIT.
Check harness continuity between mass
air flow sensor connector terminal

q

4

and

ECM connector terminal

223

. Refer to

wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following.

I

Harness connectors

F100

,

M755

(RHD mod-

els)

I

Harness continuity
between mass air flow
sensor and ECM

If NG, repair or replace
harness or connectors.

CHECK INPUT SIGNAL CIRCUIT.
Check harness continuity between mass
air flow sensor connector terminal

q

5

and

ECM connector terminal

224

. Refer to

wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following.

I

Harness connectors

F100

,

M755

(RHD mod-

els)

I

Harness continuity
between mass air flow
sensor and ECM

If NG, repair or replace
harness or connectors.

CHECK COMPONENT
(Mass air flow sensor).
Refer to “COMPONENT INSPECTION”,
EC-360.

OK

E

NG

Replace mass air flow sen-
sor.

q

A

NEF664

NEF591

NEF352

H

H

H

H

H

H

DTC P0100 MASS AIR FLOW SEN

TD27Ti

EC-359

q

A

Disconnect and reconnect harness
connectors, then retest.

Trouble is not fixed.

Check ECM pin terminals for damage or
the connection of ECM harness connector.
Reconnect ECM harness connector and
retest.

INSPECTION END

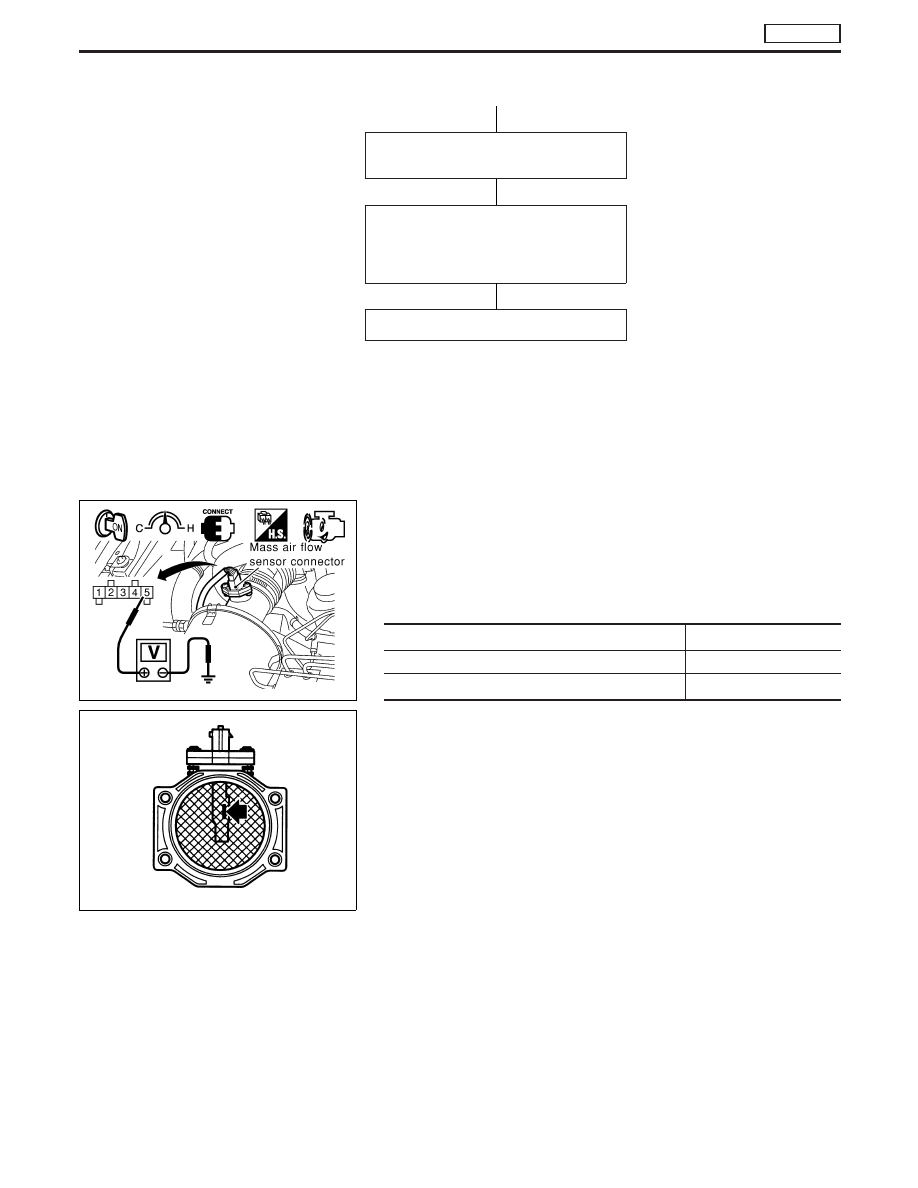

Component Inspection

MASS AIR FLOW SENSOR

1. Turn ignition switch to “ON” position.
2. Start engine and warm it up sufficiently.
3. Check voltage between mass air flow sensor connector termi-

nal

q

5

and engine ground.

Condition

Voltage V

Ignition switch “ON” position (Engine stopped.)

Approx. 1.0

Idle (Engine is warmed-up sufficiently.)

Approx. 2.2

4. If NG, remove mass air flow sensor from air duct. Check hot film

for damage or dust.

MEC957D

NEF669

H

H

H

DTC P0100 MASS AIR FLOW SEN

TD27Ti

Diagnostic Procedure (Cont’d)

EC-360
