Nissan Terrano r20e. Manual - part 11





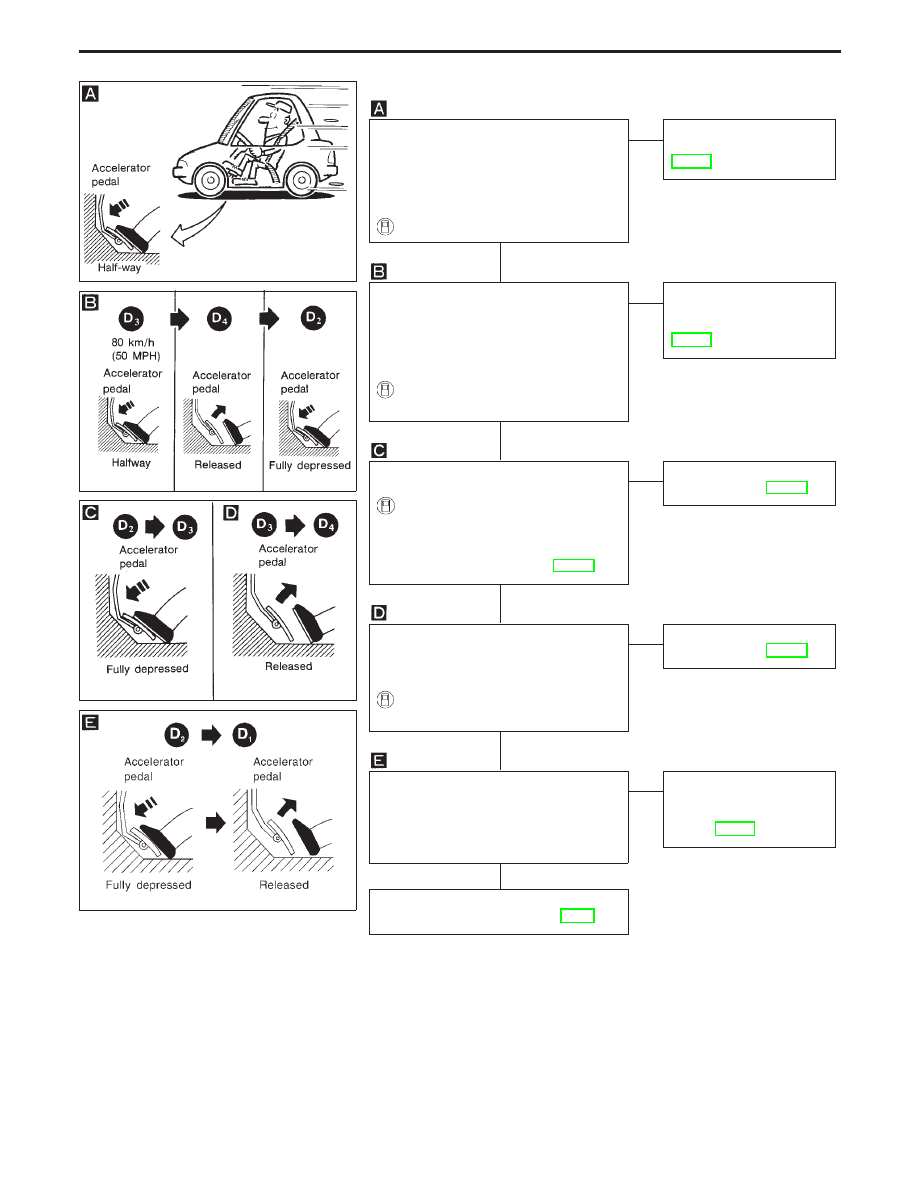

CRUISE TEST — Part 2

1. Confirm overdrive control switch is in

“ON” position.

2. Confirm selector lever is in “D” position.
3. Accelerate vehicle by half throttle

again.

4. Does vehicle start from D

1

?

Read gear position.

Yes

E

No

Go to “19. Vehicle Does
Not Start From D

1

”,

AT-109.

1. Accelerate vehicle to 80 km/h (50

MPH) as shown in illustration.

2. Release accelerator pedal and then

quickly depress it fully.

3. Does A/T shift from D

4

to D

2

as soon

as accelerator pedal is depressed fully?

Read gear position and throttle
position.

Yes

E

No

Go to “12. A/T Does Not
Shift: D

1

,

D

2

Or Does

Not Kickdown: D

4

,

D

2

”,

AT-103.

Does A/T shift from D

2

to D

3

at the speci-

fied speed?

Read gear position, throttle posi-
tion and vehicle speed.

Specified speed when shifting from
D

2

to D

3

:

Refer to Shift schedule, AT-196.

Yes

E

No

Go to “13. A/T Does Not
Shift: D

2

,

D

3

”, AT-104.

1. Release accelerator pedal after shifting

from D

2

to D

3

.

2. Does A/T shift from D

3

to D

4

and does

vehicle decelerate by engine brake?

Read gear position, throttle posi-
tion and vehicle speed.

Yes

E

No

Go to “14. A/T Does Not
Shift: D

3

,

D

4

”, AT-105.

1. Decelerate to 10 km/h (6 MPH) with

accelerator pedal released and then
quickly depress it fully.

2. Does A/T shift from D

2

to D

1

as soon

as accelerator pedal is depressed fully?

Yes

E

No

Go to “20. A/T Does Not
Shift: D

2

,

D

1

When

Depressing Accelerator
Pedal”, AT-110.

1. Stop vehicle.
2. Go to “Cruise test — Part 3”, AT-42.

SAT495G

SAT404H

SAT405H

SAT124I

H

H

H

H

H

TROUBLE DIAGNOSIS — Basic Inspection

Road Test (Cont’d)

AT-41

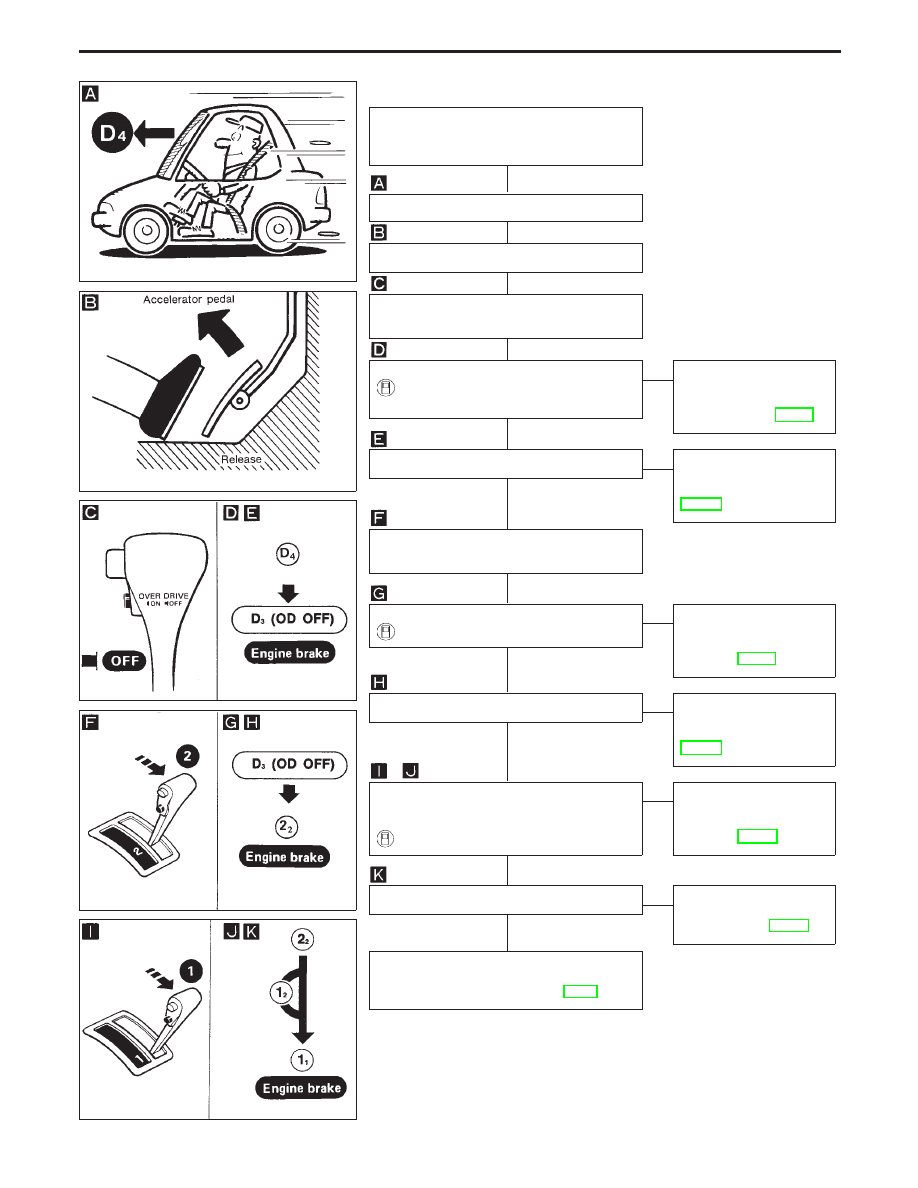

CRUISE TEST — Part 3
