AIR BREATHER HOSE

TM-195

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

2WD
2WD : Removal and Installation

INFOID:0000000009885916

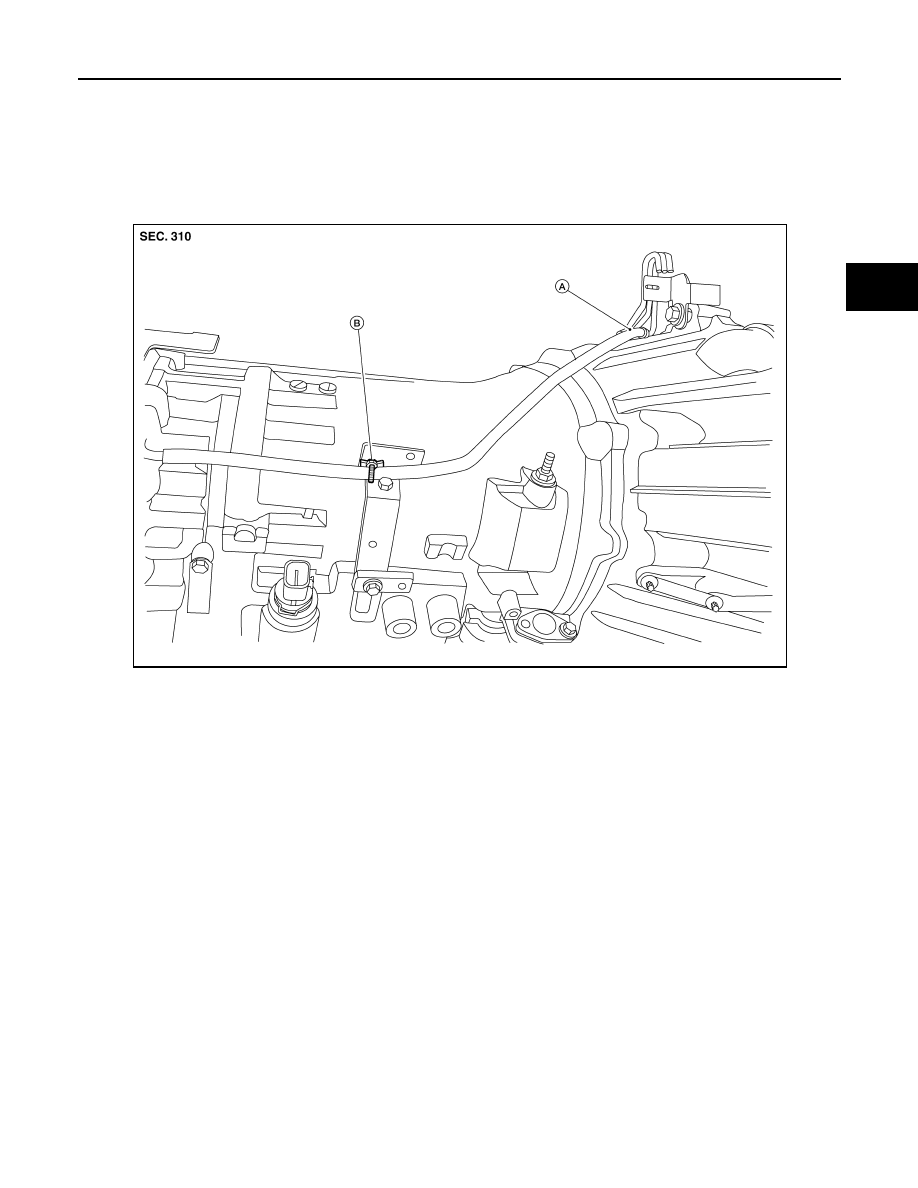

COMPONENTS

REMOVAL

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

4WD
4WD : Removal and Installation

INFOID:0000000009885917

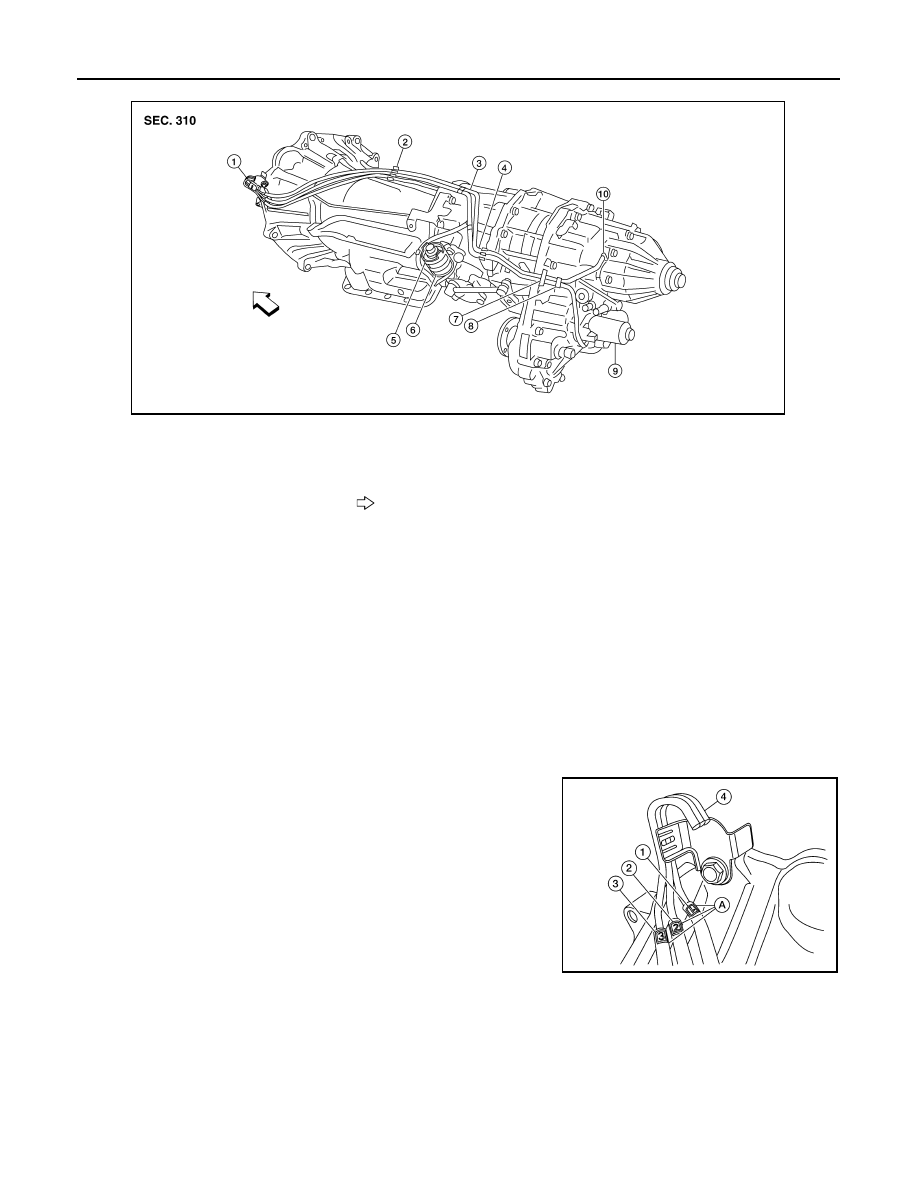

COMPONENTS

A.

Set air breather hose with
paint mark at upper side

B.

Clip (set securely to bracket)

AWDIA0554GB

TM-196

< REMOVAL AND INSTALLATION >

AIR BREATHER HOSE

REMOVAL

1. Disconnect air breather hose from transfer motor.
2. Disconnect air breather hose from breather tube (transfer).
3. Disconnect air breather hose from actuator.
4. Release air breather hose clamp and clips as necessary.
5. Disconnect air breather hoses from breather tube.

CAUTION:

Note paint marks for installation.

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.
1. Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

• A/T breather hose (1)

• Transfer breather hose (2)

• Actuator/transfer motor breather hose (3)

• Paint marks (A)

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Front

AWDIA0010ZZ

ALDIA0110ZZ

AIR BREATHER HOSE

TM-197

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

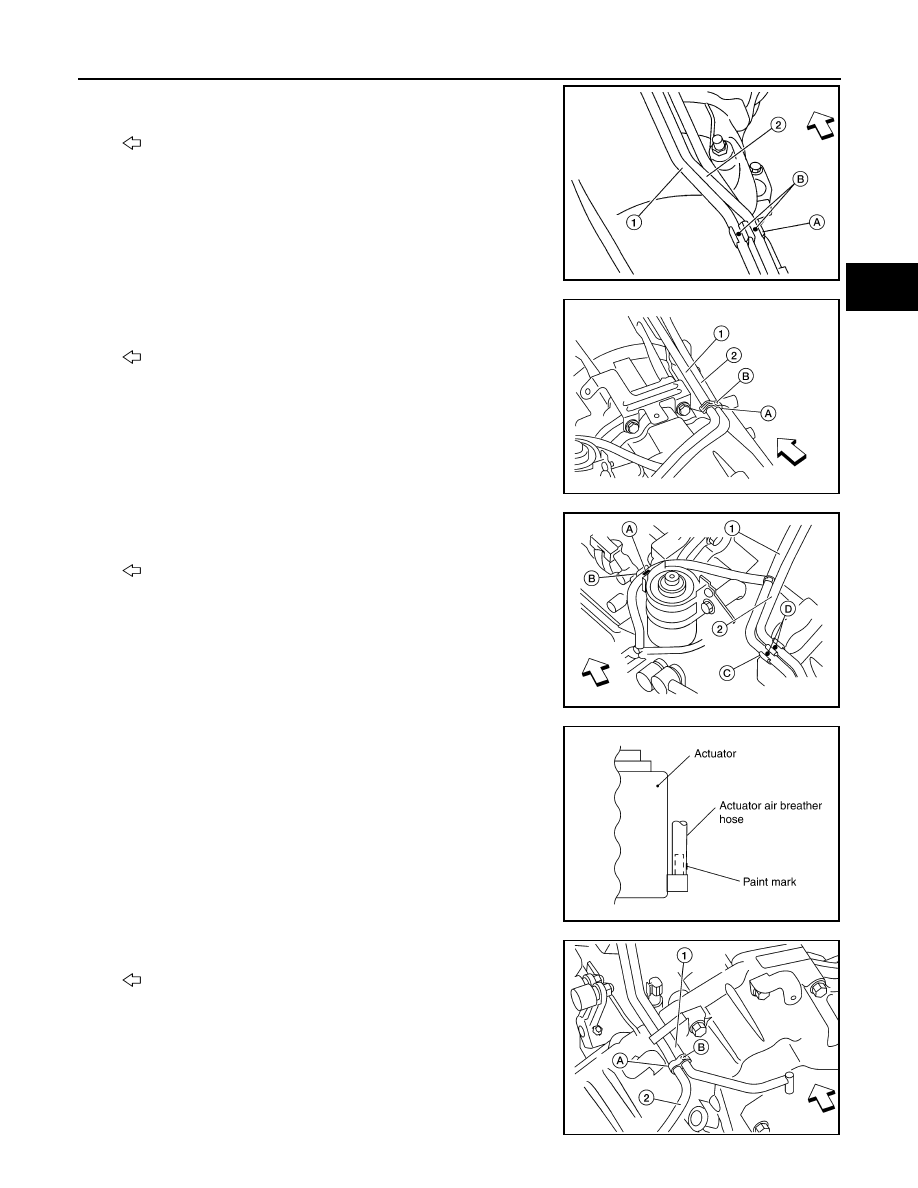

2. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (A) with the paint mark (B) facing

upward.
•

 :Front

3. Install clip (B) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (A)

matched.
•

 :Front

4. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (B) and clip (C) with the paint mark

(A) and (D) facing upward.
•

 :Front

5. Install the actuator air breather hose into the actuator (case con-

nector) until the hose end reaches the base of the tube. Set

actuator air breather hose with paint mark facing leftward.

6. Install clip (B) on transfer motor air breather hose (2) and trans-

fer air breather hose (1) with the paint mark (A) matched.
•

 :Front

ALDIA0111ZZ

AWDIA0011ZZ

AWDIA0012ZZ

SDIA3226E

AWDIA0013ZZ

TM-198

< REMOVAL AND INSTALLATION >

AIR BREATHER HOSE

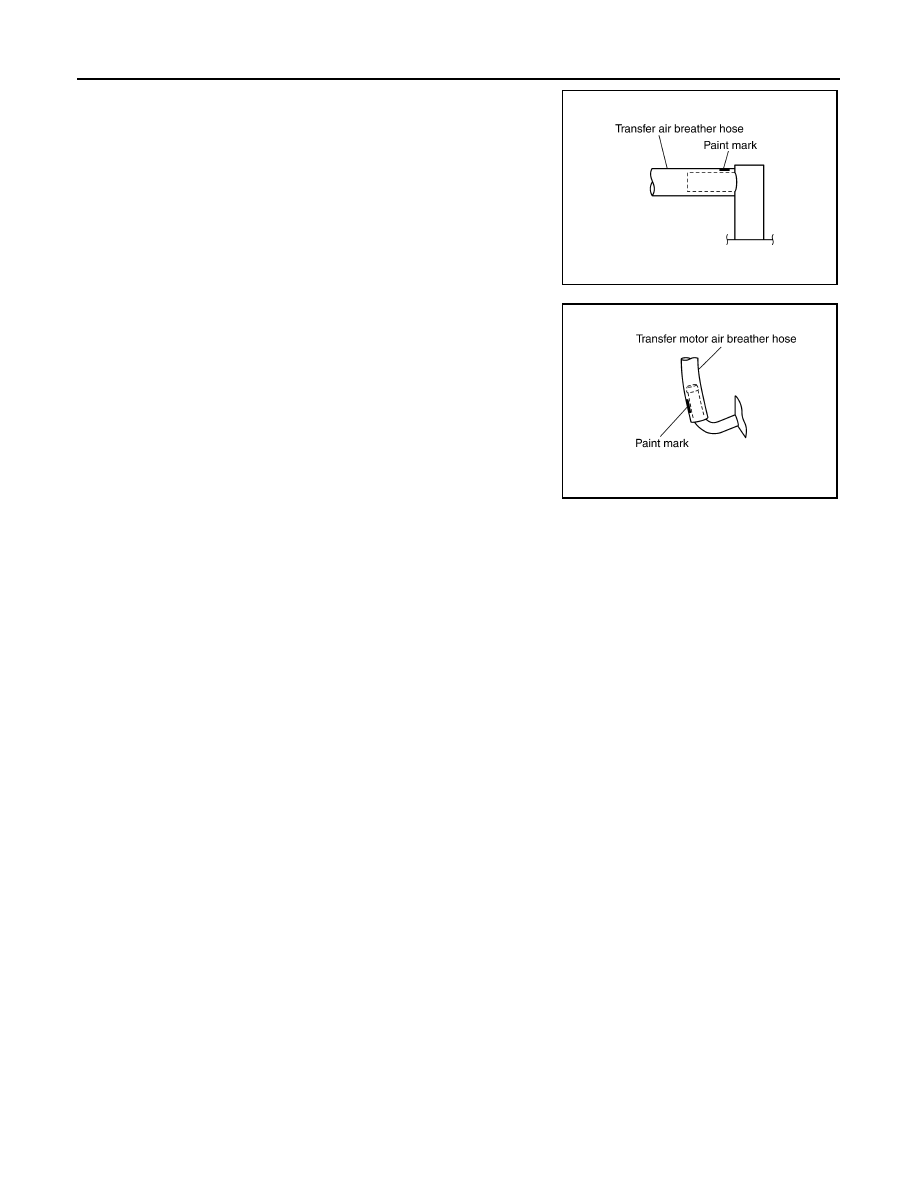

7. Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark facing

upwards.

8. Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of

the curved section. Set transfer motor air breather hose with

paint mark facing leftward.
