CONTROL CABLE

TM-191

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

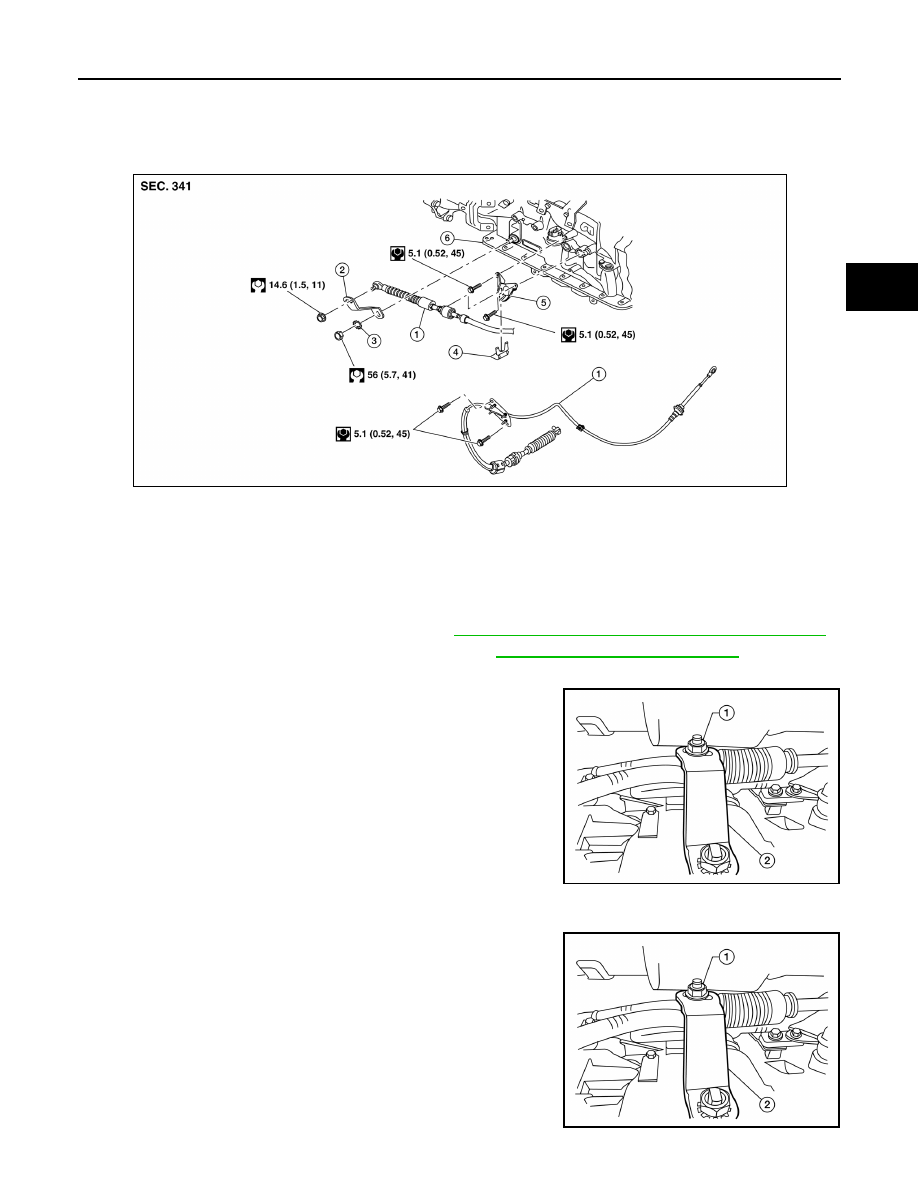

CONTROL CABLE

Exploded View

INFOID:0000000009885912

Removal and Installation

INFOID:0000000009885913

REMOVAL

1. Remove the A/T shift selector assembly. Refer to

TM-189, "A/T Shift Selector Removal and Installation"

.

2. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

3. Remove the control cable retainer bolts.
4. Remove the control cable nut (1) and disconnect the control

cable from the manual lever (2).

5. Remove the control cable from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the control cable nut (1) to specification.

1. Control cable

2. Manual lever

3. Washer

4. Lock plate

5. Control cable bracket

6. A/T assembly

AWDIA0954GB

AWDIA1043ZZ

Control cable nut (1) : 14.6 N·m (1.5 kg-m, 11 ft-lb)

(2) : Manual lever

AWDIA1043ZZ

TM-192

< REMOVAL AND INSTALLATION >

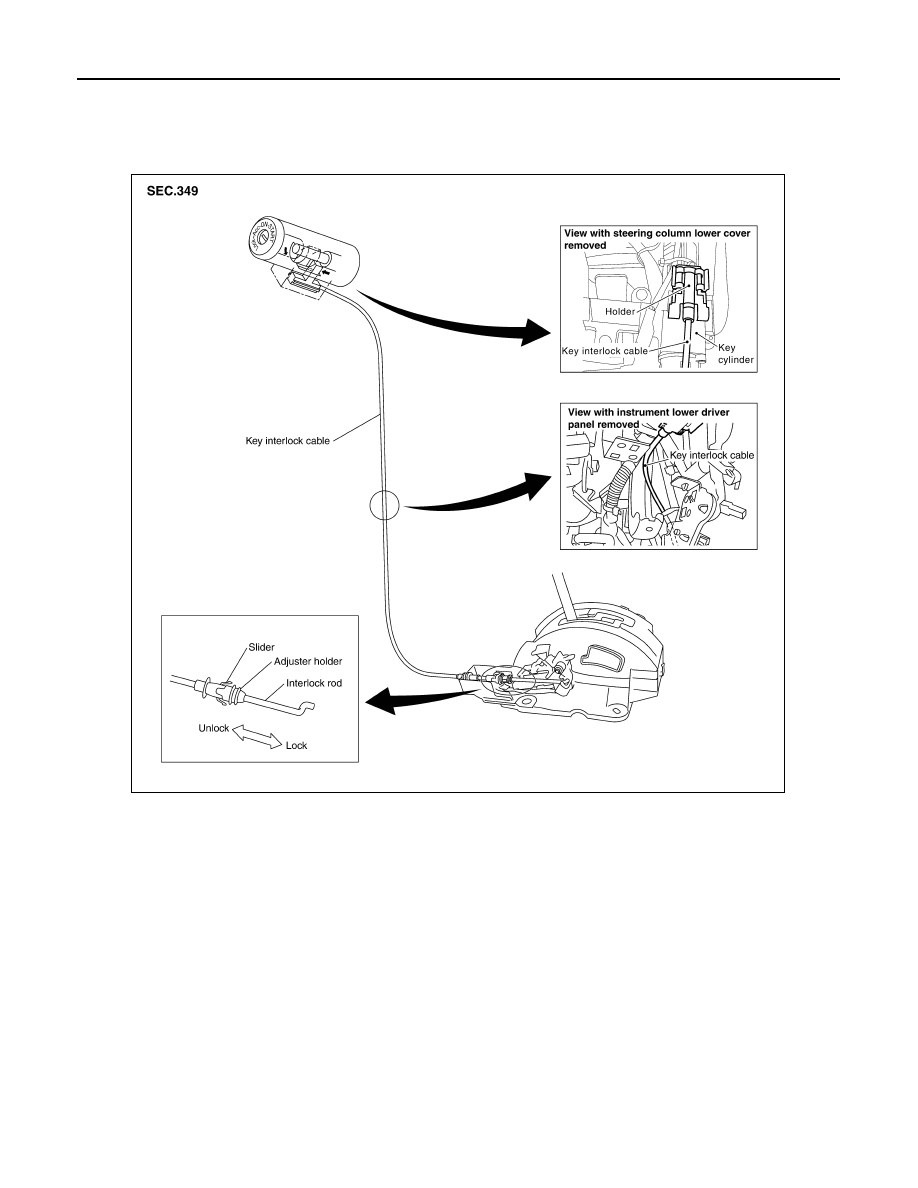

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Component

INFOID:0000000009885914

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to A/T shift selector, make sure that casing cap and bracket are

firmly secured in their positions. If casing cap can be removed with an external load of less than 39

N (4.0 kg, 8.8 lb), replace key interlock cable with new one.

Removal and Installation

INFOID:0000000009885915

REMOVAL (Floor shift models)

WCIA0467E

KEY INTERLOCK CABLE

TM-193

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

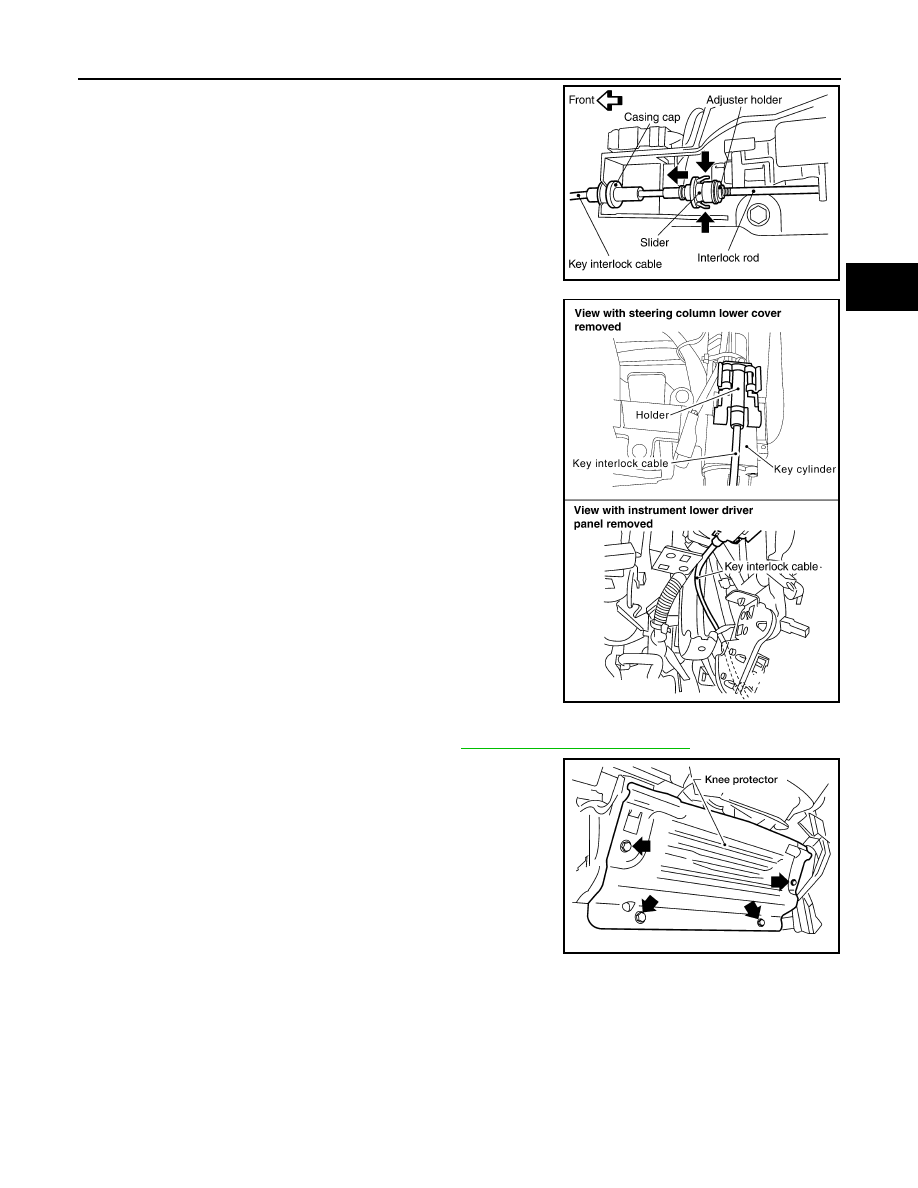

1. Unlock slider from adjuster holder by squeezing lock tabs.
2. Remove casing cap from bracket of A/T shift selector assembly

and remove interlock rod from adjuster holder.

3. Remove holder from key cylinder and remove key interlock

cable.

REMOVAL (Column shift models)

1. Remove the instrument lower panel (LH). Refer to

IP-17, "Removal and Installation"

.

2. Remove the knee protector.

3. Disconnect shift lock cable.
4. Remove the key interlock cable.

INSTALLATION (Floor shift models)

SCIA1230E

LCIA0375E

LGIA0026E

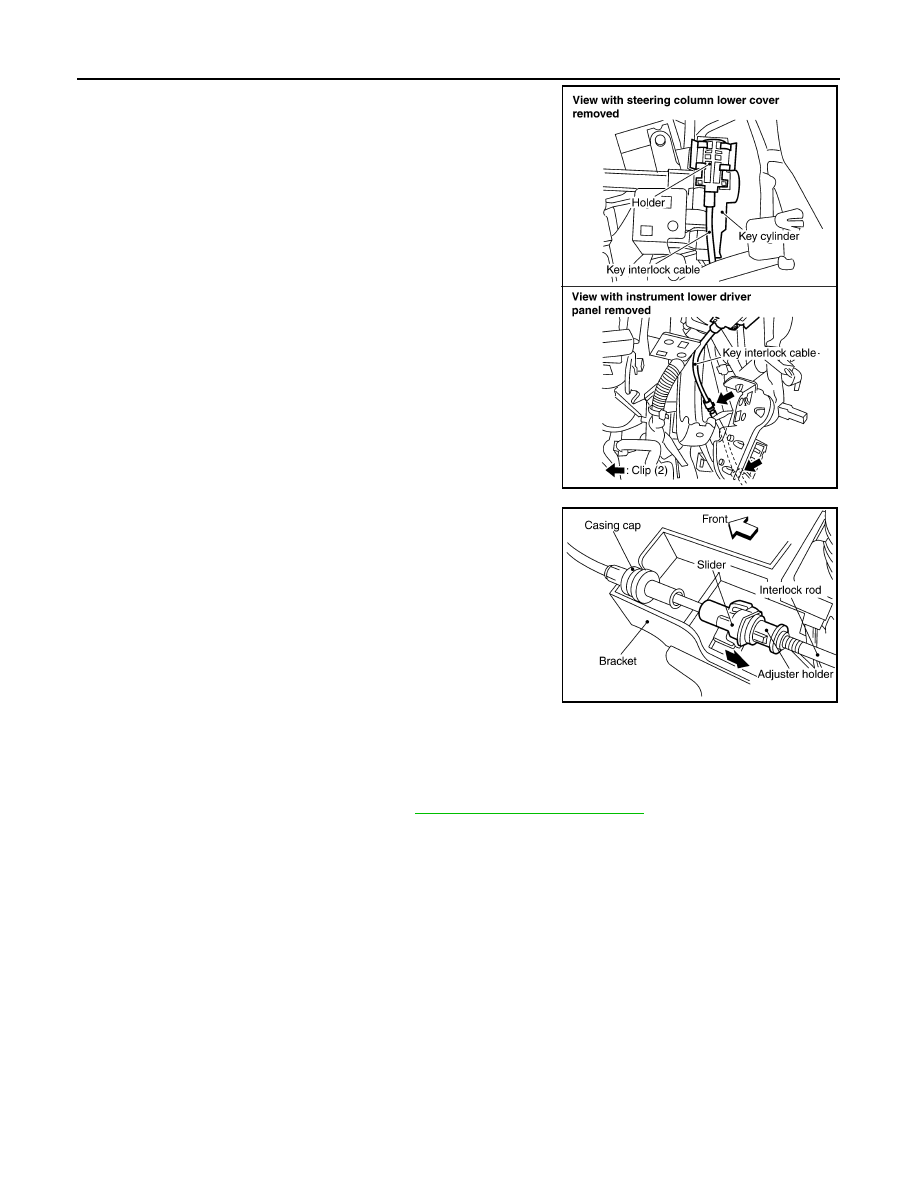

TM-194

< REMOVAL AND INSTALLATION >

KEY INTERLOCK CABLE

1. Set key interlock cable to key cylinder and install holder.
2. Turn ignition key to "LOCK" position.
3. Set A/T shift selector to (P) position.

4. Insert interlock rod into adjuster holder.
5. Install casing cap to bracket.
6. Move slider in order to secure adjuster holder to interlock rod.

INSTALLATION (Column shift models)

1. Install key interlock cable to ignition key cylinder.
2. Connect the shift lock cable.
3. Install knee protector.
4. Install instrument lower panel (LH). Refer to

IP-17, "Removal and Installation"

.

SCIA2258E

SCIA1232E
