Nissan Titan. Manual - part 340





EXT-30

< REMOVAL AND INSTALLATION >

SIDE GUARD MOLDING

SIDE GUARD MOLDING

Removal and Installation

INFOID:0000000009879103

Removal

CAUTION:

Do not apply tack-paper adhesive remover to body panel surfaces finished with lacquer-based paints.

• Original side guard molding is affixed to the body panel with double-faced adhesive tape.
1. Heat the molding to between 30

° and 40°C (86° to 104°F) with a heat gun.

2. Raise the end of the molding and cut away the tape to remove the molding. Remove all traces of tape.

Installation

• On the vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No. 4210 or

equivalent, after priming with 3M primer Product No. N200, C-100 or equivalent.

• The repair parts are also affixed with double-faced adhesive tape.

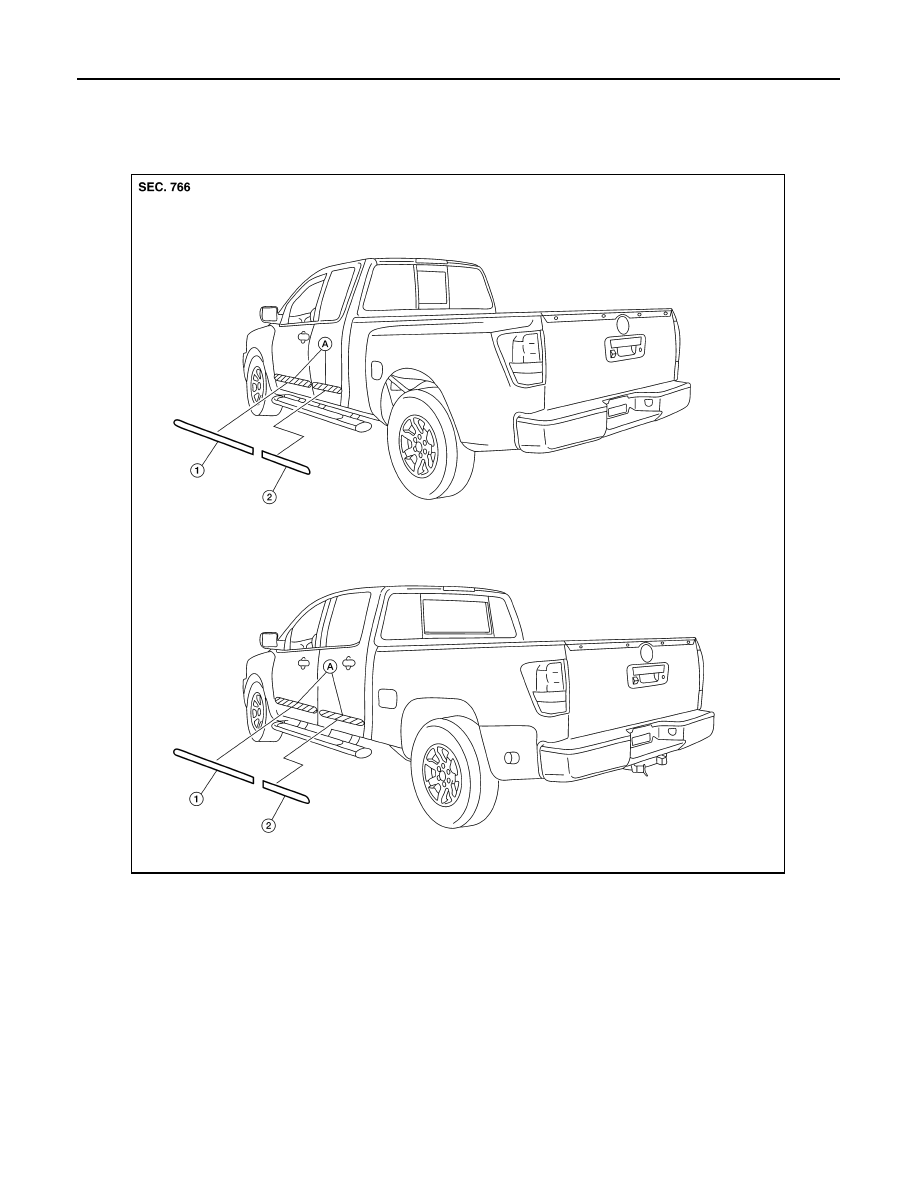

1.

Front door side guard molding 2.

Rear door side guard molding A. Double-faced adhesive tape application locations

AWKIA2080ZZ

SIDE GUARD MOLDING

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

• To re-use existing molding, clean all traces of double sided tape from the molding and apply new double-

faced tape to the molding.

1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and molding tape surface to 30

° to 40°C (86° to 104°F).

3. Remove the backing sheet from the tape surface.

• Align the locating pin into the hole in the outer door.

• Continue aligning the pins into their corresponding holes in the outer door during installation.

4. Press ends by hand and use a roller to apply 5 kg-f (11 lbs-f) to press molding to door surface.

• Apply even pressure along molding to insure proper wet out.

CAUTION:

For a secure contact, do not wash vehicle for 24 hours after installation.

EXT-32

< REMOVAL AND INSTALLATION >

BED RAILS AND TRIM

BED RAILS AND TRIM

Removal and Installation

INFOID:0000000009879104

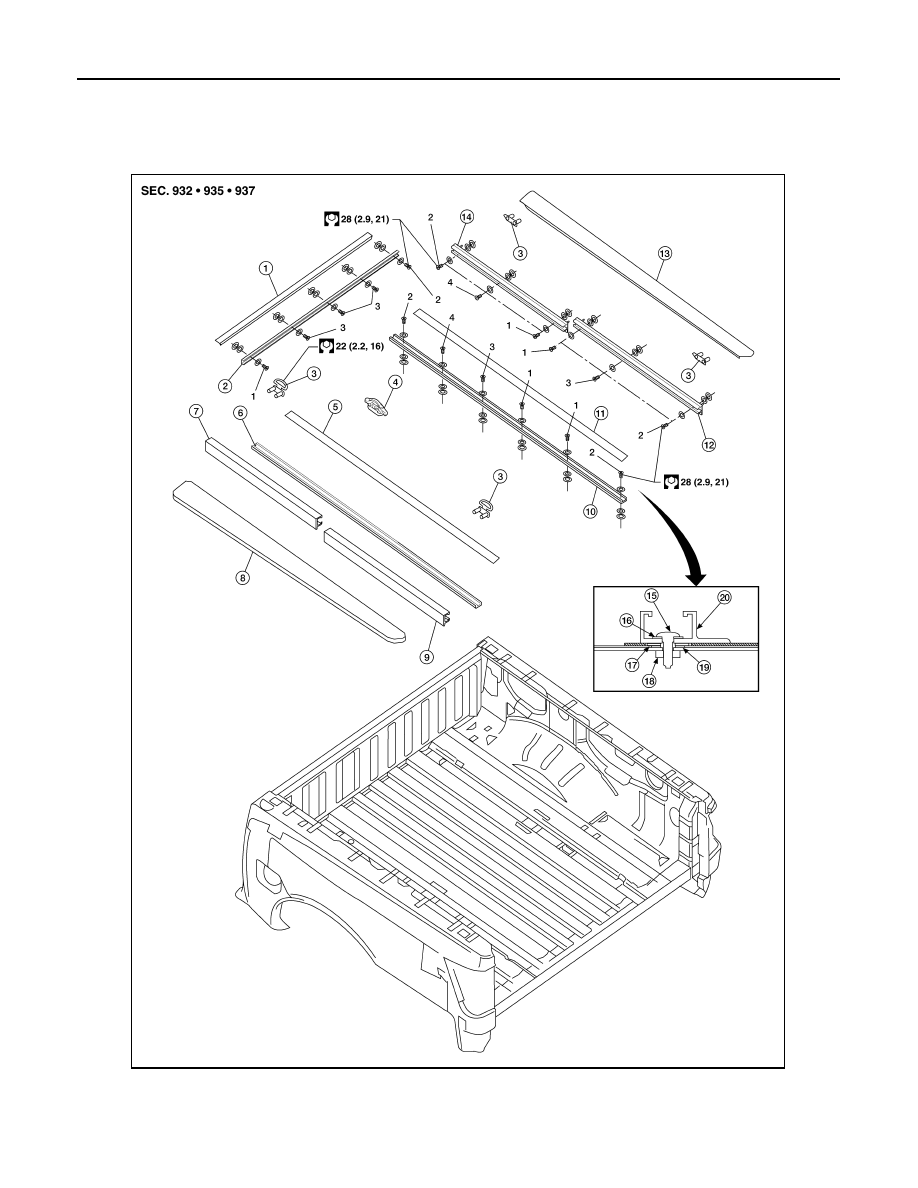

1.

Header top trim

2.

Header tie down rail

3.

Rope hook

4.

Tie down cleat

5.

Floor rail cover (LH)

6.

Floor rail (LH)

7.

Bed side front tie down rail (LH)

8.

Top side rail trim (LH)

9.

Bed side rear tie down rail (LH)

AWKIA1529GB

BED RAILS AND TRIM

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL

1. Remove floor rail covers.
2. Remove tie down cleats.
3. Remove floor rails (LH/RH).
4. Remove bed side front and rear tie down rails (LH/RH).
5. Remove rope hooks.
6. Remove header tie down rail.
7. Release clips and remove header top trim.
8. Release clips and remove top side rail trim (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Tighten rail bolts in numerical order.

10. Floor rail (RH)

11. Floor rail cover (RH)

12. Bed side rear tie down rail (RH)

13. Top side rail trim (RH)

14. Bed side front tie down rail (RH)

15. Bolt

16. Washer

17

Spacer

18. Weld nut

19. Plastic keeper

20. Rail
