Nissan Titan. Manual - part 338

EXT-22

< REMOVAL AND INSTALLATION >

COWL TOP

6. Disconnect the windshield washer tube. Refer to

WW-56, "Washer Tube Layout"

.

7. Remove the A/C low-pressure pipe bracket from cowl top extension. Refer to

HA-38, "Removal and Instal-

lation"

.

8. Remove the drain tube from each side of cowl top extension.
9. Remove the cowl top extension.

INSTALLATION

Installation is in the reverse order of removal.

FRONT FENDER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

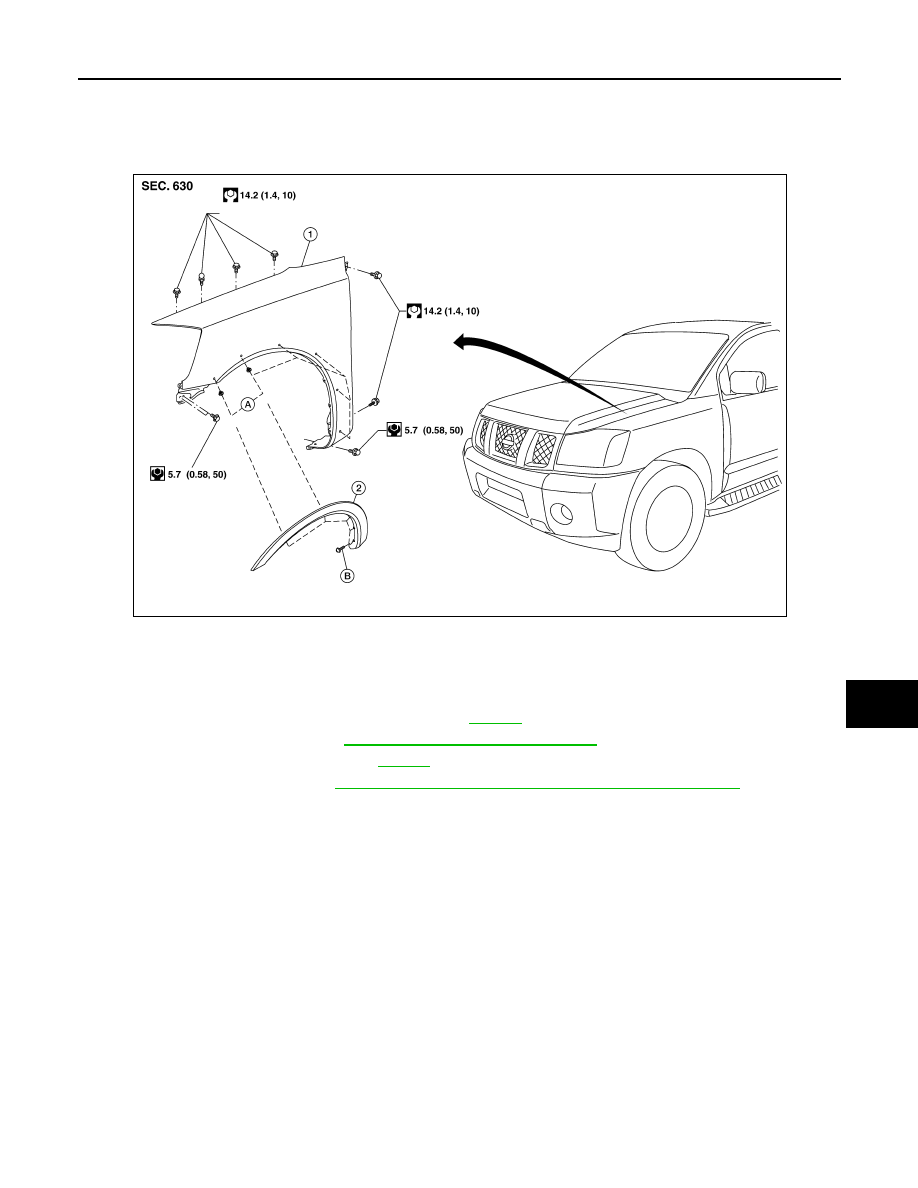

FRONT FENDER

Removal and Installation

INFOID:0000000009879098

REMOVAL

1. Remove the front mudguards (if equipped). Refer to

EXT-27

.

2. Remove the headlamps. Refer to

EXL-140, "Removal and Installation"

.

3. Remove the fender protector. Refer to

EXT-24

.

4. Remove the hood stay. Refer to

DLK-120, "Removal and Installation of Hood Lock Control"

.

5. Remove the front fender.
6. Remove the front fender wheel opening finisher screws, then remove the front fender wheel opening fin-

isher, using a suitable tool (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

1.

Front fender

2.

Front fender wheel opening finisher (if equipped)

A.

Clip

B.

Screws

AWKIA0019ZZ

EXT-24

< REMOVAL AND INSTALLATION >

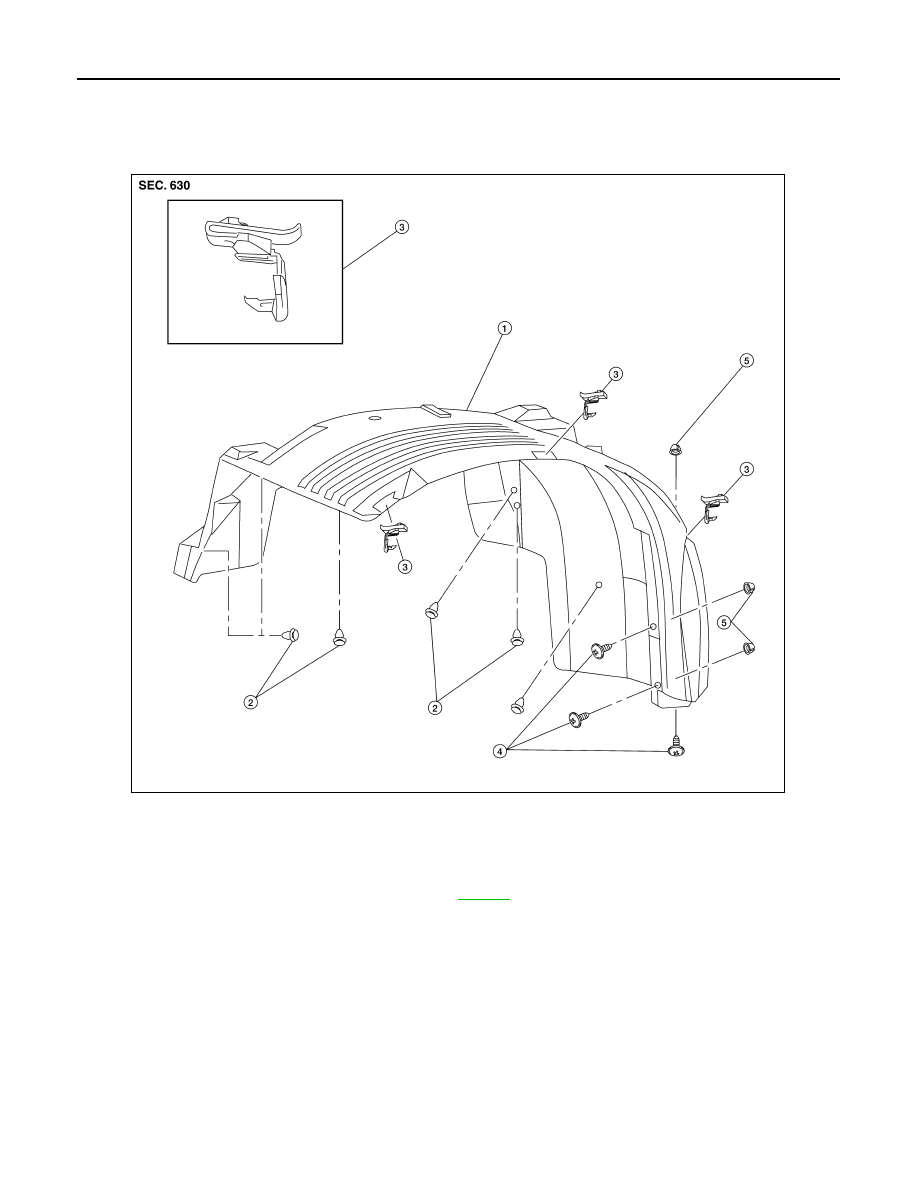

FENDER PROTECTOR

FENDER PROTECTOR

Removal and Installation

INFOID:0000000009879099

REMOVAL

1. Remove the front mudguard, if equipped. Refer to

EXT-27

.

2. Remove the screws.
3. Remove the plastic clips.
4. Remove the pushpins.
5. Remove the fender protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Fender protector LH

2.

Pushpins

3.

Plastic clips

4.

Screws

5.

Grommets

AWKIA1597ZZ

RUNNING BOARDS

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

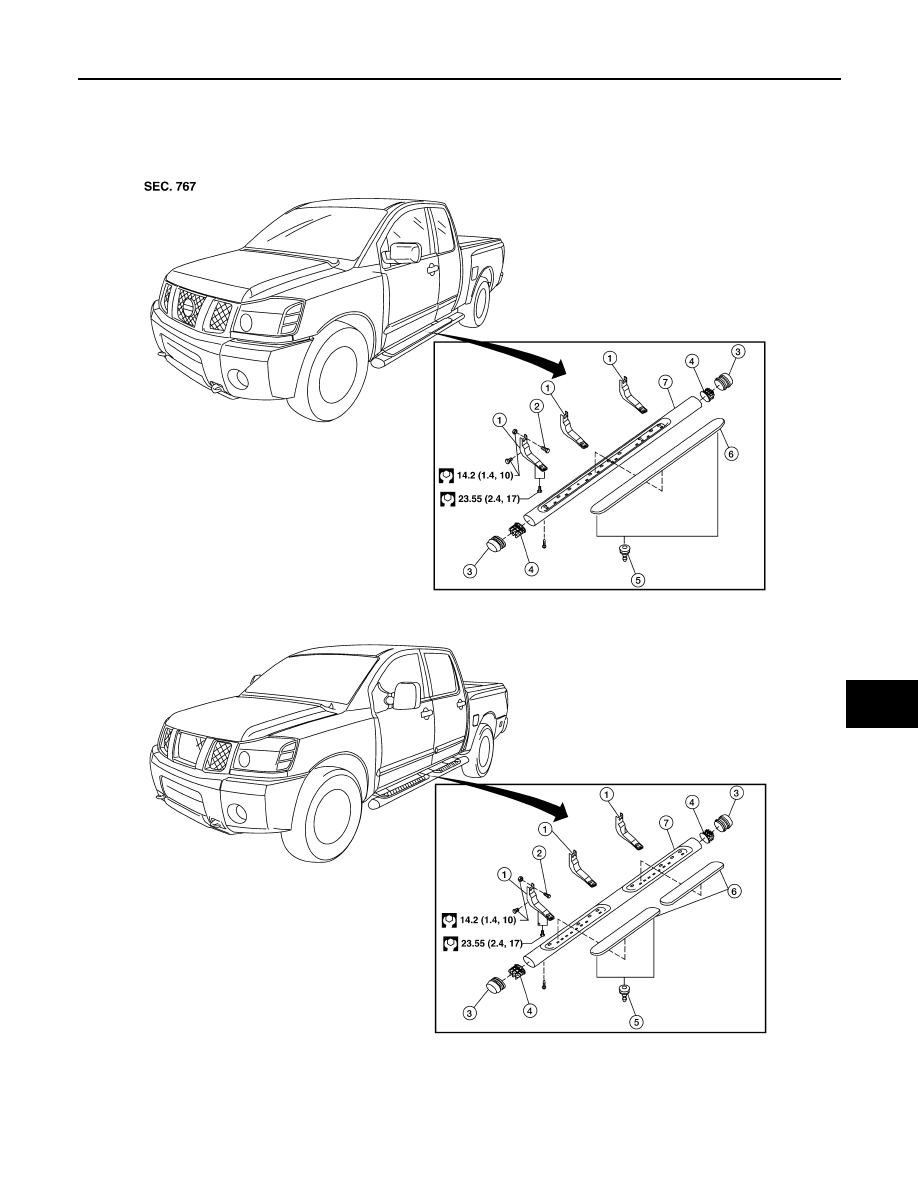

RUNNING BOARDS

Removal and Installation

INFOID:0000000009879100

1.

Running board bracket

2.

Weld stud

3.

End cap

4.

End cap reinforcement

5.

Plastic clip

6.

Step pad

7.

Running board

WIIA0994E
