REMOVAL AND INSTALLATION

FRONT BUMPER

Removal and Installation

INFOID:0000000009879094

STEEL BUMPER

Removal

1. Remove the front grille. Refer to

EXT-20

.

AWKIA1095GB

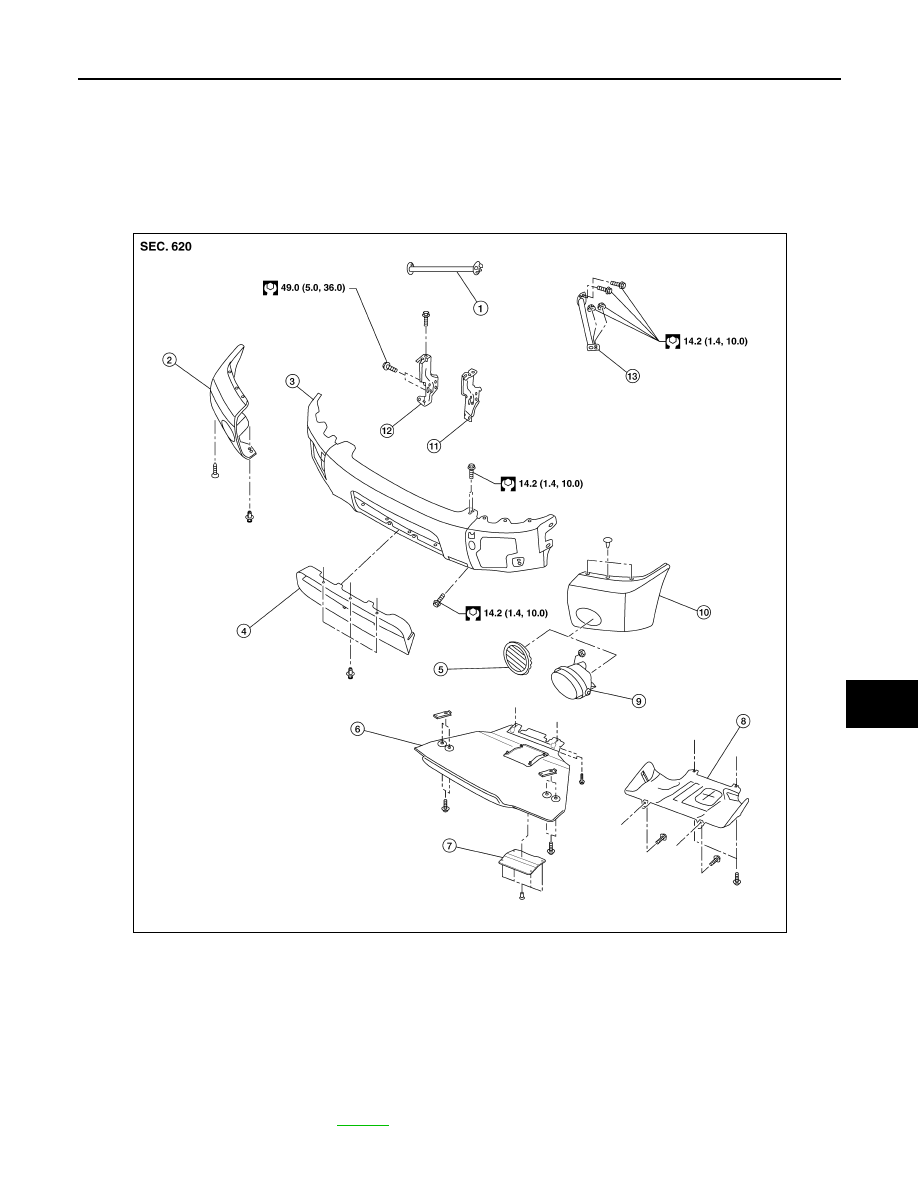

1.

Front bumper bracket (RH)

2.

Front fascia finisher (RH)

3.

Front bumper assembly

4.

Front bumper opening finisher

5.

Fog lamp opening finisher (if equipped)

6.

Skid plate (with off-road package)

7.

Access cover

8.

Engine under cover (without off-road pack-
age)

9.

Fog lamp assembly (if equipped)

10. Front fascia finisher (LH)

11. Front bumper bracket stay (LH)

12.

Front bumper bracket stay (RH)

13. Front bumper bracket (LH)

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

2. Remove the engine under cover or skid plate.
3. Remove the fog lamp (if equipped). Refer to

EXL-143, "Removal and Installation"

.

4. Remove the front bumper side bracket nuts.
5. Remove the front bumper assembly.
6. Remove the front bumper opening finisher clips and remove the front bumper opening finisher.
7. Remove the front bumper (LH/RH) side finishers.
8. Remove the front bumper brackets (LH/RH).
9. Remove the front bumper stays (LH/RH).

Installation

Installation is in the reverse order of removal.

PLASTIC BUMPER

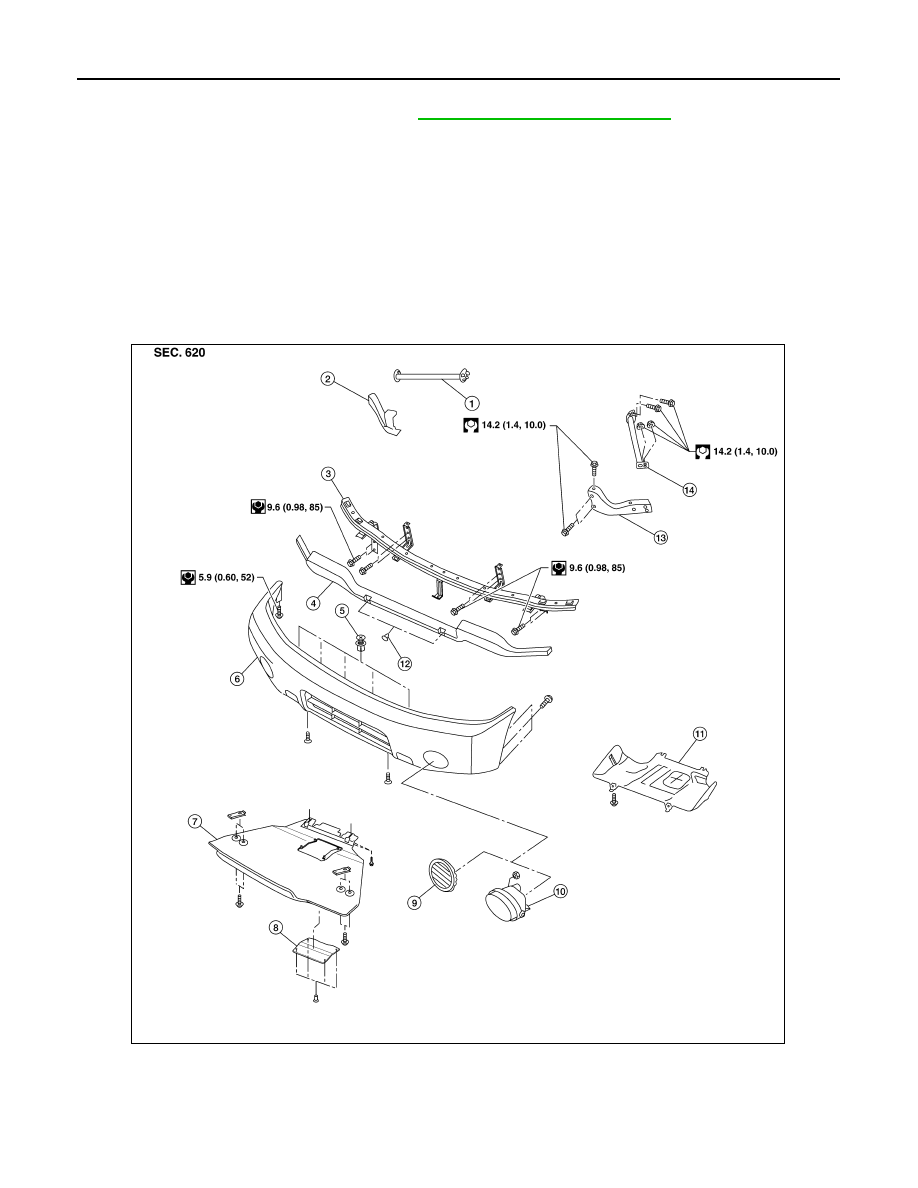

1.

Front bumper bracket (RH)

2.

Front bumper stay (RH)

3.

Retainer bracket

4.

Energy absorber

5.

Fastener

6.

Plastic fascia

7.

Skid plate (with off-road package)

8.

Access cover

9.

Fog lamp opening finisher (if
equipped)

AWKIA1327ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal

1. Remove the front grille. Refer to

EXT-20

.

2. Remove the skid plate or front engine under cover.
3. Remove the fog lamp (if equipped). Refer to

EXL-143, "Removal and Installation"

.

4. Partially remove the (LH/RH) front fender protectors. Refer to

EXT-24, "Removal and Installation"

.

5. Remove the screws and fasteners and remove the plastic fascia assembly.
6. Remove the fog lamp opening finisher (if equipped), from the plastic fascia assembly.
7. Remove the clips and energy absorber from the retainer bracket.
8. Remove the retainer bracket.
9. Remove the front bumper brackets (LH/RH).
10. Remove the front bumper stays (LH/RH).

Installation

Installation is in the reverse order of removal.

10. Fog lamp assembly (if equipped)

11. Front engine under cover (without

off-road package)

12. Plastic clip

13. Front bumper stay (LH)

14. Front bumper bracket (LH)
