EXT-34

< REMOVAL AND INSTALLATION >

TAIL GATE FINISHER

TAIL GATE FINISHER

Removal and Installation

INFOID:0000000009879105

REMOVAL

1. Release the bolt cover (A) and remove the bolt (B), using a suit-

able tool.

2. Remove the tail gate rear spoiler.
3. Remove screws and remove tail gate protector (if equipped) and tail gate cover plate.

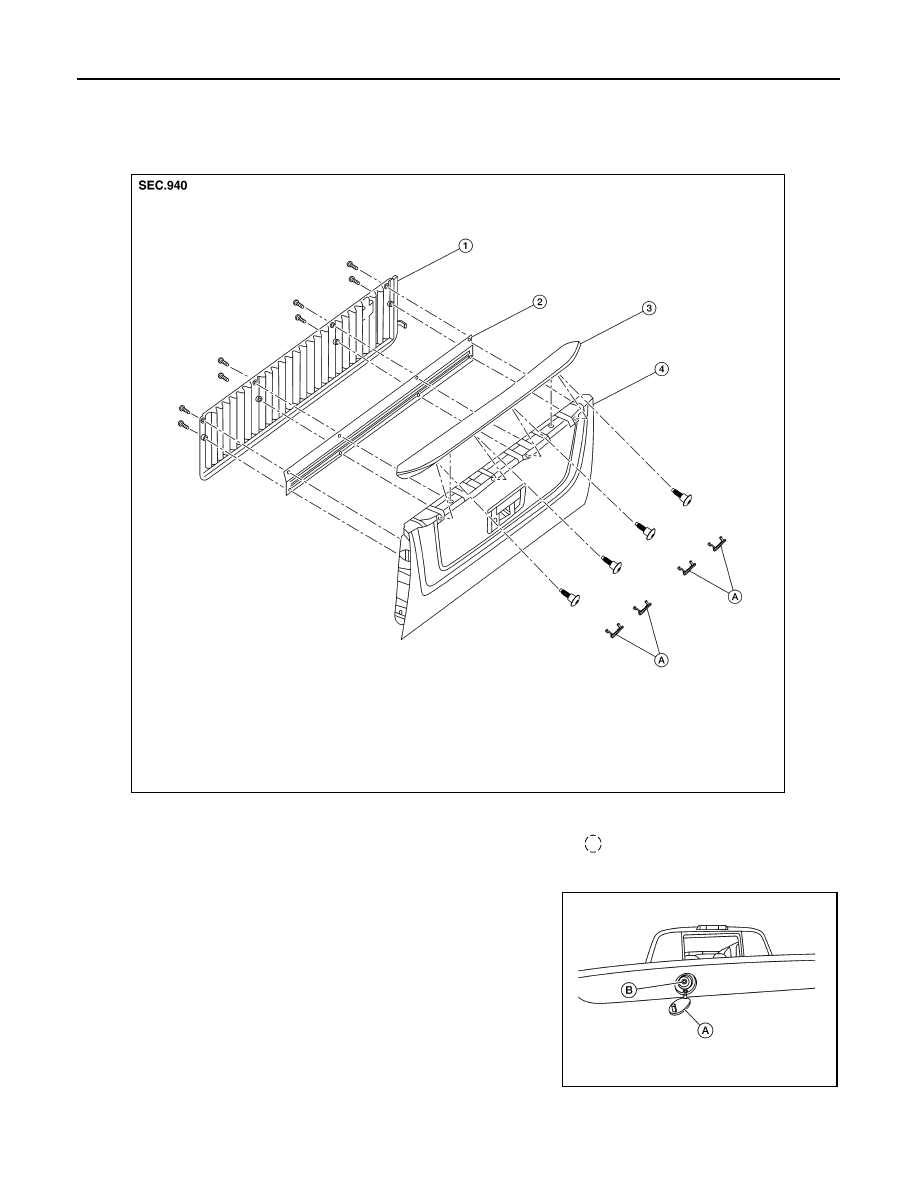

1.

Tail gate protector (if equipped)

2.

Tail gate cover plate

3.

Tail gate rear spoiler

4.

Tail gate assembly

A.

Bolt cover

Pawl

AWKIA2081ZZ

ALKIA2869ZZ

TAIL GATE FINISHER

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

EXT-36

< REMOVAL AND INSTALLATION >

STORAGE BOX

STORAGE BOX

Removal and Installation

INFOID:0000000009879106

REMOVAL

1. Remove rear mudguard (if equipped). Refer to

EXT-27, "Removal and Installation"

.

2. Remove bolts, release clips and remove storage box assembly.
3. Remove shelf bin and mat from storage box.
4. Remove storage box door from hinge.

• Remove door stay assembly.

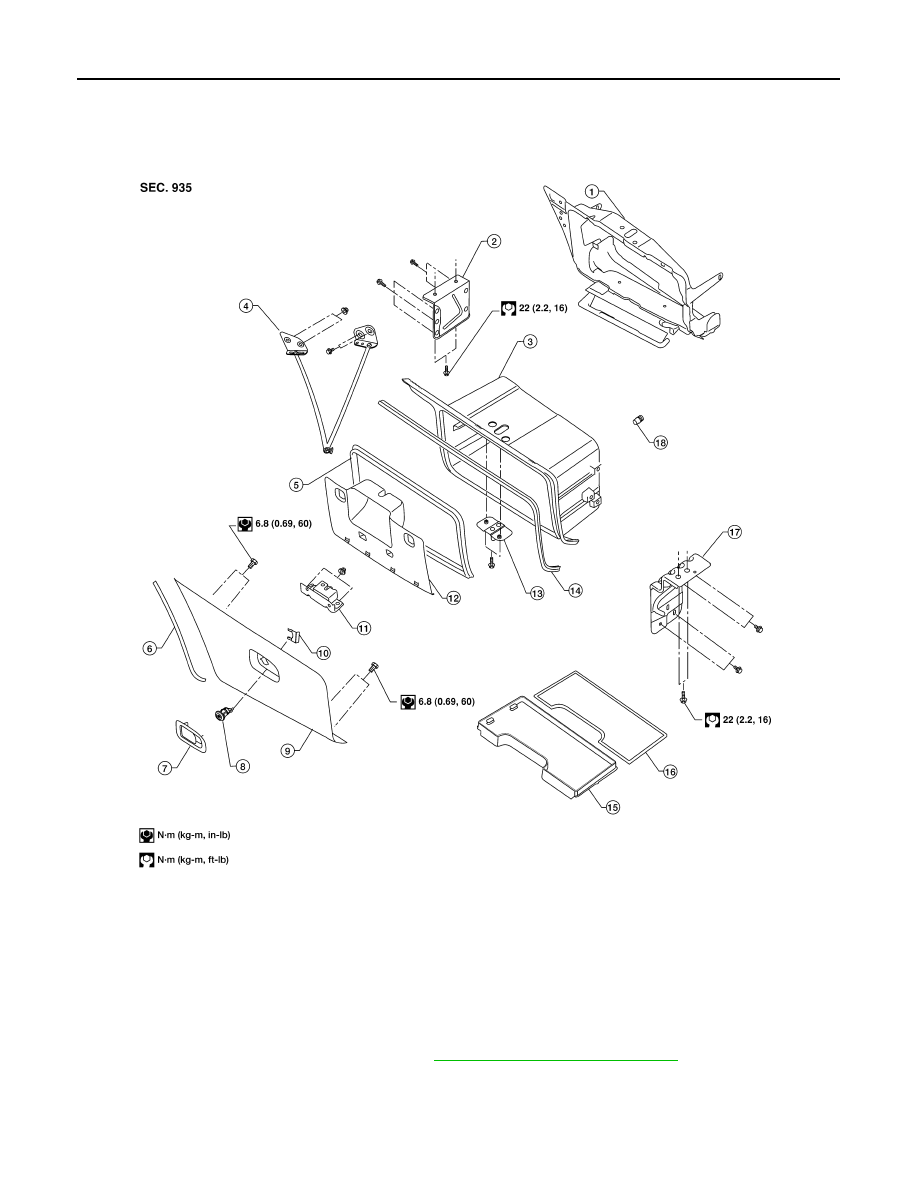

1.

Surround assembly

2.

Front outer bracket

3.

Storage box

4.

Door stay assembly

5.

Bulb seal

6.

Outer seal

7.

Key cylinder lid assembly

8.

Key cylinder

9.

Storage box door

10. Key cylinder retainer

11. Latch assembly

12. Inner door cover

13. Striker

14. Door seal

15. Shelf bin

16. Shelf bin mat

17. Rear outer bracket

18. Back stop

WIIA0352E

STORAGE BOX

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5. Remove inner door cover.
6. Remove nuts and remove latch assembly from door.

• Remove key cylinder.

7. Remove outer seal and key cylinder lid assembly from door.
8. Remove bulb seal and door seal from storage box.
9. Remove storage box from surround assembly.

INSTALLATION

Installation is in the reverse order of removal.
