Nissan Titan. Manual - part 303





EM-16

< PERIODIC MAINTENANCE >

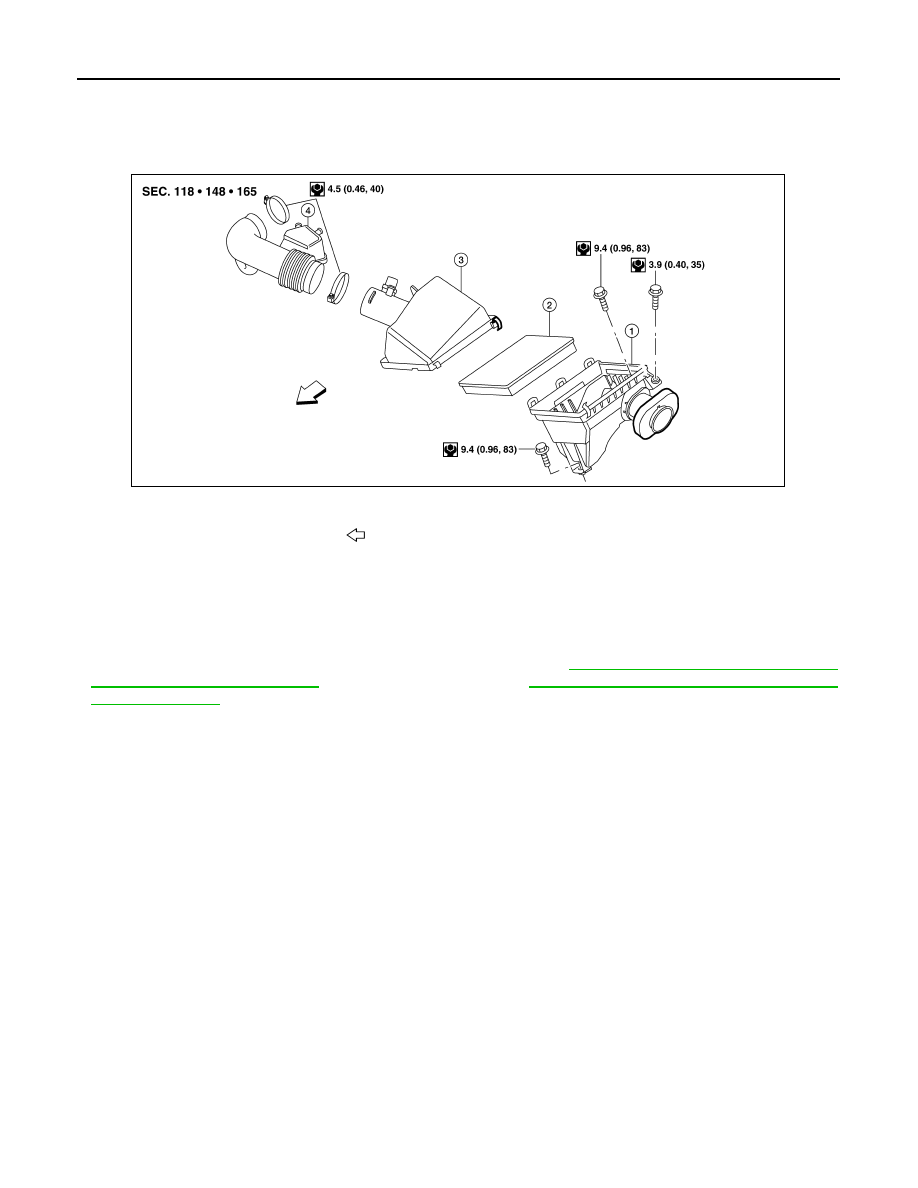

AIR CLEANER FILTER

AIR CLEANER FILTER

Exploded View

INFOID:0000000009886402

Removal and Installation (Viscous paper type)

INFOID:0000000009886403

REMOVAL

NOTE:

• The viscous paper type filter does not need cleaning between replacement intervals.

• Replace the air filter as necessary for periodic maintenance. Refer to

MA-9, "FOR NORTH AMERICA : Intro-

duction of Periodic Maintenance"

, (United States and Canada),

MA-12, "FOR MEXICO : Introduction of Peri-

odic Maintenance"

 (Mexico).

1. Remove the air cleaner case (upper).
2. Remove the air cleaner filter from the air cleaner case (lower).

INSTALLATION

1. Install the new air cleaner filter in the air cleaner case (lower).
2. Install the air cleaner case (upper).

1.

Air cleaner case (lower)

2.

Air cleaner filter

3.

Air cleaner case (upper)

4.

Air duct and resonator assembly

Front

ALBIA0413GB

SPARK PLUG

EM-17

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

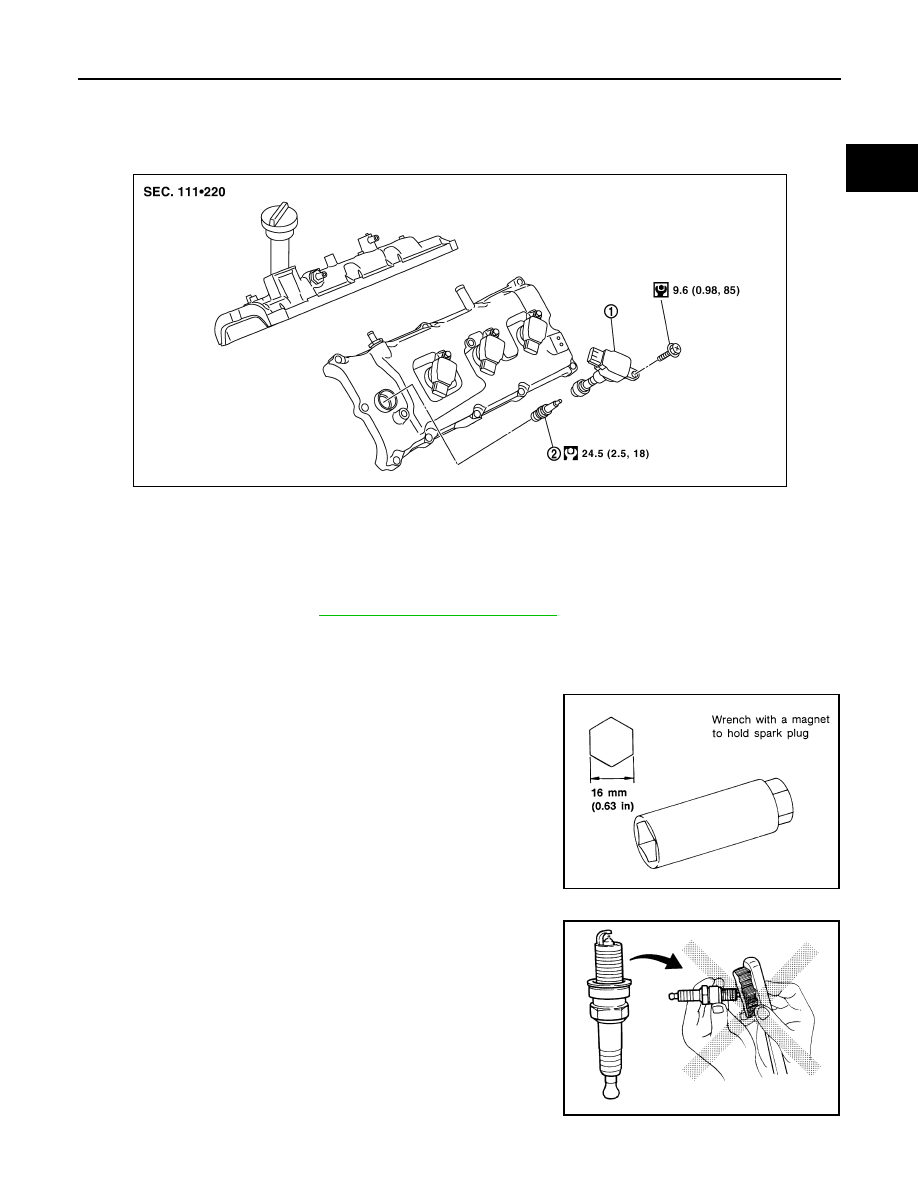

SPARK PLUG

Exploded View

INFOID:0000000009886404

Removal and Installation

INFOID:0000000009886405

REMOVAL

1. Remove ignition coil. Refer to

EM-40, "Removal and Installation"

CAUTION:

Do not shock ignition coil.

2. Remove spark plug using suitable tool.

CAUTION:

Do not drop or shock spark plug.

INSPECTION AFTER REMOVAL

• Do not use a wire brush for cleaning.

• If plug tip is covered with carbon, spark plug cleaner may be used.

1.

Ignition coil

2.

Spark plug

WBIA0796E

SEM294A

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

EM-18

< PERIODIC MAINTENANCE >

SPARK PLUG

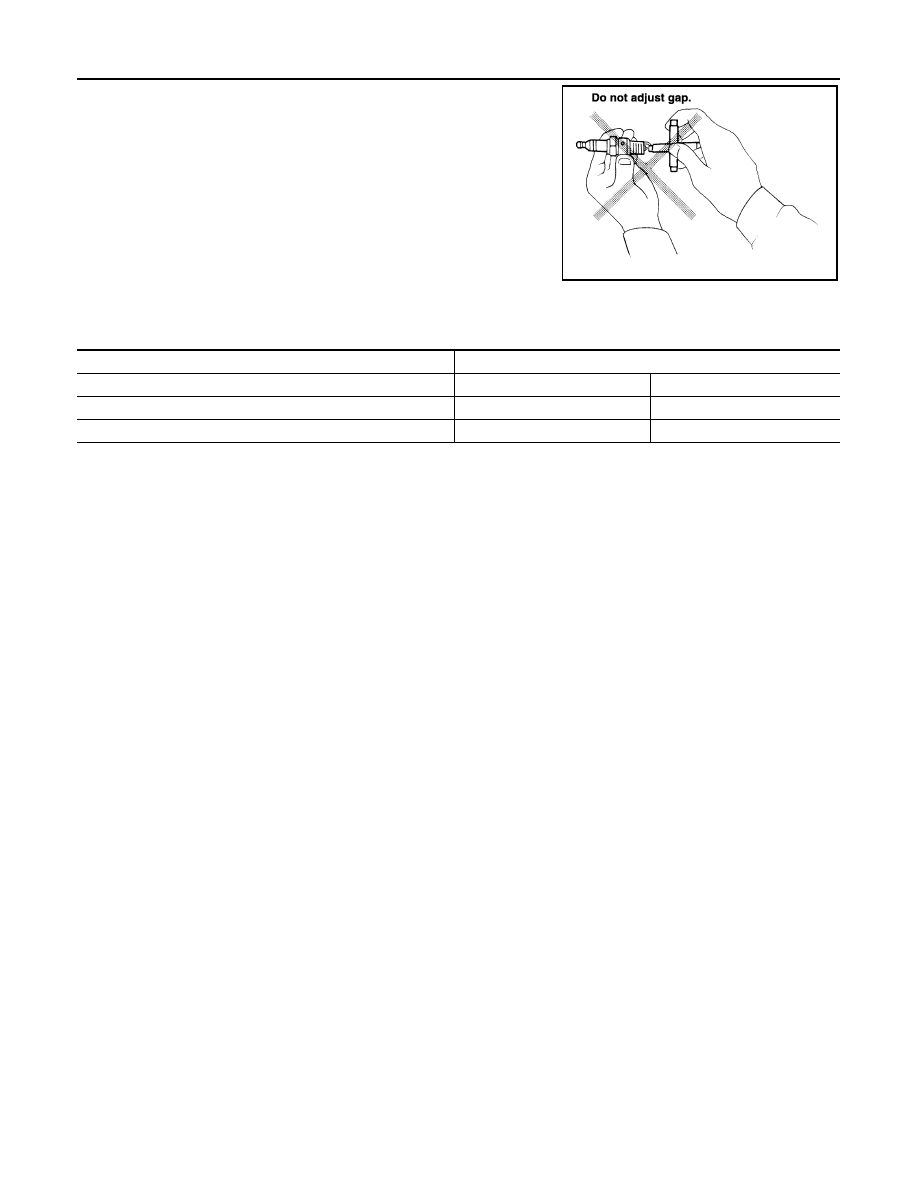

• Checking and adjusting plug gap is not required between change

intervals.

INSTALLATION

Installation is in the reverse order of removal.

Spark Plug Types

*: Always check with the Parts Department for the latest parts information.

CAUTION:

Do not drop or shock spark plug.

SMA806CA

Make

NGK

Model

Standard model

FFV model

Standard type*

DILFR5A-11

DILFR5A-11D

Gap (Nominal)

1.1 mm (0.043 in)

1.1 mm (0.043 in)

CAMSHAFT VALVE CLEARANCE

EM-19

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAMSHAFT VALVE CLEARANCE

Valve Clearance

INFOID:0000000009886406

INSPECTION

NOTE:

Perform the following inspection after removal, installation or replacement of camshaft or valve-related parts,

or if there are unusual engine conditions due to changes in valve clearance over time (starting, idling, and/or

noise).
1. Warm up the engine. Then stop the engine.
2. Remove the air cleaner and resonator assembly. Refer to

EM-26, "Removal and Installation"

.

3. Remove the (RH) bank and (LH) bank rocker covers using power tool. Refer to

EM-41, "Removal and

Installation"

.

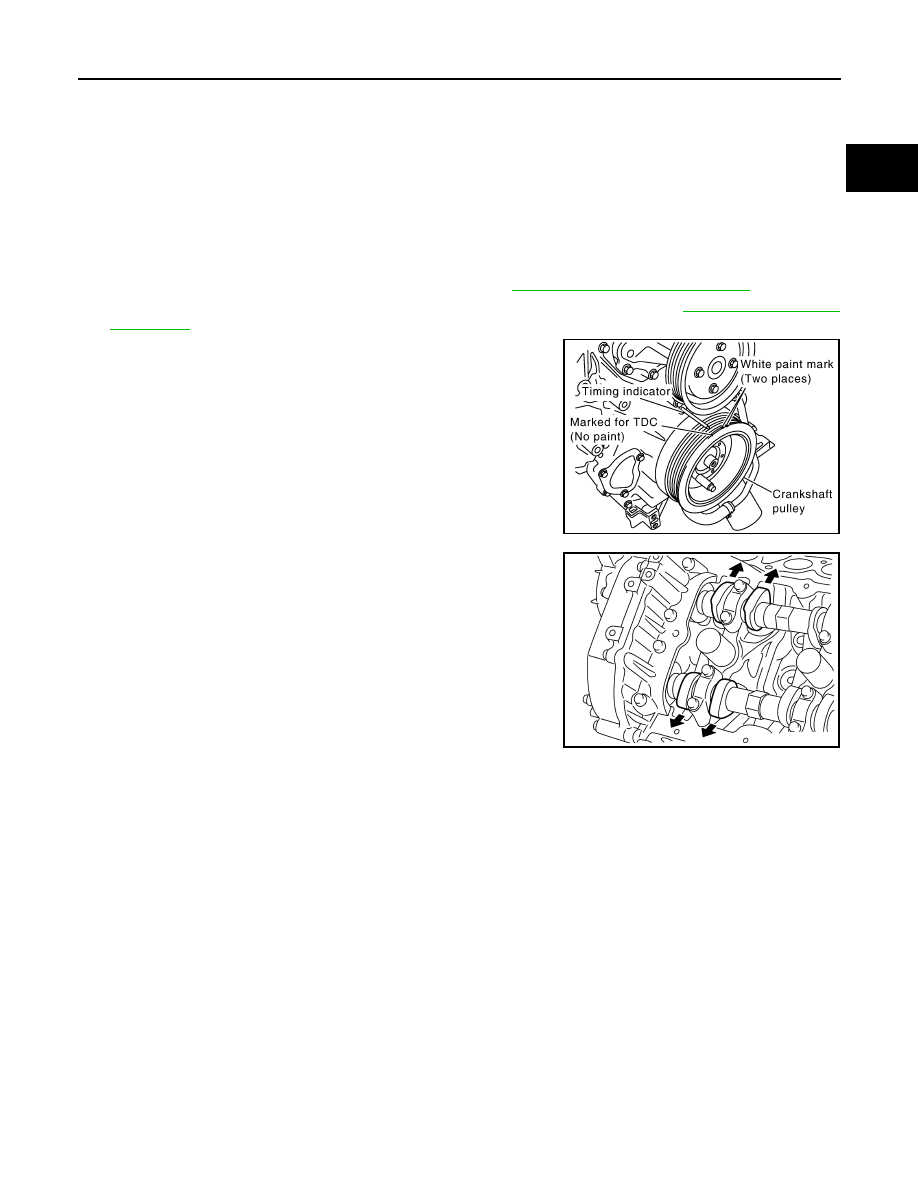

4. Turn the crankshaft pulley in the normal direction (clockwise

when viewed from engine front) to align TDC identification notch

(without paint mark) with timing indicator.

5. At this time, make sure both the intake and exhaust cam noses

of No. 1 cylinder (top front on LH bank) face outside.

• If they do not face outside, turn crankshaft pulley once more.

KBIA2476E

KBIA0400J
