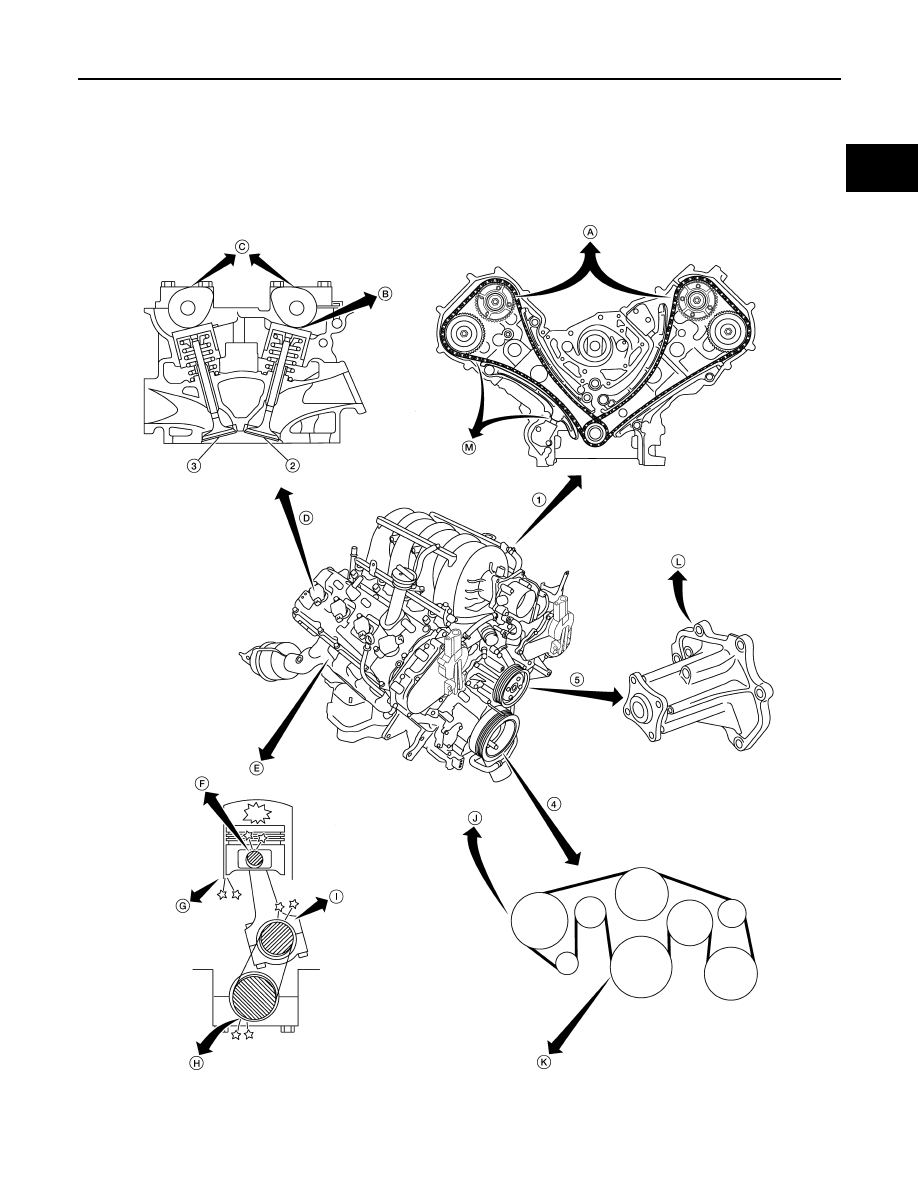

PREPARATION

Commercial Service Tool

INFOID:0000000009886396

—

(J-46535)

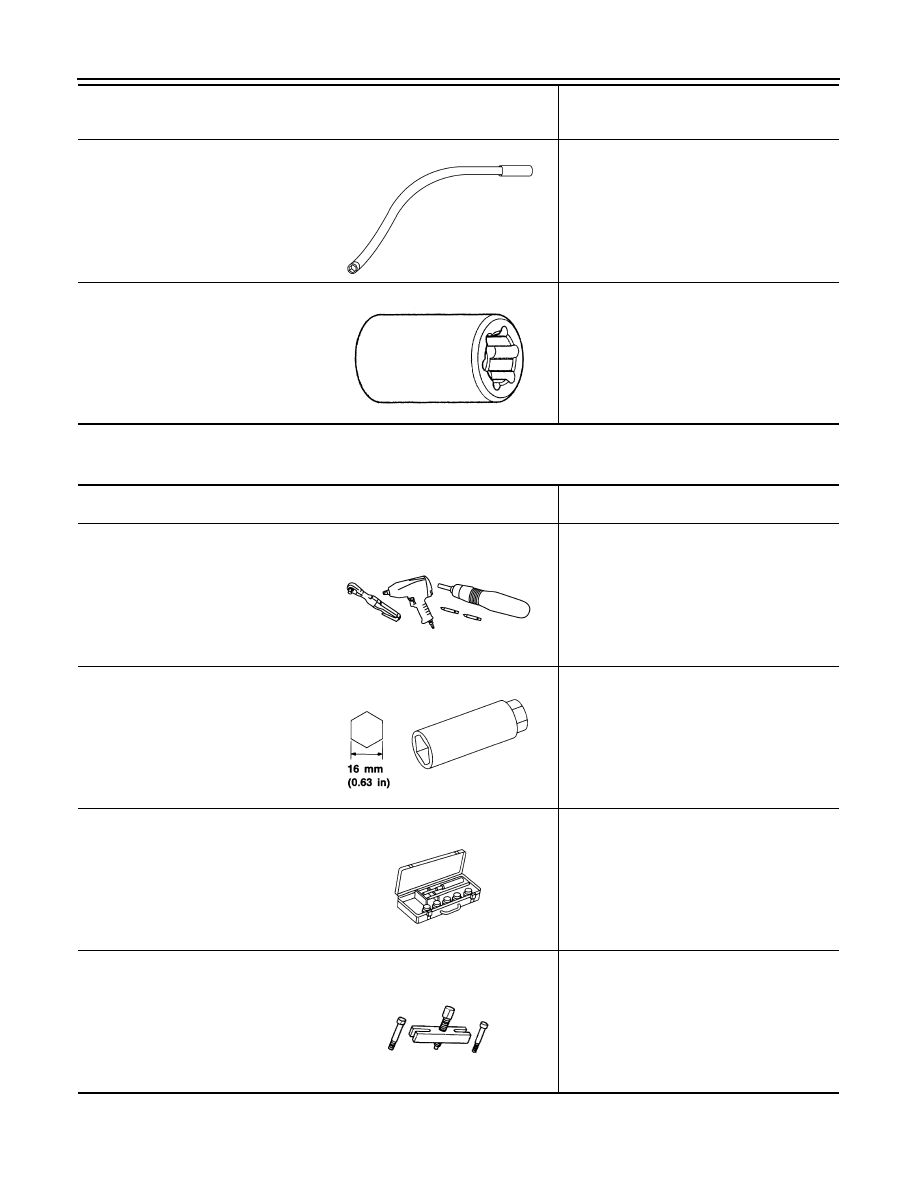

Drive belt tension releaser

Releasing drive belt tension

—

(J-45816)
E20 Socket

Loosening and tightening cylinder head bolts.

Tool number
(Kent-Moore No.)
Tool name

Description

WBIA0536E

LBIA0285E

(Kent-Moore No.)
Tool name

Description

Power tool

Loosening nuts, screws and bolts

Spark plug wrench

Removing and installing spark plug

Valve seat cutter set

Finishing valve seat dimensions

Pulley puller

Removing crankshaft pulley

PIIB1407E

S-NT047

S-NT048

ZZA0010D

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

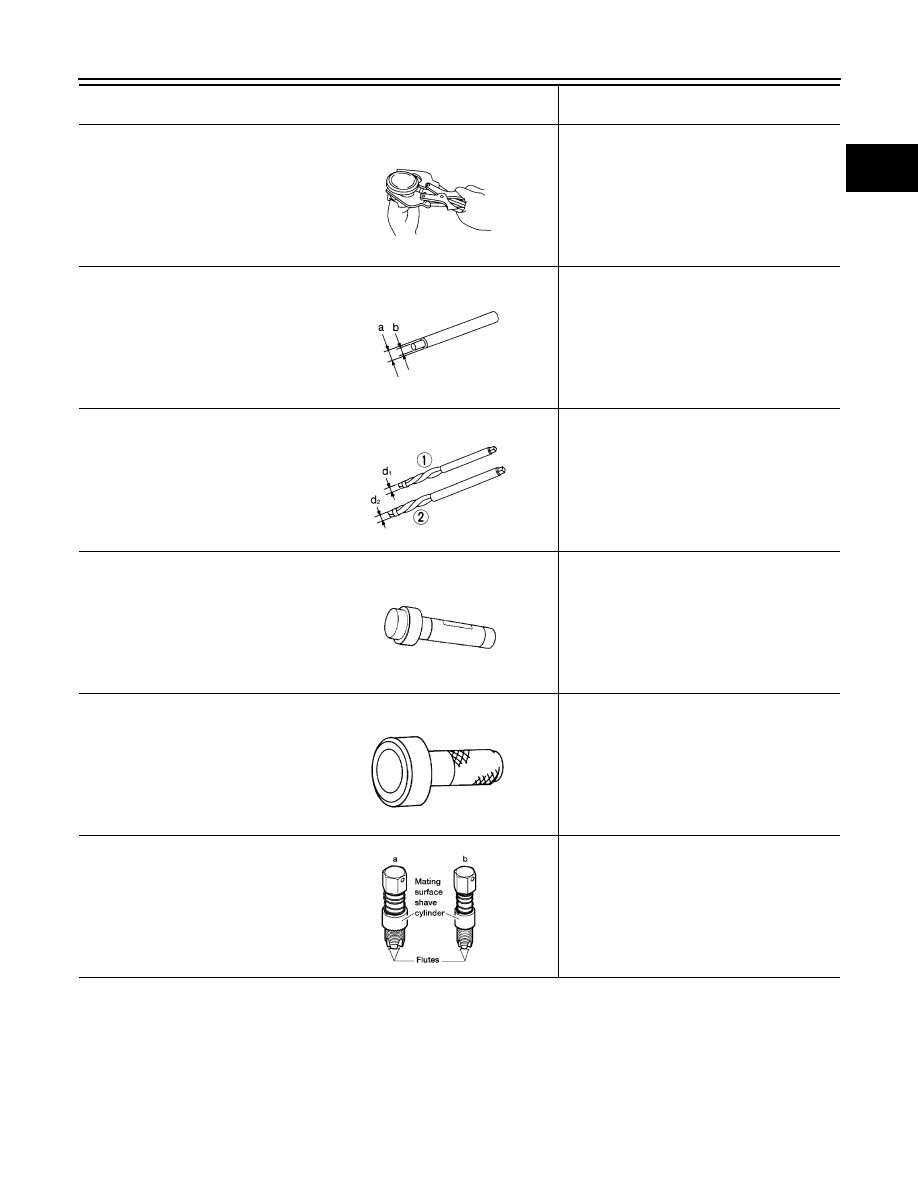

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

Valve guide reamer

1: Reaming valve guide hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.175 - 10.196 mm (0.4006 - 0.4014 in)

dia.

Front oil seal drift

Installing front oil seal

Rear oil seal drift

Installing rear oil seal

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new A/F sensor and heated
oxygen sensor (Use with anti-seize lubricant
shown below.)
a: J-43897-18 (18 mm dia.) (0.71 in) for zir-
conia heated oxygen sensor
b: J-43897-12 (12 mm dia.) (0.55 in) for tita-
nia heated oxygen sensor

(Kent-Moore No.)
Tool name

Description

S-NT030

S-NT015

S-NT016

ZZA0012D

ZZA0025D

AEM488

EM-10

< PREPARATION >

PREPARATION

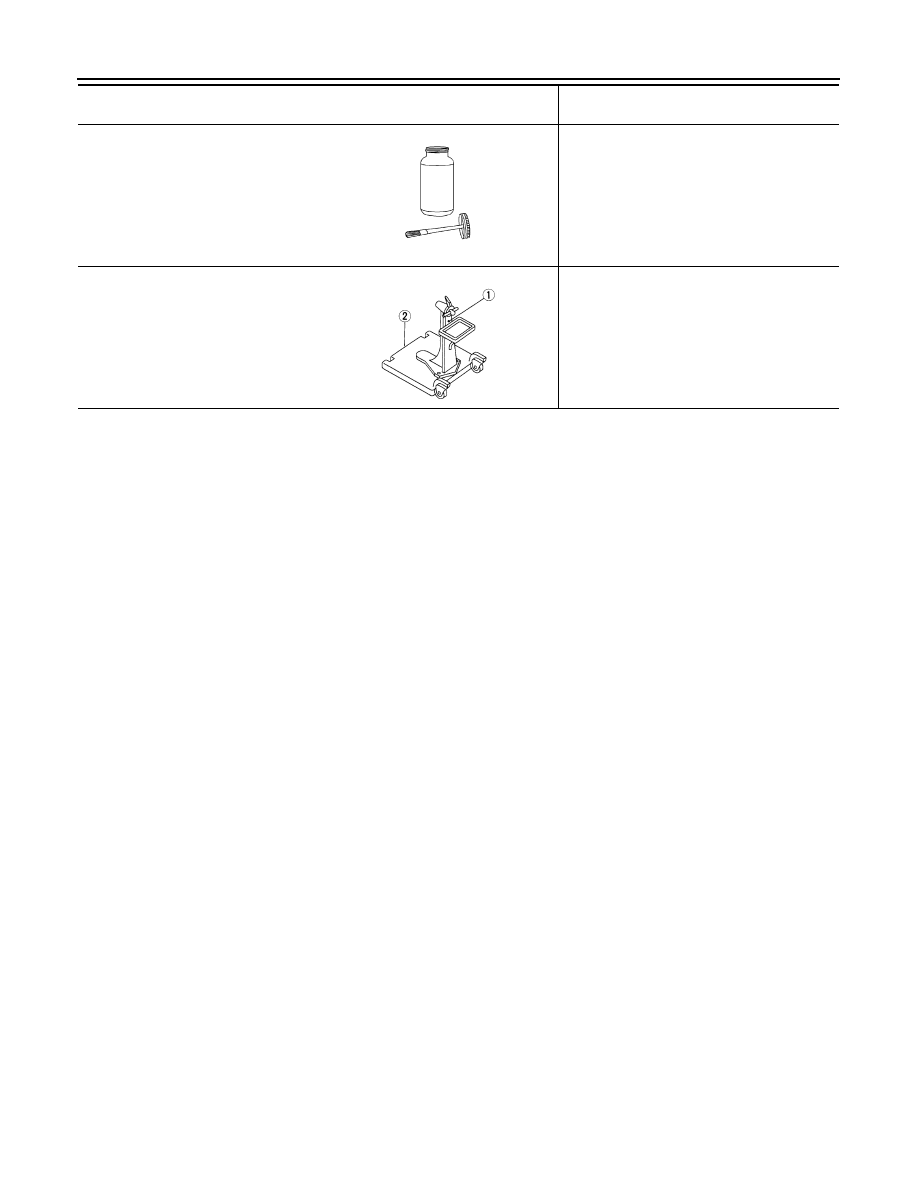

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating A/F sensors and heated oxygen
sensor thread cleaning tool when recondition-
ing exhaust system threads

Engine stand assembly
1. Engine stand
2. Base

Disassembling and assembling engine

(Kent-Moore No.)
Tool name

Description

AEM489

NT042
