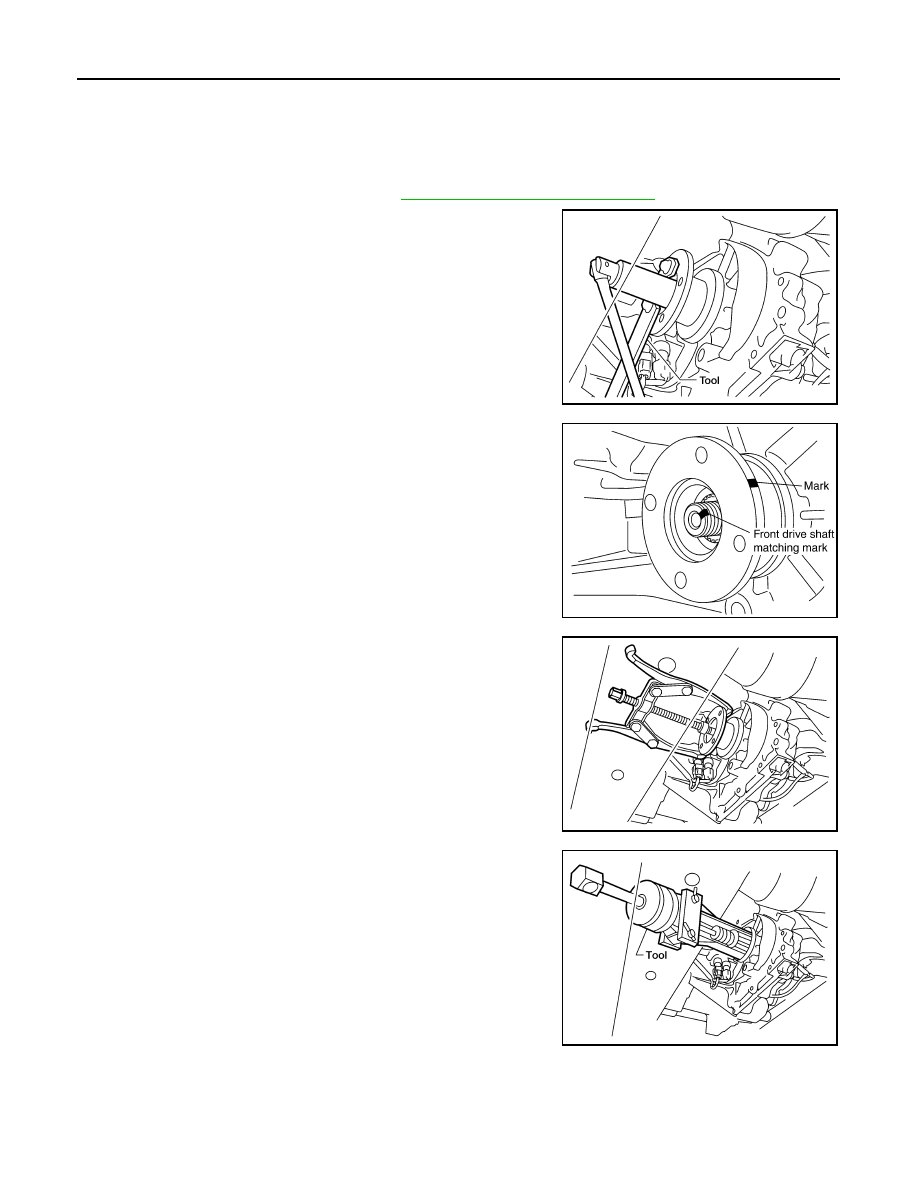

DLN-92

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

FRONT OIL SEAL

FRONT OIL SEAL

Removal and Installation

INFOID:0000000009886034

REMOVAL

1. Remove the front propeller shaft. Refer to

DLN-130, "Removal and Installation"

.

2. Remove the companion flange self-lock nut using suitable tool.

3. Put a matching mark on top of the front drive shaft in line with

the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive

shaft. Do not damage the front drive shaft.

4.  Remove the companion flange using suitable tool.

5. Remove the front oil seal from the front case using Tool.

CAUTION:

Do not damage front case.

INSTALLATION

LDIA0142E

SDIA2779E

WDIA0193E

Tool number

: ST33290001 (J-34286)

LDIA0144E

FRONT OIL SEAL

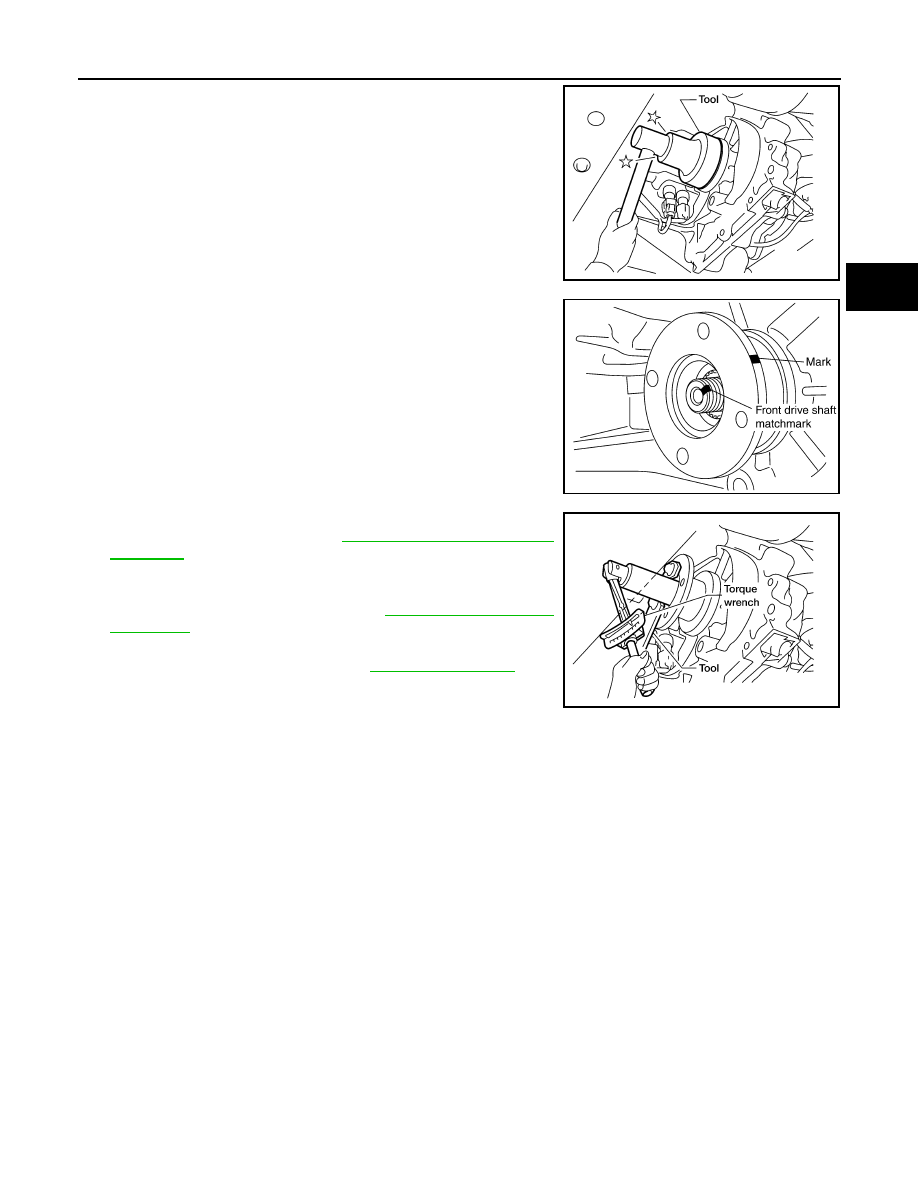

DLN-93

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1. Install the new front oil seal until it is flush with the end face of

the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Align the matching mark of the front drive shaft with the match-

ing mark of the companion flange, then install the companion

flange.

3. Install the new self-lock nut and tighten to the specified torque

using suitable tool. Refer to

DLN-101, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse self-lock nut.

4. Install the front propeller shaft. Refer to

DLN-130, "Removal and

Installation"

.

5. Check for transfer fluid leaks. Check transfer fluid level and add

specified fluid as necessary. Refer to

DLN-89, "Inspection"

.

Tool number

: KV38100500 ( — )

LDIA0145E

SDIA2214E

LDIA0147E

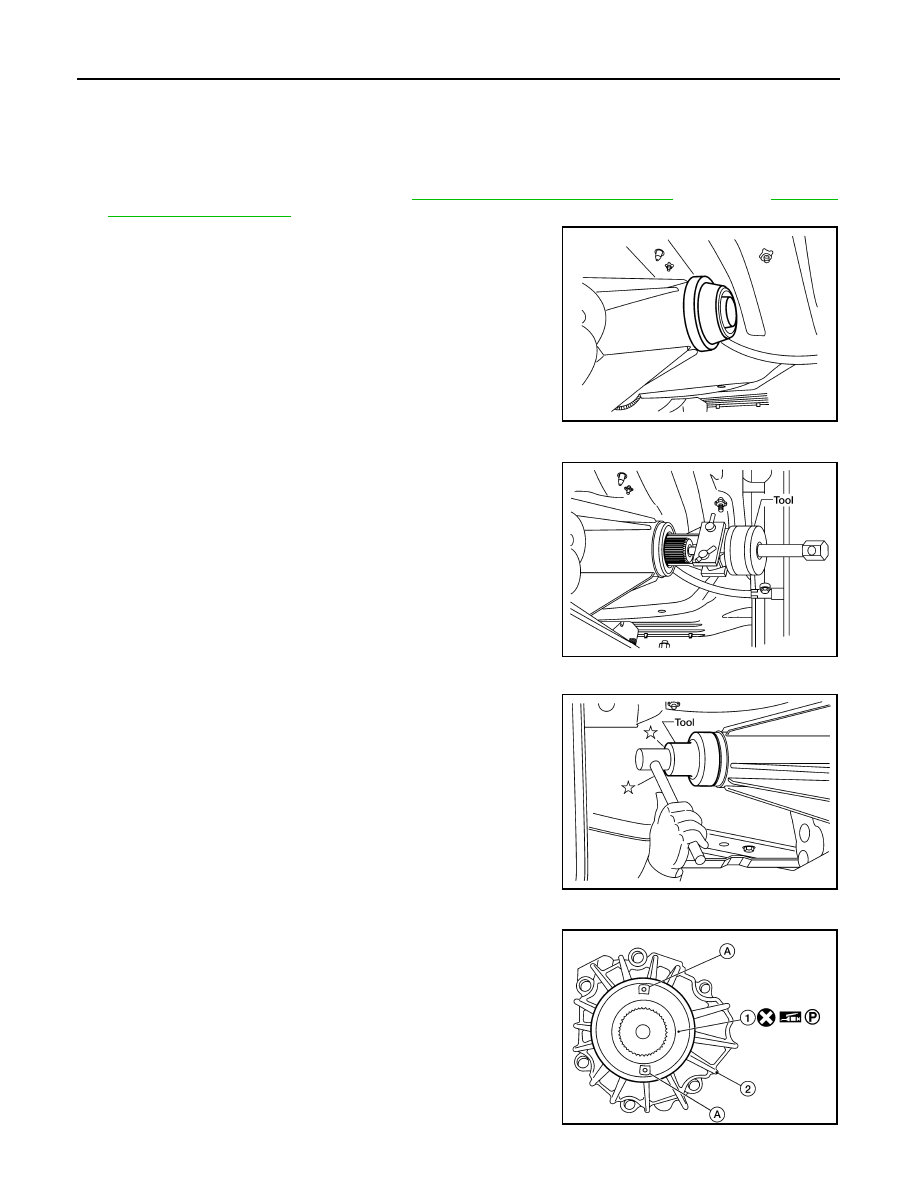

DLN-94

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

REAR OIL SEAL

REAR OIL SEAL

Removal and Installation

INFOID:0000000009886035

REMOVAL

1. Remove the rear propeller shaft. Refer to

DLN-139, "Removal and Installation"

 (2S1410) or

DLN-148,

"Removal and Installation"

 (3S1410).

2. Remove the dust cover from the rear case.

CAUTION:

Do not damage the rear case.

3. Remove oil cover from dust cover.
4. Remove the rear oil seal from the rear case using Tool.

CAUTION:

Do not damage the rear case.

INSTALLATION

1. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the oil cover until it reaches the end face of the new dust cover.
3. Apply petroleum jelly to the circumference of the new dust cover

(1). Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protrusions at the position shown.

• (2): Rear case assembly

• (A): Protrusions

WDIA0127E

Tool number

: ST33290001 (J-34286)

LDIA0139E

Tool number

: KV38100500 ( — )

LDIA0140E

AWDIA0550GB

REAR OIL SEAL

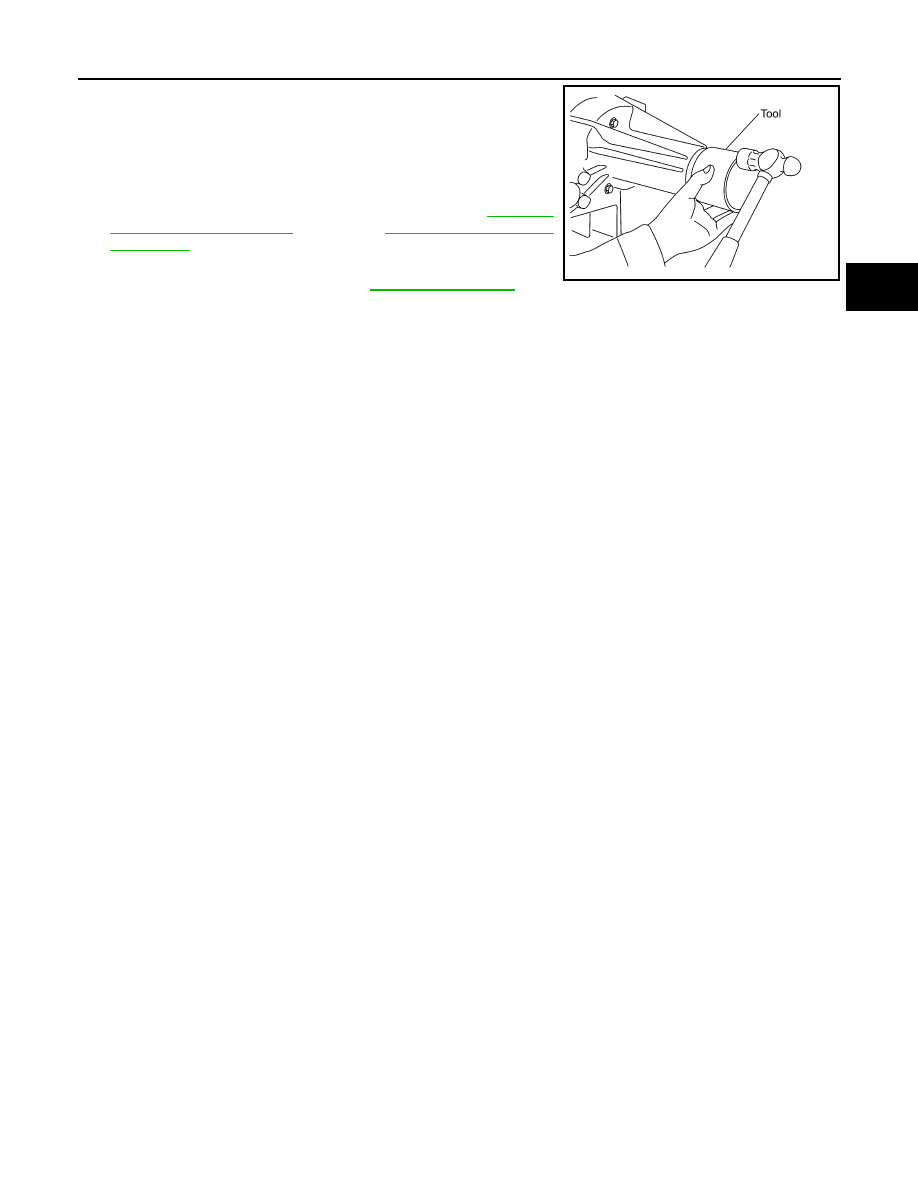

DLN-95

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

5. Install the rear propeller shaft. Refer to Refer to

DLN-139,

"Removal and Installation"

 (2S1410) or

DLN-148, "Removal and

Installation"

 (3S1410).

6. Check for transfer fluid leaks. Check transfer fluid level and add

specified fluid as necessary. Refer to

DLN-89, "Inspection"

.

Tool number

: KV40105310 ( — )
