DLN-96

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

TRANSFER CONTROL DEVICE

TRANSFER CONTROL DEVICE

Removal and Installation

INFOID:0000000009886036

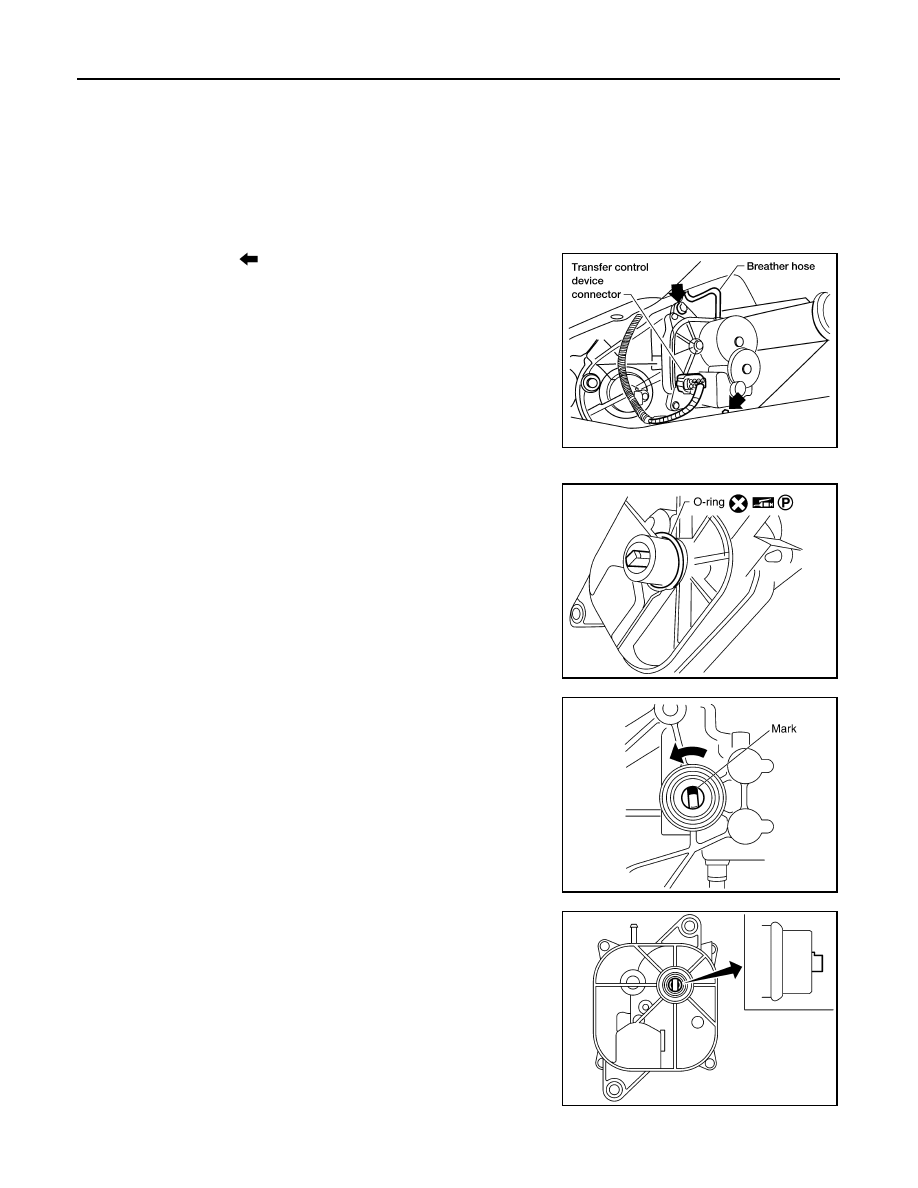

REMOVAL

1. Switch the 4WD shift switch to 2WD and set the transfer assembly to 2WD.
2. Disconnect the transfer control device harness connector.
3. Remove the breather hose from the transfer control device.
4. Remove the bolts (

) and detach the transfer control device.

INSTALLATION

1. Install the new O-ring to the transfer control device.

CAUTION:

• Do not reuse O-ring.

• Apply petroleum jelly to O-ring.

2. Install the transfer control device.
a. Turn the control shift rod fully counterclockwise using a flat-

bladed screwdriver, and then put a mark on the control shift rod.

b. Align the transfer control device shaft cutout with the mark on

the control shift rod, and install.

NOTE:

Turn the transfer control device when the transfer control device

connection does not match.

LDIA0136E

SDIA3378E

PDIA0119E

PDIA0120E

TRANSFER CONTROL DEVICE

DLN-97

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

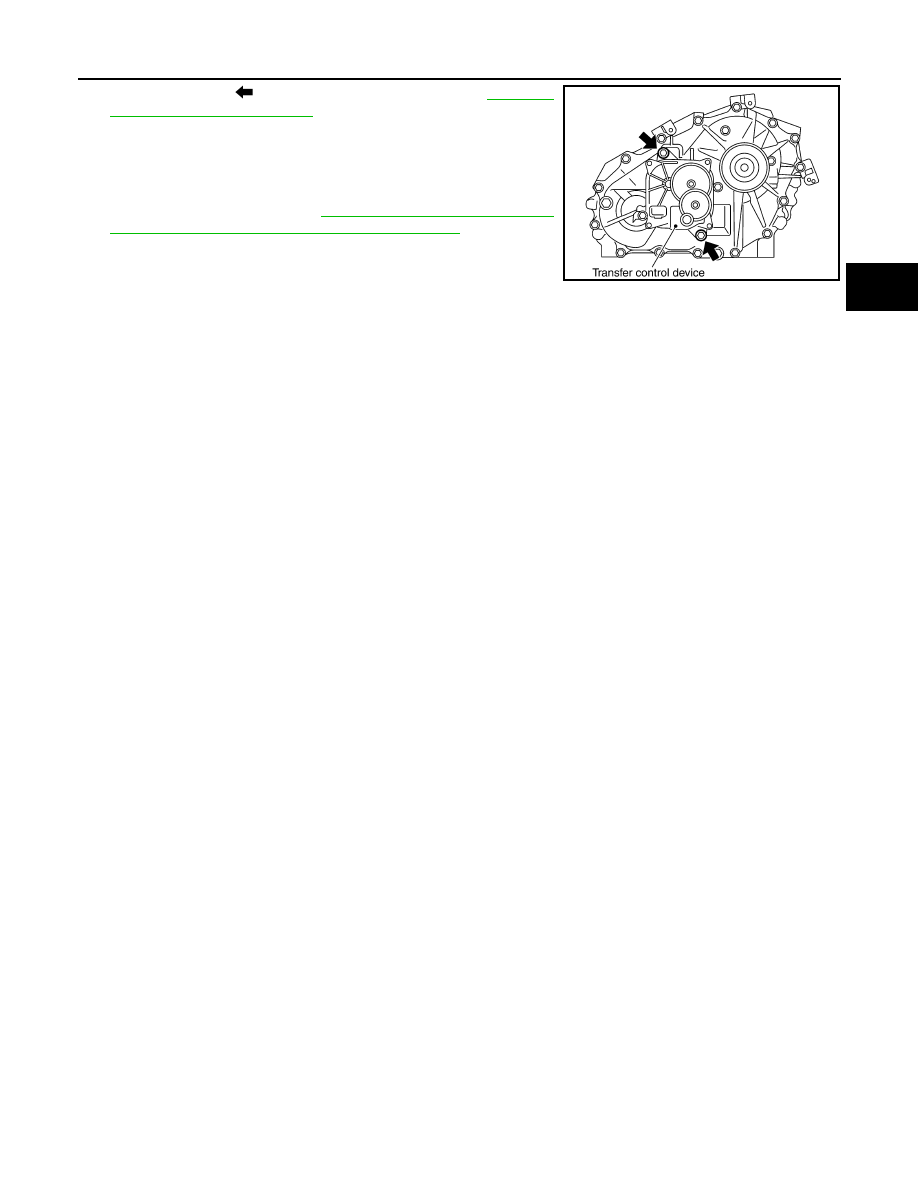

c. Tighten the bolts (

) to the specified torque. Refer to

DLN-101,

"Disassembly and Assembly"

.

3. Install the breather hose to the transfer control device.
4. Connect the transfer control device harness connector.
5. After the installation, check the 4WD shift indicator pattern. If

NG, adjust the position between the transfer assembly and

transfer control unit. Refer to

DLN-82, "Precaution for Transfer

Assembly and Transfer Control Unit Replacement"

.

SDIA2212E

DLN-98

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000009886037

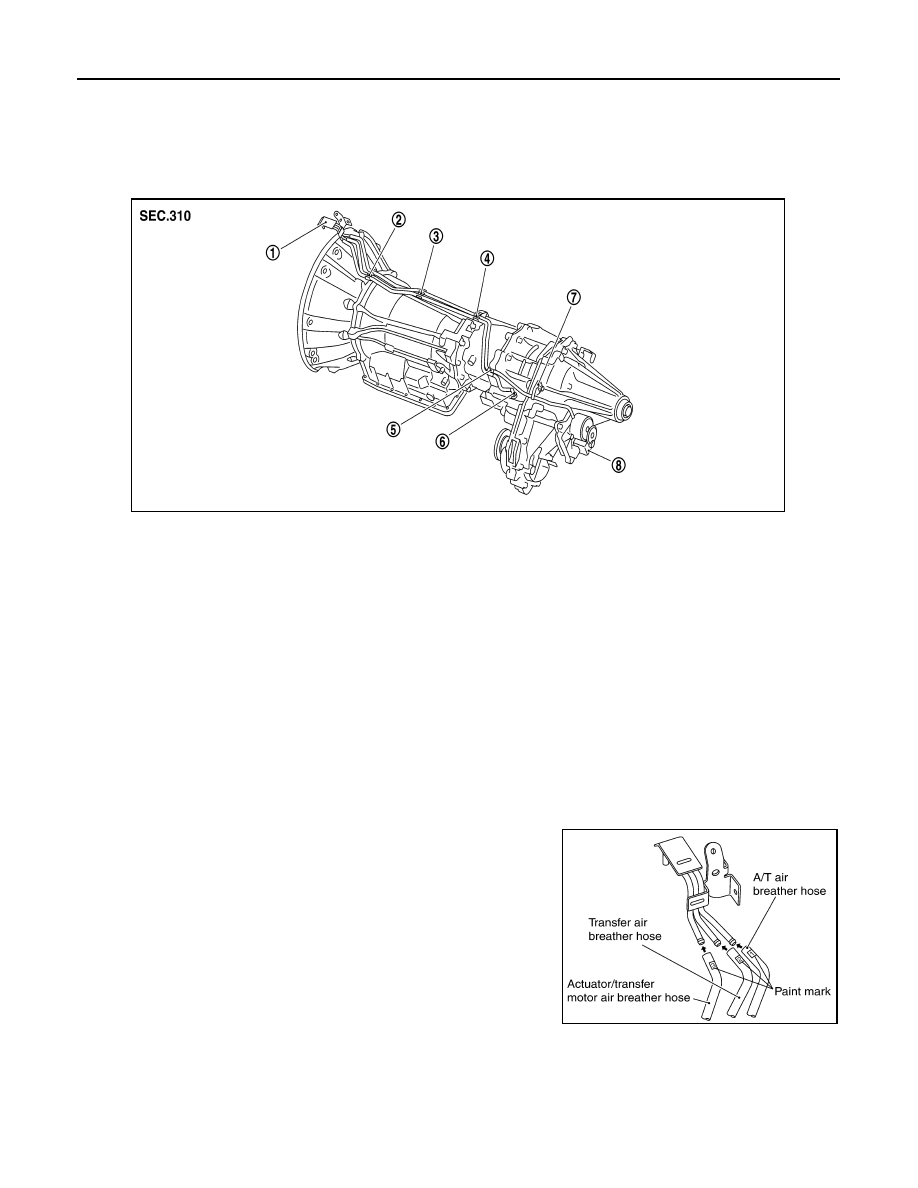

COMPONENTS

REMOVAL

1. Disconnect air breather hose from transfer control device.
2. Disconnect air breather hose from breather tube (transfer).
3. Release air breather hose clamp and clips as necessary.
4. Disconnect air breather hoses from breather tube.

CAUTION:

Note paint marks for installation.

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.
1. Install each air breather hose into the breather tube (metal con-

nector) until the hose end reaches the end of the curved section.

Set each air breather hose with paint mark facing upward.

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Breather tube (transfer)

7.

Air breather hose clamp

8.

Transfer control device

SDIA3351E

SDIA3340E

AIR BREATHER HOSE

DLN-99

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

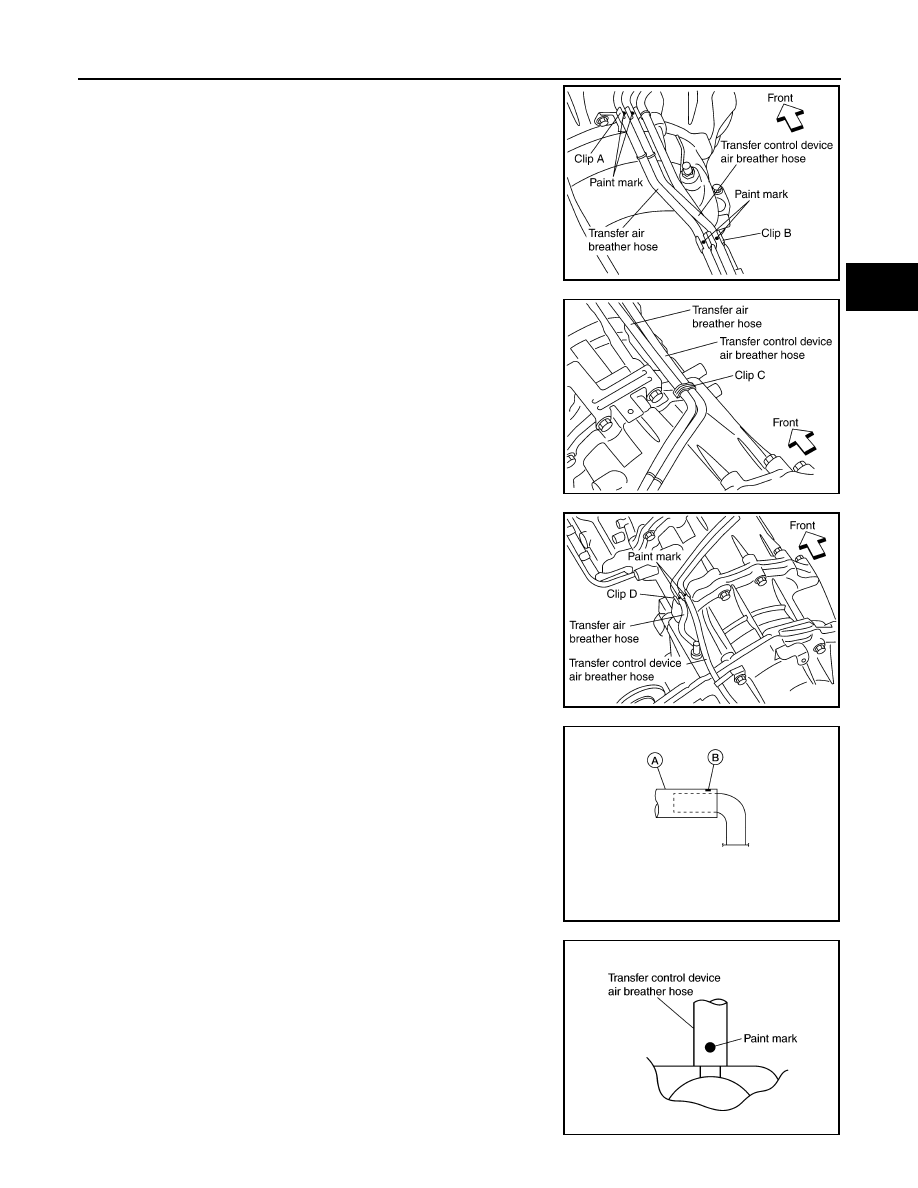

2. Install transfer control device air breather hose and transfer air

breather hose on clip A and clip B with the paint mark facing

upward.

3. Install clip C on transfer control device air breather hose and

transfer air breather hose with the paint mark matched.

4. Install transfer control device air breather hose and transfer air

breather hose on clip D with the paint mark facing upward.

5. Install transfer air breather hose (A) into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark (B)

facing upward.

6. Install transfer control device air breather hose into transfer con-

trol device (case connector) until the hose end reaches the base

of the tube. Set transfer control device air breather hose with

paint mark facing forward.

SDIA3353E

SDIA3354E

SDIA3355E

AWDIA0784ZZ

SDIA3300E
