BODY CONSTRUCTION

Body Mounting, King Cab

INFOID:0000000009879116

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

Body Construction

INFOID:0000000009879117

BODY CONSTRUCTION

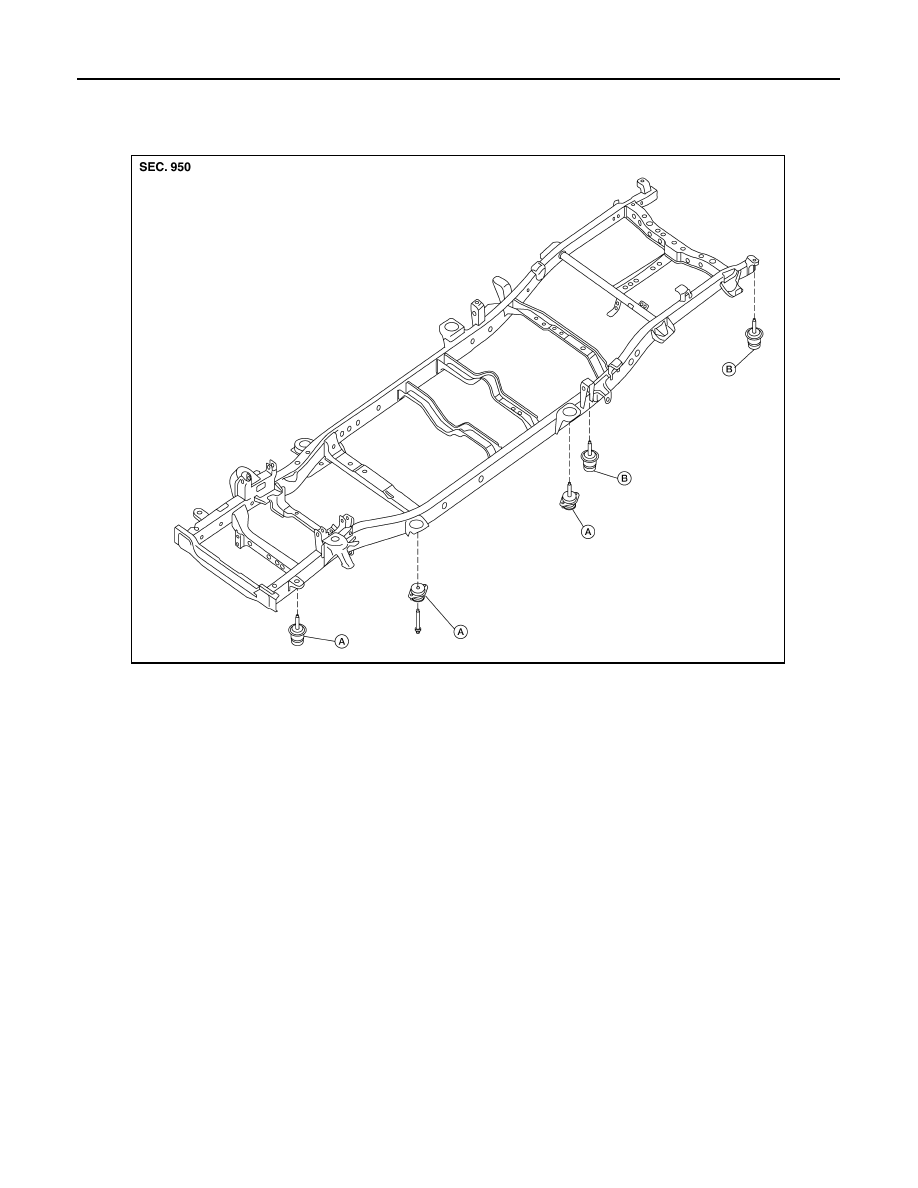

Frame to Cab (A)

: 87.5 N·m (8.9 kg-m, 65 ft-lb)

Frame to Bed (B)

: 21.6 N·m (2.2 kg-m, 16 ft-lb)

AWIIA1110GB

BODY CONSTRUCTION

BRM-27

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

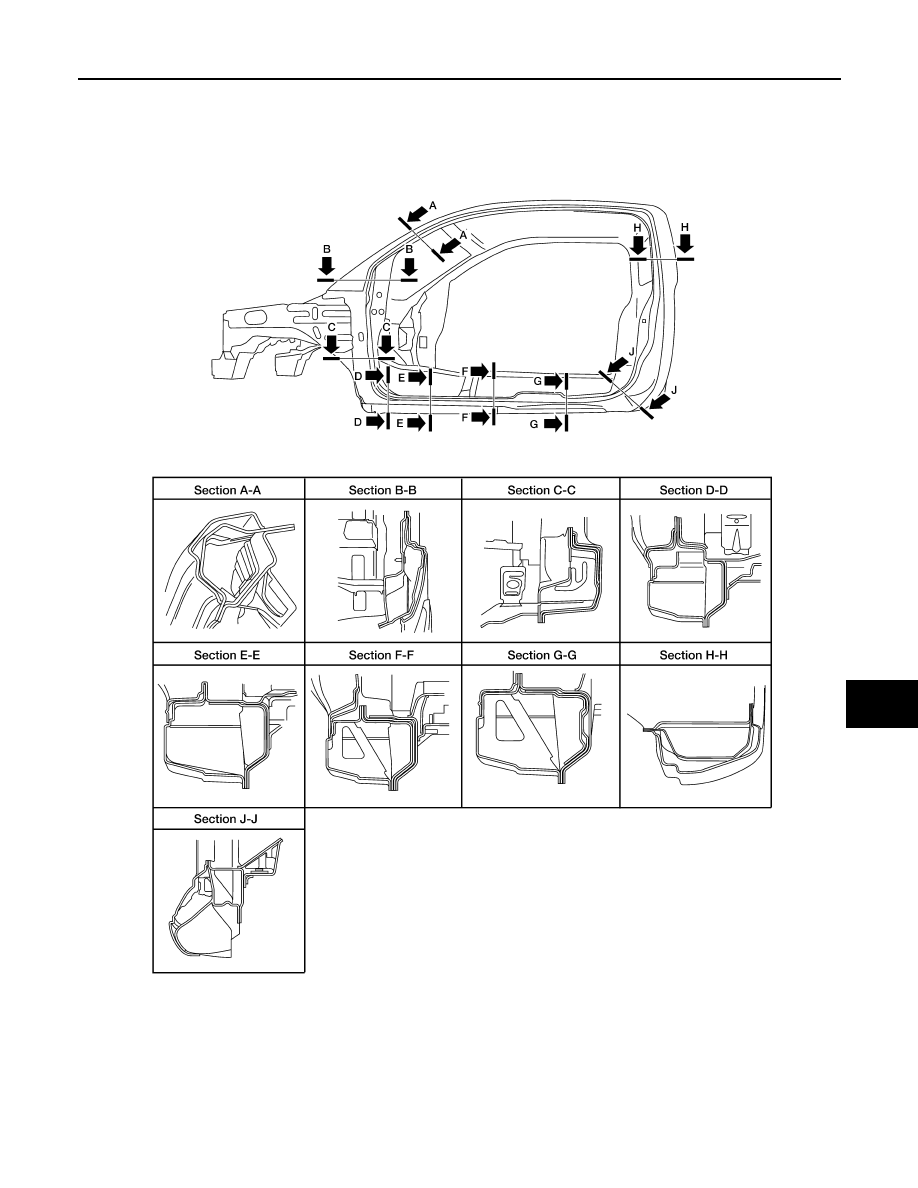

King Cab

LIIA1317E

BRM-28

< UNIT REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

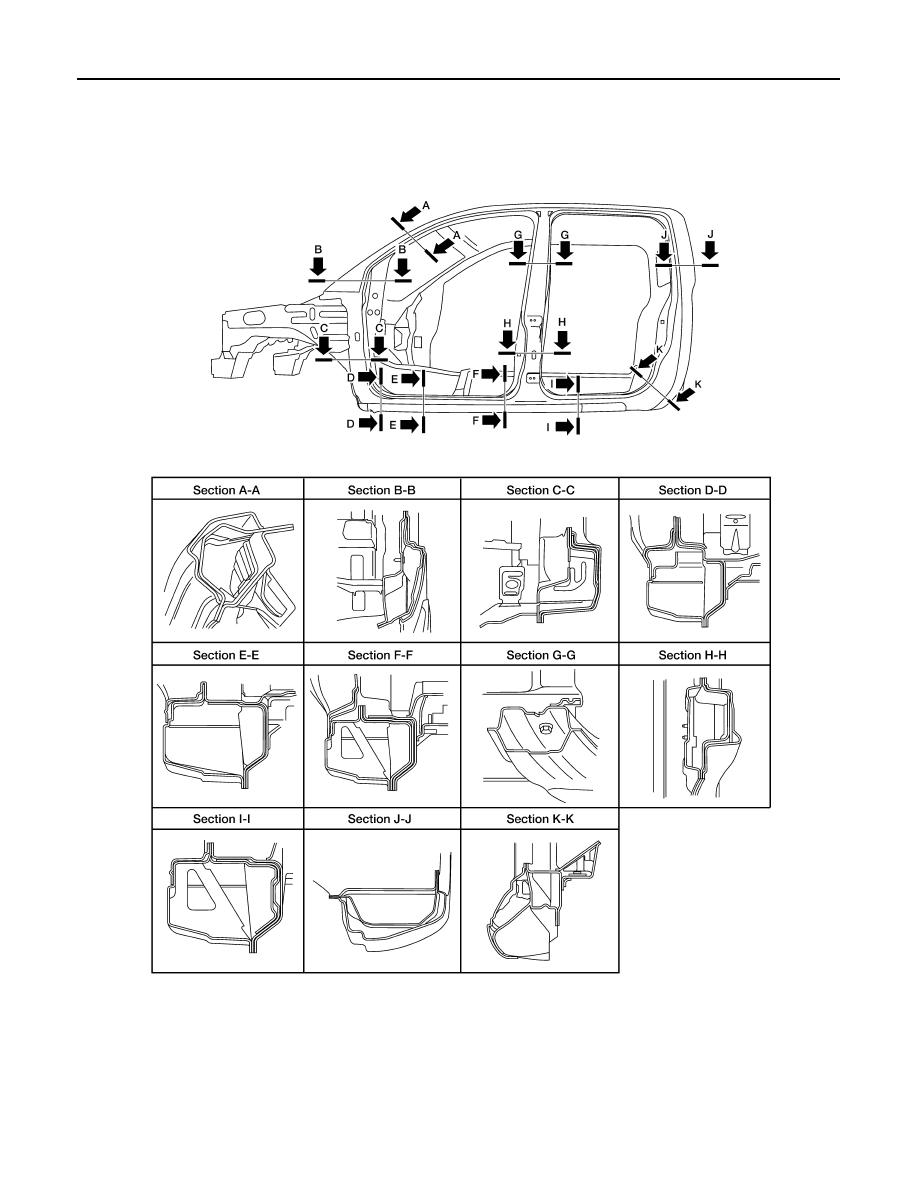

Crew Cab

Rear Body

INFOID:0000000009879118

REMOVAL AND INSTALLATION

LIIA1318E

BODY CONSTRUCTION

BRM-29

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Removal

1. If equipped, remove the floor rails. Refer to

EXT-32, "Removal and Installation"

.

2. Disconnect both of the rear combination lamp wire harnesses.
3. If equipped, remove the bed power point. Refer to

PWO-9, "Removal and Installation"

.

1.

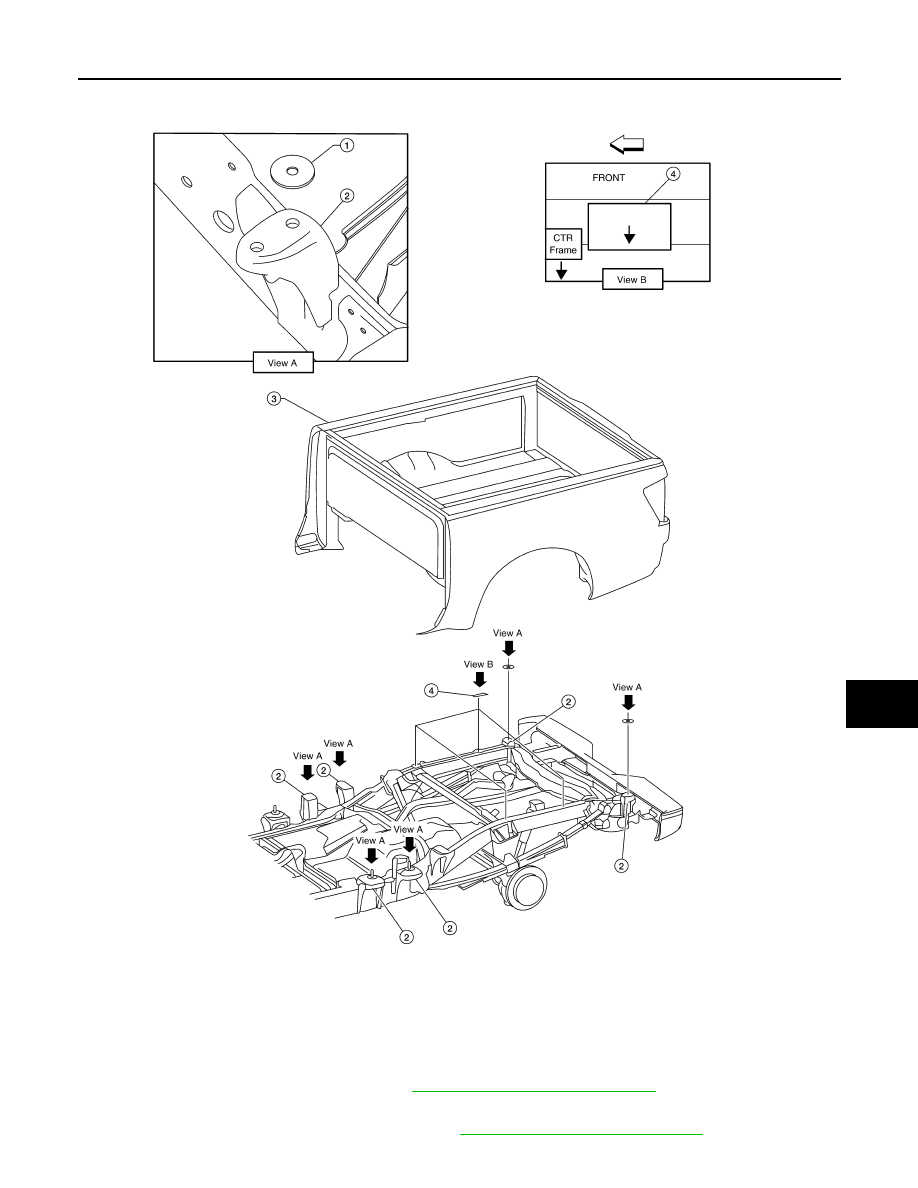

Shim (pick-up bed mount)

2.

Body rear mount

3.

Pick-up bed assembly

4.

Shim (bed floor crossmember)

LIIA2153E
