BRM-22

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

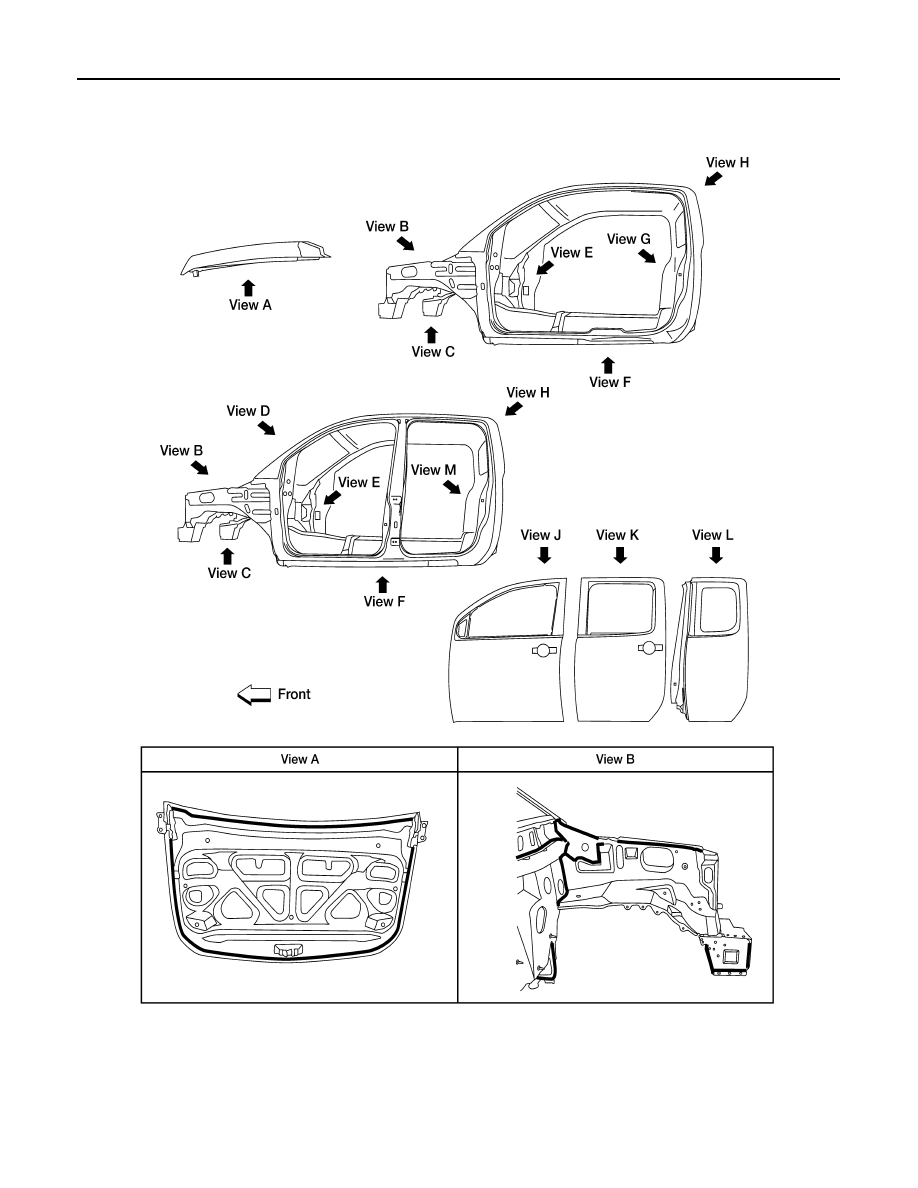

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of

sealant and not to allow other unaffected parts to come into contact with the sealant.

LIIA1303E

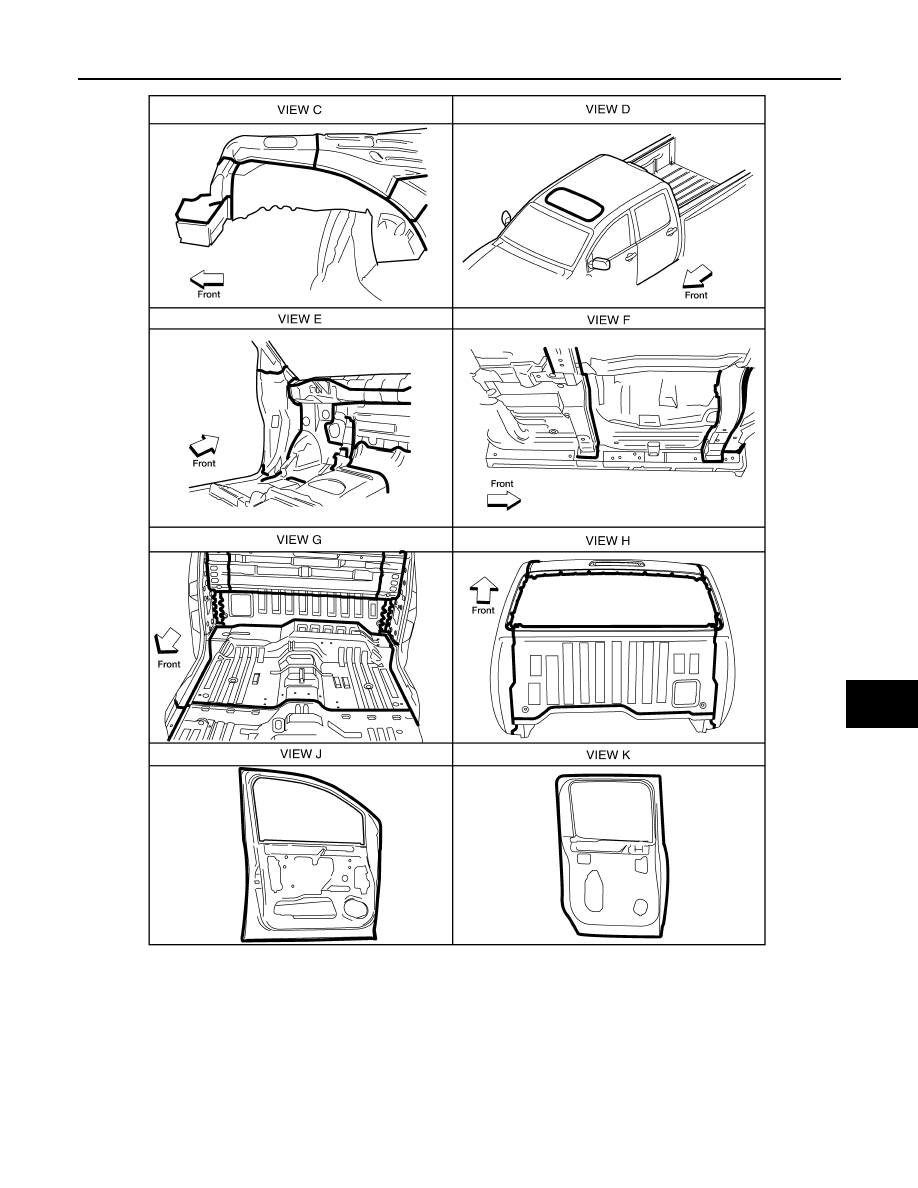

CORROSION PROTECTION

BRM-23

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

AWKIA0005GB

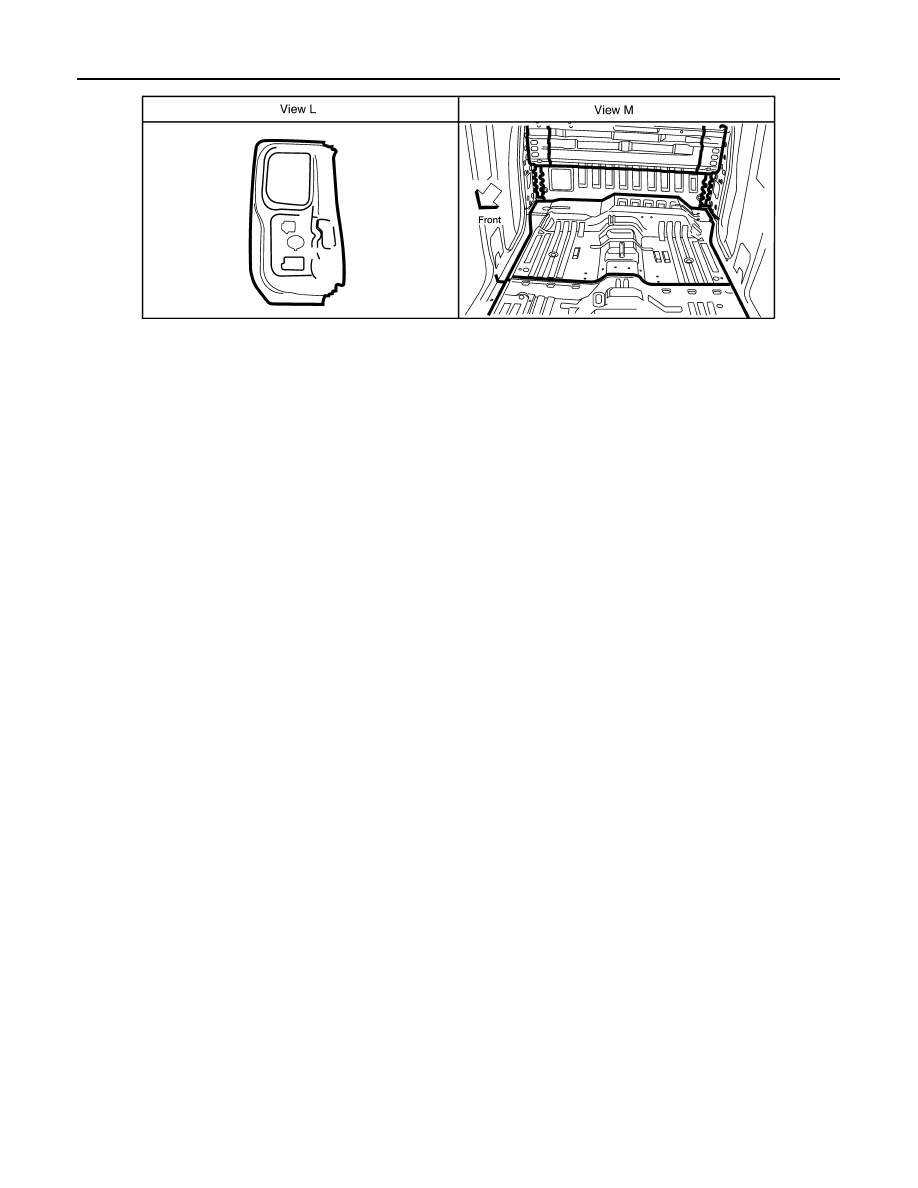

BRM-24

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

LIIA1316E

BODY CONSTRUCTION

BRM-25

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

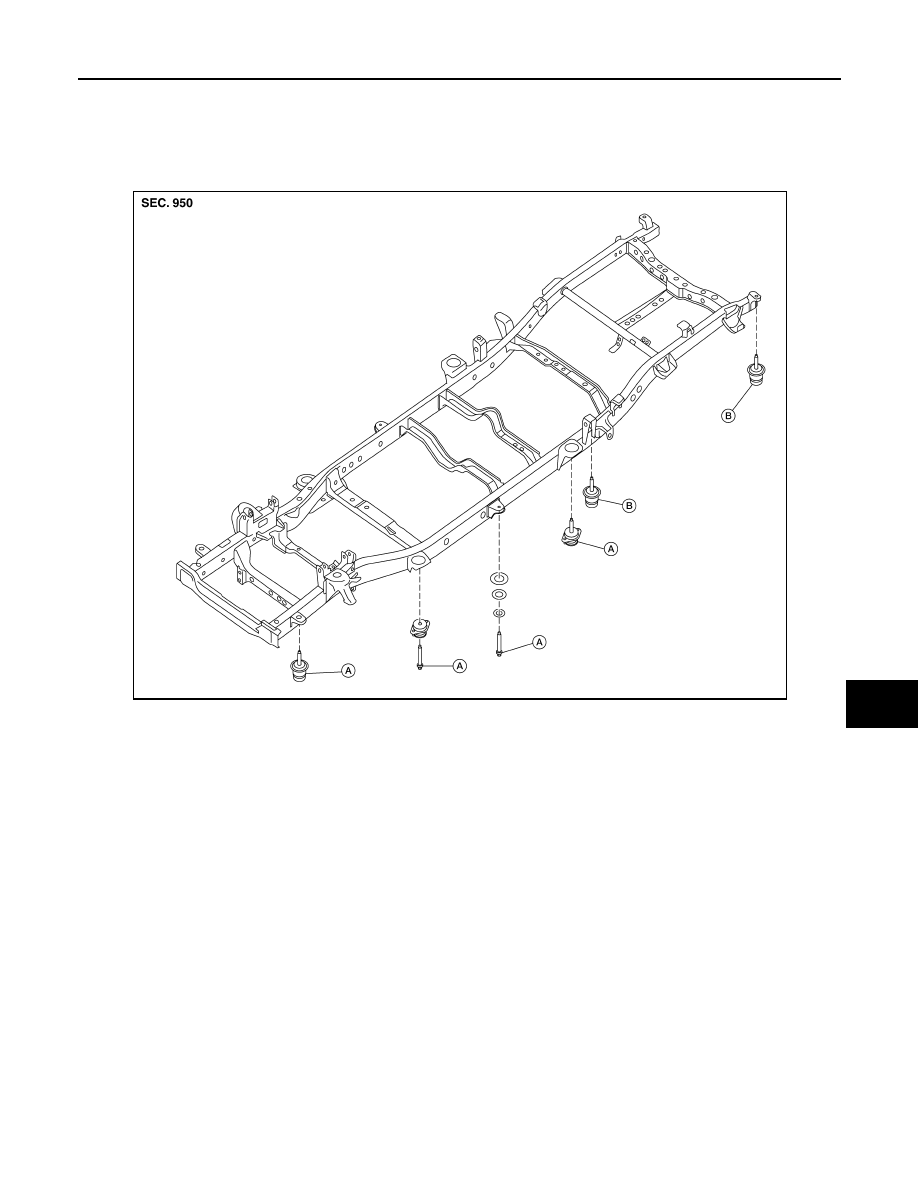

Body Mounting, Crew Cab

INFOID:0000000009879115

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

Frame to Cab (A)

: 87.5 N·m (8.9 kg-m, 65 ft-lb)

Frame to Bed (B)

: 21.6 N·m (2.2 kg-m, 16 ft-lb)

AWIIA1111GB
