4. Disconnect the fuel filler neck from the bed side outer.
5. Remove the rear bumper assembly.
6. Remove the pick-up bed assembly.

Installation

Installation is in the reverse order of removal.

• Shim as necessary for proper fit and finish.

BODY ALIGNMENT

BRM-31

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY ALIGNMENT

Body Alignment

INFOID:0000000009879119

BODY CENTER MARKS

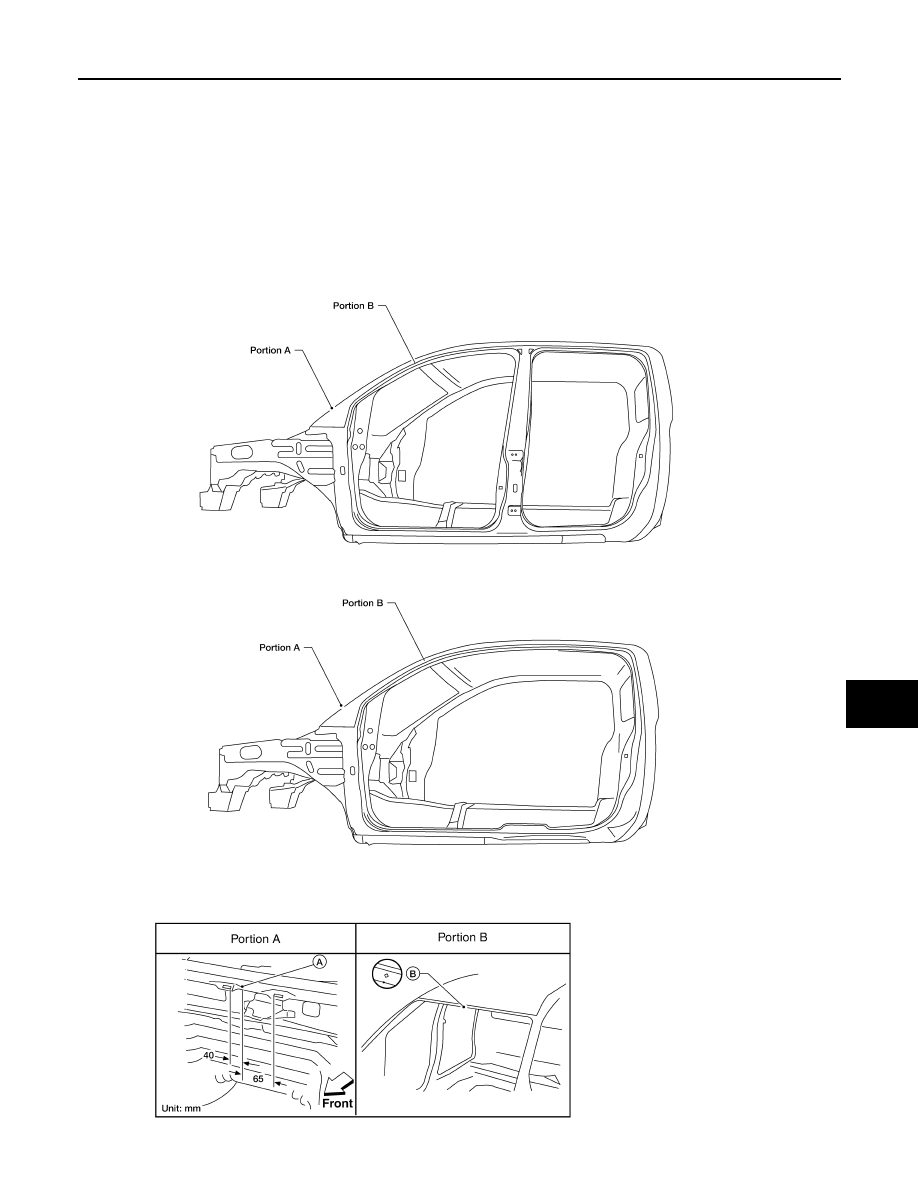

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

ALKIA0502GB

BRM-32

< UNIT REMOVAL AND INSTALLATION >

BODY ALIGNMENT

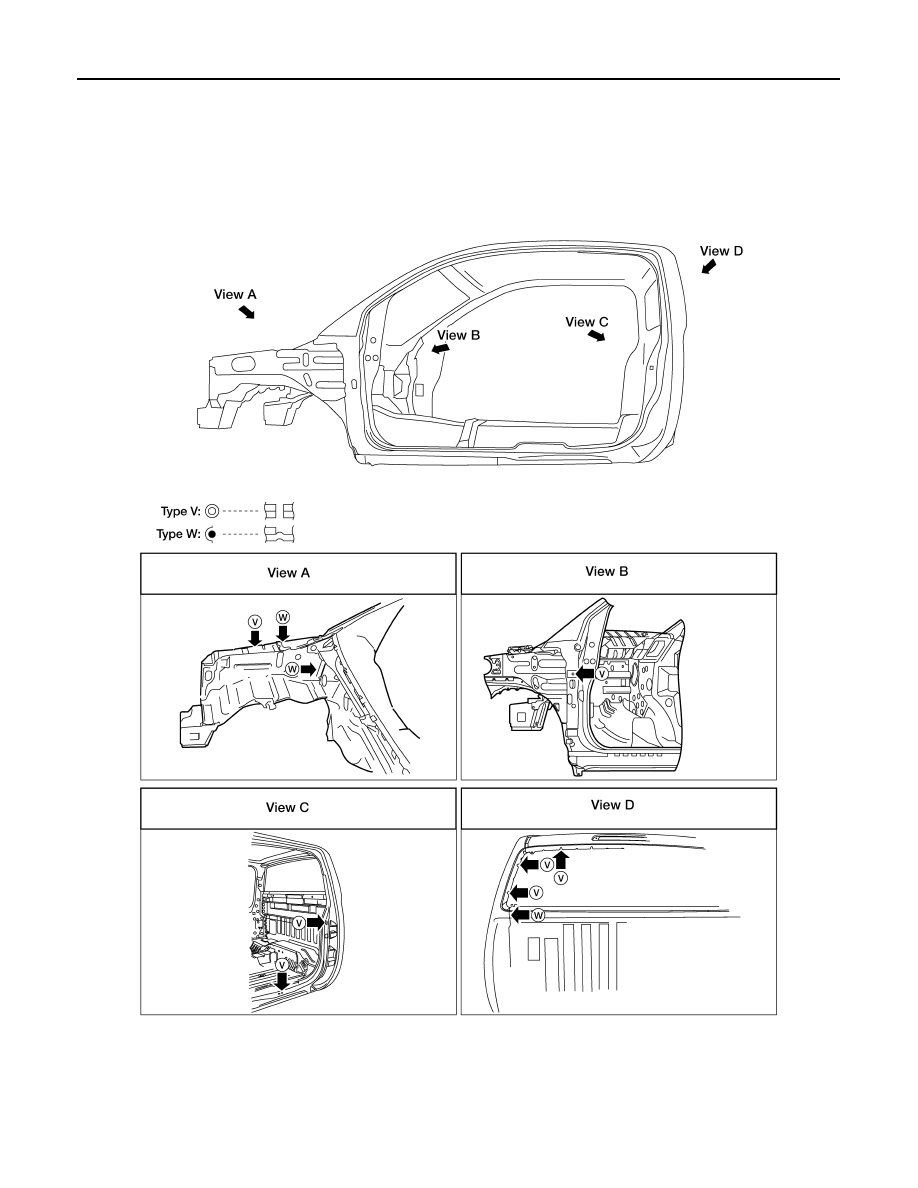

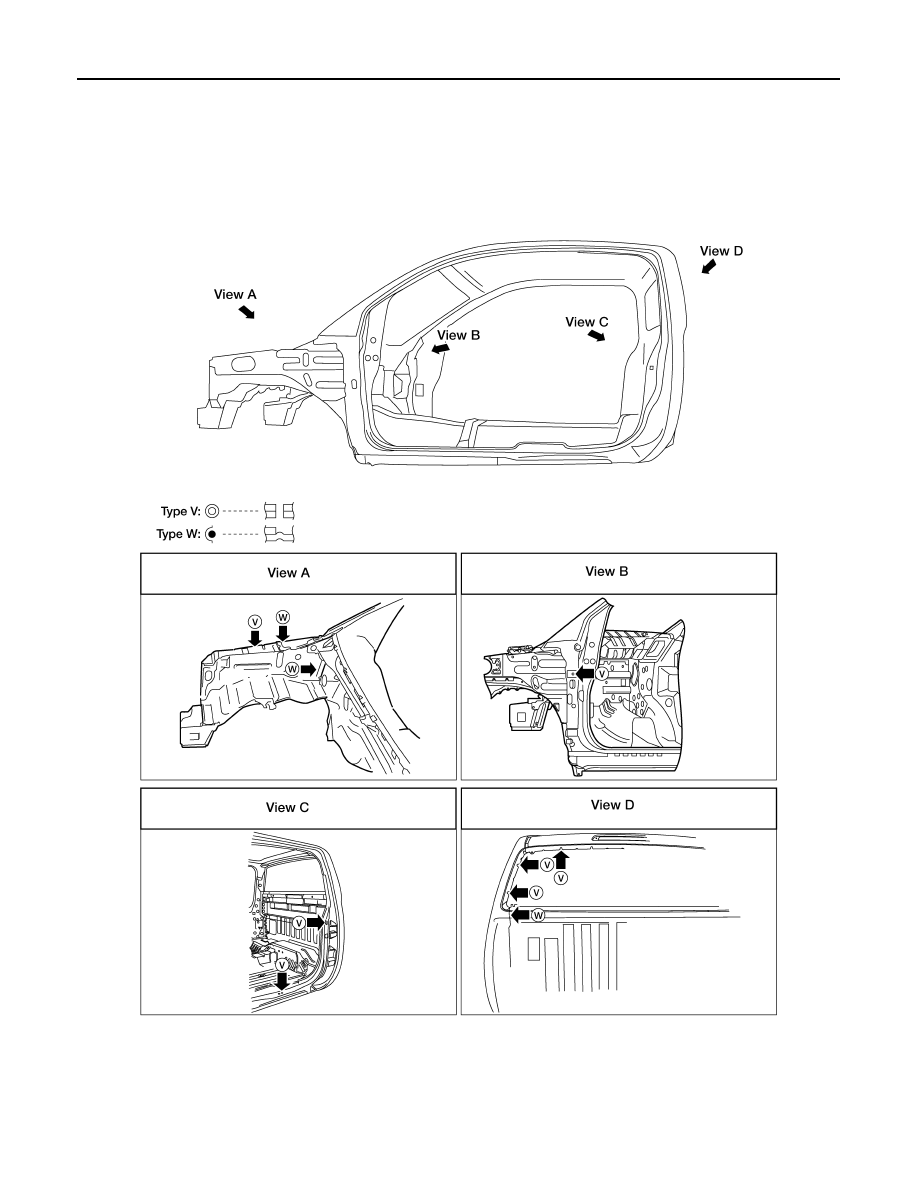

PANEL PARTS MATCHING MARKS

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts

damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and

effective repair will be possible by using these marks together with body alignment specifications.

DESCRIPTION

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

WIIA0338E

BODY ALIGNMENT

BRM-33

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

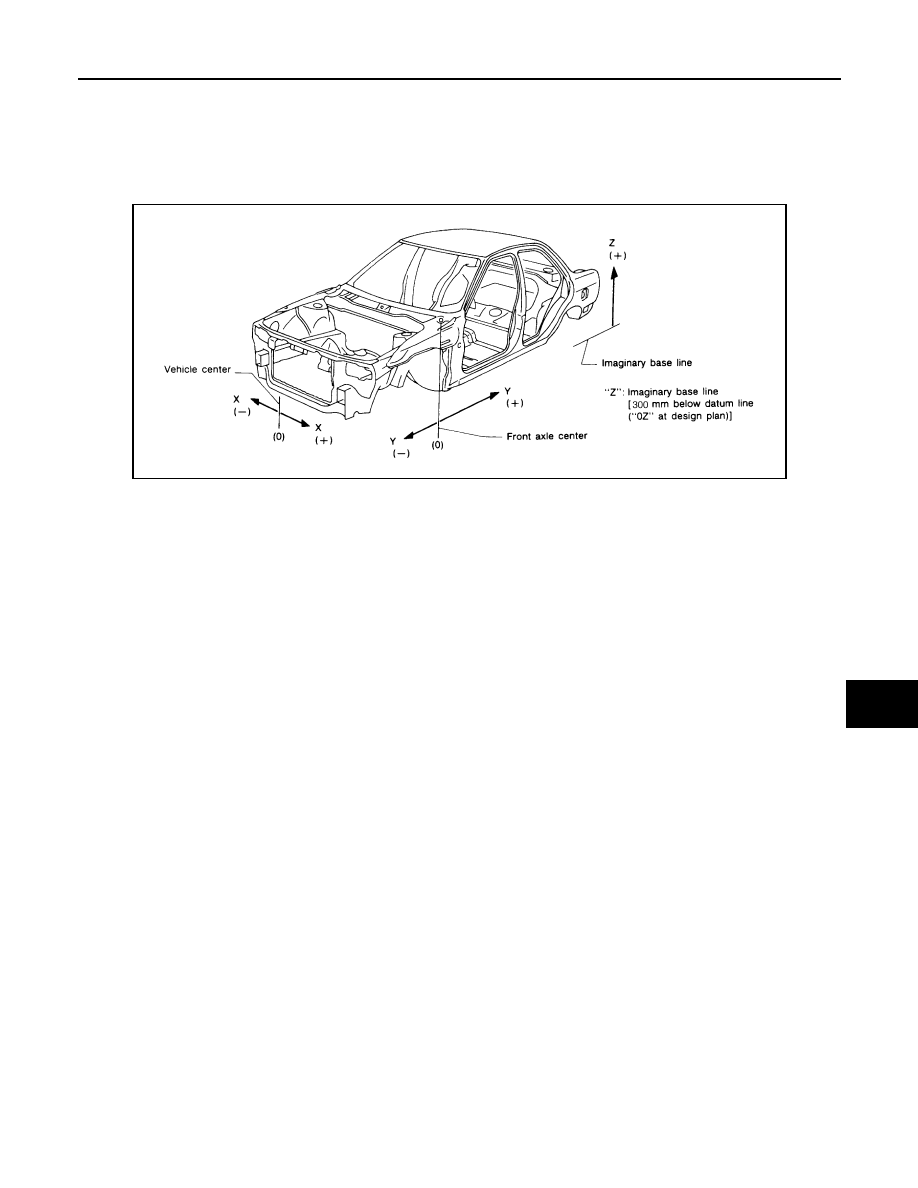

• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"

and "Z".

Engine Compartment

LIIA1506E
