BRM-6

< PRECAUTION >

PRECAUTIONS

Handling Precaution for Plastics

INFOID:0000000009879110

1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics

(influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

2. Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°C (°F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly).

Flammable

PVC

Polyvinyl Chloride

80 (176)

Same as above.

Poison gas is emitted
when burned.

EPM/
EPDM

Ethylene Propylene (Diene) rub-
ber

80 (176)

Same as above.

Flammable

TPO/
TPR

Thermoplastic Olefine/
Thermoplastic Rubber

80 (176)

Same as above.

Flammable

PP

Polypropylene

90 (194)

Same as above.

Flammable, avoid bat-
tery acid.

UP

Polyester thermoset

90 (194)

Same as above.

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

ABS

Acrylonitrile Butadiene Styrene
resin

80 (176)

Avoid gasoline and solvents.

AES

Acrylonitrile Ethylene Styrene

80 (176)

Same as above.

PMMA

Polymethyl Methacrylate

85 (185)

Same as above.

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Same as above.

AS

Acrylonitrile Styrene

85 (185)

Same as above.

EVA

Polyvinyl Ethyl Acetate

90 (194)

Same as above.

ASA

Acrylonitrile Styrene Acrylate

100 (222)

Same as above.

Flammable

PPO/
PPE

Polyphenylene Oxide/
Polyphenylene Ether

110 (230)

Same as above.

PC

Polycarbonate

120 (248)

Same as above.

PAR

Polyacrylate

180 (356)

Same as above.

L-
LDPE

Lenear Low Density PE

45 (100)

Gasoline and most solvents are
harmless.

Flammable

PUR

Polyurethane

90 (194)

Same as above.

TPU

Thermoplastic Urethane

110 (230)

Same as above.

PPC

Polypropylene Composite

115 (239)

Same as above.

Flammable

POM

Polyacetal

120 (248)

Same as above.

Avoid battery acid.

PBT+P
C

Polybutylene Terephtha-
late+Polycarbonate

120 (248)

Same as above.

Flammable

PA

Polyamide (Nylon)

140 (284)

Same as above.

Avoid immersing in wa-
ter.

PBT

Polybutylene Terephthalate

140 (284)

Same as above.

FRP

Fiber Reinforced Plastics

170 (338)

Same as above.

Avoid battery acid.

PET

Polyethylene Terephthalate

180 (356)

Same as above.

PEI

Polyetherimide

200 (392)

Same as above.

PRECAUTIONS

BRM-7

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

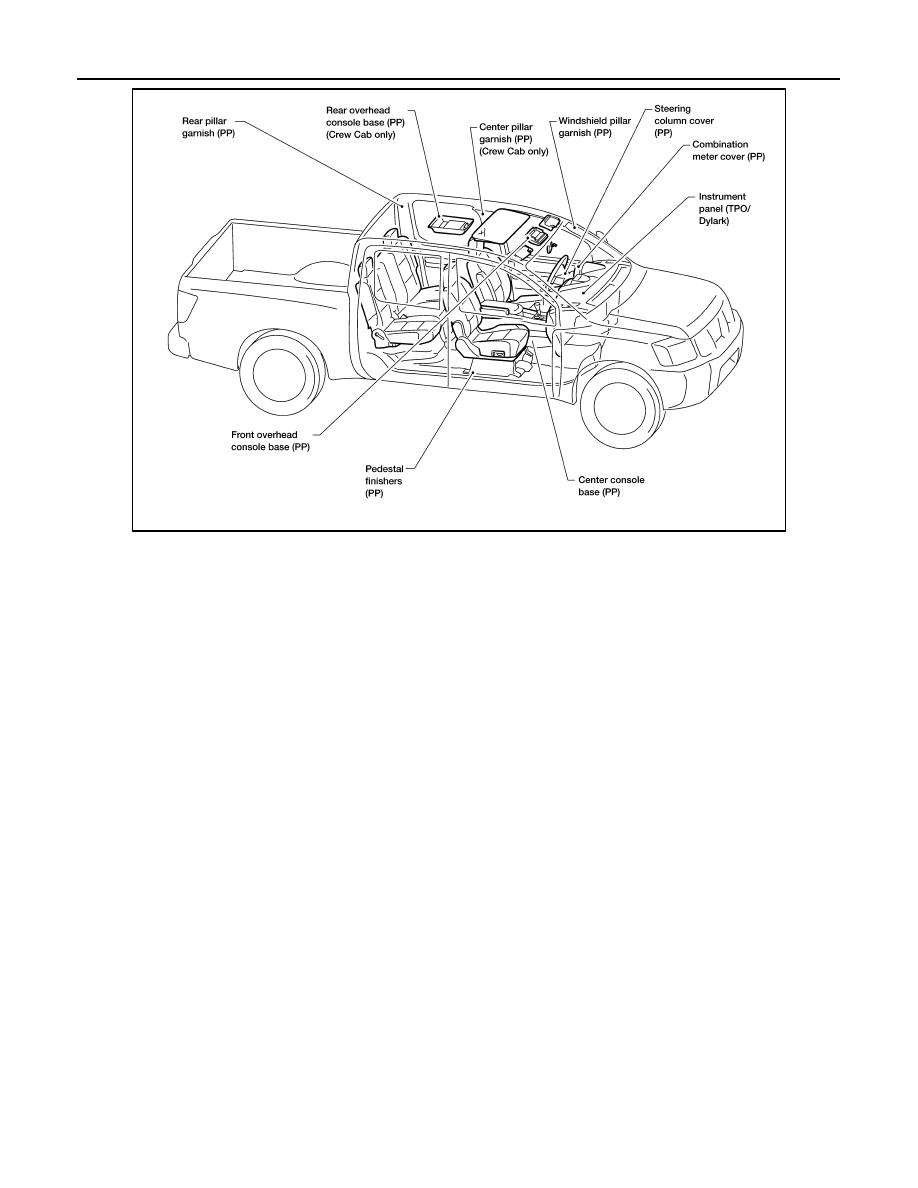

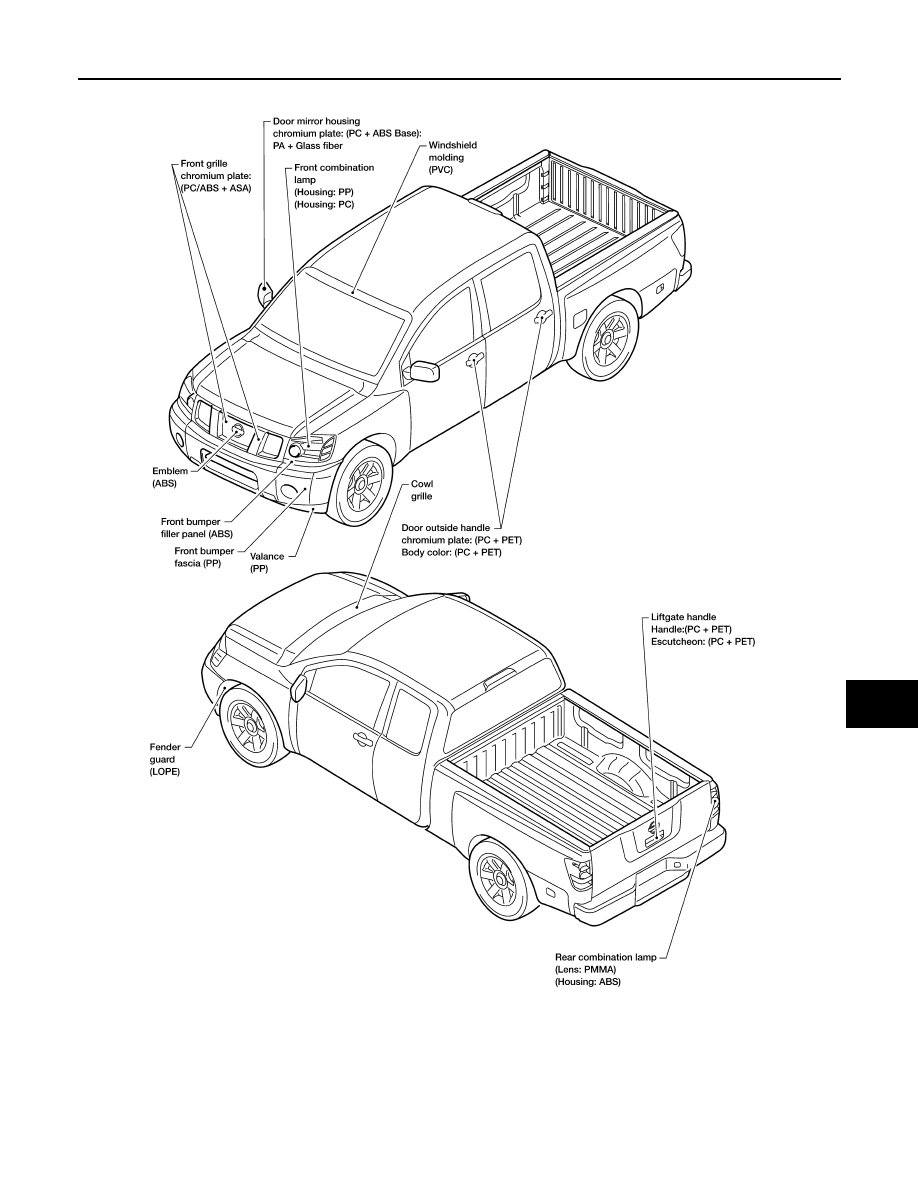

LOCATION OF PLASTIC PARTS

WIIA0350E

BRM-8

< PRECAUTION >

PRECAUTIONS

WIIA0351E

REPAIRING MATERIAL

BRM-9

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000009879111

During factory body assembly, foam insulators are installed in certain body panels and locations around the

vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available spray foam for sealant (foam material) repair of material used on vehicle. Read

instructions on product for fill procedures.

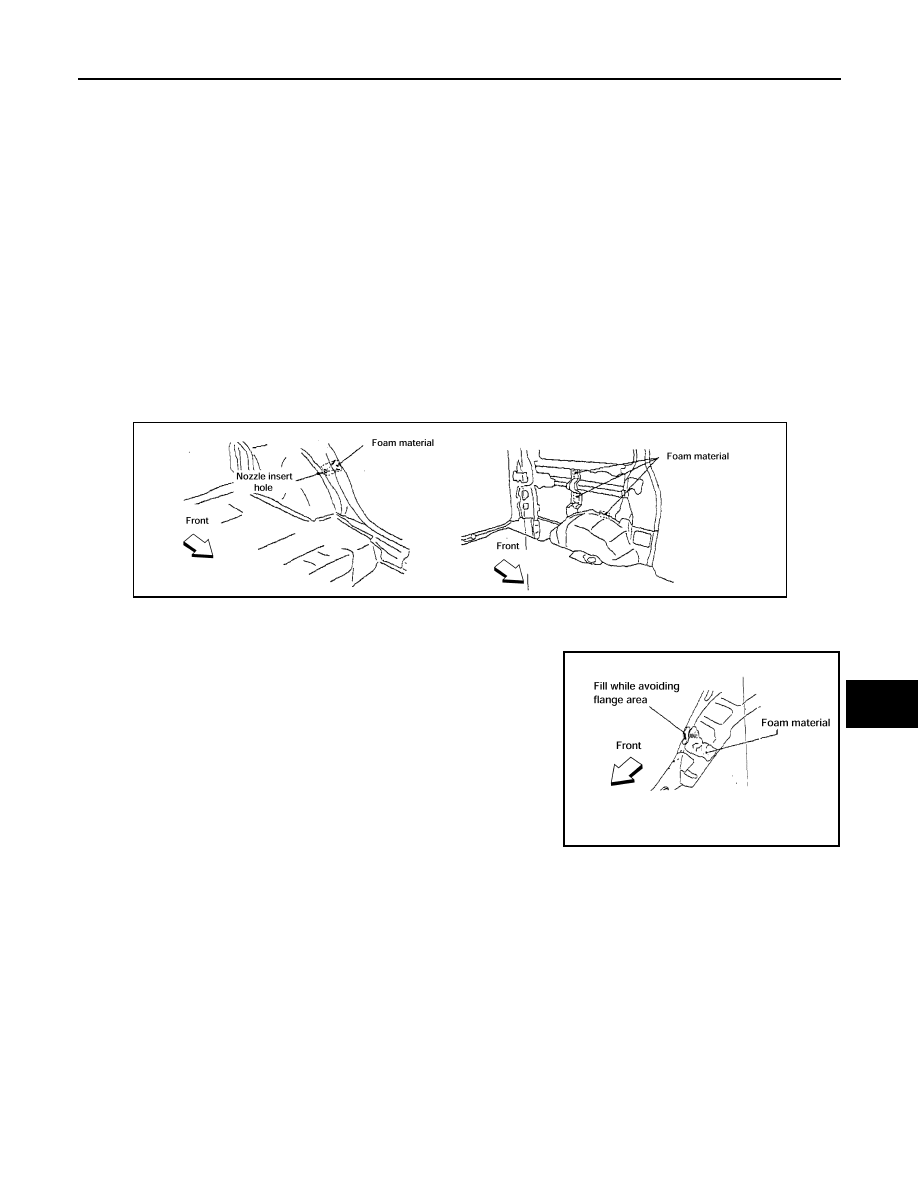

FILL PROCEDURES

1. Fill procedures after installation of service part.

-

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Install service part.

-

Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service

part.

2. Fill procedures before installation of service part.

-

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Fill foam material on wheelhouse outer side.

NOTE:

Fill in enough to close gap with service part while avoiding flange

area.

-

Install service part.

NOTE:

Refer to label for information on working times.

LIIA1081E

LIIA1082E
