ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-117

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Installation is in the reverse order of removal.

CAUTION:

• To install, use a flare nut crowfoot and torque wrench (commercial service tools).

• Always tighten brake tubes to specification when installing.

• Do not reuse drained brake fluid.

• After installation of the ABS actuator and electric unit (control unit), perform the following.

- Refill brake system with new brake fluid. Then bleed the air from the system. Refer to

BR-16, "Bleed-

ing Brake System"

.

- Adjust the steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR

NEUTRAL POSITION : Special Repair Requirement"

.

- Calibrate the yaw rate/side/decel G sensor. Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR :

Special Repair Requirement"

.

BRC-118

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000009883747

REMOVAL

1. Remove spiral cable. Refer to

SR-6, "Removal and Installation"

.

2. Remove the screws and remove the steering angle sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation of spiral cable, adjust steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

YAW RATE/SIDE G SENSOR

BRC-119

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

YAW RATE/SIDE G SENSOR

Removal and Installation

INFOID:0000000009883748

REMOVAL

1. Remove center console (if equipped). Refer to

IP-24, "Disassembly and Assembly"

.

2. Remove the front center seat (if equipped). Refer to

SE-34, "Removal and Installation - Front Seat

Assembly"

.

3. Remove yaw rate/side/decel G sensor nuts.

CAUTION:

• Do not use power tools to remove the yaw rate/side/decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

4. Disconnect harness connector and remove the yaw rate/side/decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or strike the yaw rate/side/decel G sensor.

• After installation, calibrate the yaw rate/side/decel G sensor. Refer to

BRC-9, "CALIBRATION OF

DECEL G SENSOR : Description"

.

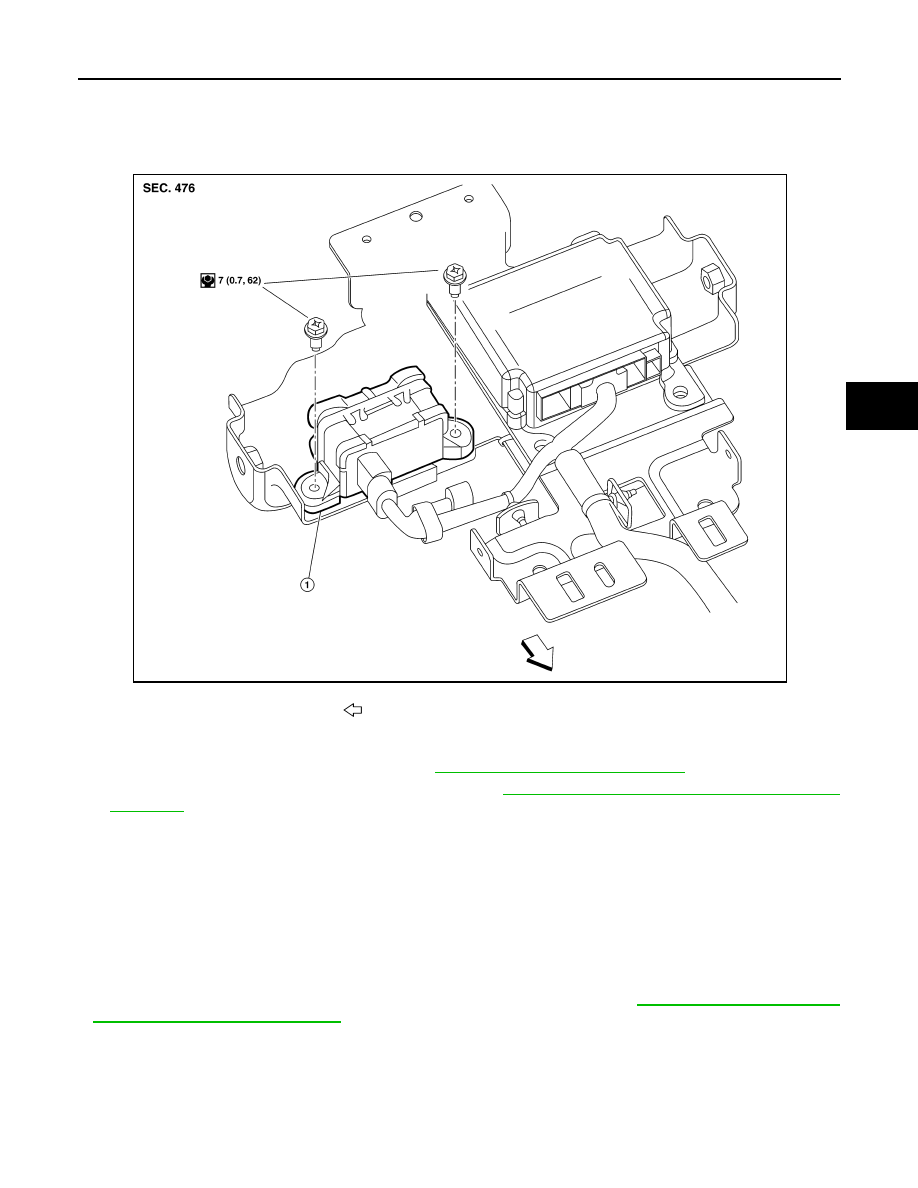

1.

Yaw rate/side/decel G sensor

Front

ALFIA0330ZZ
