Nissan Titan. Manual - part 47

BRM-10

< PREPARATION >

BODY COMPONENT PARTS

BODY COMPONENT PARTS

Body Component Parts

INFOID:0000000009879112

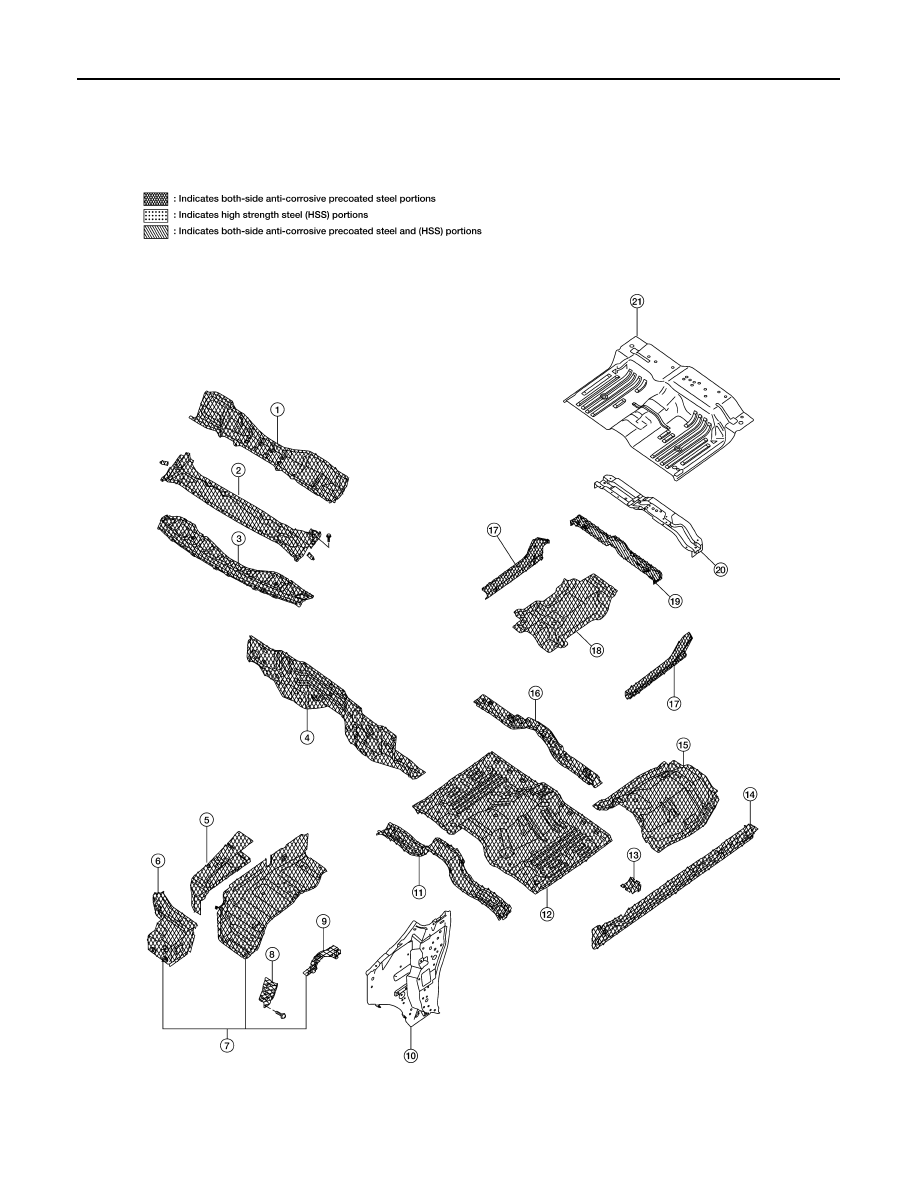

UNDERBODY COMPONENT PARTS

1. Upper dash assembly
2. Cowl top extension

ALKIA0489GB

BODY COMPONENT PARTS

BRM-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

3. Cowl top
4. Lower dash
5. Hoodledge reinforcement (RH & LH)
6. Battery mounting reinforcement (RH)

1st body mounting bracket (LH)

7. Hoodledge assembly (RH & LH)
8. Hoodledge front reinforcement (RH & LH)
9. Harness bracket (RH)
10. Dash side (RH & LH)
11. 2nd crossmember assembly
12. Front floor
13. 2nd crossmember extension (RH & LH)
14. Inner sill (RH & LH)
15. Front floor reinforcement
16. Front seat mounting crossmember
17. Inner sill extension (RH & LH)
18. Rear floor reinforcement assembly
19. 4th crossmember
20. Rear seat crossmember
21. Front floor rear

BODY COMPONENT PARTS

BRM-12

< PREPARATION >

BODY COMPONENT PARTS

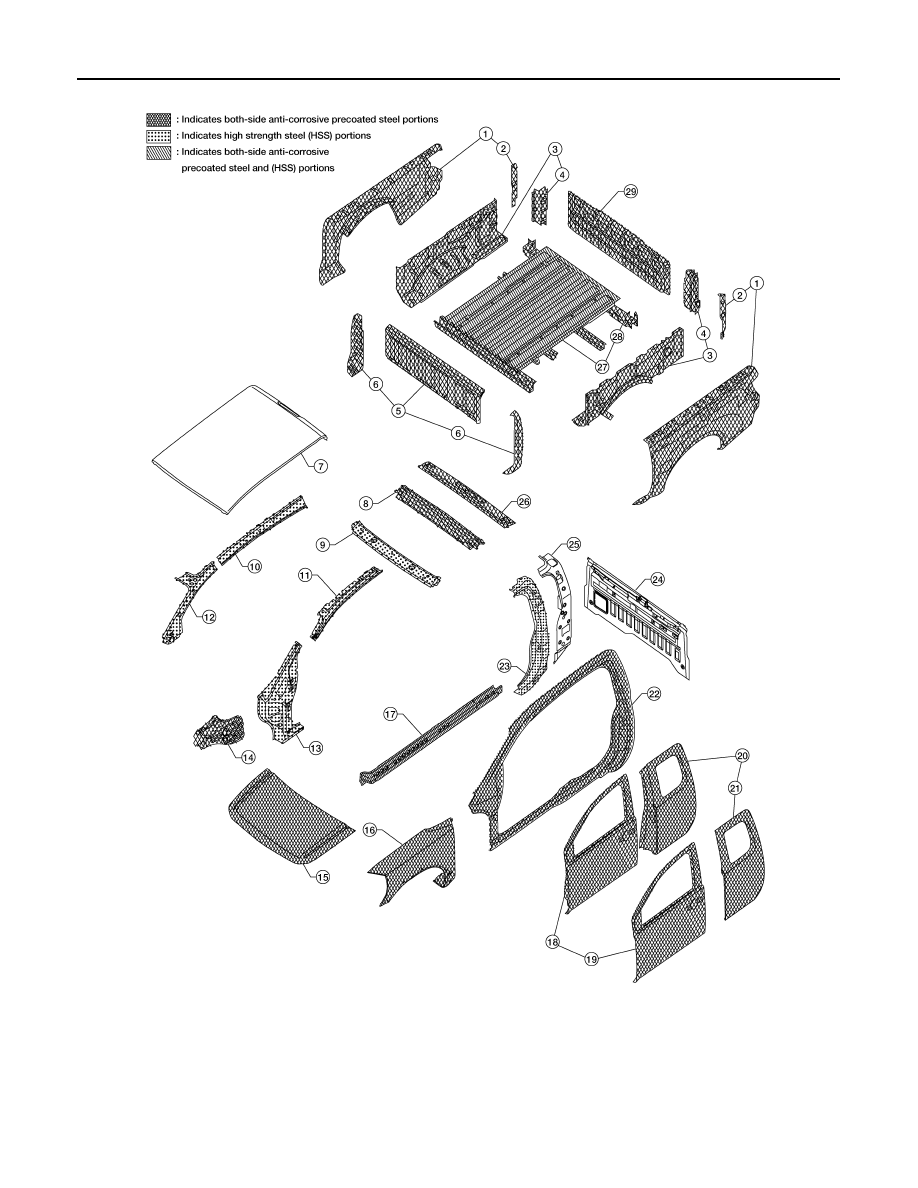

KING CAB

1. Side panel assembly (RH & LH)
2. Inner rear strut assembly (RH & LH)
3. Inner side panel assembly (RH & LH)
4. Rear strut assembly (RH & LH)
5. Header panel assembly
6. Front outer strut assembly (RH & LH)

ALKIA0490GB

BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

7. Roof
8. No. 1 roof bow
9. Front roof rail
10. Inner roof side rail (RH & LH)
11. Upper front pillar reinforcement (RH & LH)
12. Inner upper front pillar (RH & LH)
13. Front pillar brace (RH & LH)
14. Rear hoodledge reinforcement (RH & LH)
15. Hood
16. Front fender (RH & LH)
17. Outer sill reinforcement (RH & LH)
18. Front door assembly (RH & LH)
19. Front door outer panel (RH & LH)
20. Rear door assembly (RH & LH)
21. Rear door outer panel (RH & LH)
22. Body side outer (RH & LH)
23. Outer lock pillar reinforcement (RH & LH)
24. Back panel assembly
25. Inner lock pillar (RH & LH)
26. Rear roof rail
27. Rear body floor assembly
28. Floor tail bolster assembly
29. Tail gate
