TM-240

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

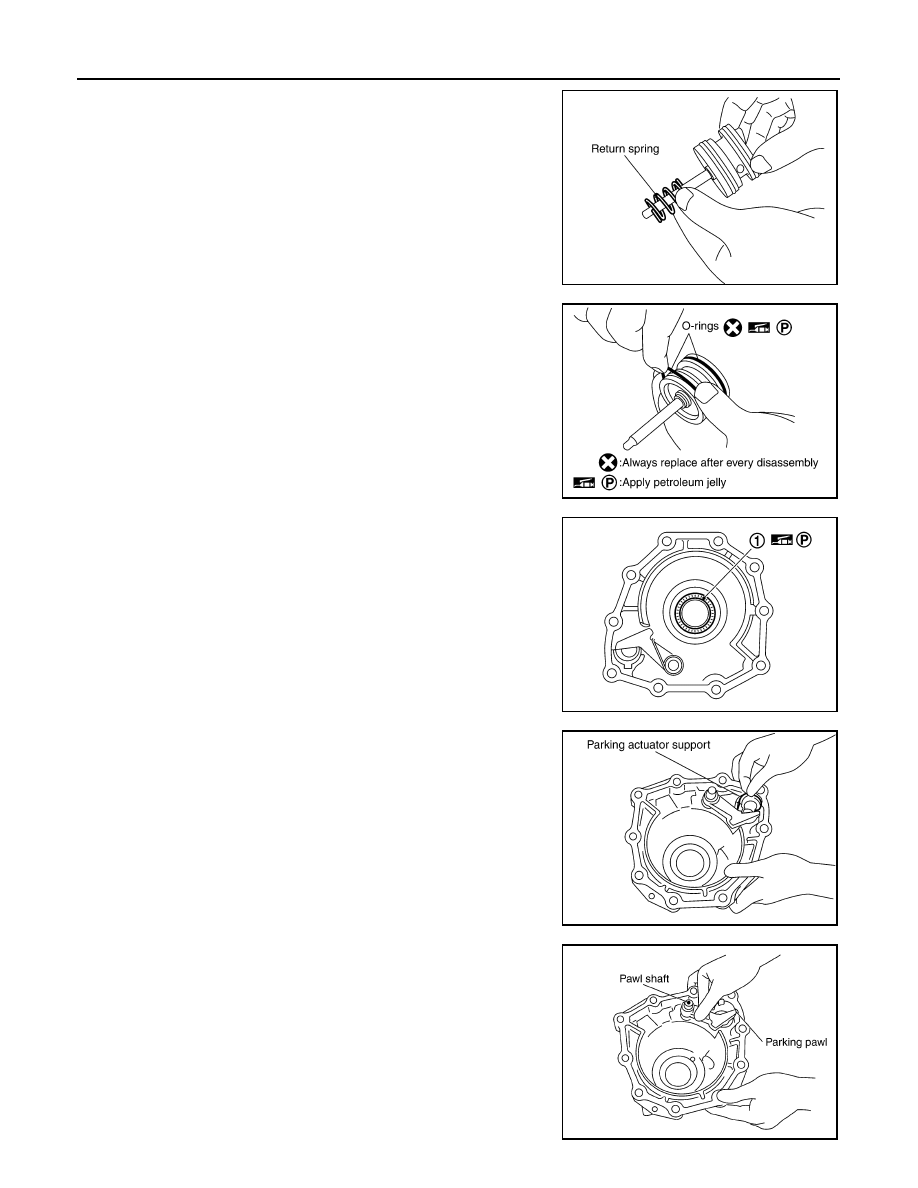

68. Remove return spring from servo assembly.

69. Remove O-rings from servo assembly.

70. Remove needle bearing (1) from rear extension (2WD models)

or adapter case (4WD models).

71. Remove parking actuator support from rear extension (2WD

models) or adapter case (4WD models).

72. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD models) or adapter case (4WD models).

SCIA5717E

SCIA5719E

SCIA6179J

SCIA3423E

SCIA3424E

DISASSEMBLY

TM-241

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

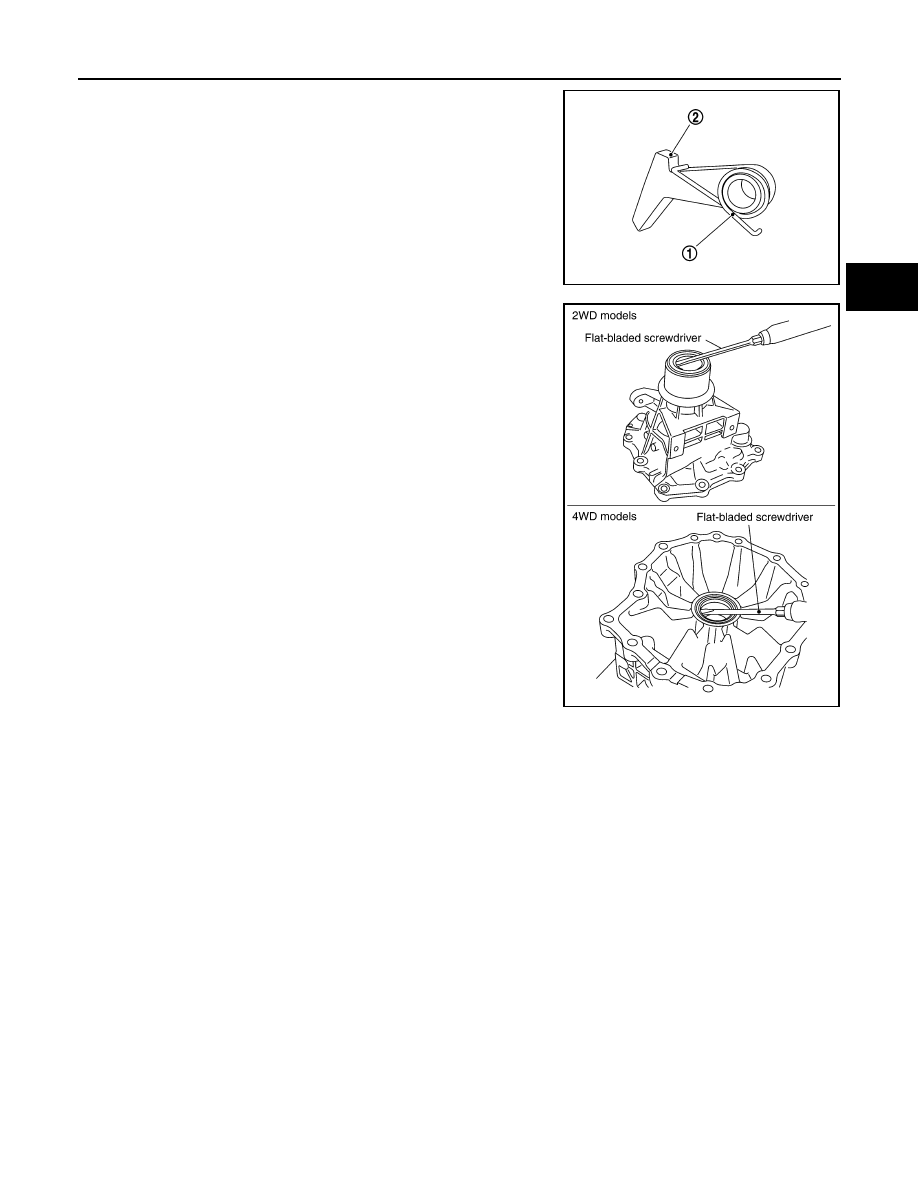

73. Remove return spring (1) from parking pawl (2).

74. Remove rear oil seal from rear extension (2WD models) or

adapter case (4WD models) using suitable tool.

CAUTION:

Do not scratch rear extension (2WD models) or adapter

case (4WD models).

SCIA6180J

SCIA5272E

TM-242

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

REPAIR FOR COMPONENT PARTS

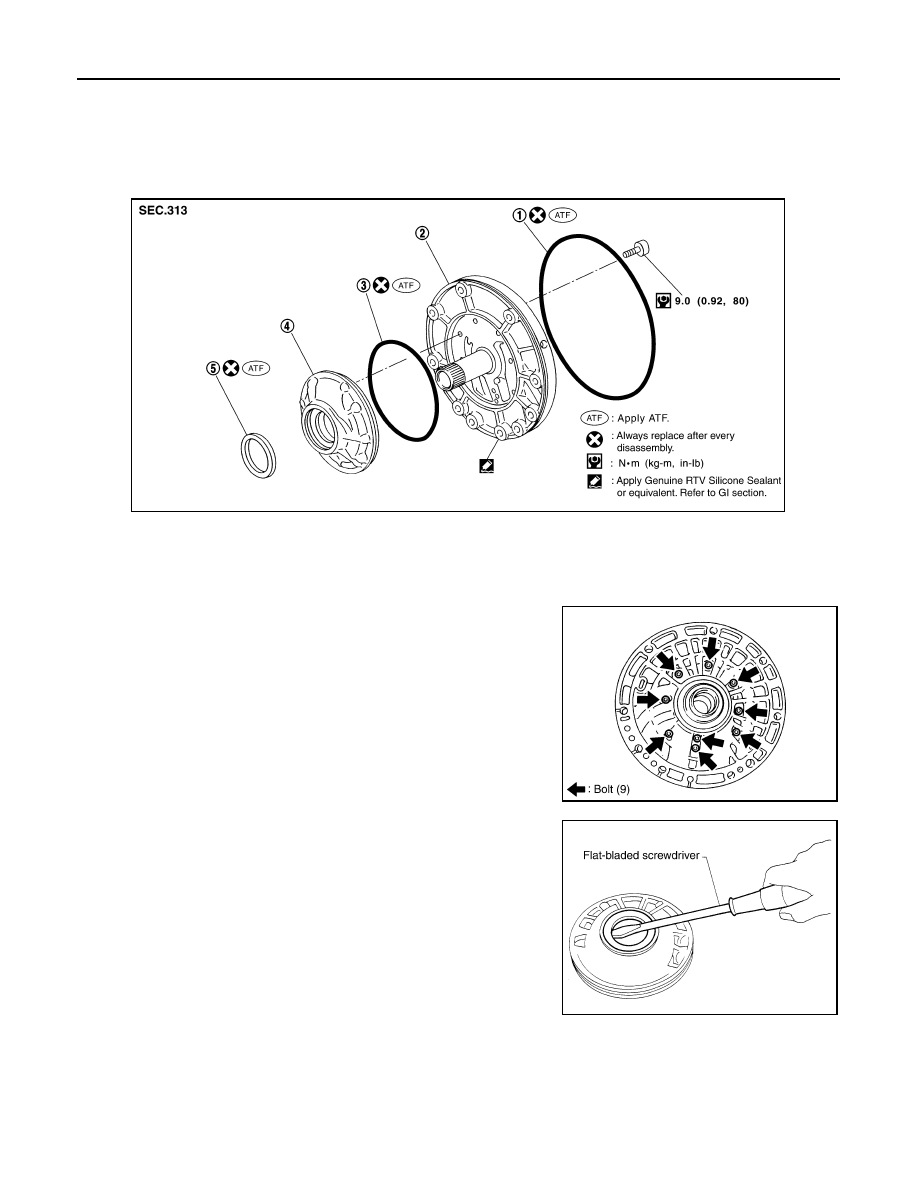

Oil Pump

INFOID:0000000006159465

COMPONENTS

DISASSEMBLY

1. Remove oil pump housing from oil pump cover.

2. Remove oil pump housing oil seal using suitable tool.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E

REPAIR FOR COMPONENT PARTS

TM-243

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

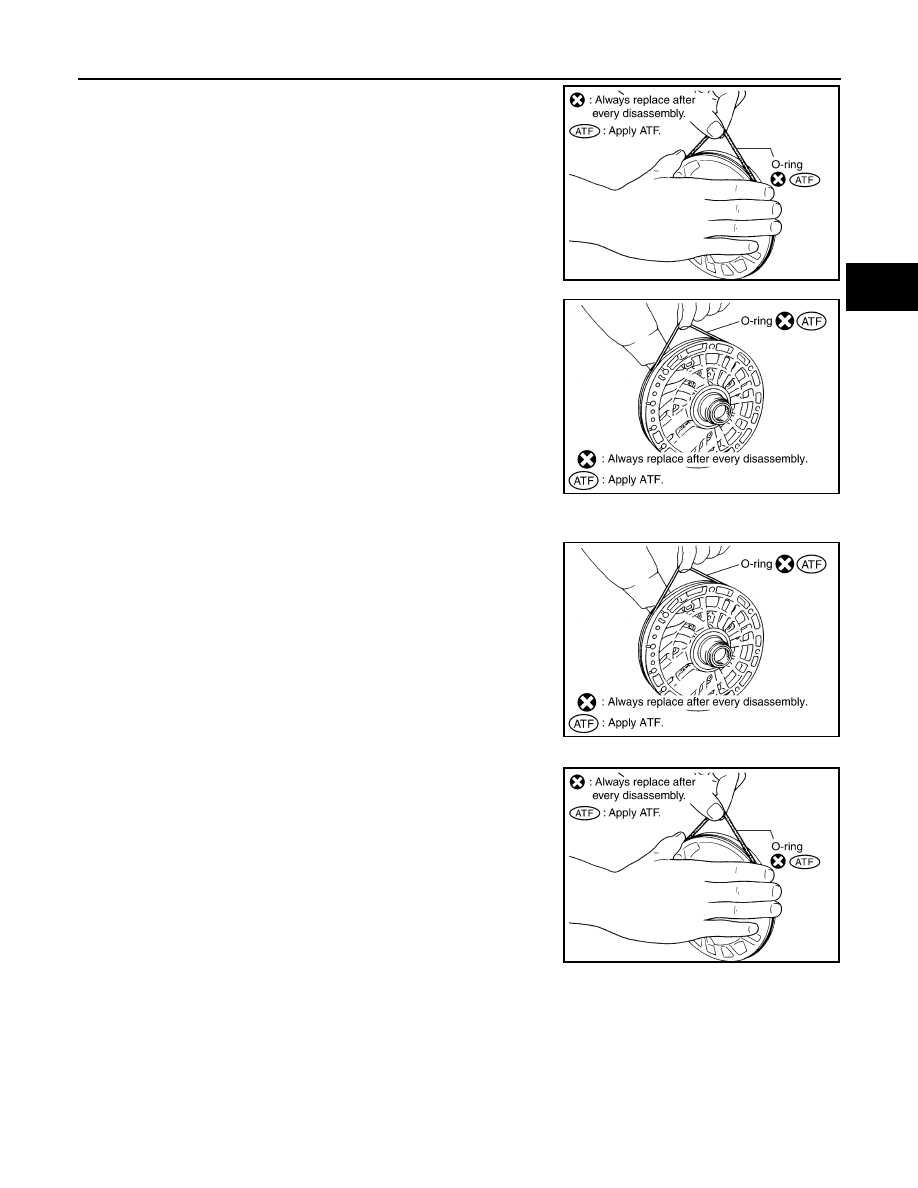

3. Remove O-ring from oil pump housing.

4. Remove O-ring from oil pump cover.

ASSEMBLY

1. Install new O-ring to oil pump cover.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

2. Install new O-ring to oil pump housing.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E
