TM-232

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

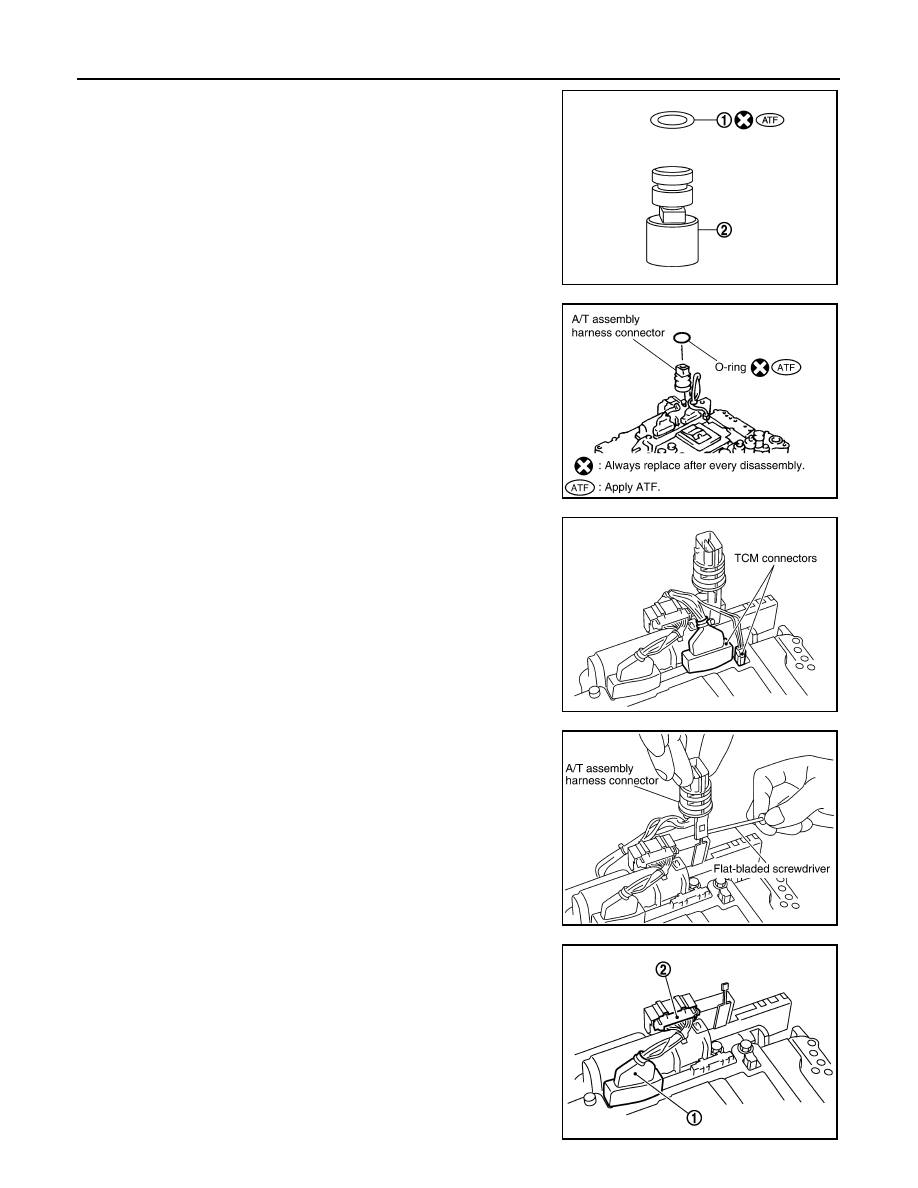

37. RemoveO-ring (1) from plug (2).

38. Remove O-ring from A/T assembly harness connector.

39. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

40. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

41. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

JSDIA1313ZZ

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

DISASSEMBLY

TM-233

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

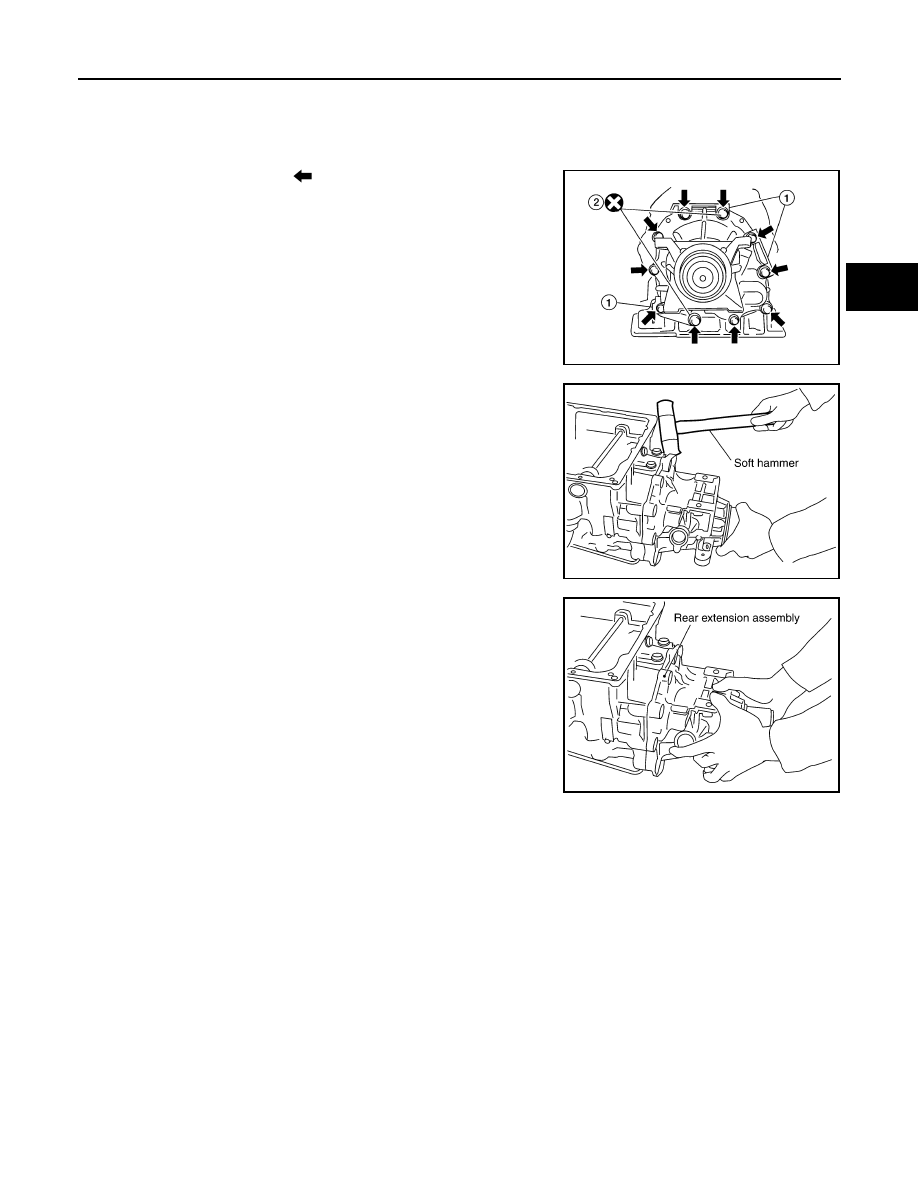

42. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to

the following procedures.

a. 2WD models

i.

Remove tightening bolts (

) for rear extension assembly and

transmission case.

• Brackets (1)

• Self-sealing bolts (2)

ii.

Tap rear extension assembly with soft hammer.

iii. Remove rear extension assembly (with needle bearing) from

transmission case.

WCIA0562E

SCIA5028E

SCIA5029E

TM-234

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

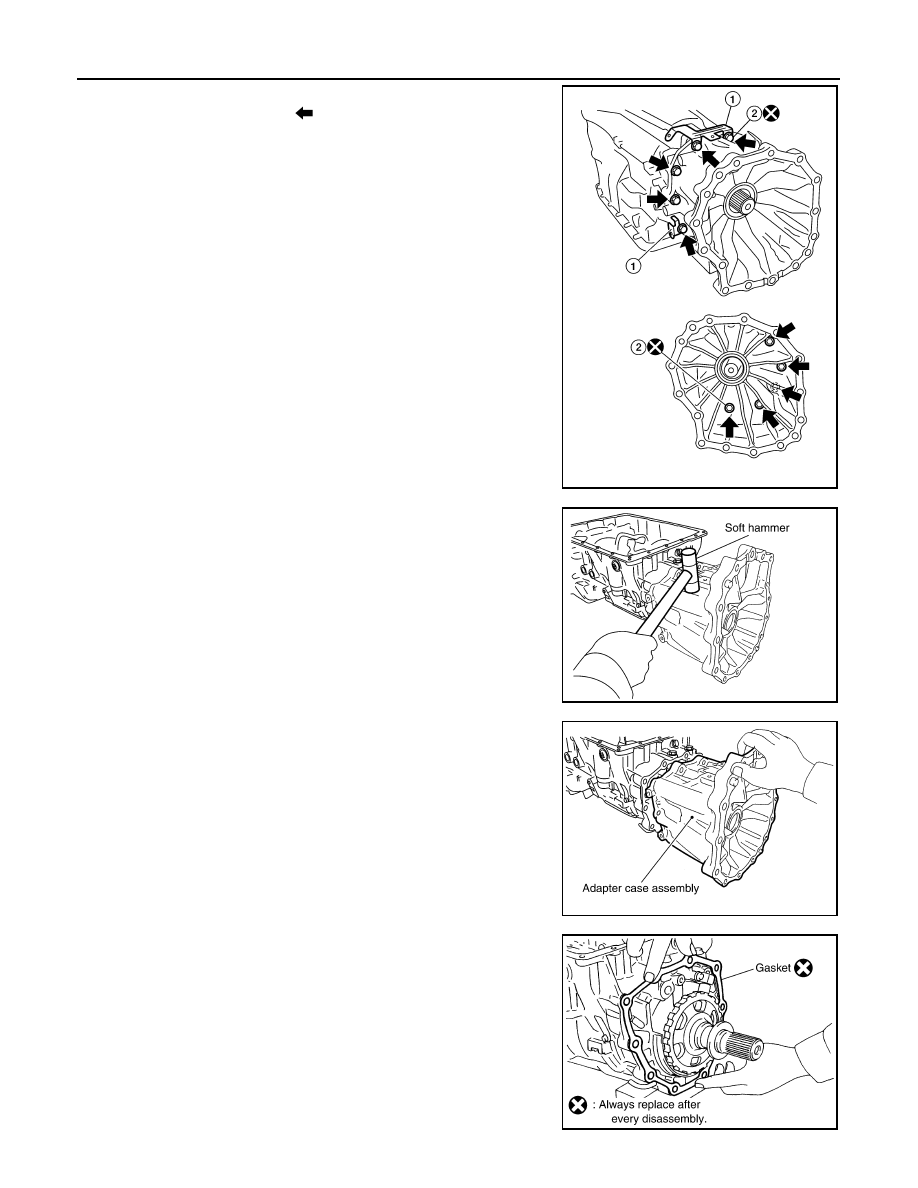

b. 4WD models
i.

Remove tightening bolts (

) for adapter case assembly and

transmission case.

• Brackets (1)

• Self-sealing bolt (2)

ii.

Tap adapter case assembly using suitable tool.

iii. Remove adapter case assembly (with needle bearing) from

transmission case.

iv. Remove gasket from transmission case.

WCIA0563E

SCIA5201E

SCIA5186E

SCIA5231E

DISASSEMBLY

TM-235

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

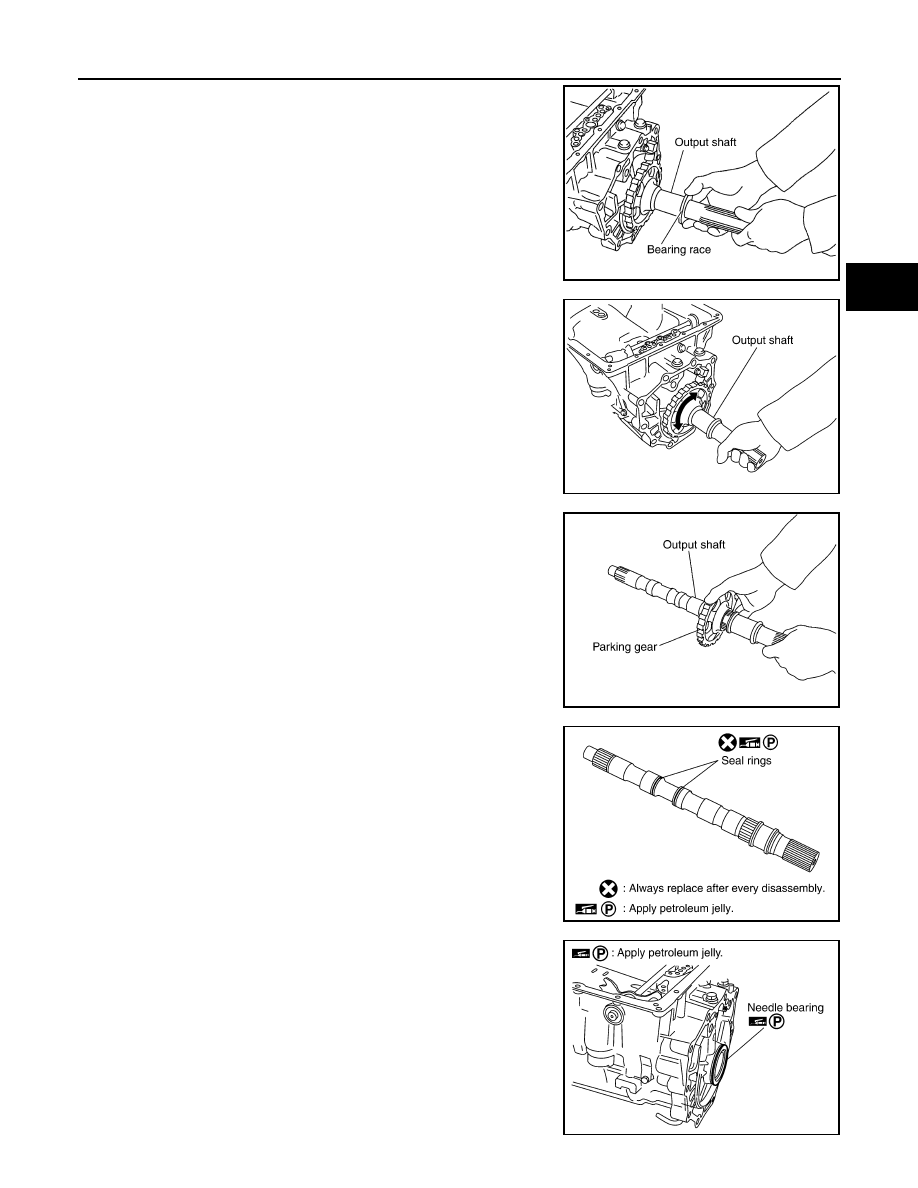

43. Remove bearing race from output shaft.

44. Remove output shaft from transmission case by rotating left and

right.

45. Remove parking gear from output shaft.

46. Remove seal rings from output shaft.

47. Remove needle bearing from transmission case.

SCIA5245E

SCIA5030E

SCIA5247E

SCIA5209E

SCIA5031E
