TM-228

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

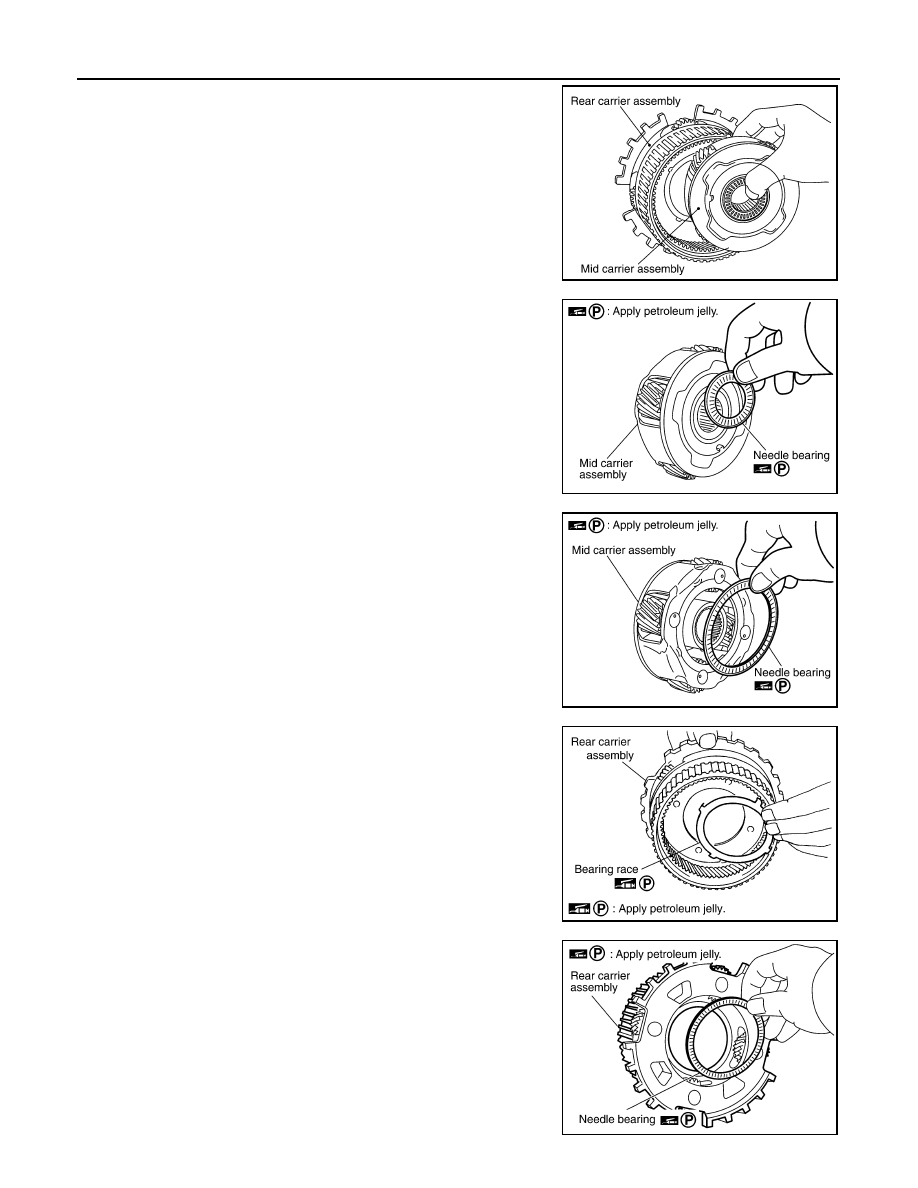

17. Remove mid carrier assembly from rear carrier assembly.

18. Remove needle bearing (front side) from mid carrier assembly.

19. Remove needle bearing (rear side) from mid carrier assembly.

20. Remove bearing race from rear carrier assembly.

21. Remove needle bearing from rear carrier assembly.

SCIA5697E

SCIA2805E

SCIA2804E

SCIA5175E

SCIA2803E

DISASSEMBLY

TM-229

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

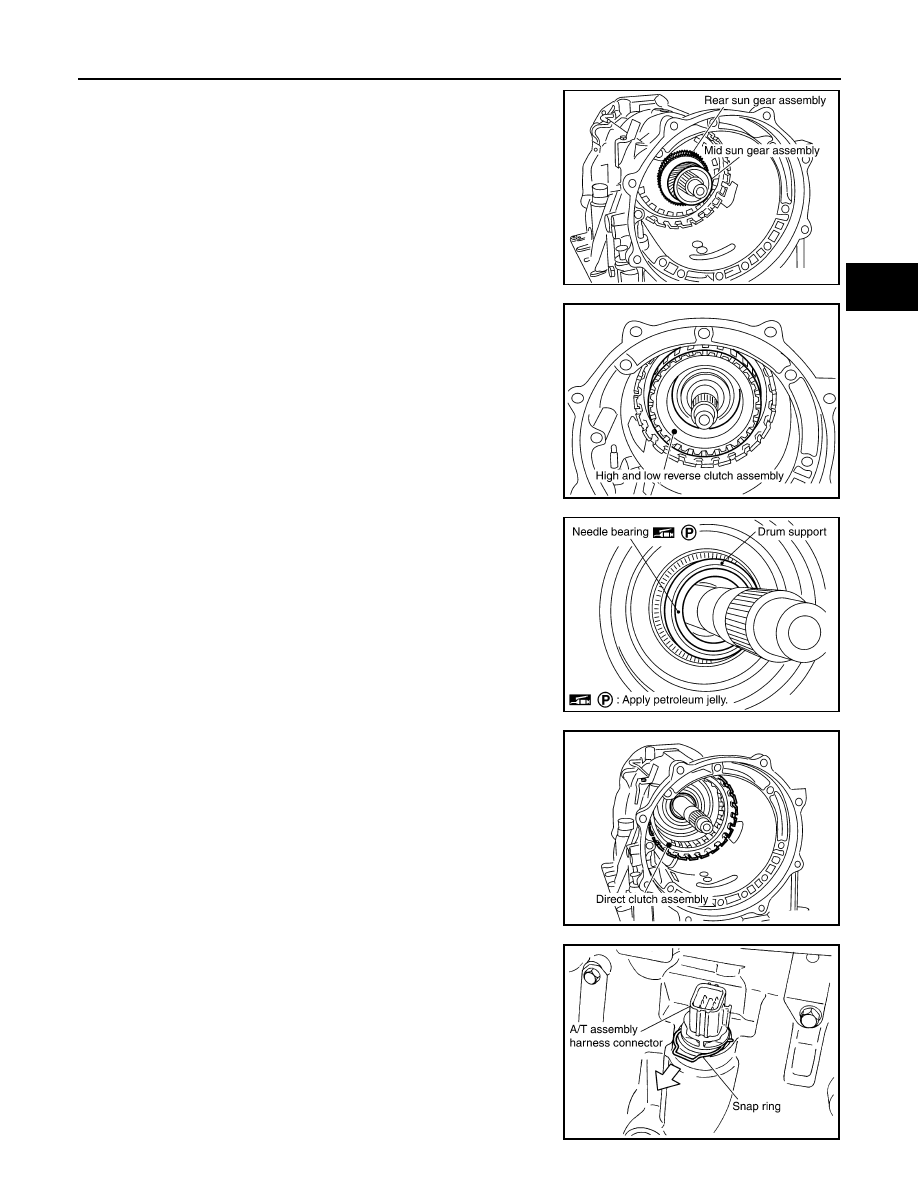

22. Remove mid sun gear assembly, rear sun gear assembly and

high and low reverse clutch hub as a unit.

CAUTION:

Remove them with bearing race and needle bearing.

23. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and

low reverse clutch assembly edge surface.

24. Remove needle bearing from drum support.

25. Remove direct clutch assembly from reverse brake.

26. Remove snap ring from A/T assembly harness connector.

SCIA5018E

SCIA2306E

SCIA5198E

SCIA5019E

SCIA5021E

TM-230

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

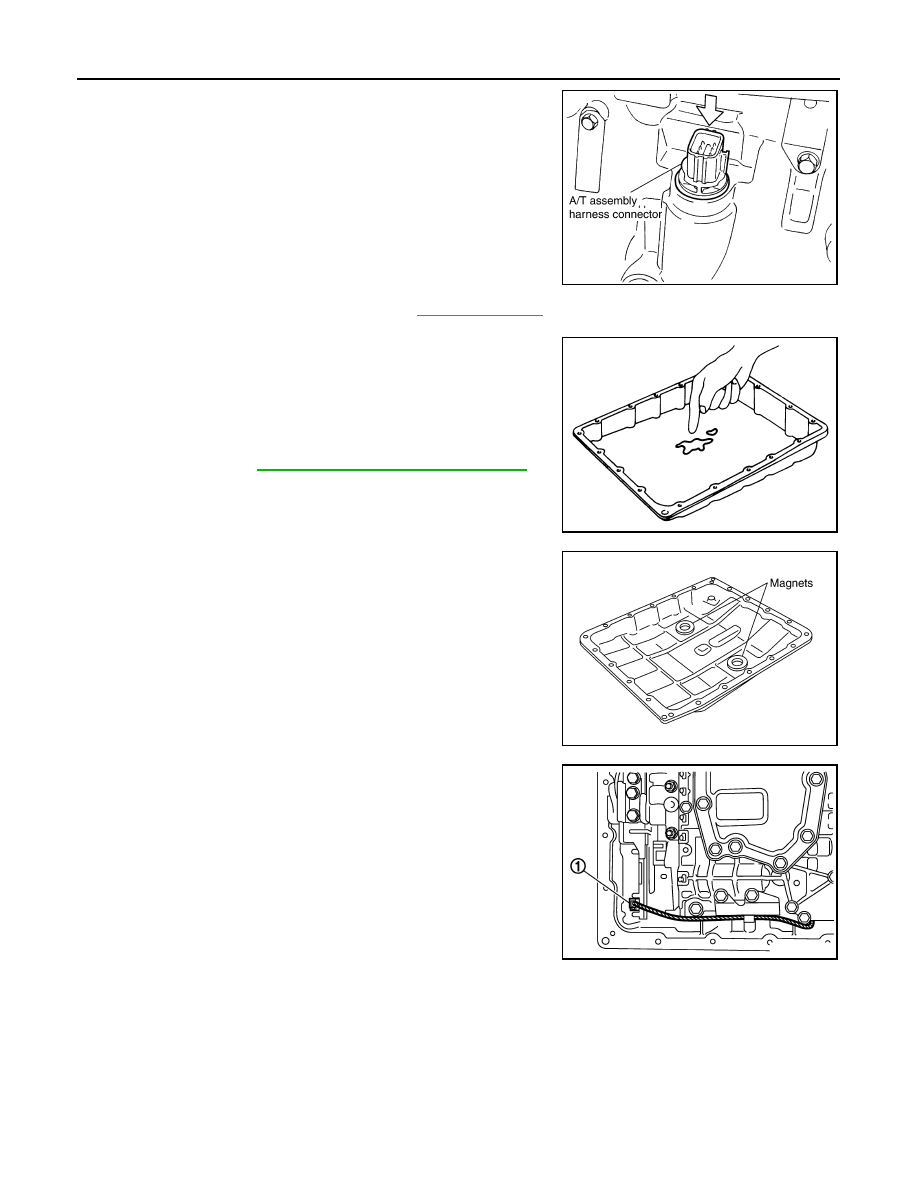

27. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

28. Remove oil pan and oil pan gasket. Refer to

TM-195, "Oil Pan"

.

29. Check foreign materials in oil pan to help determine causes of

malfunction. If the A/T fluid is very dark, smells burned, or con-

tains foreign particles, the frictional material (clutches, band)

may need replacement. A tacky film that will not wipe clean indi-

cates varnish build up. Varnish can cause valves, servo, and

clutches to stick and can inhibit pump pressure.

• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-172, "A/T Fluid Cooler Cleaning"

.

30. Remove magnets from oil pan.

31. Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

SCIA5022E

SCIA5199E

SCIA5200E

JSDIA1319ZZ

DISASSEMBLY

TM-231

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

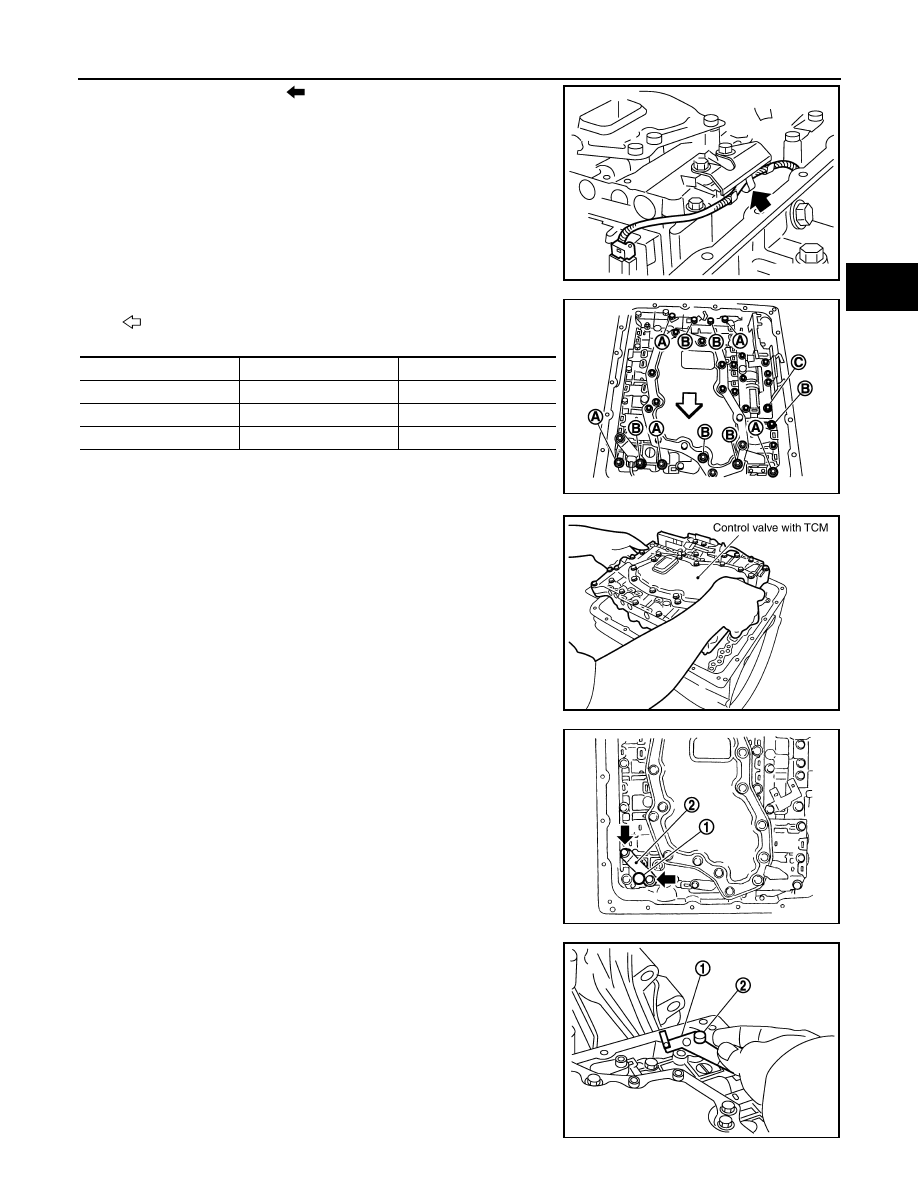

32. Straighten terminal clip (

) to free output speed sensor har-

ness.

33. Remove bolts (A), (B) and (C) from control valve with TCM.

•

 : Front

34. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

35. Remove plug (1) with bracket (2) from control valve with TCM.

36. Remove bracket (1) from plug (2).

JSDIA1320ZZ

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

SCIA5260E

JSDIA1311ZZ

JSDIA1312ZZ
