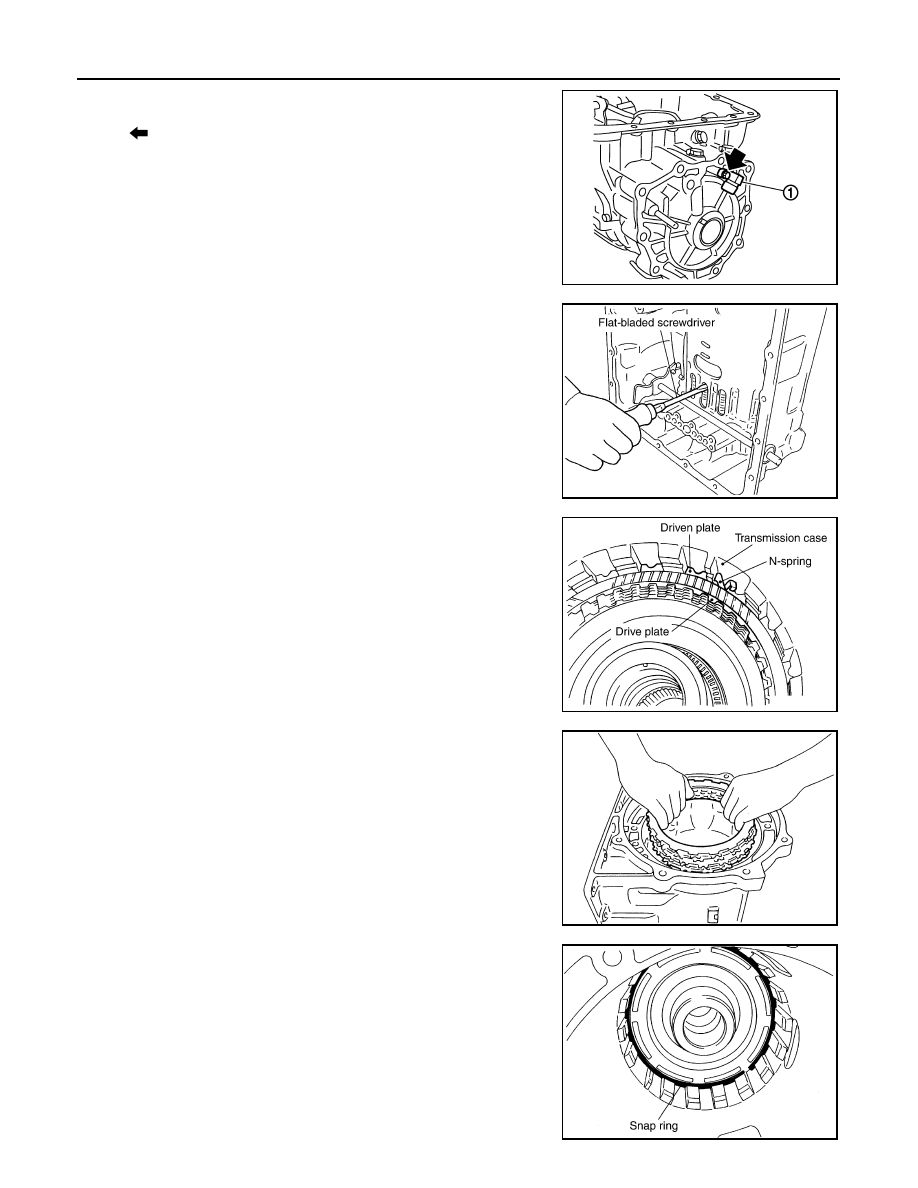

TM-236

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

48. Remove output speed sensor (1) from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or any foreign material to get on

the sensor's front edge magnetic area.

• Do not place in an area affected by magnetism.

49. Remove reverse brake snap ring using two flat-bladed screw-

drivers.

NOTE:

Press out snap ring from the transmission case oil pan side gap

using a flat-bladed screwdriver, and remove it using a another

screwdriver.

50. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

51. Remove N-spring from transmission case.

52. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

53. Remove snap ring using suitable tool.

: Bolt

JSDIA1321ZZ

SCIA5032E

SCIA5214E

SCIA2322E

SCIA2323E

DISASSEMBLY

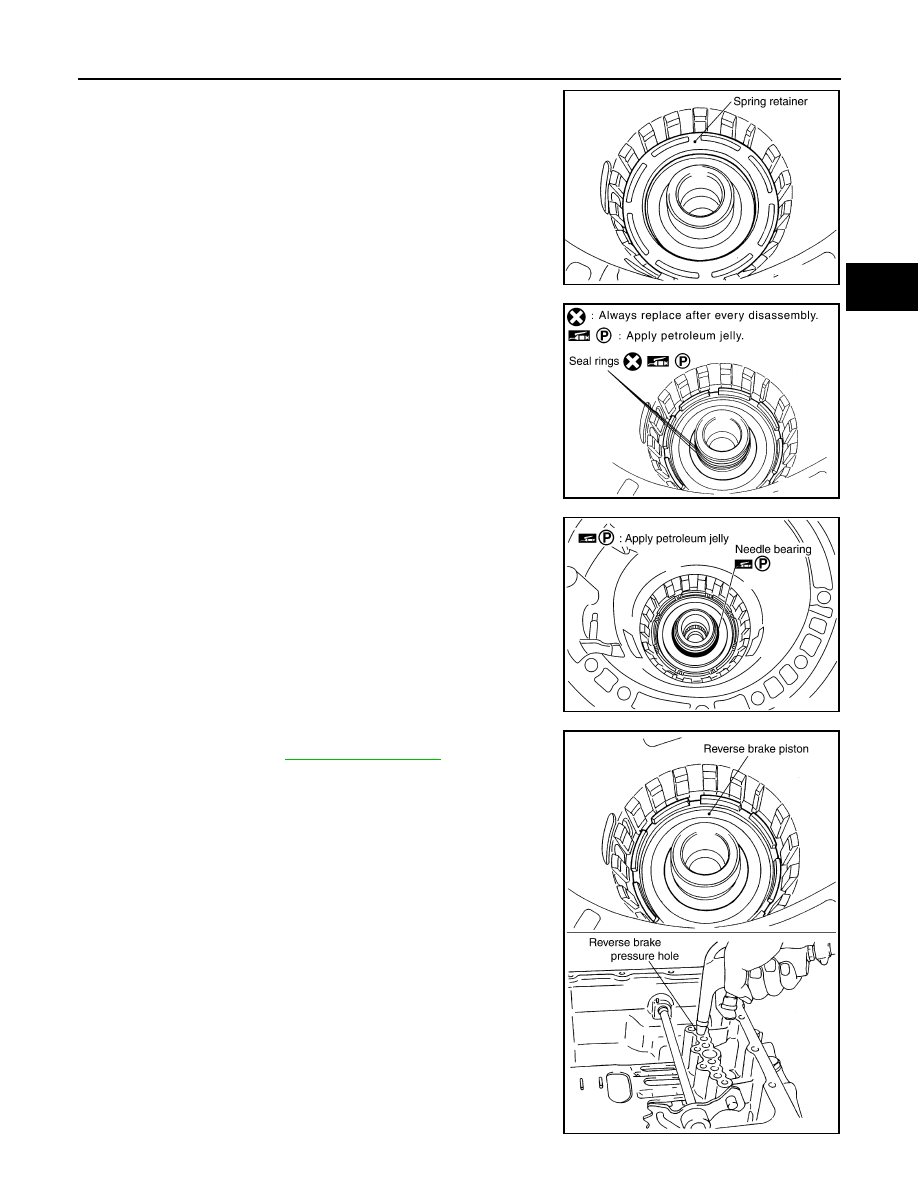

TM-237

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

54. Remove spring retainer and return spring from transmission

case.

55. Remove seal rings from drum support.

56. Remove needle bearing from drum support edge surface.

57. Remove reverse brake piston from transmission case using

compressed air. Refer to

TM-219, "Oil Channel"

.

CAUTION:

Care should be taken not to abruptly blow air. It makes the

piston incline, and as a result, it becomes hard to disas-

semble the pistons.

SCIA2324E

SCIA3333E

SCIA2796E

SCIA5047E

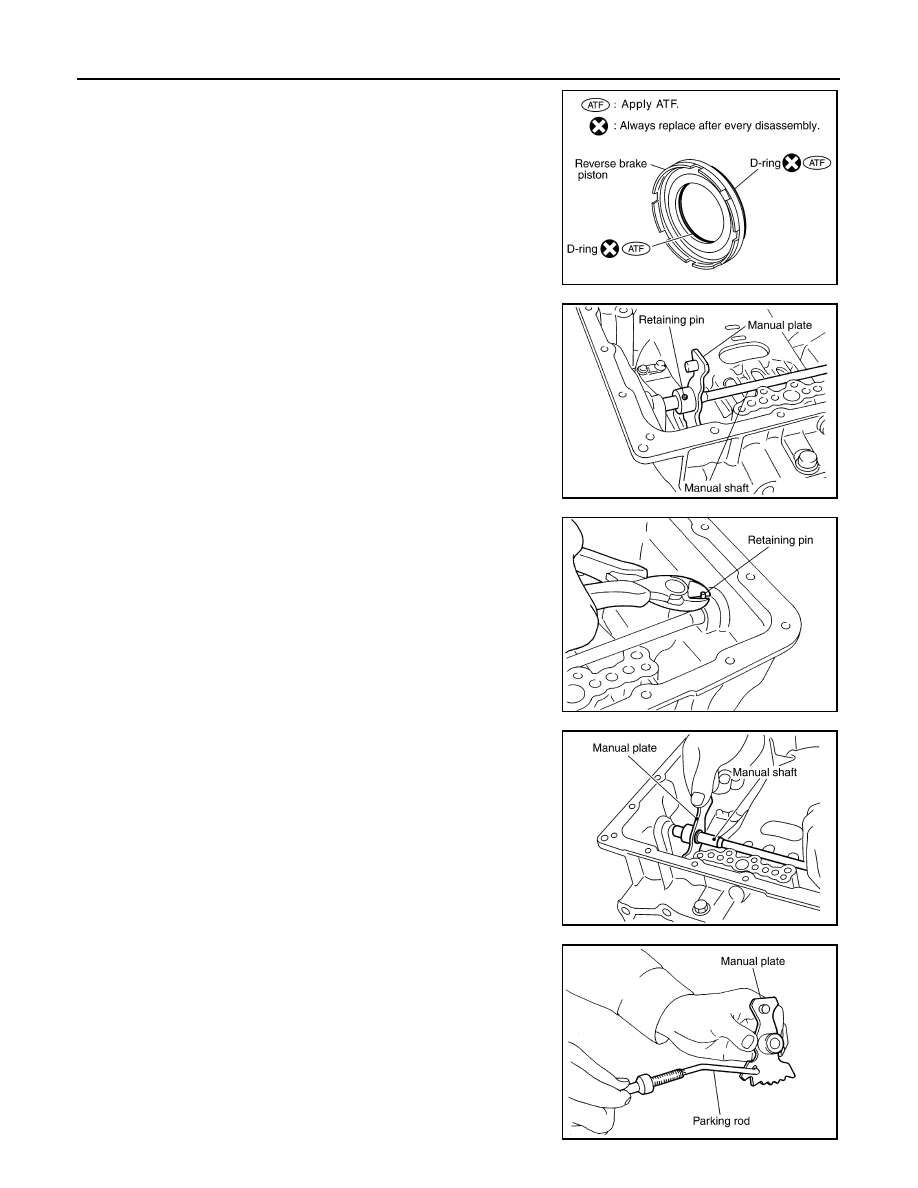

TM-238

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

58. Remove D-rings from reverse brake piston.

59. Knock out retaining pin using suitable tool.

60. Remove manual shaft retaining pin using suitable tool.

61. Remove manual plate (with parking rod) from manual shaft.

62. Remove parking rod from manual plate.

SCIA6330E

SCIA2328E

SCIA2329E

SCIA5715E

SCIA5220E

DISASSEMBLY

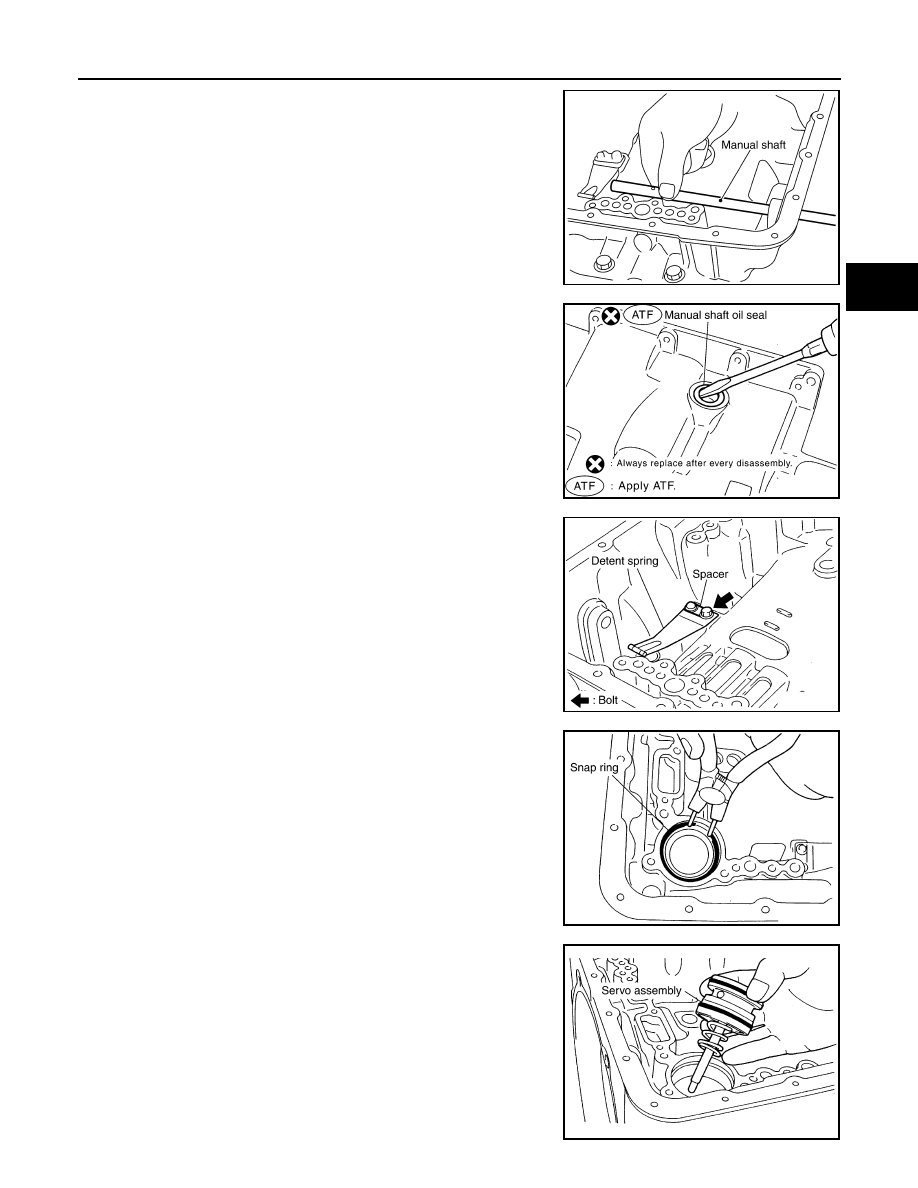

TM-239

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

63. Remove manual shaft from transmission case.

64. Remove manual shaft oil seals using suitable tool.

CAUTION:

Do not scratch transmission case.

65. Remove detent spring and spacer from transmission case.

66. Remove snap ring from transmission case using suitable tool.

67. Remove servo assembly (with return spring) from transmission

case.

SCIA5716E

SCIA2331E

SCIA5248E

SCIA2333E

SCIA5679E
