TM-244

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

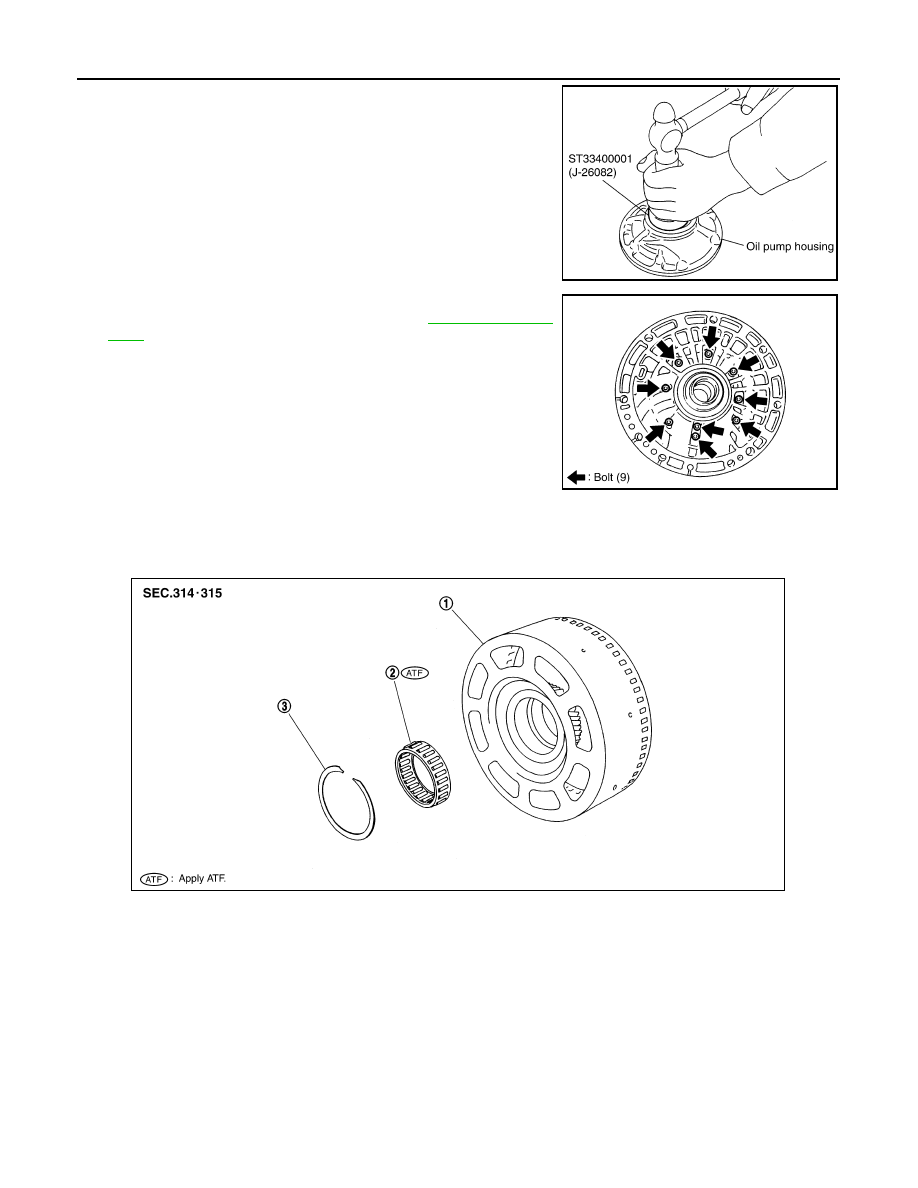

3. Install new oil pump housing oil seal to the oil pump housing

until it is flush with the face of oil pump housing using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply ATF to oil seal.

4. Install oil pump housing in oil pump cover. Tighten oil pump

housing bolts to the specified torque. Refer to

TM-212, "Compo-

nent"

.

Front Sun Gear, 3rd One-Way Clutch

INFOID:0000000006159466

COMPONENTS

DISASSEMBLY

Tool number

: ST33400001 (J-26082)

SCIA5313E

SCIA5228E

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

SCIA3114E

REPAIR FOR COMPONENT PARTS

TM-245

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

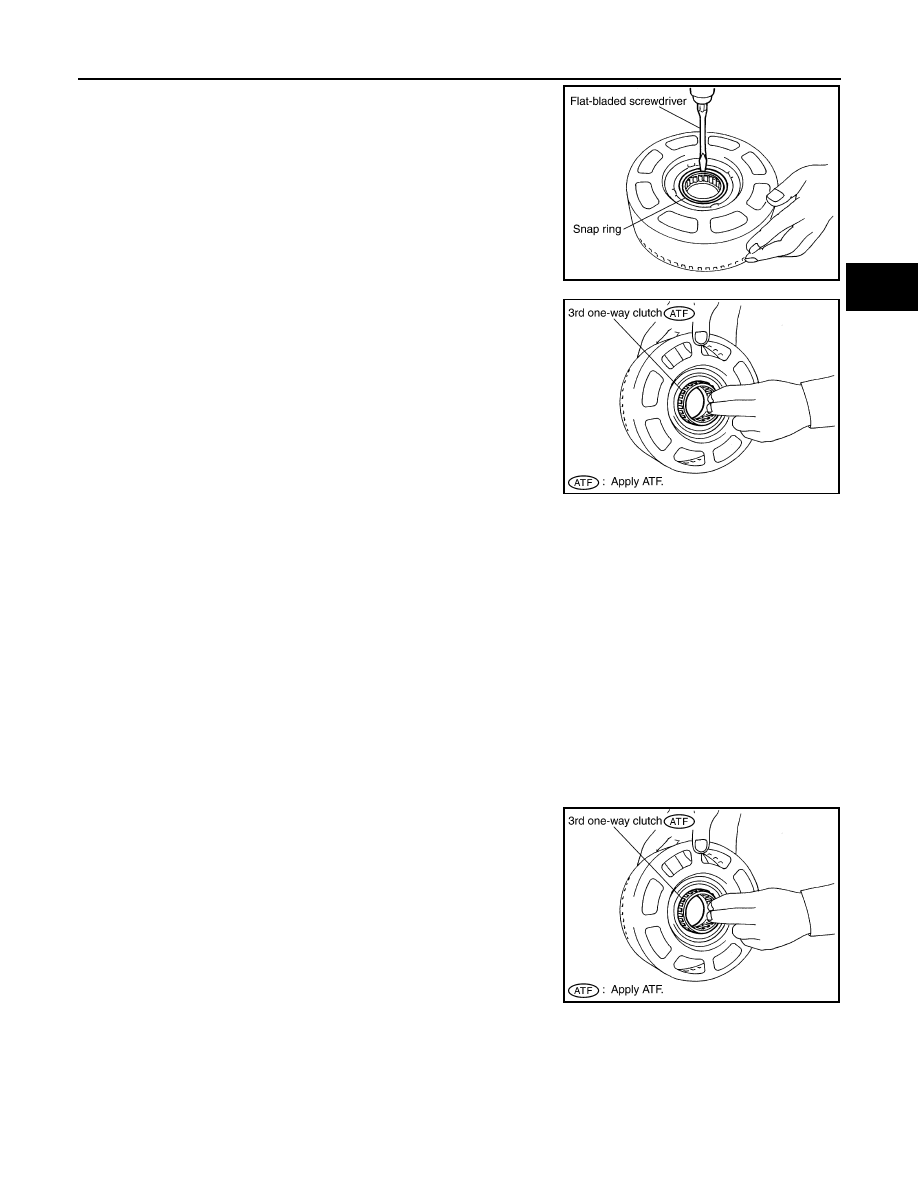

1. Remove snap ring from front sun gear using suitable tool.

2. Remove 3rd one-way clutch from front sun gear.

INSPECTION

3rd One-way Clutch

• Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

Front Sun Gear Snap Ring

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Front Sun Gear

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

ASSEMBLY

1. Install 3rd one-way clutch in front sun gear.

CAUTION:

Apply ATF to 3rd one-way clutch.

SCIA3110E

SCIA3111E

SCIA3111E

TM-246

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

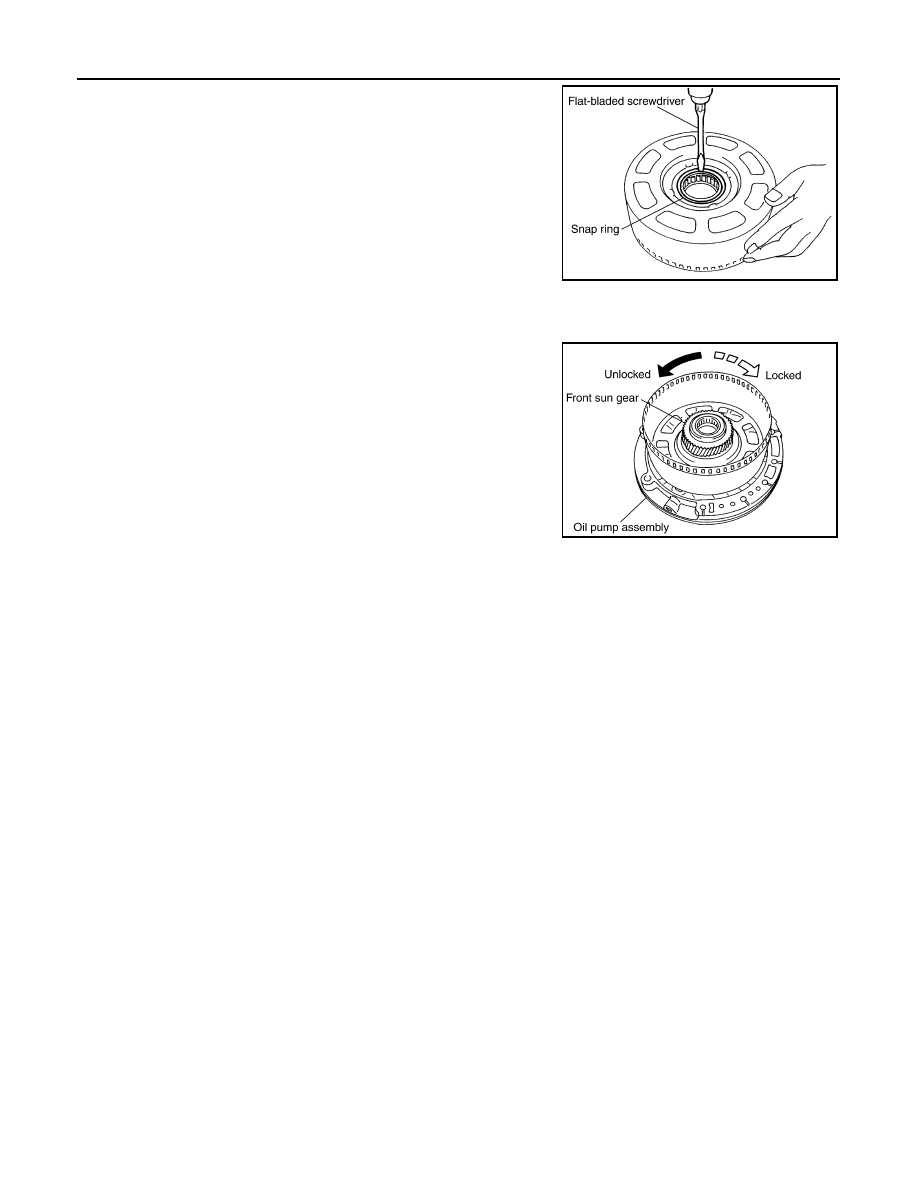

2. Install snap ring in front sun gear using suitable tool.

3. Check operation of 3rd one-way clutch.
a. Hold oil pump assembly and turn front sun gear.
b. Check 3rd one-way clutch for correct locking and unlocking

directions.

CAUTION:

If not as shown, check installation direction of 3rd one-way

clutch.

Front Carrier, Input Clutch, Rear Internal Gear

INFOID:0000000006159467

COMPONENTS

SCIA3110E

SCIA3131E

REPAIR FOR COMPONENT PARTS

TM-247

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

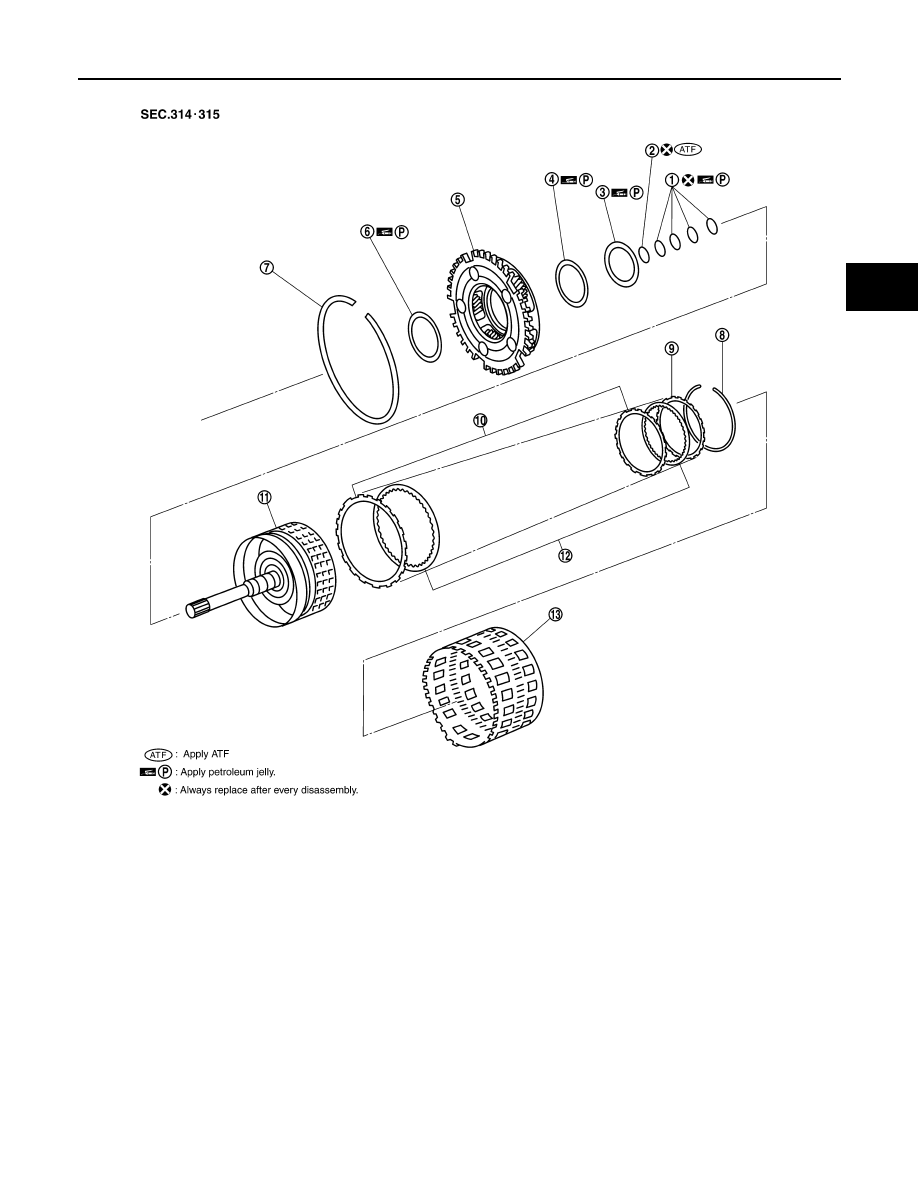

DISASSEMBLY

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Needle bearing

7.

Snap ring

8.

Snap ring

9.

Retaining plate

10. Driven plate

11. Input clutch drum

12. Drive plate

13. Rear internal gear

SCIA5244E
