OVERHAUL

UNIT DISASSEMBLY AND ASSEMBLY

OVERHAUL

Component

INFOID:0000000006159461

WCIA0661E

OVERHAUL

TM-213

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

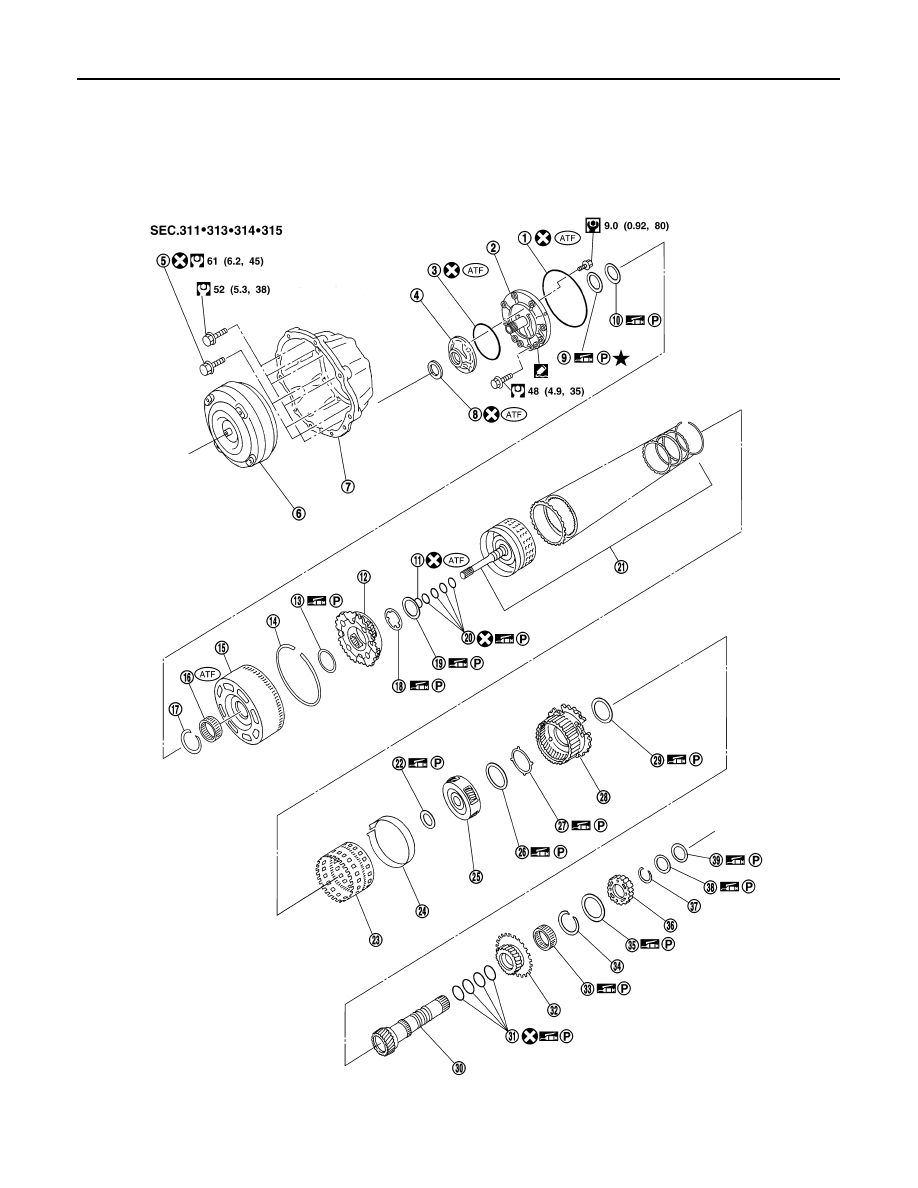

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolts

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11. O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

TM-214

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

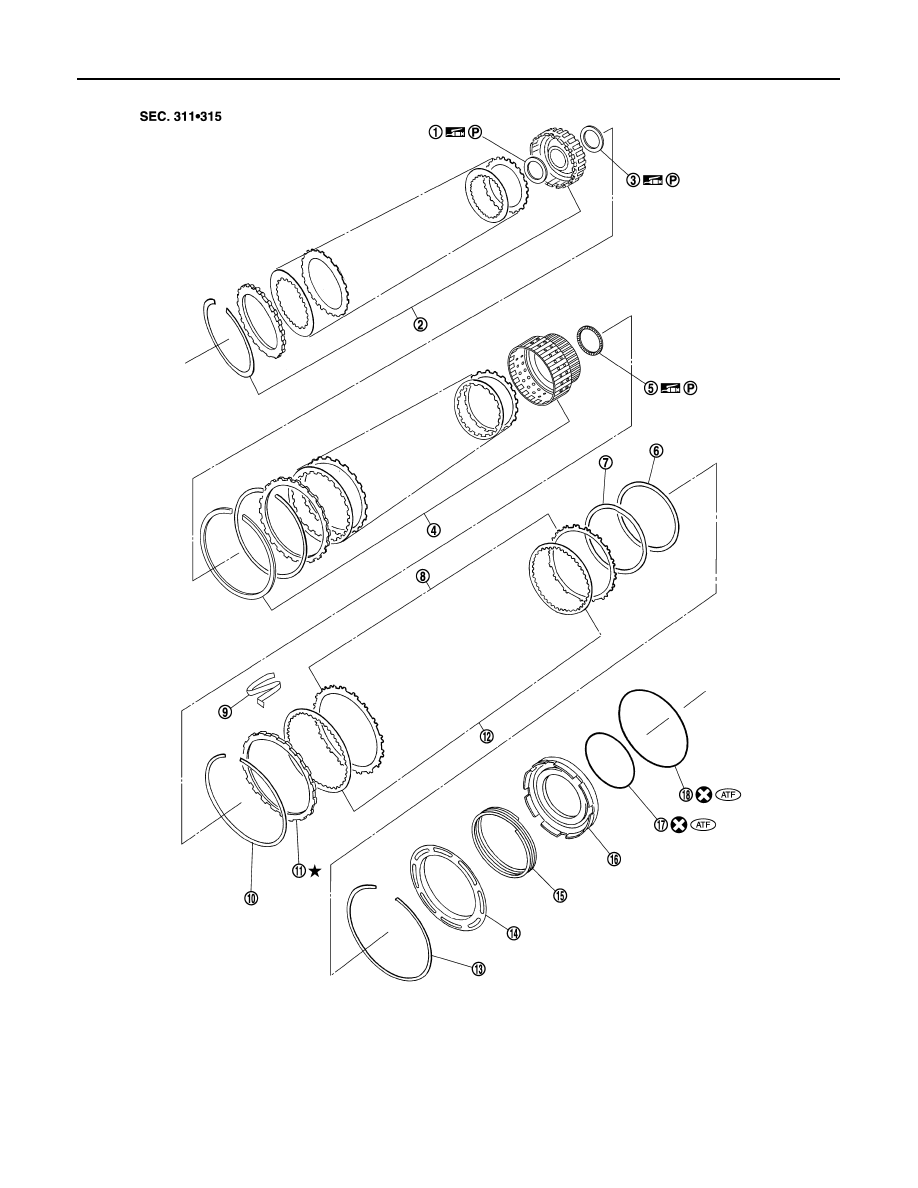

1.

Bearing race

2.

High and low reverse clutch
assembly

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Snap ring

11. Reverse brake retaining plate 12. Reverse brake drive plate

JSDIA1835ZZ

OVERHAUL

TM-215

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2WD

13. Snap ring

14. Spring retainer

15. Return spring

16. Reverse brake piston

17. D-ring

18. D-ring

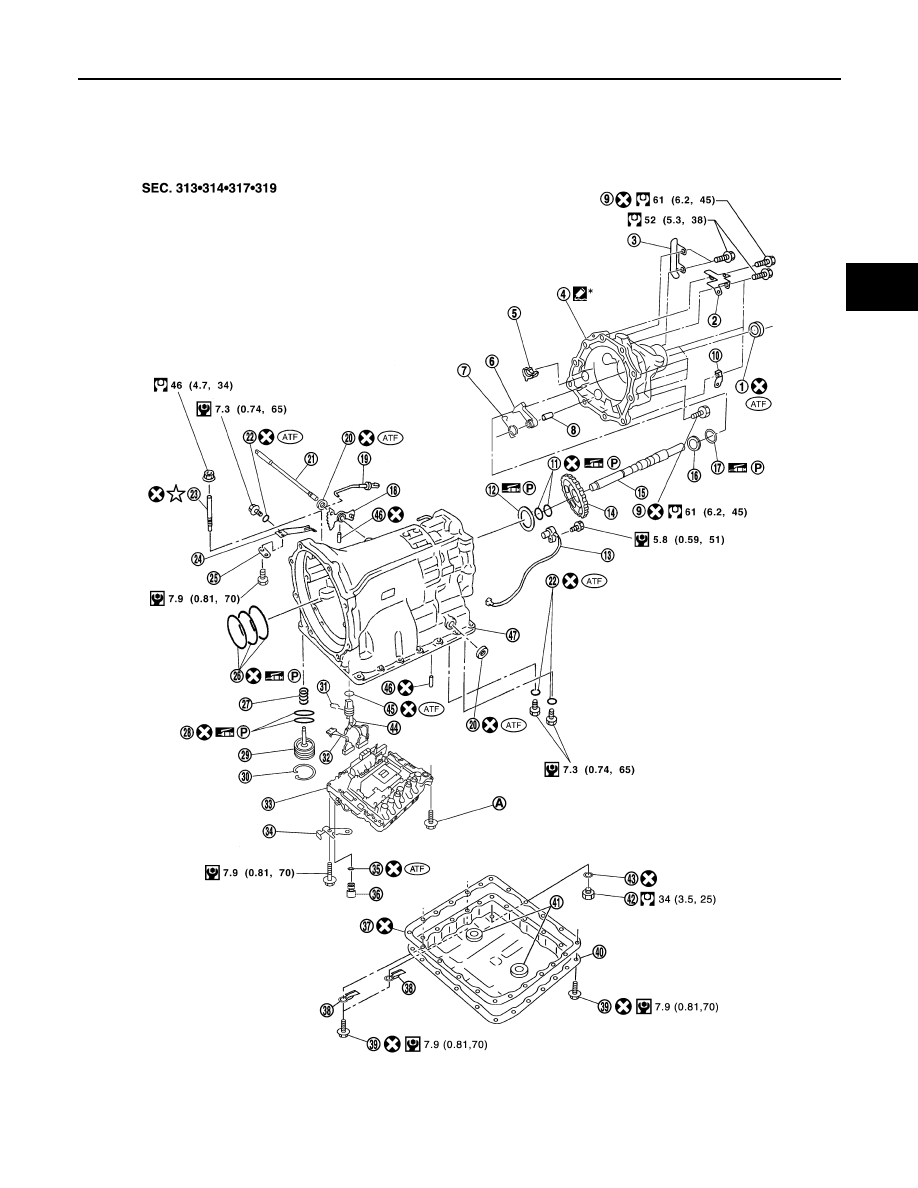

1.

Rear oil seal

2.

Bracket

3.

Bracket

4.

Adapter case

5.

Parking actuator support

6.

Parking pawl

7.

Return spring

8.

Pawl shaft

9.

Self-sealing bolt

JSDIA1972GB
