CONTROL VALVE WITH TCM

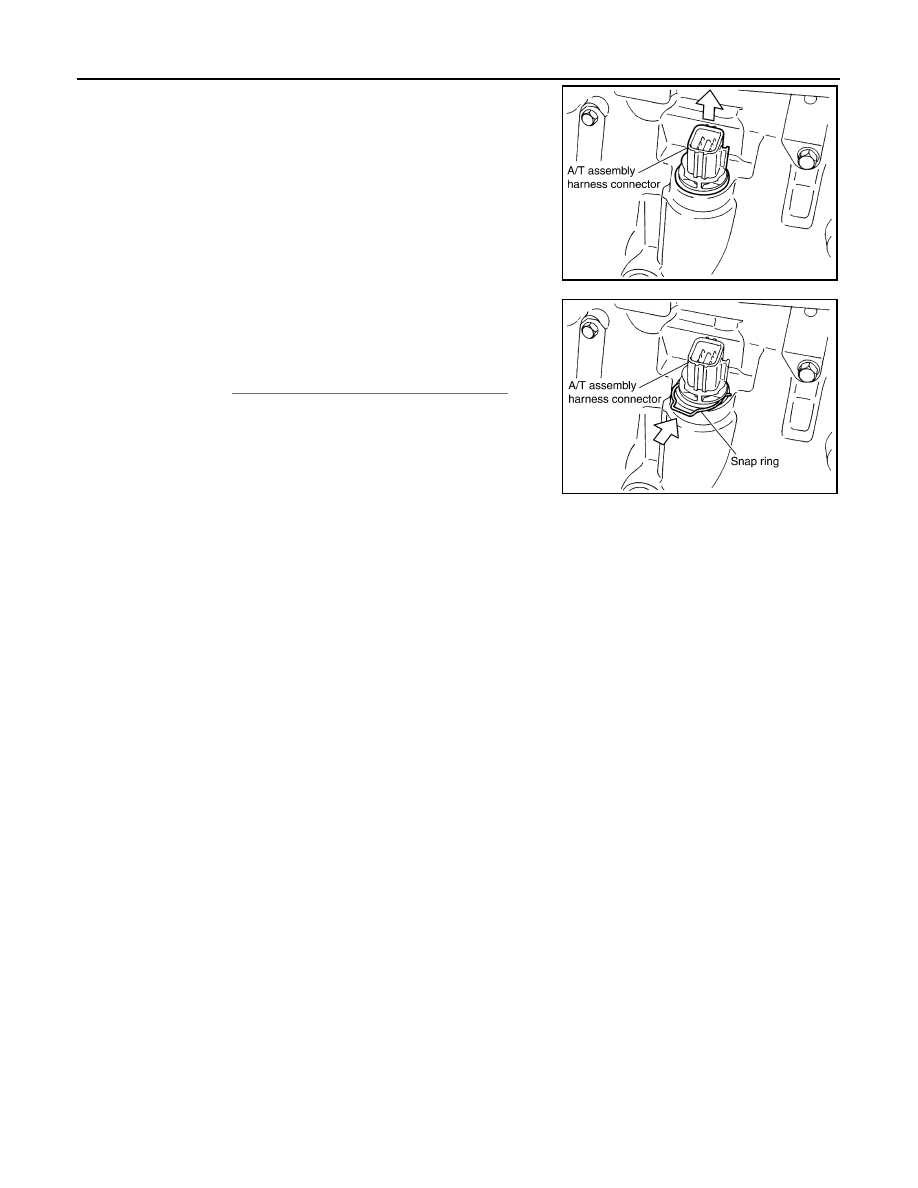

15. Pull up A/T assembly harness connector.

CAUTION:

Do not damage connector.

16. Install snap ring to A/T assembly harness connector.
17. Connect A/T assembly harness connector.
18. Connect the negative battery terminal.
19. Refill the A/T with fluid and check the fluid level and for fluid

leakage. Refer to

TM-168, "Checking the A/T Fluid (ATF)"

.

SCIA5038E

SCIA5039E

REAR OIL SEAL

TM-205

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REAR OIL SEAL

Rear Oil Seal

INFOID:0000000006159458

REMOVAL AND INSTALLATION

Removal

1. Remove rear propeller shaft. Refer to

DLN-141, "Removal and Installation"

.

2. Remove transfer from transmission (4WD models). Refer to

TM-208, "Removal and Installation (4WD)"

.

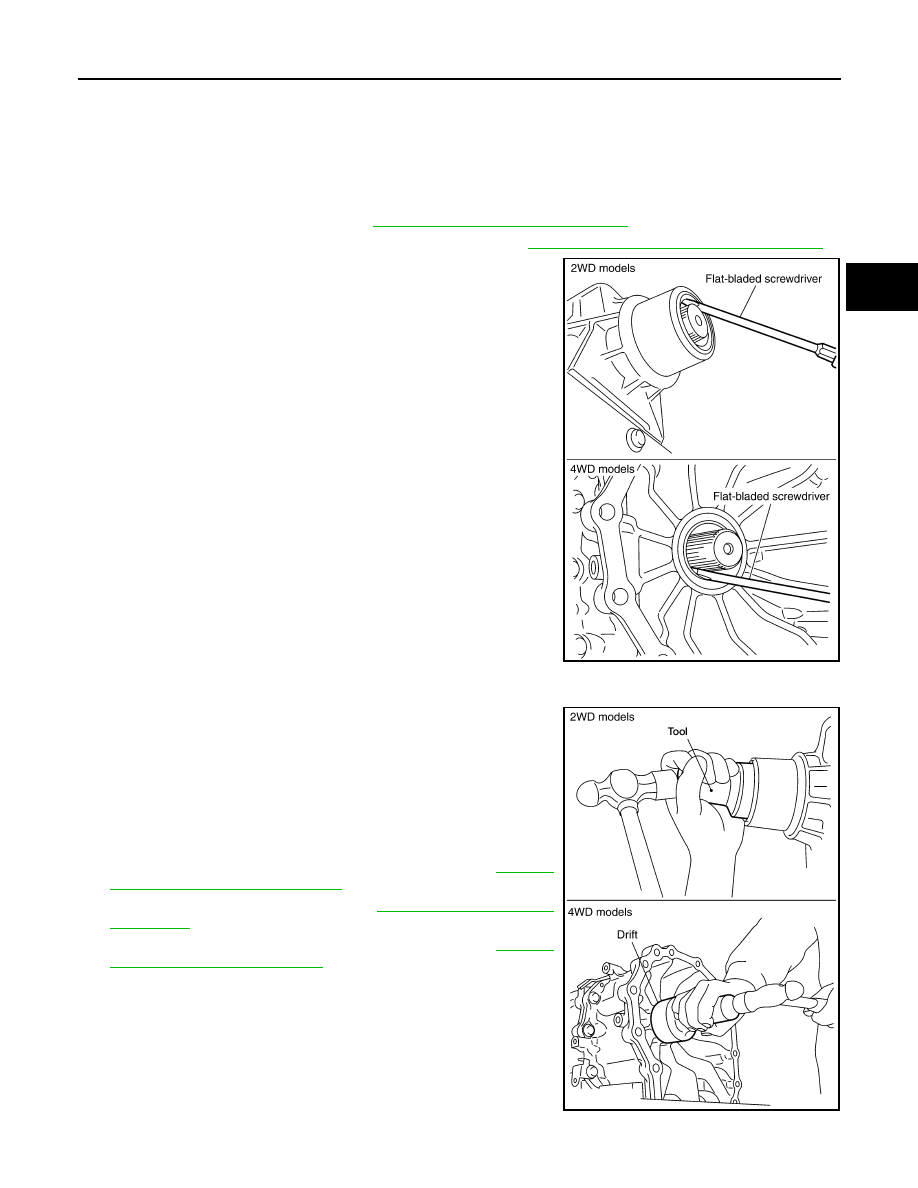

3. Remove rear oil seal using suitable tool.

CAUTION:

Do not scratch rear extension assembly (2WD models) or

adapter case assembly (4WD models).

Installation

1. Install new rear oil seal until it is flush into the rear extension

case (2WD models) using Tool or adapter case (4WD models)

using suitable tool.

CAUTION:

• Apply ATF to rear oil seal.

• Do not reuse rear oil seal.

2. Install transfer to transmission (4WD models). Refer to

TM-208,

"Removal and Installation (4WD)"

.

3. Install rear propeller shaft. Refer to

DLN-141, "Removal and

Installation"

.

4. Check the A/T fluid level and for fluid leakage. Refer to

TM-168,

"Checking the A/T Fluid (ATF)"

.

SCIA5254E

Tool number

: ST33400001 (J-26082)

WCIA0475E

TM-206

< UNIT REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSMISSION ASSEMBLY

Removal and Installation (2WD)

INFOID:0000000006736259

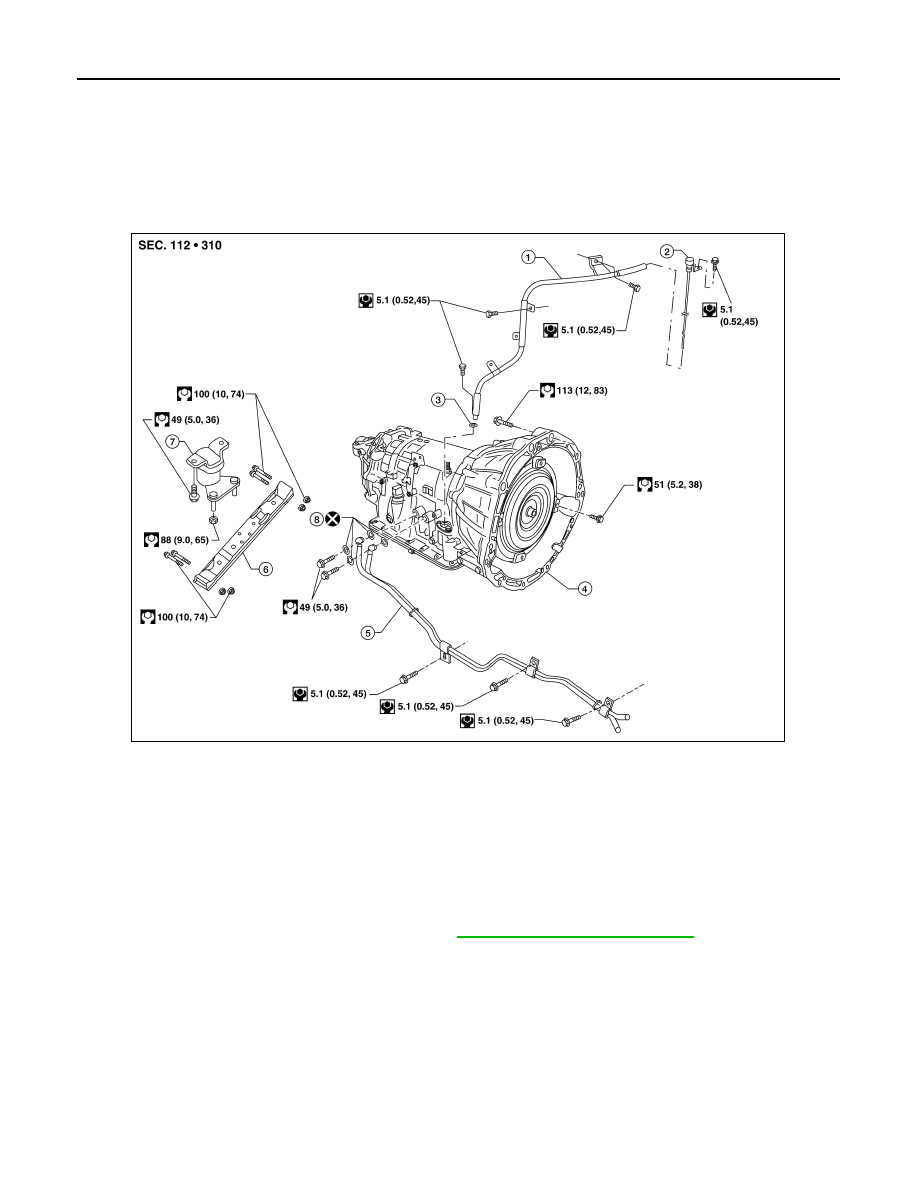

COMPONENTS

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from

the A/T assembly.

Be careful not to damage sensor edge.
1. Disconnect the battery negative terminal. Refer to

PG-76, "Removal and Installation"

.

2. Remove A/T fluid indicator.
3. Remove engine under cover using power tool.

1.

A/T fluid indicator pipe

2.

A/T fluid indicator

3.

O-ring

4.

Transmission assembly

5.

Fluid cooler tube

6.

A/T cross member

7.

Insulator

8.

Copper washers

AWDIA0553GB

TRANSMISSION ASSEMBLY

TM-207

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

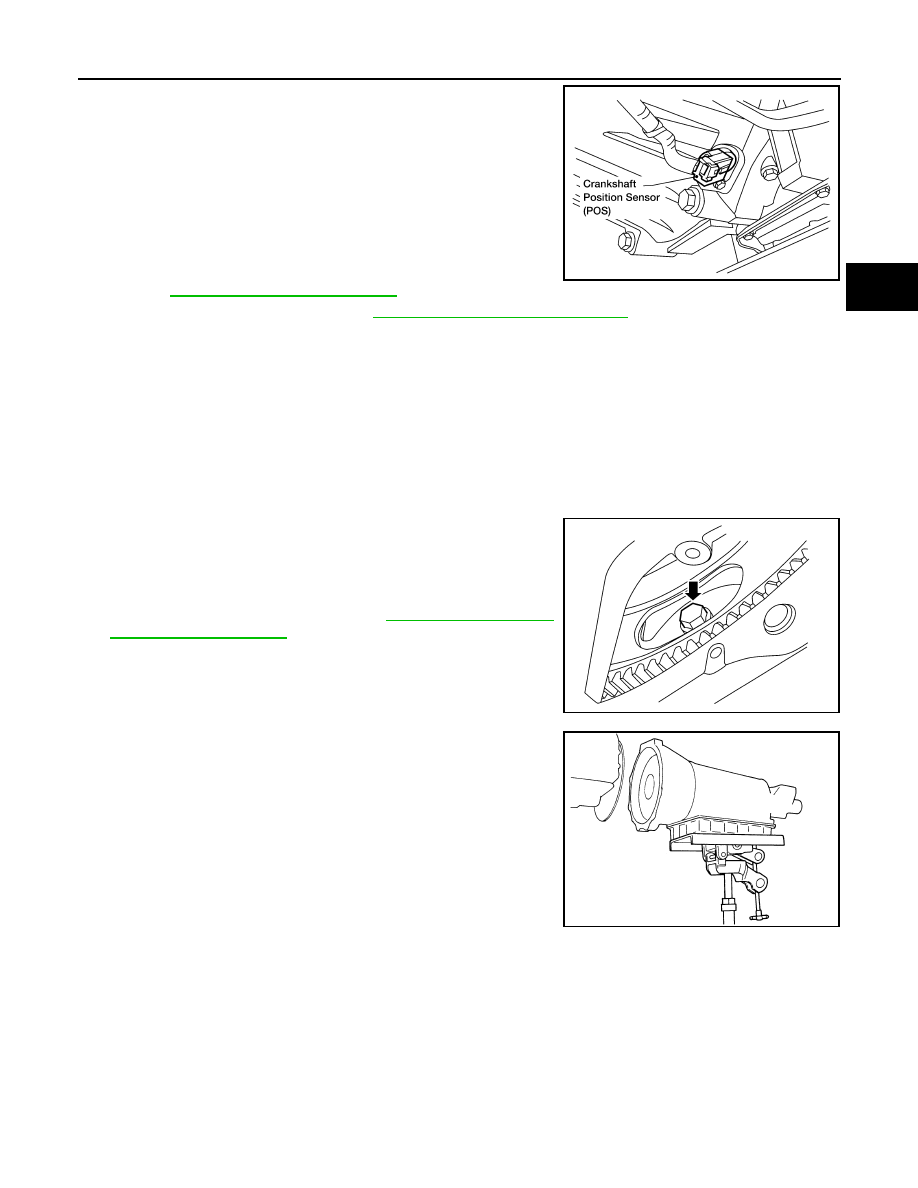

4. Remove crankshaft position sensor (POS) from A/T assembly.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or foreign material to get on the

sensor front edge magnetic area.

• Do not place in an area affected by magnetism.

5. Remove A/T fluid indicator pipe.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

6. Remove exhaust front tube and center muffler using power tool.

Refer to

EX-5, "Removal and Installation"

.

7. Remove rear propeller shaft. Refer to

DLN-150, "Removal and Installation"

.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

8. Disconnect control cable.
9. Remove A/T fluid cooler tubes from A/T assembly.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

10. Support A/T assembly with a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow it to collide against the drain plug.

11. Remove dust cover from converter housing.
12. Turn crankshaft to access and remove the four bolts for drive

plate and torque converter.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from

the front of the engine.

13. Remove air breather hose. Refer to

TM-191, "2WD : 2WD:

Removal and Installation"

.

14. Disconnect A/T assembly harness connector.
15. Remove the A/T assembly to engine bolts using power tool.

16. Remove A/T assembly from vehicle using transmission jack.

CAUTION:

• Secure torque converter to prevent it from dropping.

• Secure A/T assembly to a transmission jack.

INSPECTION

Installation and Inspection of Torque Converter

LCIA0334E

LCIA0335E

SCIA0499E
