Nissan Titan A60. Manual - part 952

TM-196

< REMOVAL AND INSTALLATION >

OIL PAN

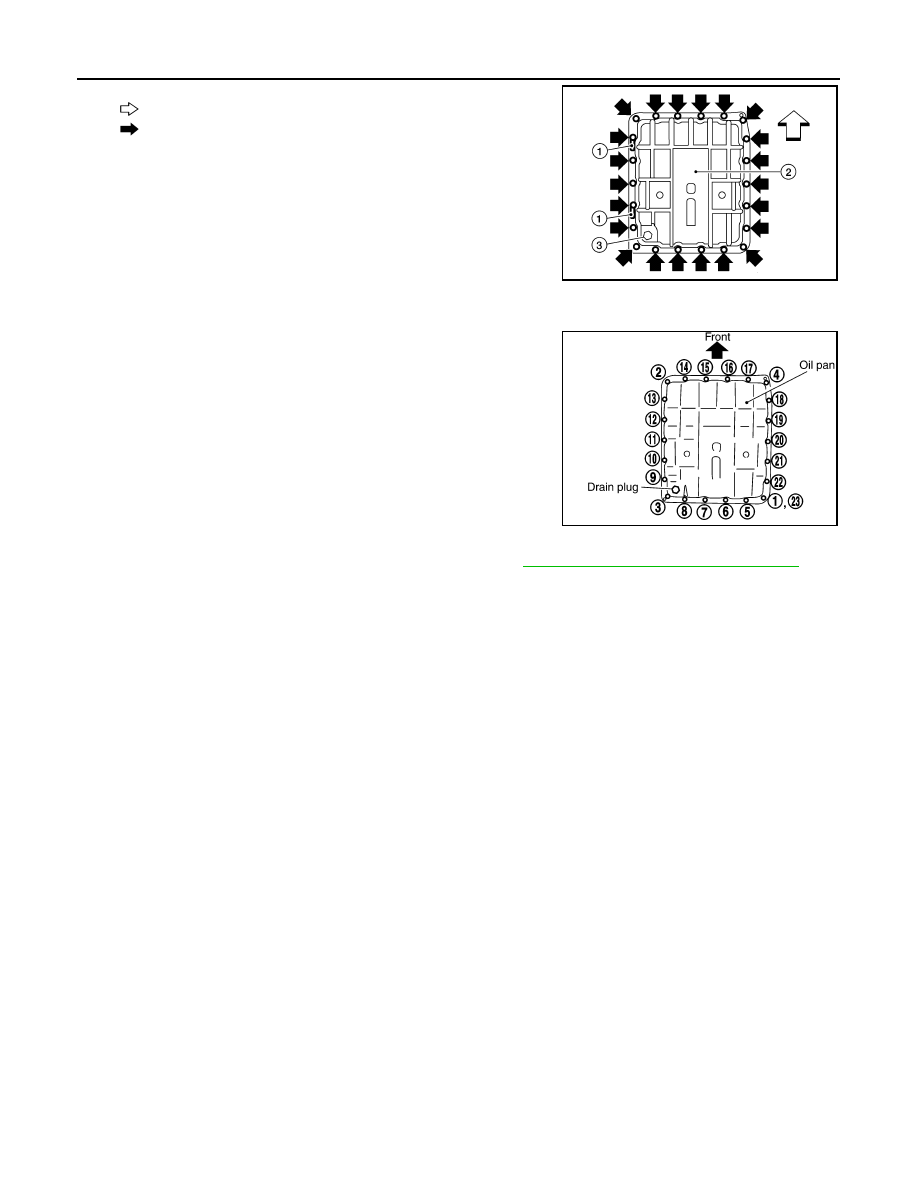

2. Install the oil pan (2) new oil pan gasket.

•

 : Vehicle Front

•

 : Oil pan bolts

• Clips (1)

• Drian plug (3)

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.

• Always replace the oil pan bolts as they are self-sealing.

• Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.

3. Install oil pan bolts and clips tighten in numerical order as

shown.

4. Install drain plug with new gasket to oil pan and tighten to speci-

fication.

CAUTION:

Do not reuse drain plug gasket.

5. Refill the A/T with fluid and check for fluid leakage. Refer to

TM-168, "Checking the A/T Fluid (ATF)"

.

AWDIA0023ZZ

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

Drain plug

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

CONTROL VALVE WITH TCM

TM-197

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL VALVE WITH TCM

Control Valve with TCM

INFOID:0000000006734935

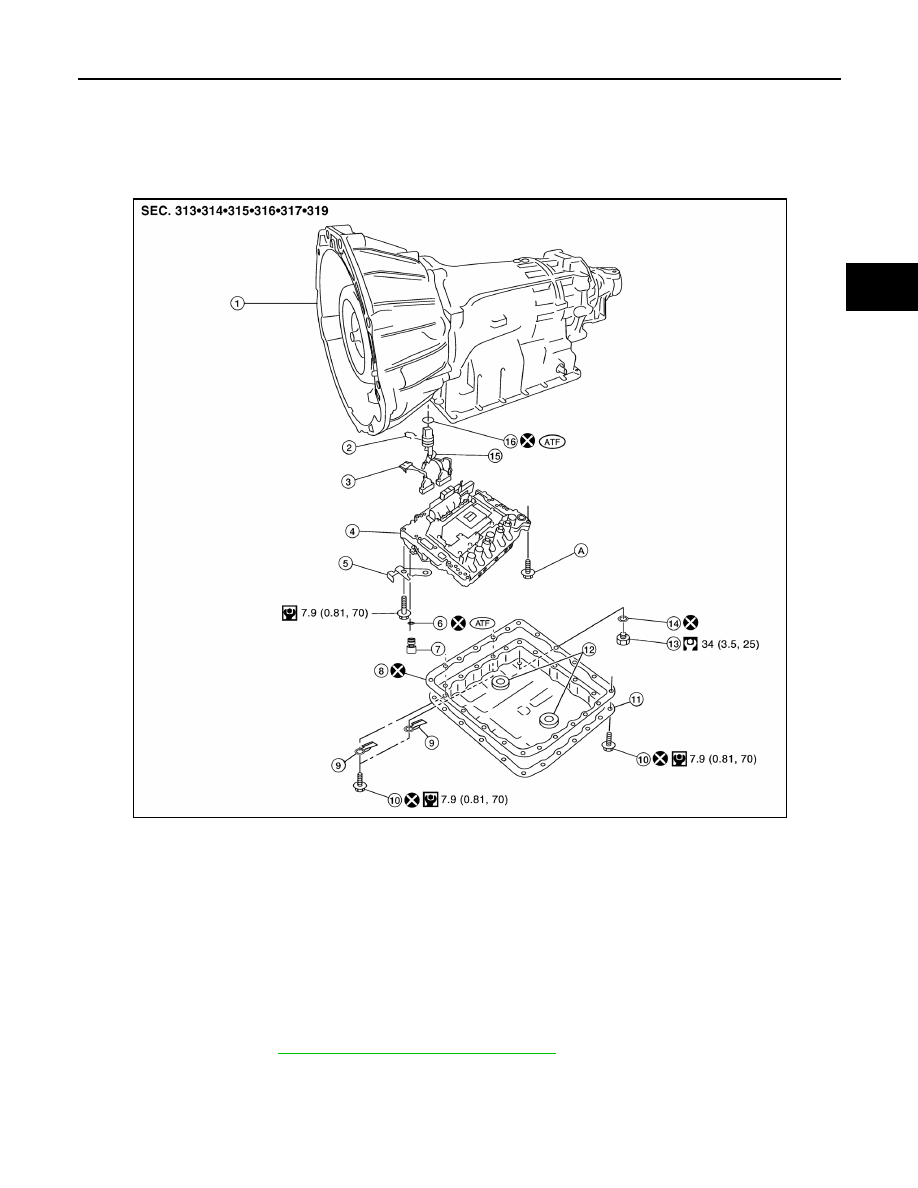

COMPONENTS

REMOVAL AND INSTALLATION OF CONTROL VALVE WITH TCM

Removal

1. Disconnect negative battery terminal.
2. Drain A/T fluid. Refer to

TM-170, "Changing the A/T Fluid (ATF)"

.

3. Disconnect A/T assembly harness connector.

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Brackets

10. Oil pan bolt

11. Oil pan

12. Magnet

13. Drain plug

14. Drain plug gasket

15.  Terminal cord assembly

16. O-ring

A.

For tightening torque, refer to "Installation"

AWDIA0886GB

TM-198

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

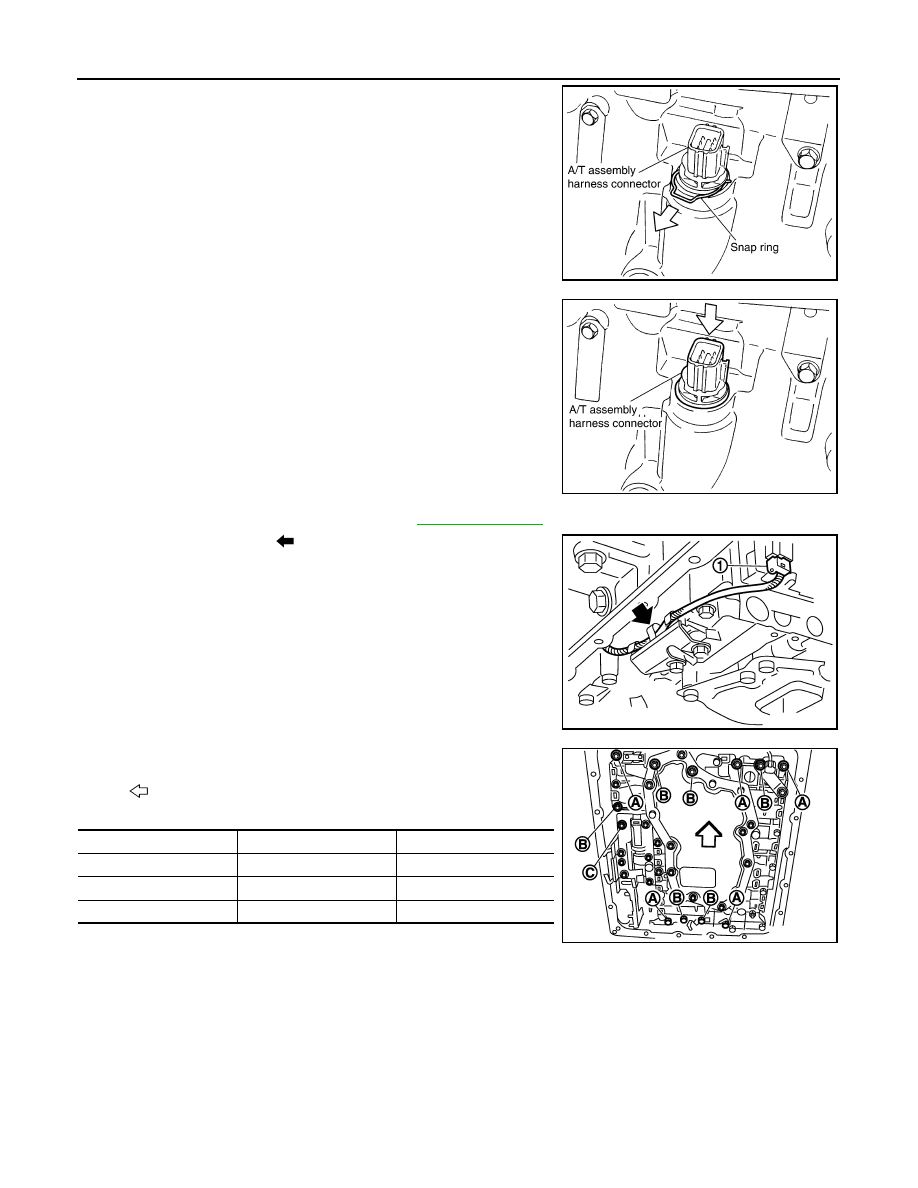

4. Remove snap ring from A/T assembly harness connector.

5. Push A/T assembly harness connector.

CAUTION:

Do not damage connector.

6. Remove oil pan and oil pan gasket. Refer to

TM-195, "Oil Pan"

.

7. Straighten terminal clip (

) to free the output speed sensor har-

ness.

8. Disconnect output speed sensor connector (1).

CAUTION:

Do not damage connector.

9. Remove bolts (A), (B) and (C) from control valve with TCM.

SCIA5021E

SCIA5022E

JSDIA1316ZZ

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

CONTROL VALVE WITH TCM

TM-199

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

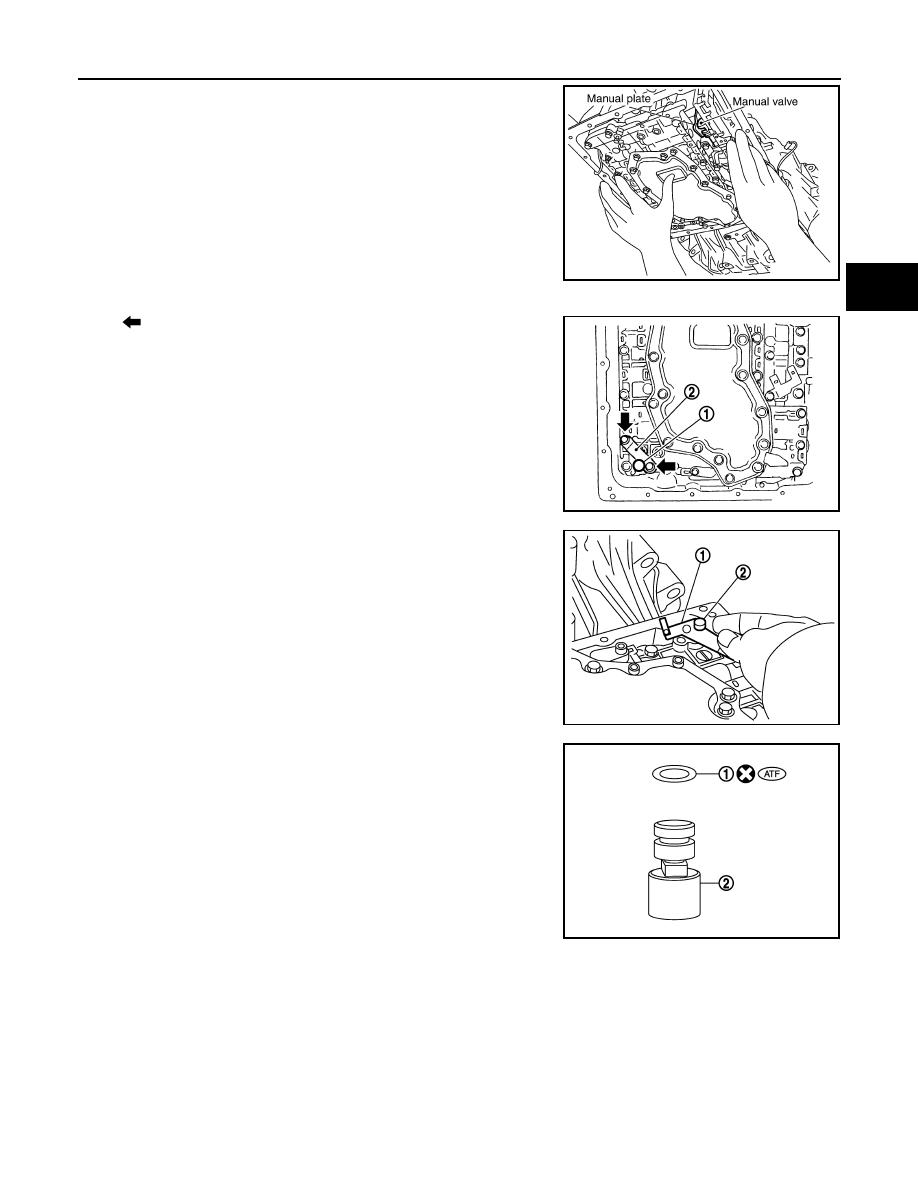

10. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

11. Remove plug (1) with bracket (2) from control valve with TCM.

•



:Bolt

12. Remove the bracket (1) from plug (2).

13. Remove O-ring (1) from plug (2).

SCIA5142E

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ
