AIR BREATHER HOSE

4WD : 4WD: Removal and Installation

INFOID:0000000006736258

REMOVAL

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

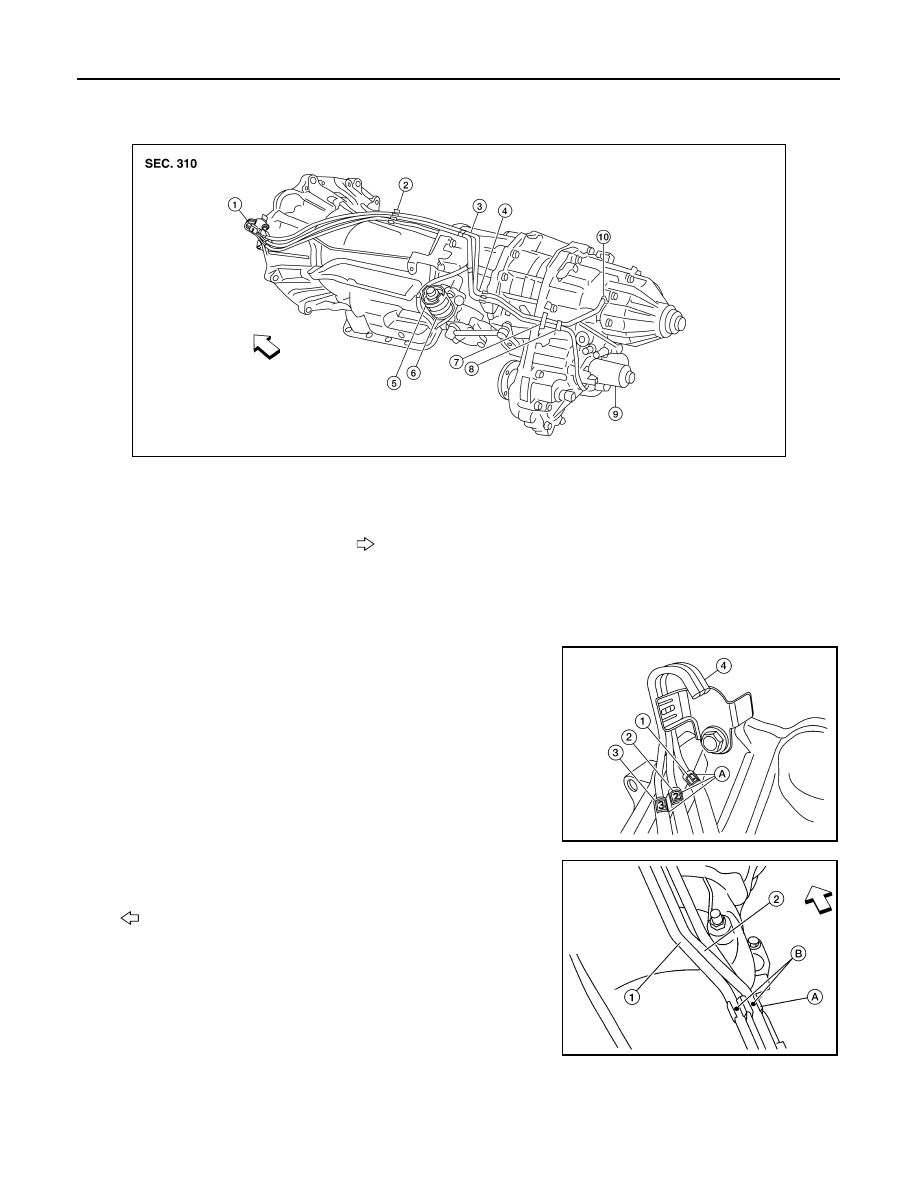

1. Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

• A/T breather hose (1)

• Transfer breather hose (2)

• Actuator/transfer motor breather hose (3)

• Paint marks (A)

2. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (A) with the paint mark (B) facing

upward.
•

 :Front

AWDIA0010ZZ

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

ALDIA0110ZZ

ALDIA0111ZZ

AIR BREATHER HOSE

TM-193

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

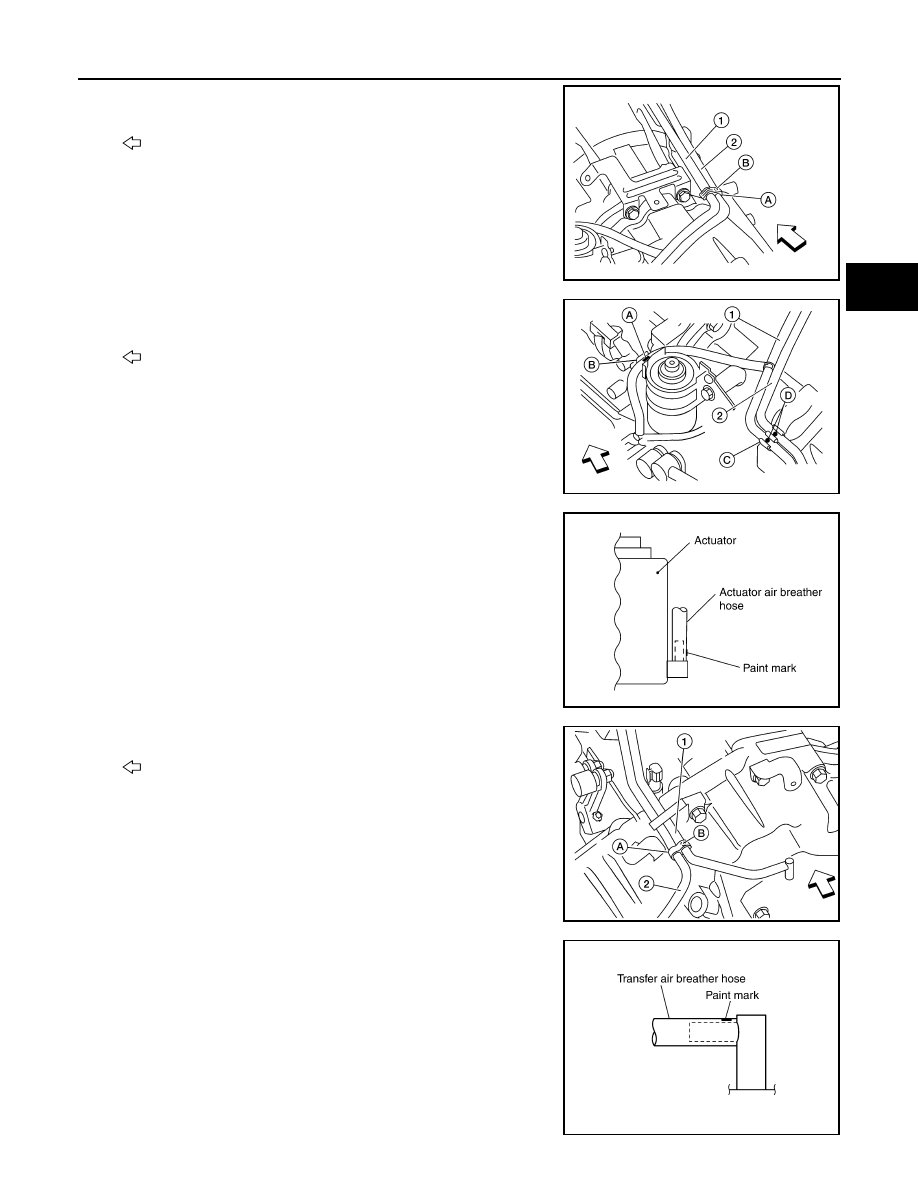

3. Install clip (B) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (A)

matched.
•

 :Front

4. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (B) and clip (C) with the paint mark

(A) and (D) facing upward.
•

 :Front

5. Install the actuator air breather hose into the actuator (case con-

nector) until the hose end reaches the base of the tube. Set

actuator air breather hose with paint mark facing leftward.

6. Install clip (B) on transfer motor air breather hose (2) and trans-

fer air breather hose (1) with the paint mark (A) matched.
•

 :Front

7. Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark facing

upwards.

AWDIA0011ZZ

AWDIA0012ZZ

SDIA3226E

AWDIA0013ZZ

SDIA3196E

TM-194

< REMOVAL AND INSTALLATION >

AIR BREATHER HOSE

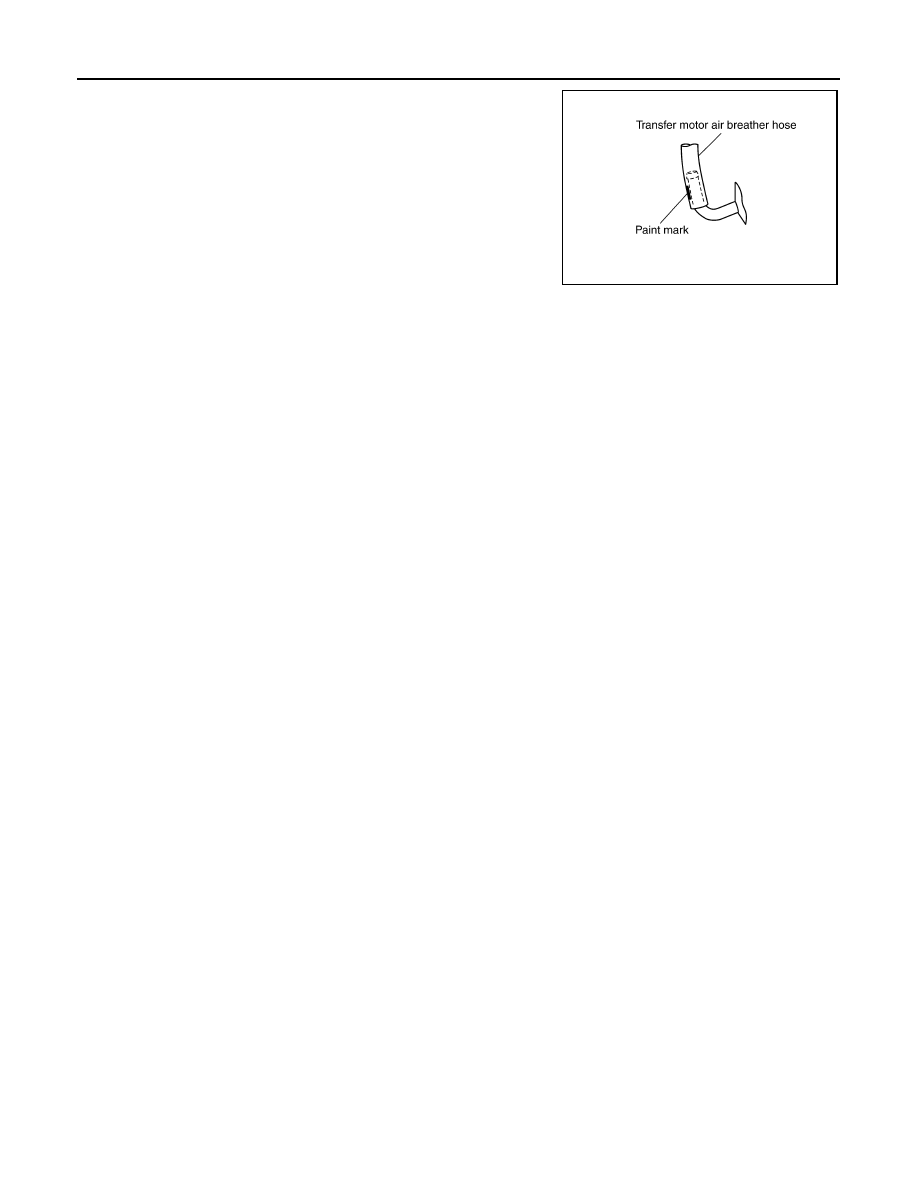

8. Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of

the curved section. Set transfer motor air breather hose with

paint mark facing leftward.

SDIA3194E

OIL PAN

TM-195

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PAN

Oil Pan

INFOID:0000000006159456

REMOVAL AND INSTALLATION

Removal

1. Drain A/T fluid. Refer to

TM-170, "Changing the A/T Fluid (ATF)"

.

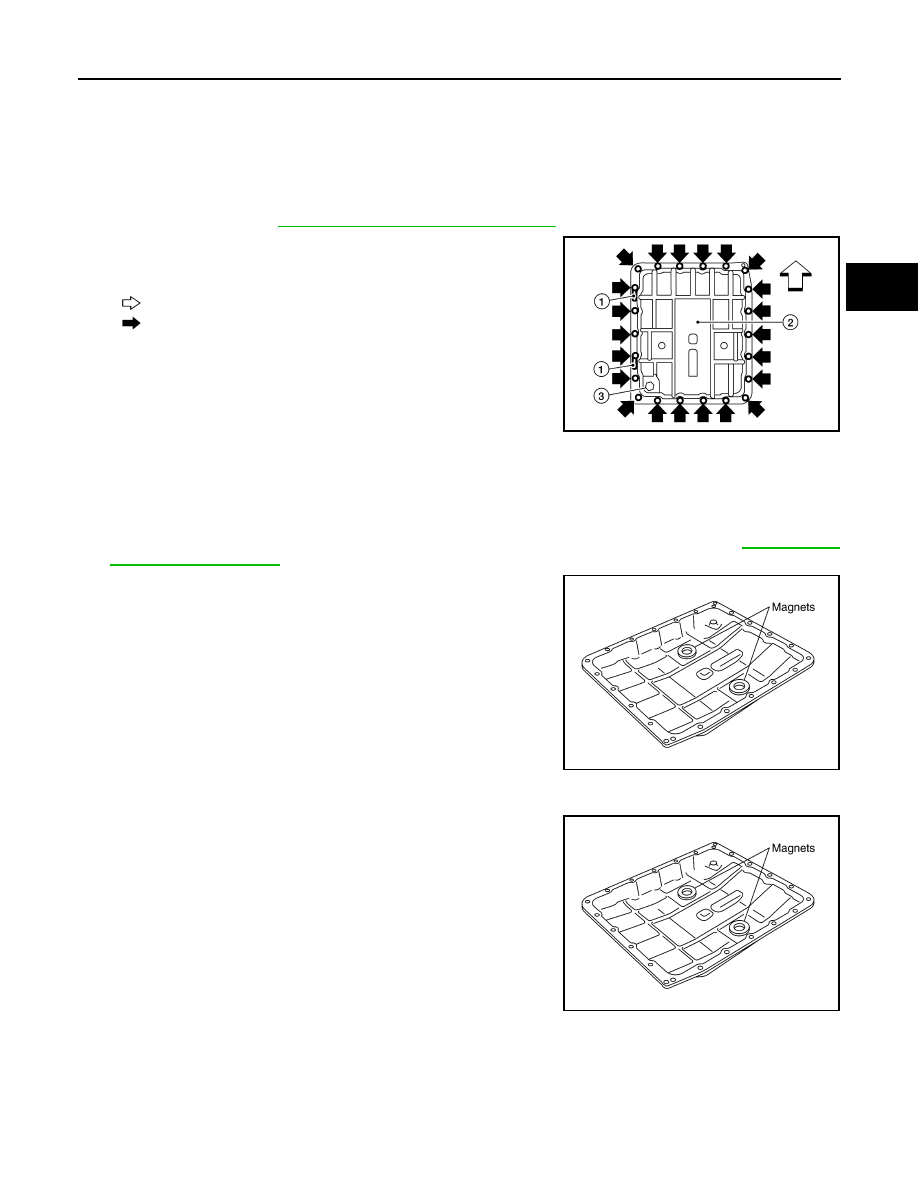

2. Remove oil pan clips (1).
3. Remove oil pan (2).
4. Remove oil pan gasket.

•

 Vehicle front

•

 Oil pan bolts

• Drain plug (3)

5. Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,

has some burned smell, or contains foreign particles then friction material (clutches, band) may need

replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,

servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-172, "A/T

Fluid Cooler Cleaning"

.

6. Remove magnets from oil pan.

Installation

1. Install the oil pan magnets as shown.

AWDIA0023ZZ

SCIA5200E

SCIA5200E
