KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

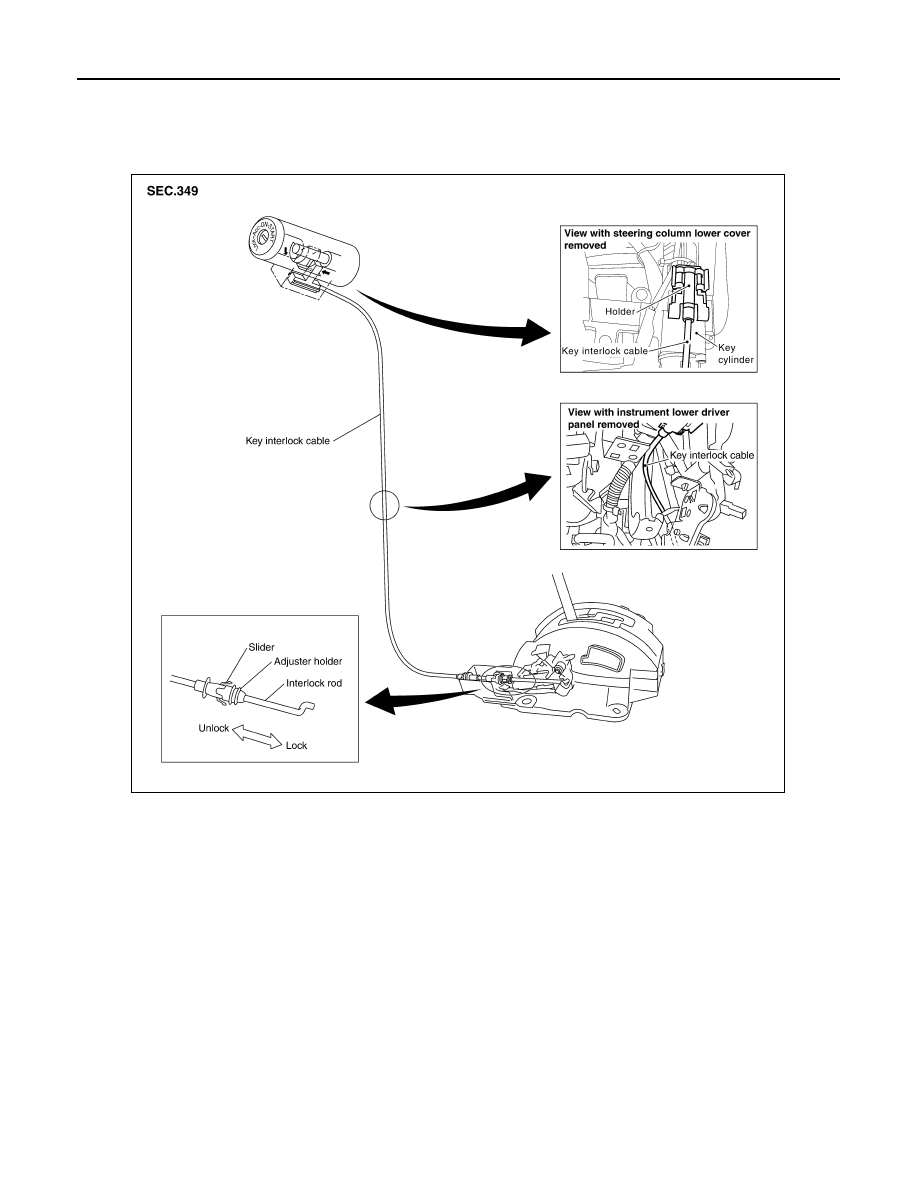

Component

INFOID:0000000006159453

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to A/T shift selector, make sure that casing cap and bracket are

firmly secured in their positions. If casing cap can be removed with an external load of less than 39

N (4.0 kg, 8.8 lb), replace key interlock cable with new one.

Removal and Installation

INFOID:0000000006159454

REMOVAL (Console shift models)

WCIA0467E

KEY INTERLOCK CABLE

TM-189

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

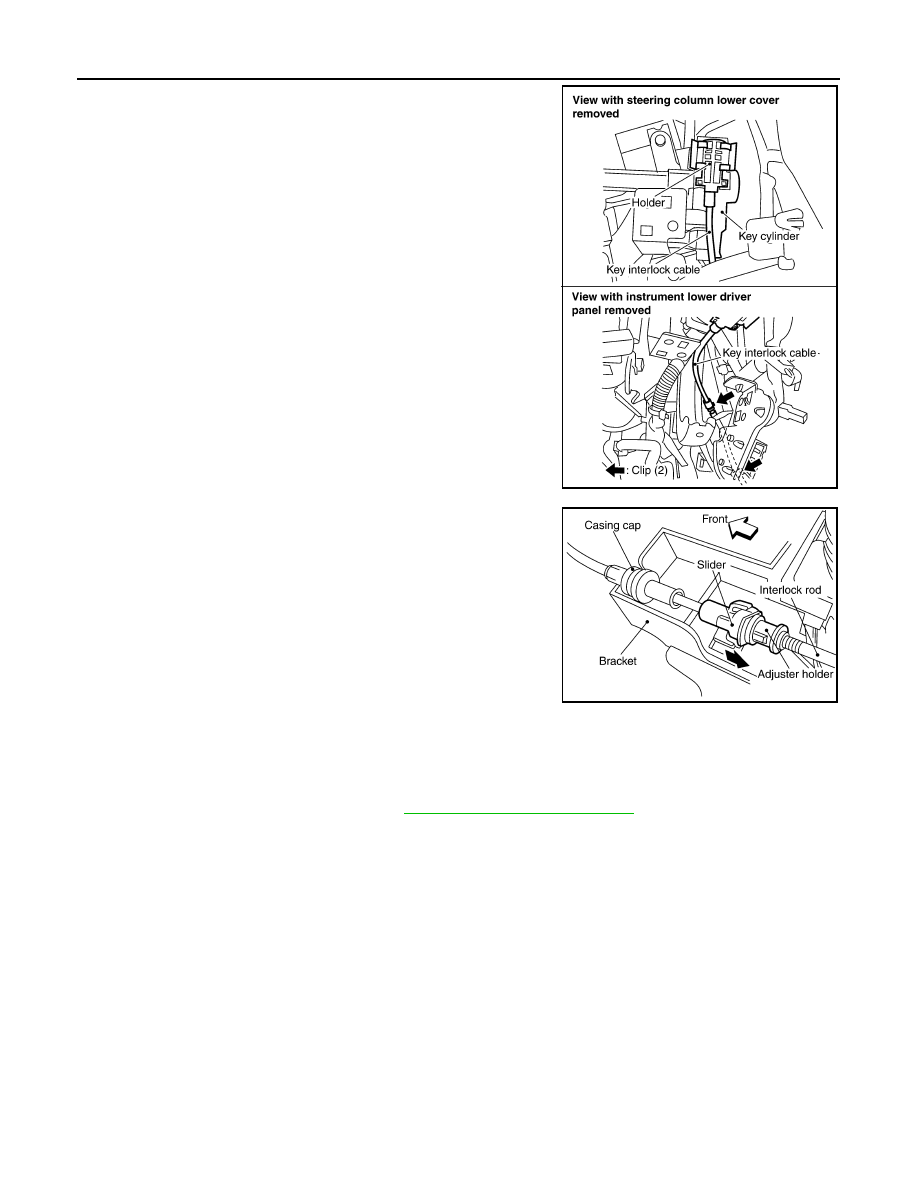

1. Unlock slider from adjuster holder by squeezing lock tabs.
2. Remove casing cap from bracket of A/T shift selector assembly

and remove interlock rod from adjuster holder.

3. Remove holder from key cylinder and remove key interlock

cable.

REMOVAL (Column shift models)

1. Remove the lower instrument cover LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove the knee protector.

3. Disconnect shift lock cable.
4. Remove the key interlock cable.

INSTALLATION (Console shift models)

SCIA1230E

LCIA0375E

LGIA0026E

TM-190

< REMOVAL AND INSTALLATION >

KEY INTERLOCK CABLE

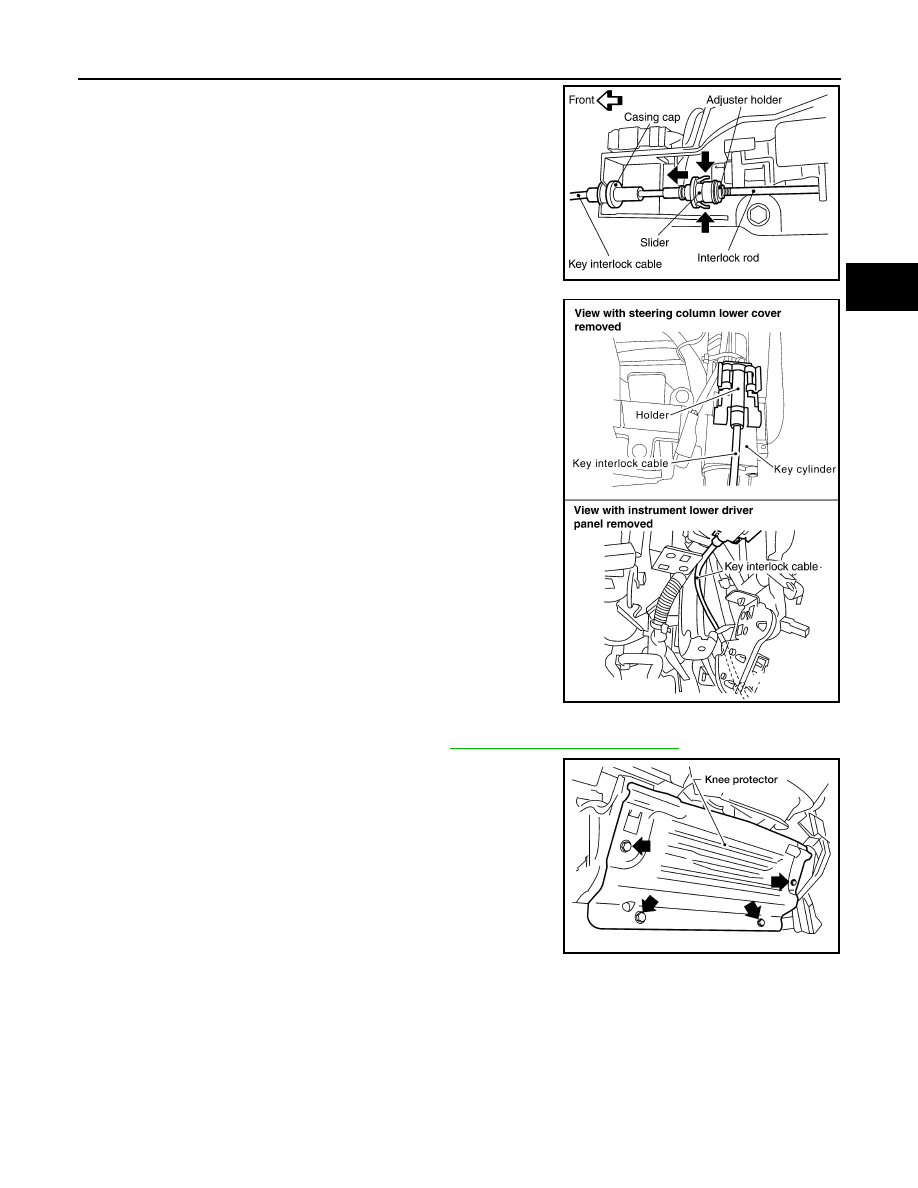

1. Set key interlock cable to key cylinder and install holder.
2. Turn ignition key to "LOCK" position.
3. Set A/T shift selector to (P) position.

4. Insert interlock rod into adjuster holder.
5. Install casing cap to bracket.
6. Move slider in order to secure adjuster holder to interlock rod.

INSTALLATION (Column shift models)

1. Install key interlock cable to ignition key cylinder.
2. Connect the shift lock cable.
3. Install knee protector.
4. Install lower instrument cover LH. Refer to

IP-17, "Removal and Installation"

.

SCIA2258E

SCIA1232E

AIR BREATHER HOSE

TM-191

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

2WD
2WD : 2WD: Removal and Installation

INFOID:0000000006736257

REMOVAL and INSTALLATION

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

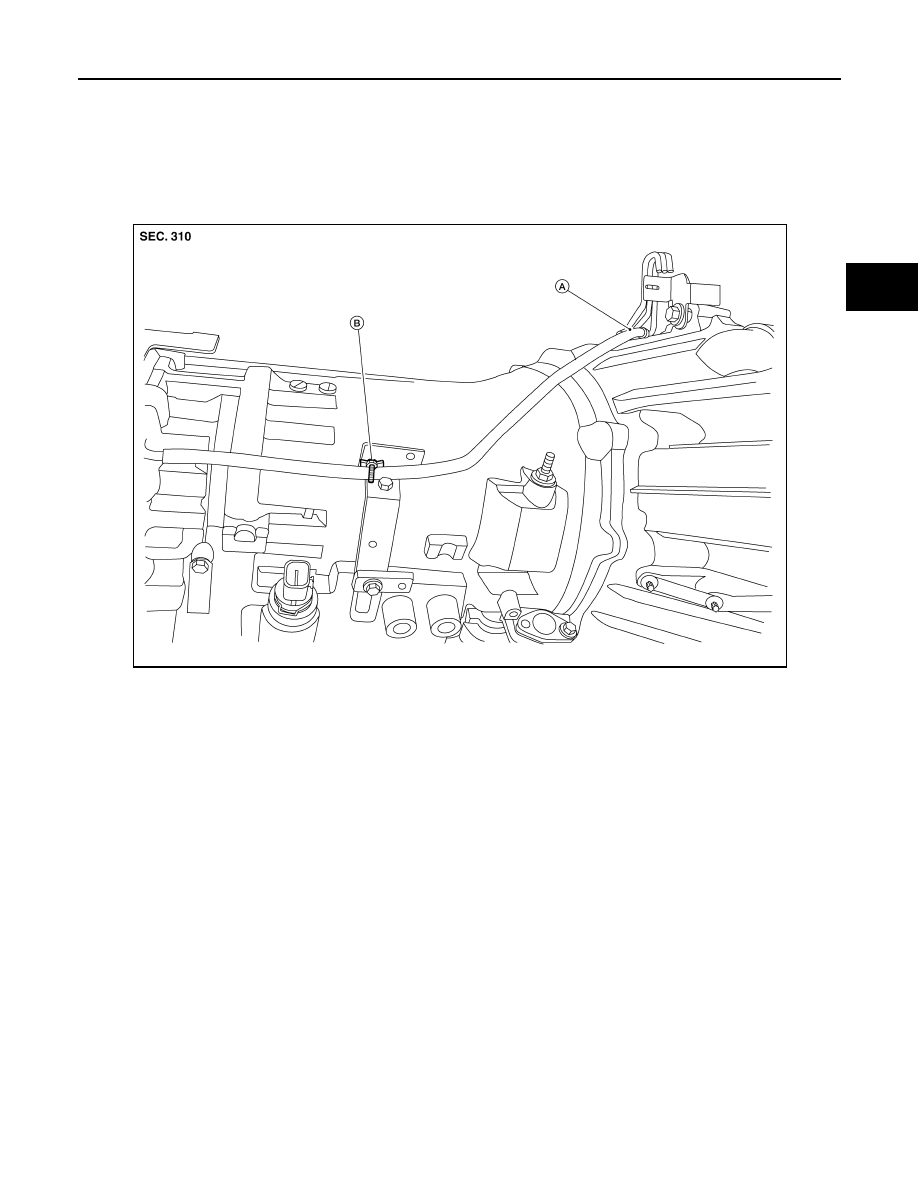

4WD

A.

Set air breather hose with
paint mark at upper side

B.

Clip (set securely to bracket)

AWDIA0554GB
