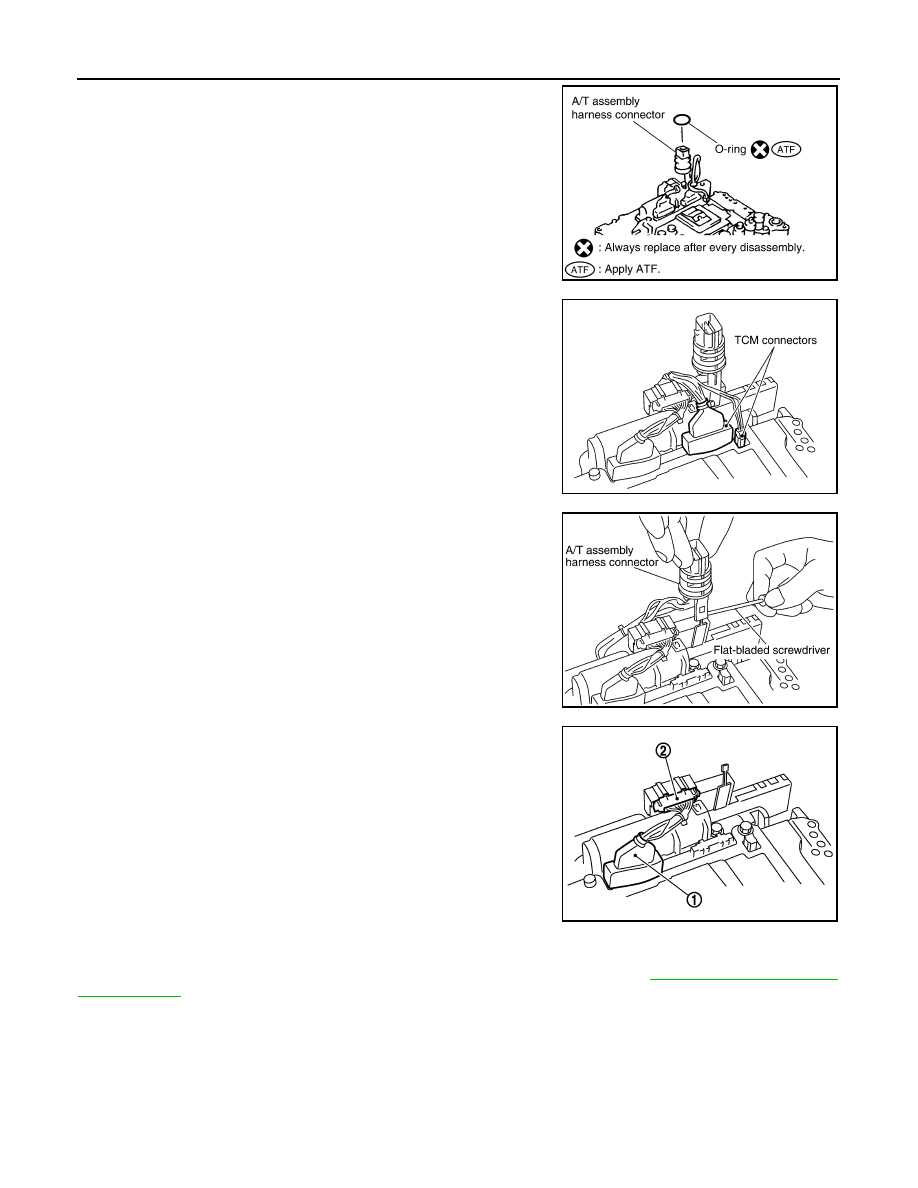

TM-200

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

14. Remove O-ring from A/T assembly harness connector.

15. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

16. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

17. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and fluid level. Refer to

TM-168, "Checking the A/

T Fluid (ATF)"

.

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

CONTROL VALVE WITH TCM

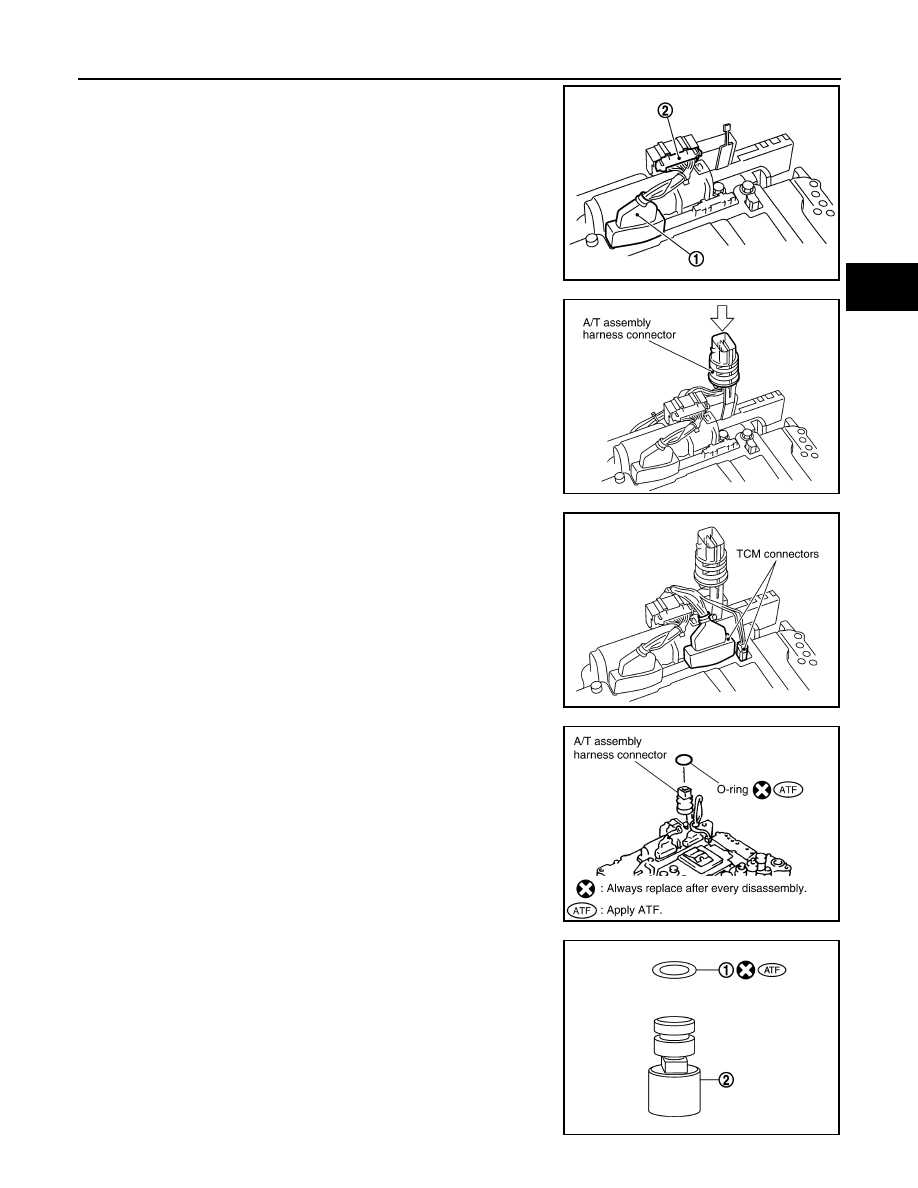

TM-201

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Connect TCM connector (1) and transmission range switch con-

nector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

5. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

JSDIA1313ZZ

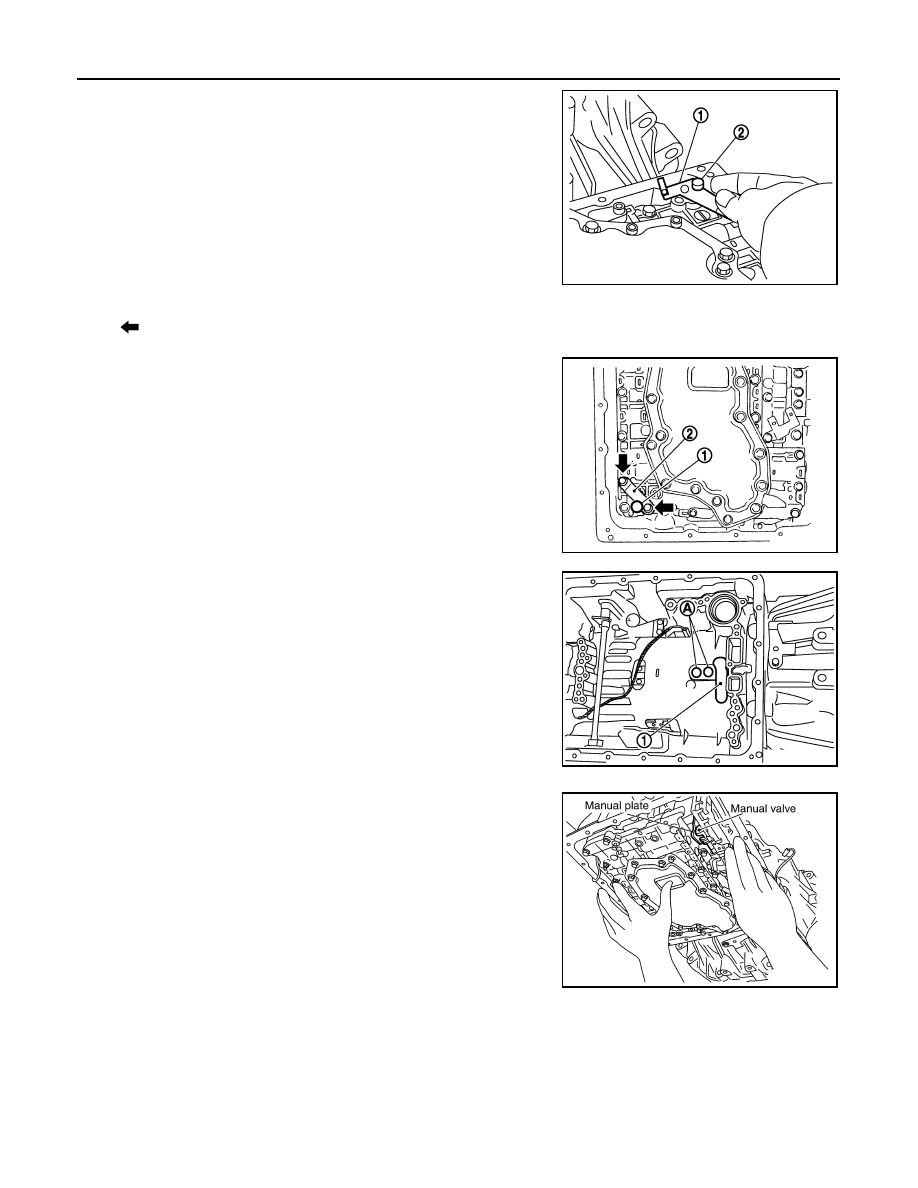

TM-202

< REMOVAL AND INSTALLATION >

CONTROL VALVE WITH TCM

6. Install plug (2) to bracket(1).

7. Install plug (1) [with bracket (2)] to control valve with TCM.

•



:Bolt

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

8. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

JSDIA1312ZZ

JSDIA1311ZZ

1

: Brake band

JSDIA1318ZZ

SCIA5142E

CONTROL VALVE WITH TCM

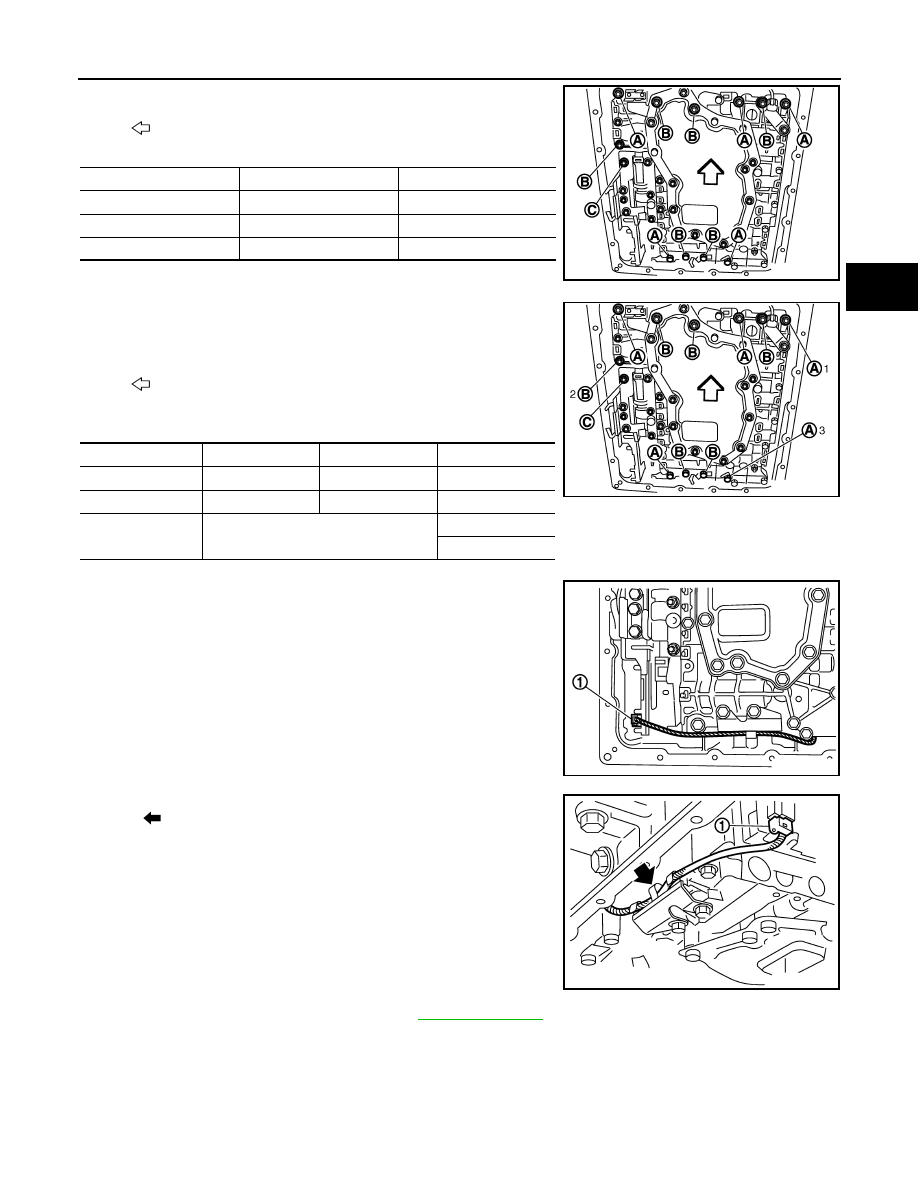

TM-203

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9. Install bolts (A), (B) and (C) in control valve with TCM.

10. Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.

After that tighten them in order (1

→ 2 → 3). Then tighten other

bolts.

11. Tighten control valve with TCM bolts to the specified torque.

12. Connect output speed sensor connector (1).

13. Securely fasten output speed sensor (1) harness with terminal

clip (

).

14. Install oil pan to transmission case. Refer to

TM-195, "Oil Pan"

.

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8075E
