Nissan Titan A60. Manual - part 955





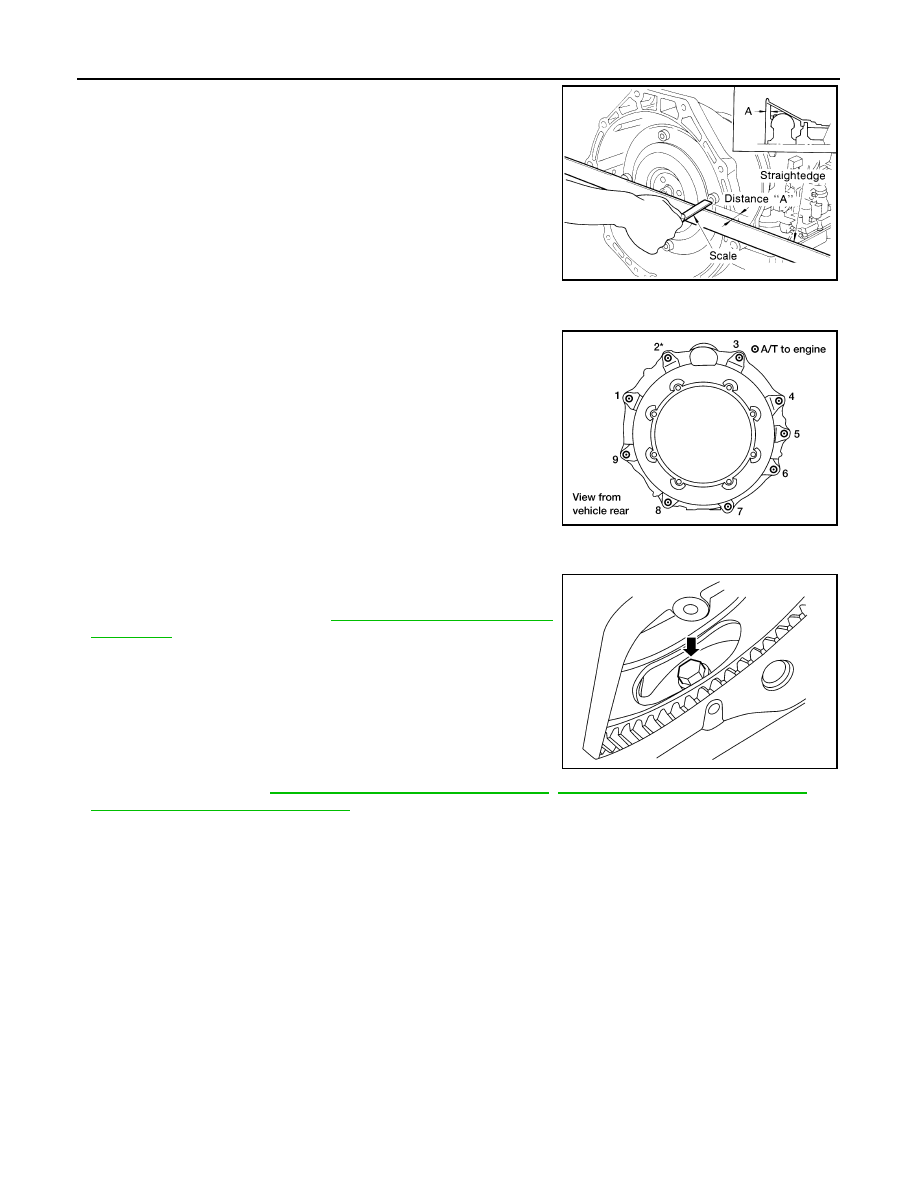

TM-208

< UNIT REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

• After inserting a torque converter to a transmission, be sure to

check distance A to ensure it is within specifications.

INSTALLATION

Installation is in the reverse order of removal, while paying attention to the following:

• When installing transmission to the engine, attach the bolts in the

order as shown.

CAUTION:

• When replacing an engine or transmission you must make

sure the dowels are installed correctly during re-assembly.

• Improper alignment caused by missing dowels may cause

vibration, oil leaks or breakage of drivetrain components.

NOTE:

*: No.2 bolt also secures air breather tube.

• Align the positions of bolts for drive plate with those of the torque

converter, and temporarily tighten the bolts. Then tighten the bolts

with the specified torque. Refer to

TM-206, "Removal and Installa-

tion (2WD)"

.

CAUTION:

• When turning crankshaft, turn it clockwise as viewed from

the front of the engine.

• After converter is installed to drive plate, rotate crankshaft

several turns and check to be sure that transmission rotates

freely without binding.

• Install crankshaft position sensor (POS).

• After completing installation check fluid leakage, fluid level and the

positions of A/T. Refer to

TM-168, "Checking the A/T Fluid (ATF)"

TM-184, "Checking of A/T Position"

 and

TM-184, "Adjustment of A/T Position"

.

Removal and Installation (4WD)

INFOID:0000000006736260

COMPONENTS

Distance A

: 24.0 mm (0.94 in) or more

SAT017B

Transmission to engine bolts : 113 N·m (12 kg-m,

83 ft-lb)

LCIA0371E

LCIA0335E

TRANSMISSION ASSEMBLY

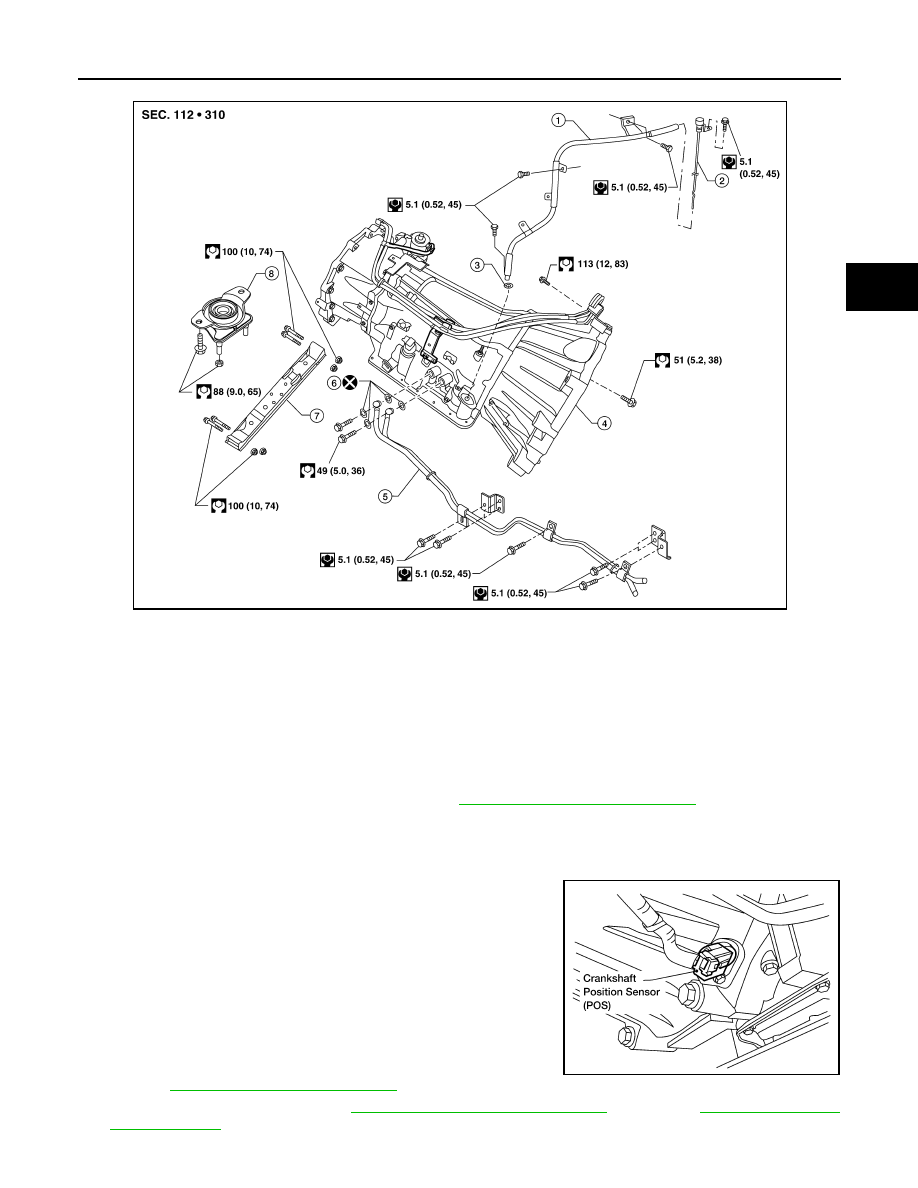

TM-209

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from

the A/T assembly.

Be careful not to damage sensor edge.
1. Disconnect the battery negative terminal. Refer to

PG-76, "Removal and Installation"

.

2. Remove A/T fluid indicator.
3. Remove engine under cover using power tool.
4. Remove transfer under cover using power tool, if equipped.
5. Remove crankshaft position sensor (POS) from A/T assembly.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or foreign material to get on the

sensor front edge magnetic area.

• Do not place in an area affected by magnetism.

6. Remove A/T fluid indicator pipe.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

7. Remove exhaust front tube and center muffler using power tool.

Refer to

EX-5, "Removal and Installation"

.

8. Remove propeller shafts. Refer to

DLN-141, "Removal and Installation"

 (2S1410) or

DLN-150, "Removal

and Installation"

 (3S1410).

1.

A/T fluid indicator pipe

2.

A/T fluid indicator

3.

O-ring

4.

Transmission assembly

5.

Fluid cooler tube

6.

Copper washer

7.

A/T cross member

8.

Insulator

AWDIA0548GB

LCIA0334E

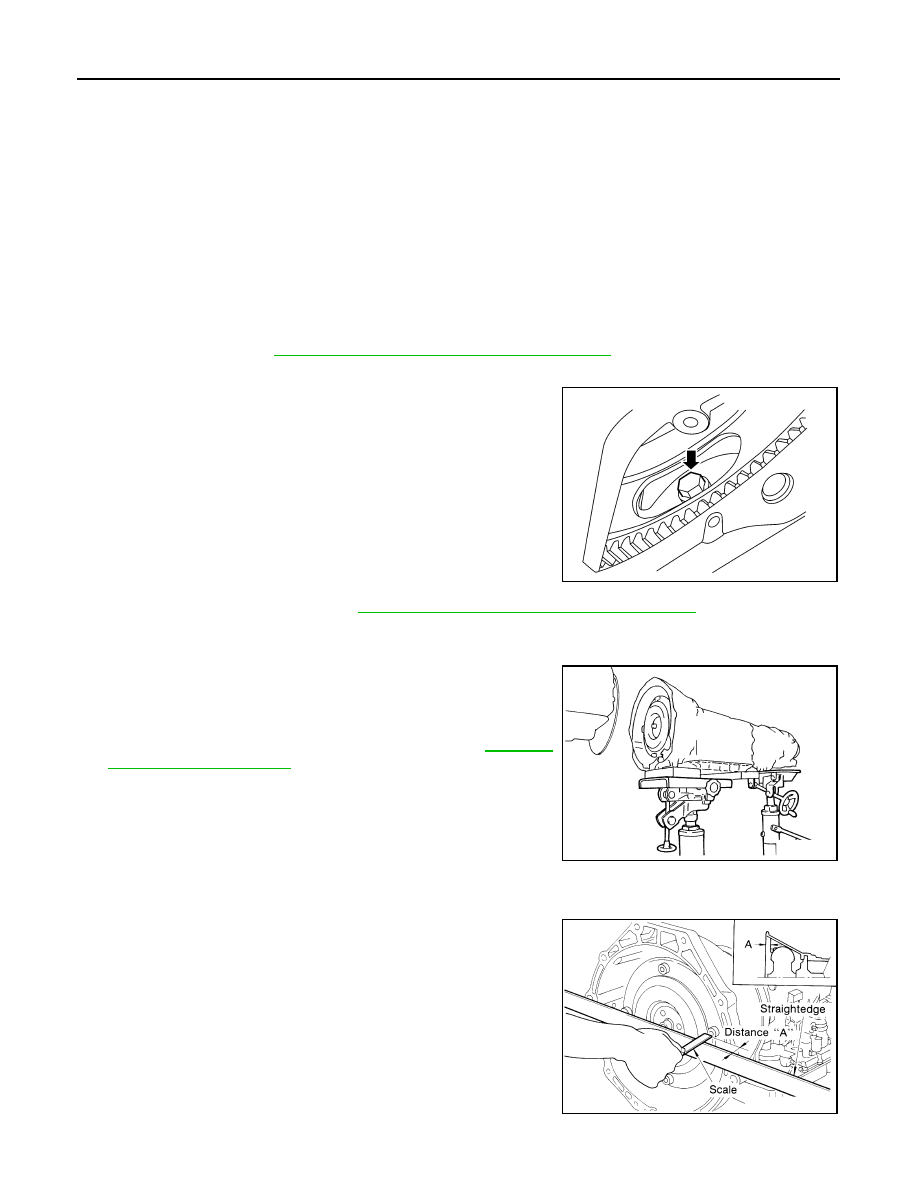

TM-210

< UNIT REMOVAL AND INSTALLATION >

TRANSMISSION ASSEMBLY

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

9. Disconnect control cable.
10. Remove A/T fluid cooler tubes from A/T assembly.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

11. Support A/T assembly using transmission jack and Tool.

CAUTION:

When setting the transmission jack, be careful not to allow it to collide against the drain plug.

12. Remove cross member using power tool.
13. Tilt the transmission slightly to keep the clearance between body and transmission, then disconnect air

breather hose. Refer to

TM-192, "4WD : 4WD: Removal and Installation"

.

14. Remove dust cover from converter housing.
15. Turn crankshaft to access and remove the four bolts for drive

plate and torque converter.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from

the front of the engine.

16. Remove air breather hose. Refer to

TM-192, "4WD : 4WD: Removal and Installation"

.

17. Disconnect A/T assembly harness connector and terminal cord assembly.
18. Remove A/T assembly to engine bolts using power tool.
19. Remove A/T assembly with transfer from vehicle.

CAUTION:

• Secure torque converter to prevent it from dropping.

• Secure A/T assembly to transmission jack.

20. Remove transfer from A/T assembly. Refer to

DLN-102,

"Removal and Installation"

.

INSPECTION

Installation and Inspection of Torque Converter

• After inserting a torque converter to a transmission, be sure to

check distance A to ensure it is within specifications.

INSTALLATION

Tool number

:

 (J-47002)

LCIA0335E

SCIA2203E

Distance A

: 24.0 mm (0.94 in) or more

SAT017B

TRANSMISSION ASSEMBLY

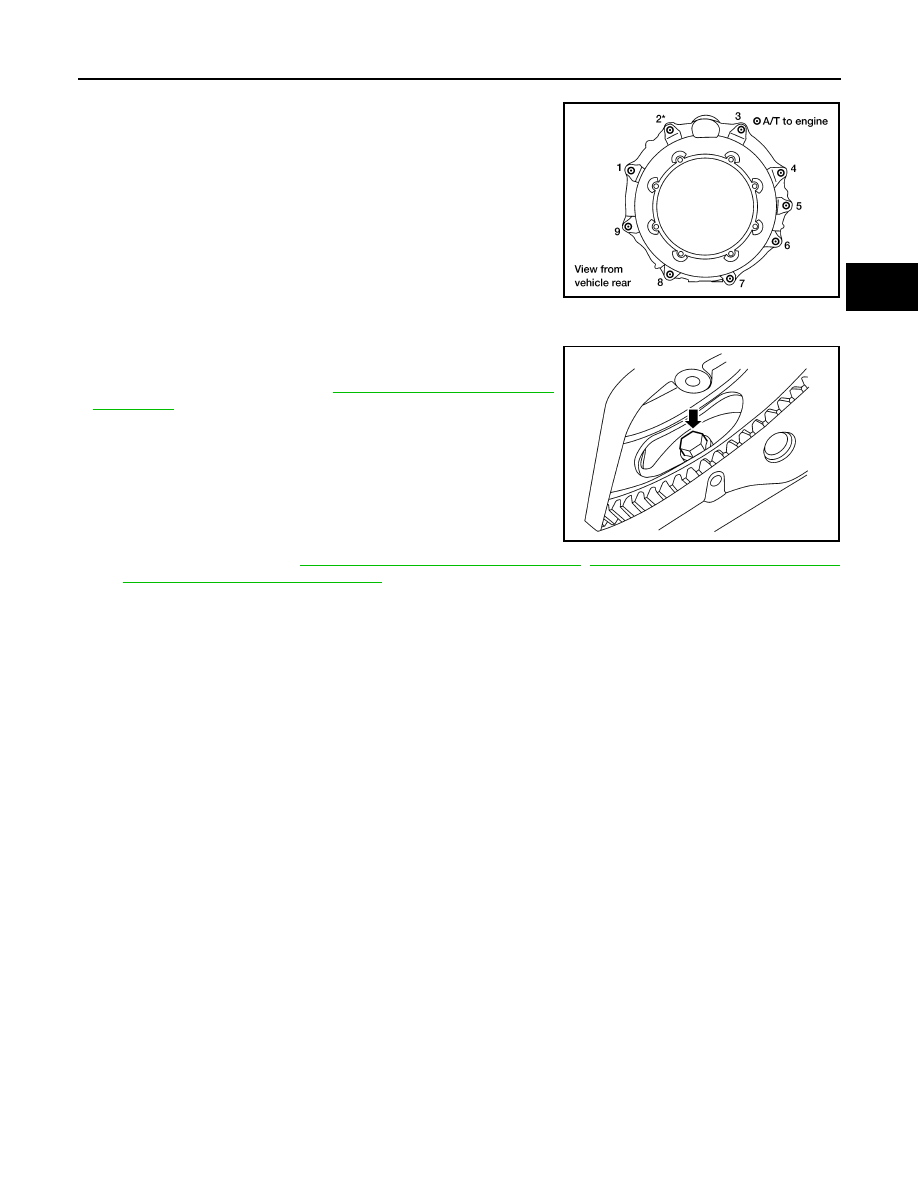

TM-211

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Installation is in the reverse order of removal, while paying attention to the following:

• When installing transmission to the engine, attach the bolts as

shown.

CAUTION:

• When replacing an engine or transmission you must make

sure the dowels are installed correctly during re-assembly.

• Improper alignment caused by missing dowels may cause

vibration, oil leaks or breakage of drivetrain components.

NOTE:

*: No.2 bolt also secures air breather tube.

• Align the positions of bolts for drive plate with those of the torque

converter, and temporarily tighten the bolts. Then tighten the bolts

with the specified torque. Refer to

TM-208, "Removal and Installa-

tion (4WD)"

CAUTION:

• When turning crankshaft, turn it clockwise as viewed from the

front of the engine.

• After converter is installed to drive plate, rotate crankshaft

several turns and check to be sure that transmission rotates

freely without binding.

• Install crankshaft position sensor (POS).

• After completing installation, check fluid leakage, fluid level, and

the positions of A/T. Refer to

TM-168, "Checking the A/T Fluid (ATF)"

TM-184, "Checking of A/T Position"

and

TM-184, "Adjustment of A/T Position"

.

Transmission to engine bolts : 113 N·m (12 kg-m,

83 ft-lb)

LCIA0371E

LCIA0335E
