SIDE CURTAIN AIR BAG MODULE

SR-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

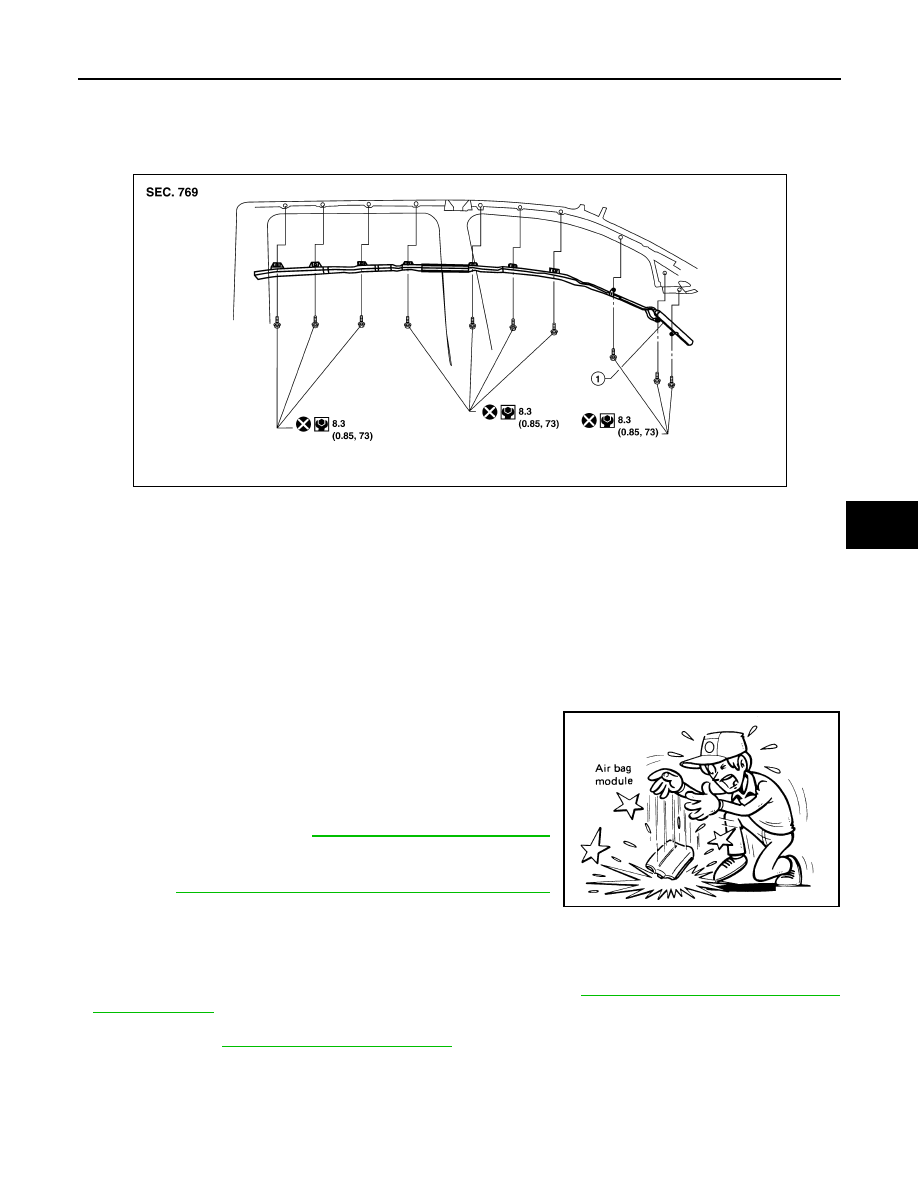

SIDE CURTAIN AIR BAG MODULE

Removal and Installation

INFOID:0000000006163319

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a direct-

connect harness connector is damaged, the harness must be replaced.

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.

• Do not disassemble air bag module.

• Do not expose the air bag module to temperatures exceeding 90

°C (194°F).

• Replace side curtain air bag module if it has been dropped or

sustained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

1. Disconnect both the negative and positive battery terminals,

then wait at least three minutes.

2. Remove headlining. Refer to

INT-21, "Removal and Installation"

.

3. Disconnect side curtain air bag module connector.

• For removal/installation of the direct-connect SRS connectors,

refer to

SRC-9, "Direct-connect SRS Component Connectors"

.

4. Remove the bolts in order starting at the front or rear, and

remove the side curtain air bag module.

INSTALLATION

Installation is in the reverse order of removal.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is

detected. Refer to

SRC-13, "SRS Operation Check"

.

1.

Side curtain airbag module connector

WHIA0296E

SBF814E

SR-12

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

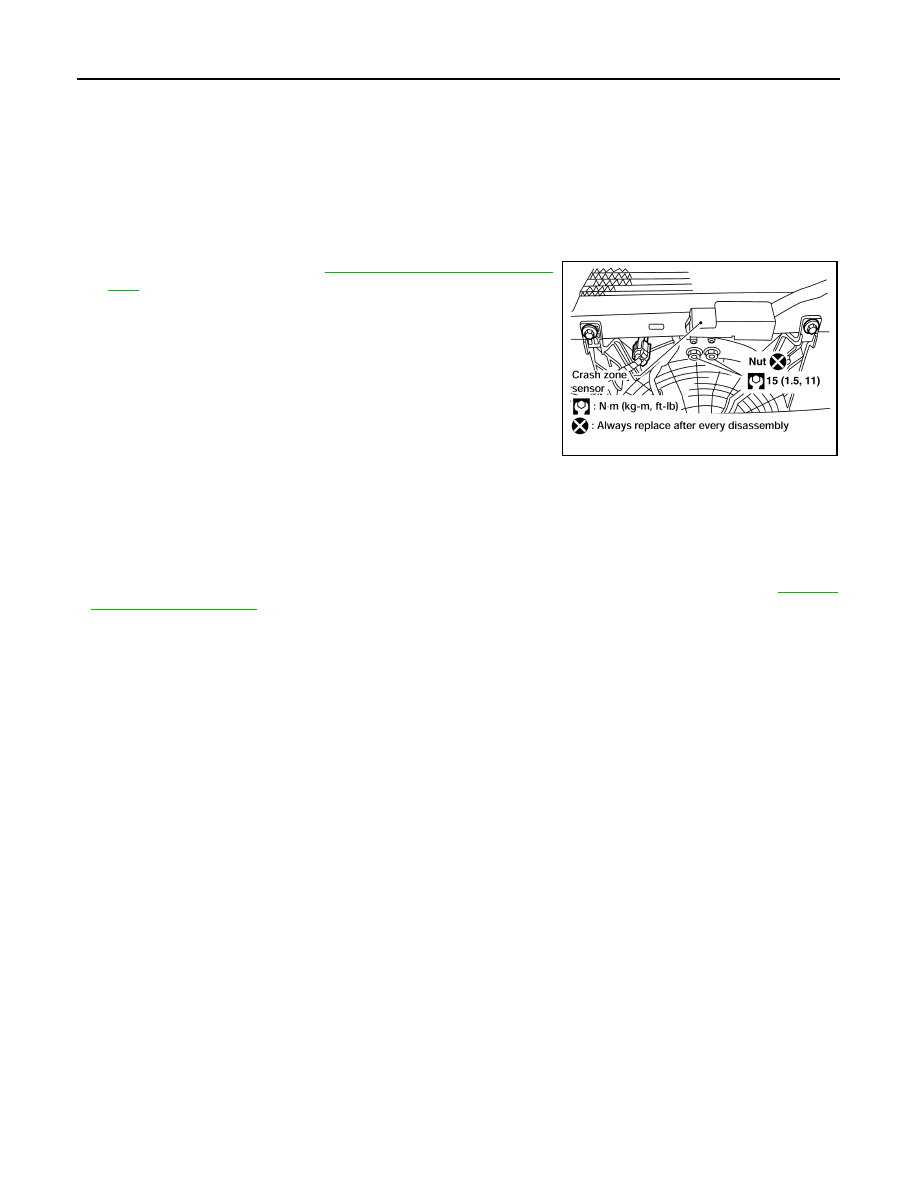

CRASH ZONE SENSOR

Removal and Installation

INFOID:0000000006163320

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. Remove front grille. Refer to

EXT-19, "Removal and Installa-

tion"

.

3. Disconnect the crash zone sensor harness connector.
4. Remove crash zone sensor nuts.

CAUTION:

• Replace crash zone sensor if it has been dropped or sustained an impact.

• Do not disassemble crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal.

• After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-13,

"SRS Operation Check"

.

LHIA0056E

SIDE AIR BAG (SATELLITE) SENSOR

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

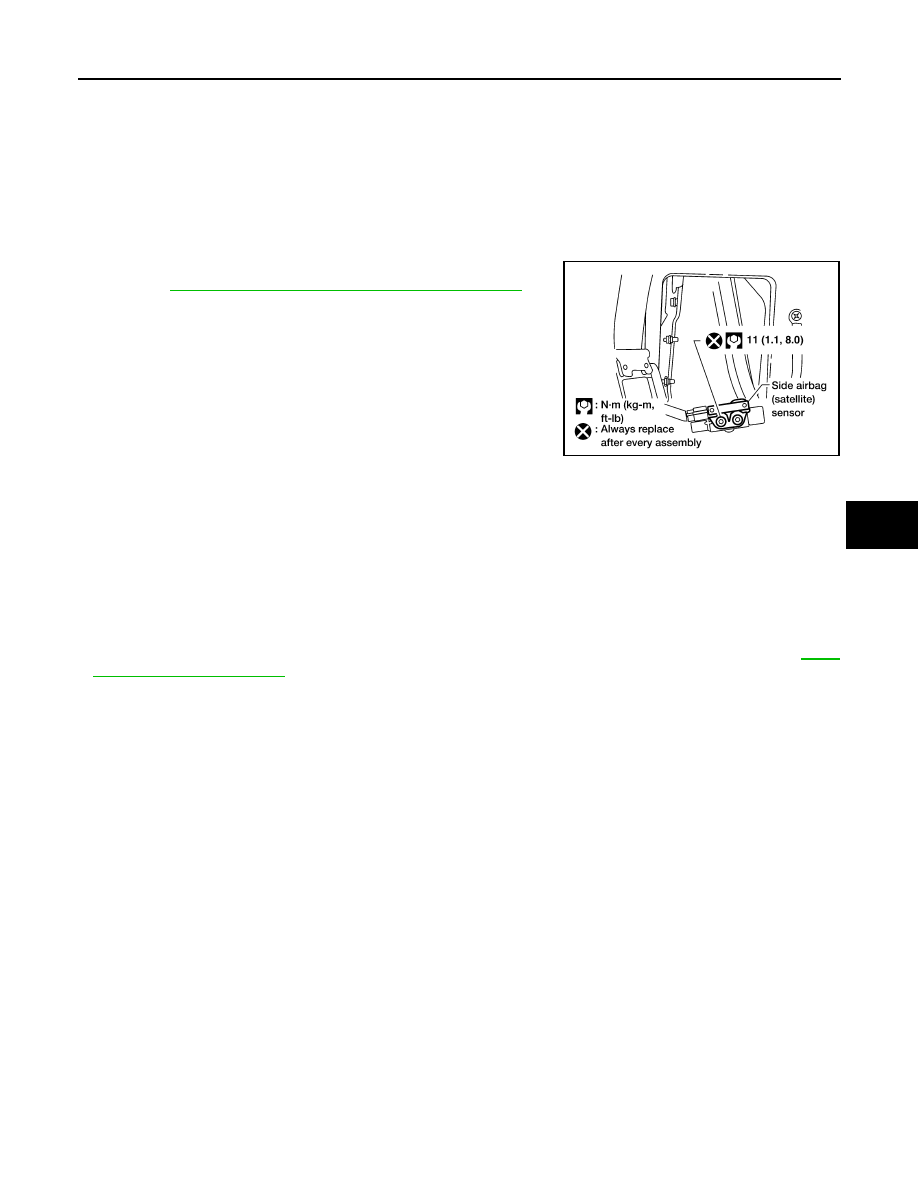

SIDE AIR BAG (SATELLITE) SENSOR

Removal and Installation

INFOID:0000000006163321

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. For crew cab models, remove seat belt retractor assembly.

Refer to

SB-4, "Removal and Installation of Front Seat Belt"

. For

king cab models, remove kicking plates and pull back carpet.

3. Remove side air bag (satellite) sensor nuts.
4. Disconnect the side air bag (satellite) sensor harness connector.

CAUTION:

• Do not use old nuts after removal; replace with new nuts.

• Check side air bag (satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace it with new one.

• Do not disassemble side air bag (satellite) sensor.

• Replace side air bag (satellite) sensor if it has been dropped or sustained an impact.

INSTALLATION

Installation is in the reverse order of removal.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

LHIA0062E

SR-14

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000006163322

For removal and installation procedures for seat belt and seat belt buckle pre-tensioners, refer to

SB-4,

"Removal and Installation of Front Seat Belt"

.
