PREPARATION

SR-3

< PREPARATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PREPARATION

PREPARATION

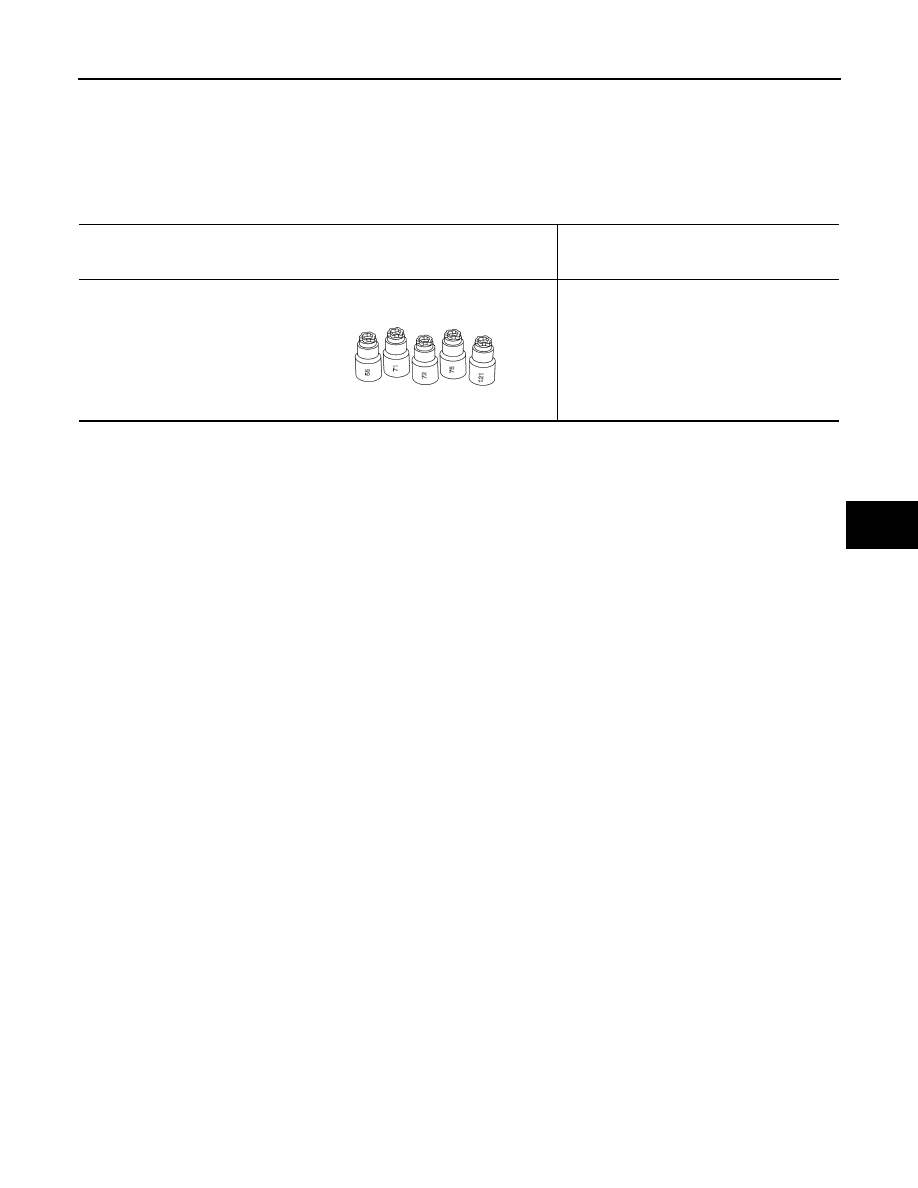

Special Service Tool

INFOID:0000000006163315

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-42057-UPD)
Air bag key set
Part of kit (J-42057)

Removing and installing air bag lock

LRS210

SR-4

< REMOVAL AND INSTALLATION >

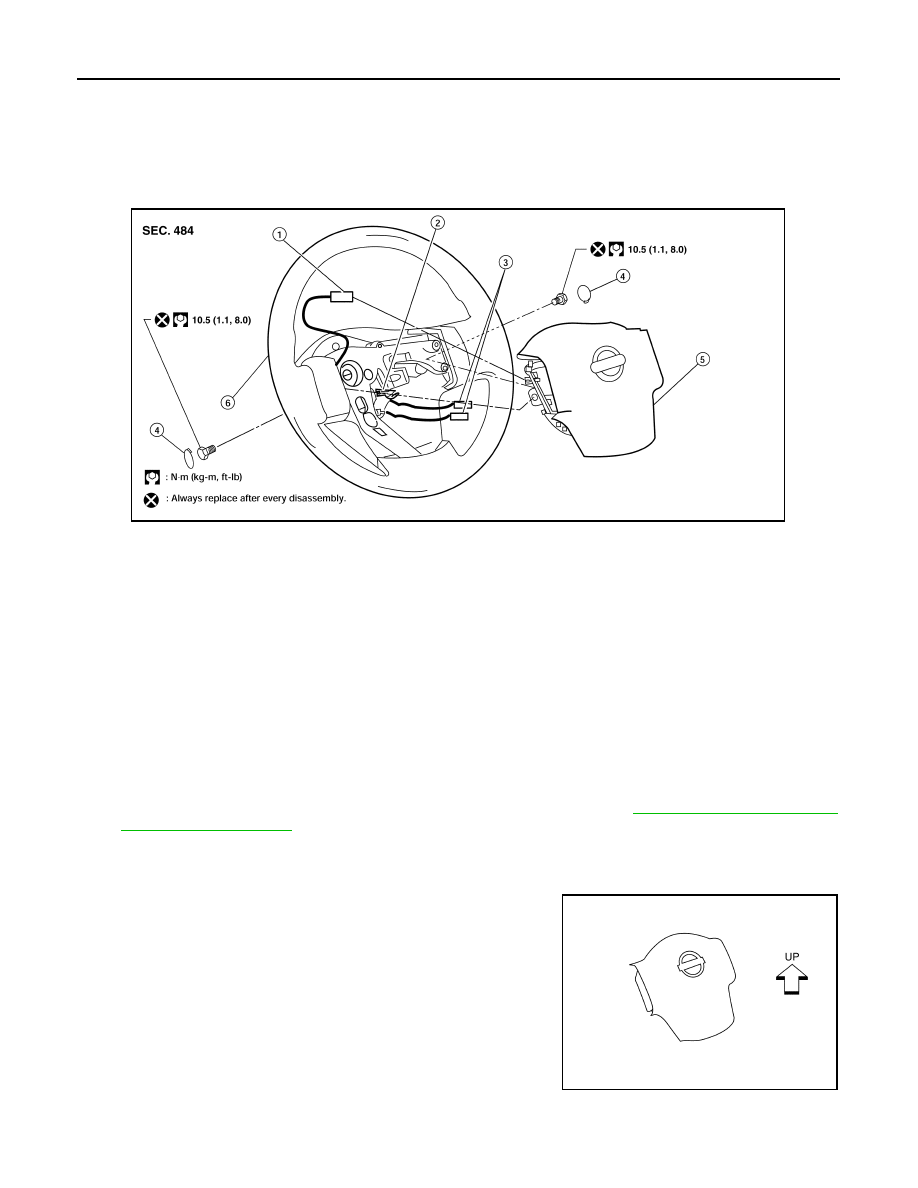

DRIVER AIR BAG MODULE

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000006163316

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver

air bag direct-connect harness connector is damaged, the spiral cable must be replaced.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. Remove the left and right side bolts.
3. Lift the driver air bag module from the steering wheel.
4. Disconnect the air bag harness and horn connectors, then remove the driver air bag module.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

.

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.

• Always place air bag module with pad side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or harness connectors.

• Do not disassemble air bag module.

• Do not use old bolts after removal; replace with new bolts.

• Do not expose the air bag module to temperatures exceeding

90

°C (194°F).

1.

Horn harness

2.

Steering wheel hook

3.

Inflator harness

4.

Side lids RH/LH

5.

Driver air bag module

6.

Steering wheel

WHIA0159E

LHIA0052E

DRIVER AIR BAG MODULE

SR-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

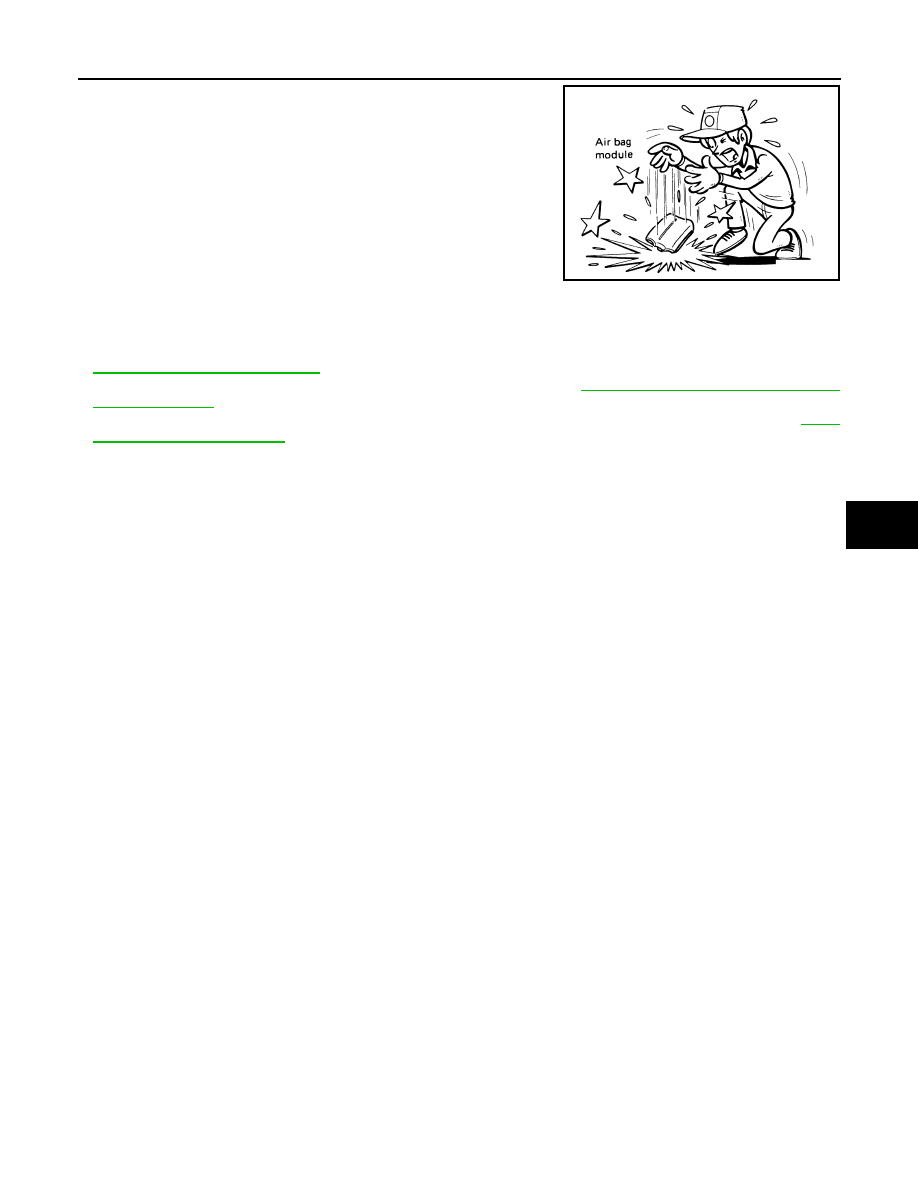

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

INSTALLATION

Installation is in the reverse order of removal.

• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to

SR-6, "Removal and Installation"

 .

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

SBF814E

SR-6

< REMOVAL AND INSTALLATION >

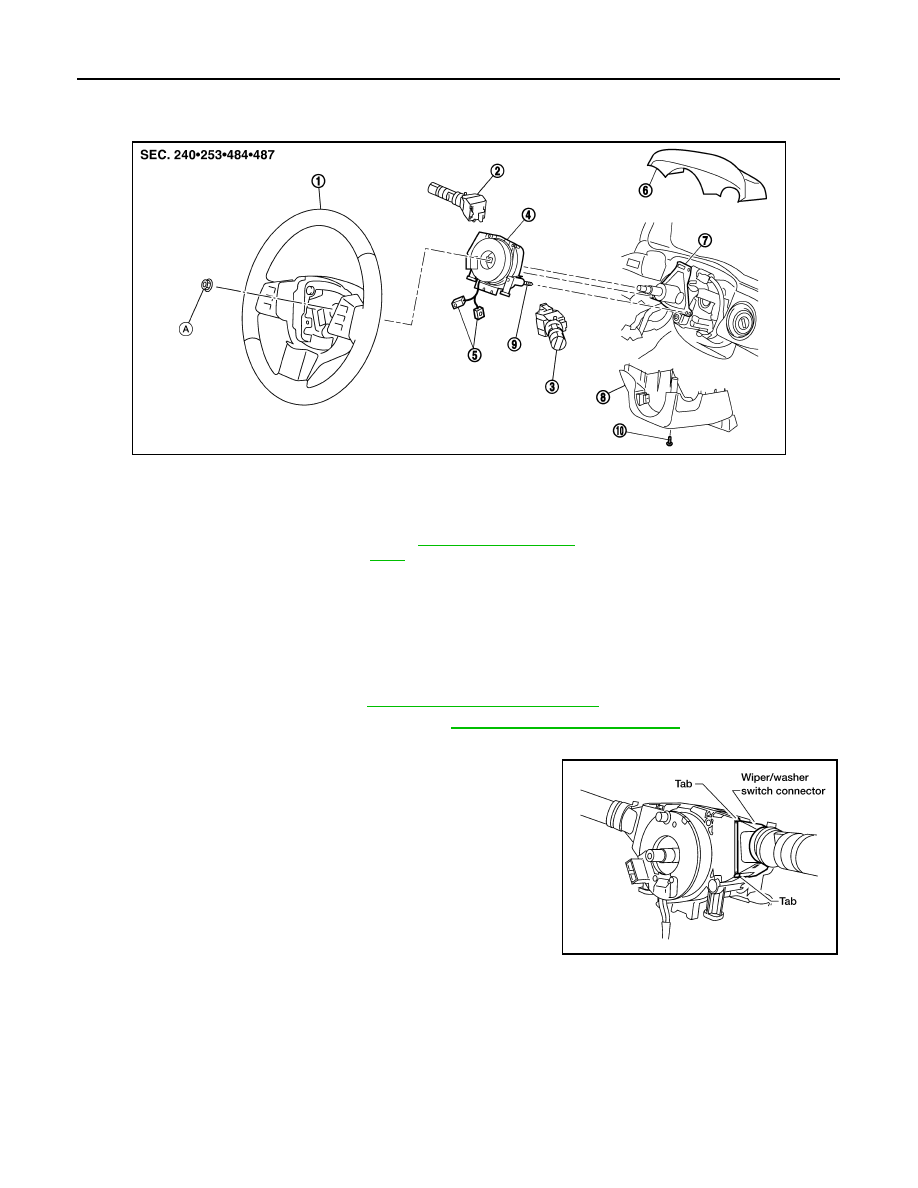

SPIRAL CABLE

SPIRAL CABLE

Removal and Installation

INFOID:0000000006163317

REMOVAL

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. Remove the steering wheel. Refer to

ST-11, "Removal and Installation"

.

3. Remove the instrument lower panel RH. Refer to

IP-17, "Removal and Installation"

.

4. Remove the column cover upper and lower.
5. Remove wiper washer switch connector, then pinch the tabs at

wiper and washer switch base and slide switch away from steer-

ing column to remove.

AWHIA0141GB

1.

Steering wheel

2.

Lighting and turn signal switch

3.

Wiper and washer switch

4.

Spiral cable

5.

Driver air bag module connector

6.

Column cover upper

7.

Column assembly

8.

Column cover lower

9.

Screw (Do not remove)

10. Screw

A.

Refer to

ST-11, "Removal and Instal-

lation"

LHIA0034E
