9. Reposition the seat cover side panel to access the seat switch.

Remove the two screws (A) and seat switch (1).

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0577ZZ

SE-34

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

Exploded View

INFOID:0000000006163210

LH

WIIA0949E

1.

Seatback pad

2.

Headrest

3.

Seatback latch

4.

Seatback latch release strap

5.

 Seatback latch striker

6.

Seatback frame

7.

Outboard pivot cover

8.

Release lever handle

9.

Seat cushion frame

REAR SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

RH

10. Seat cushion release assembly

11. Outboard seat support

12. Grocery bag hooks

13. Inboard seat support

14. Rear seat bracket

15. Seat cushion pad

16. Seat cushion trim

17. Seatback trim

18. Inboard outer pivot cover

19. Inboard inner pivot cover

20.  Headrest guide

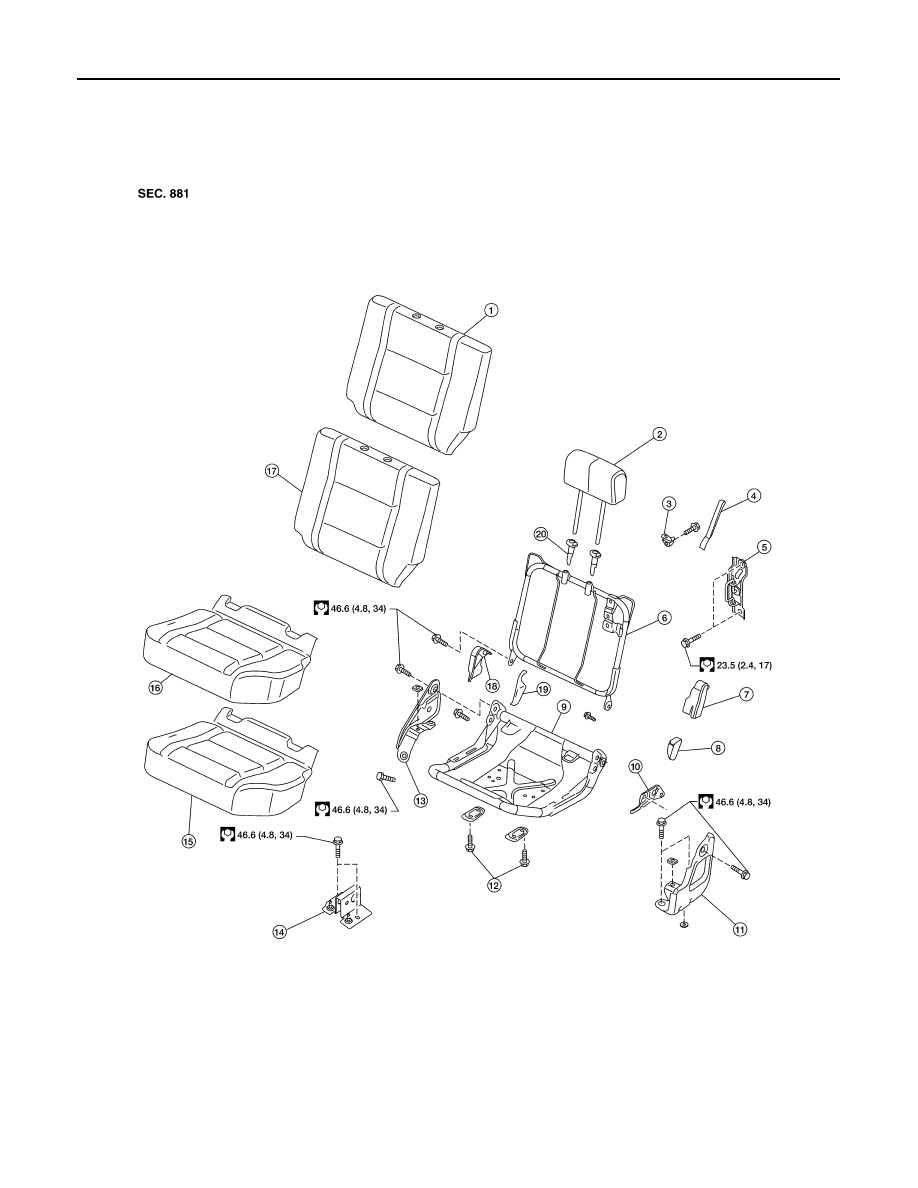

AWJIA0386GB

1.

Seatback trim with armrest

2.

Seatback pad with armrest

3.

Seatback trim without armrest

4.

Seatback pad without armrest

5.

Seatback frame without armrest

6.

Seat cushion trim

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

Removal and Installation

INFOID:0000000006163211

Removal

1. Lift the seat cushion into the stowed position.
2. Remove the seat belt and seat anchor bolts.

3. Remove the outboard pivot cover.
4. Remove the seatback hinge covers.
5. Remove the seat cushion release handle.
6. Release the seatback and remove the seat.

Installation

Installation is in the reverse order of removal.

7.

Seat cushion pad

8.

Seatback striker assembly

9.

Outboard pivot cover

10. Seat cushion release handle

11. Outboard seatback pivot anchor

12. Seat cushion release lever

13. Seat cushion frame

14. Grocery bag hooks

15. Inboard seatback pivot anchor

16. Rear seat bracket

17. Outer inboard hinge cover

18. Inner inboard hinge cover

19. Seatback frame with armrest

20. Arm rest pad and frame

21. Arm rest trim

22. Seatback latch assembly

23. Locking headrest guide

24. Headrest

25. Seatback release strap

26. Free headrest guide

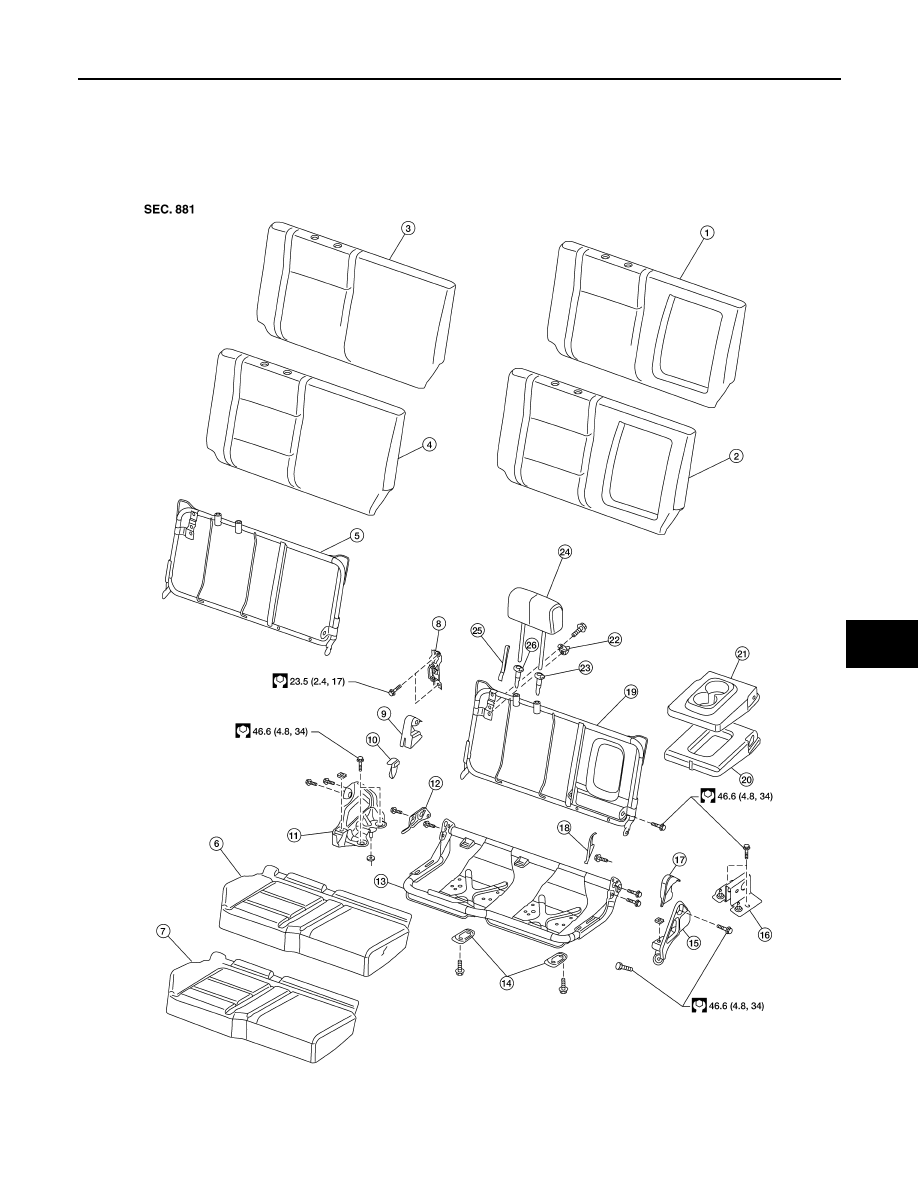

LIIA1187E

LIIA1188E
