UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Exploded View

INFOID:0000000006163212

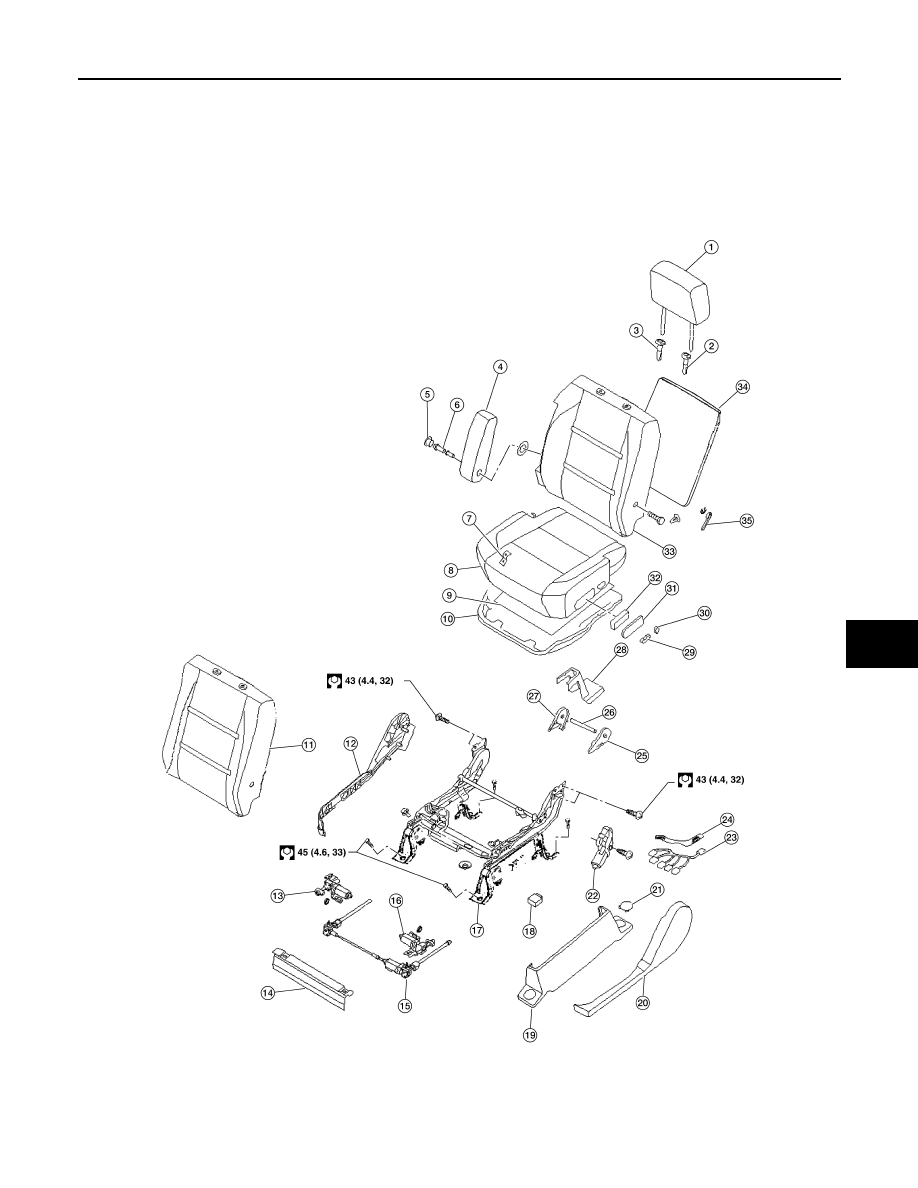

Power Driver Seat

AWJIA0477GB

SE-38

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1.

Headrest

2.

Headrest holder with multi position
lock

3.

Headrest holder

4.

Armrest assembly (if equipped)

5.

Armrest cap (if equipped)

6.

Armrest bolt (if equipped)

7.

Seat cushion cover

8.

Seat cushion pad

9.

Seat cushion heating element (if
equipped)

10. Seat cushion frame

11. Seatback assembly without armrest,

(if equipped)

12. Seat cushion inner finisher

13. Lift motor

14. Seat cushion front finisher

15. Seat slide motor assembly

16. Lift motor

17. Driver power seat frame assembly

18. Power seat controller

19. Outer pedestal finisher

20. Seat cushion outer finisher

21. Bolt cover

22. Reclining motor

23. Driver seat wiring harness

24. Wire harness cover

25. Outer reclining cover

26. Reclining rod

27. Inner reclining cover

28. LH inner leg cover

29. Slide switch knob

30. Recliner switch knob

31. Power seat switch escutcheon

32. Power seat switch

33. Seatback assembly with armrest (if

equipped)

34. Seatback board

FRONT SEAT

SE-39

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

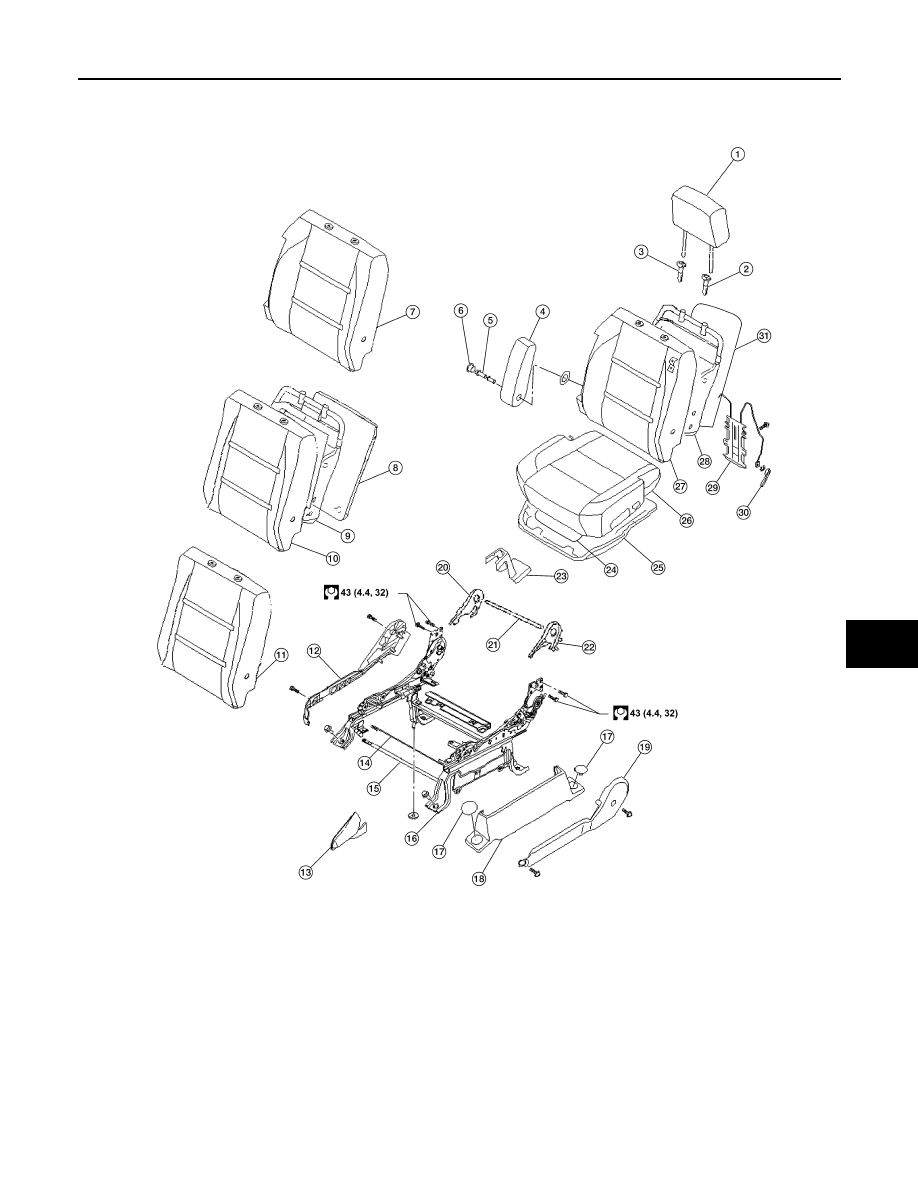

Manual Driver Seat

AWJIA0457GB

1.

Headrest

2.

Headrest holder with multi position
lock

3.

Headrest holder

4.

Armrest assembly (if equipped)

5.

Armrest bolt (if equipped)

6.

Armrest cap (if equipped)

7.

Seatback assembly with armrest,
with side airbag (if equipped)

8.

Seatback board without armrest,
without airbag (if equipped)

9.

Seatback frame assembly without
armrest, without airbag (if equipped)

10. Seatback pad and cover without arm-

rest, without airbag (if equipped)

11. Seatback assembly without armrest,

with side airbag (if equipped)

12. Seat cushion inner finisher

SE-40

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

13. Reclining knob

14. Release wire

15. Front seat bracket

16. Driver manual seat frame assembly

17. Bolt cover

18. Outer leg cover

19. Seat cushion outer cover

20. Inner reclining cover

21. Reclining rod

22. Outer reclining cover

23. RH inner leg cover

24. Seat cushion heating element (if

equipped)

25. Seat cushion frame

26. Seat cushion pad and cover

27. Seatback pad and cover with arm-

rest, with airbag (if equipped)

28. Seatback frame assembly with arm-

rest, without airbag (if equipped)

29. Seat lumbar assembly (if equipped)

30. Lumbar adjusting knob

31. Seatback board with armrest
