REAR WINDOW GLASS AND MOLDING

GW-17

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

6. Install the sealing screen.
7. Install the headliner. Refer to

INT-21, "Removal and Installation"

.

8. Install the rear panel. Refer to

INT-14, "Removal and Installation"

9. Install the rear seat. Refer to

SE-36, "Removal and Installation"

.

SETTING AFTER INSTALLATION

Setting of Limit Switch

If any of the following operations are performed the limit switch must be reset.

• Motor operation when not installed in the vehicle.

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the glass.

• Removal and installation of the glass run.

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top.

2. While pressing and holding the reset switch, lower the glass to

the bottom.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not pull the switch using suitable tool.

4. Raise the glass to the top position

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

REPAIRING WATER LEAKS FOR REAR WINDOW GLASS

Leaks can be repaired without removing or reinstalling glass.

If water is leaking between butyl adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the rear window area while pushing glass outward.

To stop leak, apply primer (if necessary) and then butyl adhesive to the leak point.

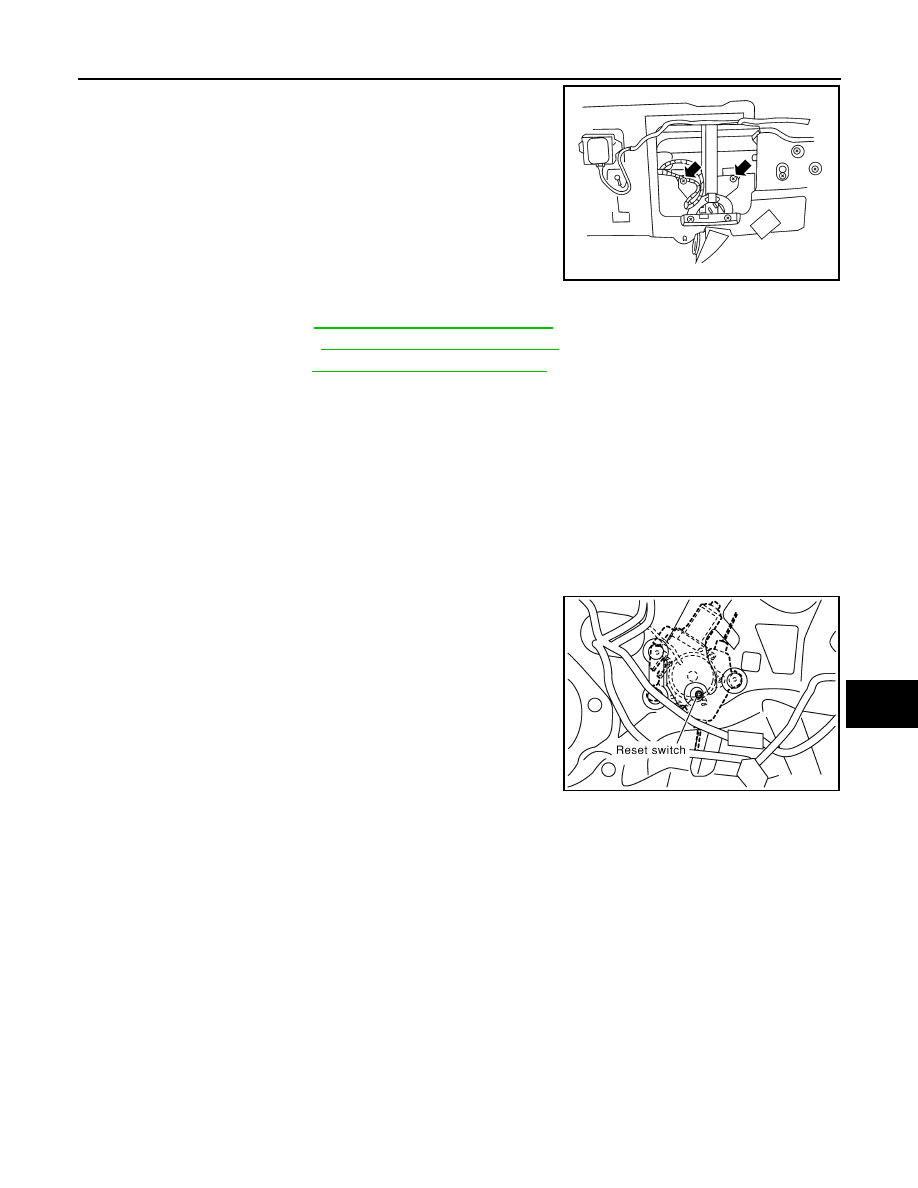

Rear window glass bolts

6.0 N·m (0.61 Kg-m, 53 in-lb)

LIIA1826E

SIIA0347E

GW-18

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000006158484

FRONT DOOR GLASS

Removal

1. Remove the front door finisher panel. Refer to

INT-10, "Removal and Installation"

.

2. Position aside the vapor barrier.
3. Remove the hole cover over rear glass bolt.
4. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
5. Remove the inside seal.
6. Remove the glass bolts.

7. While holding the front door glass, raise it at the rear end and

pull the glass out of the sash toward the outside of the door.

Installation

Installation is in the reverse order of removal.

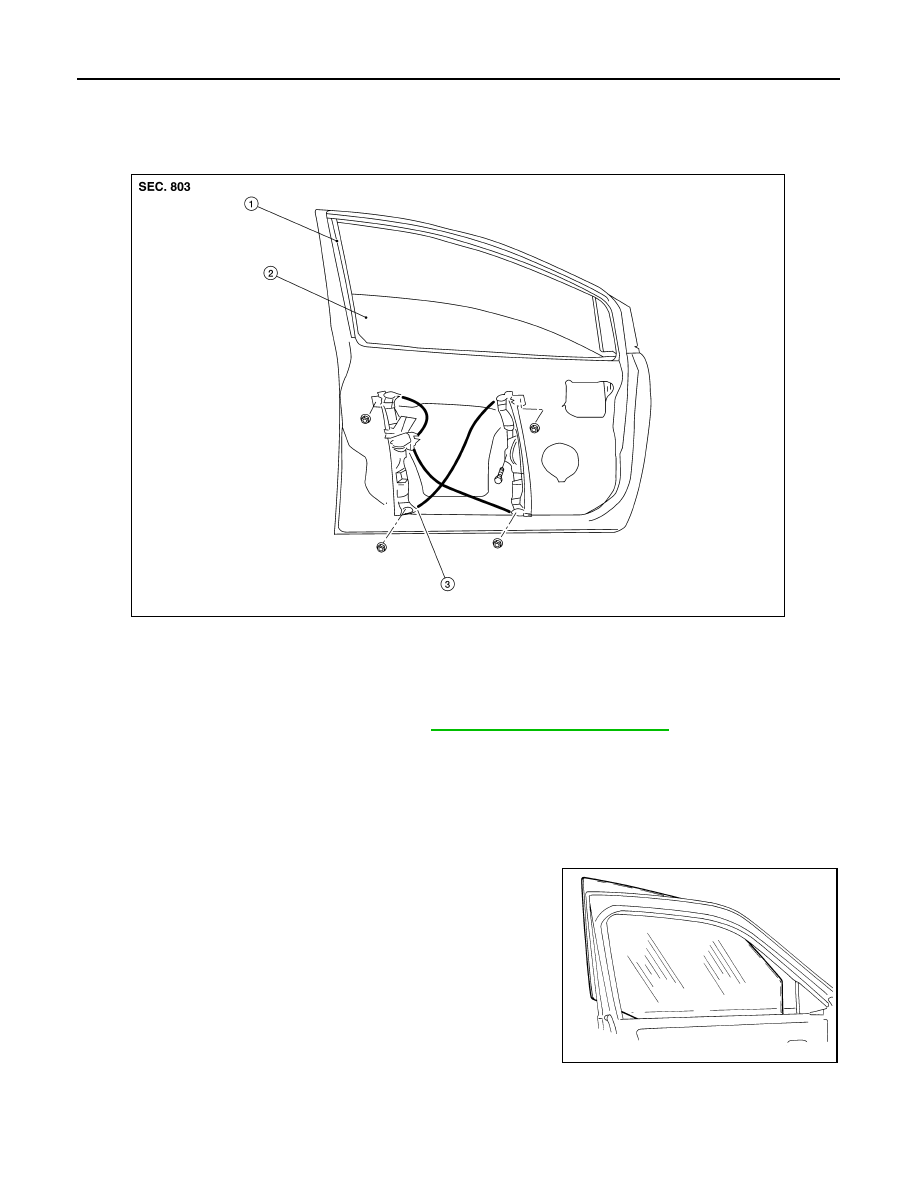

1.

Door glass run

2.

Door glass

3.

Front door glass regulator assembly

WIIA0941E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

FRONT DOOR GLASS AND REGULATOR

GW-19

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Fitting Inspection

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

FRONT DOOR GLASS REGULATOR ASSEMBLY

Removal

1. Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

 .

2. Position aside the vapor barrier.
3. Remove the hole cover over rear glass bolt.
4. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.
5. Remove the inside seal.
6. Remove the glass bolts.
7. Raise the front door glass and hold it in place with suitable tool.
8. Disconnect the harness connector from the regulator assembly.
9. Remove the bolts and the regulator assembly.

Disassembly And Assembly

Remove the regulator motor from the regulator assembly.

Inspection After Removal

Check the regulator assembly for the following items. If a malfunc-

tion is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

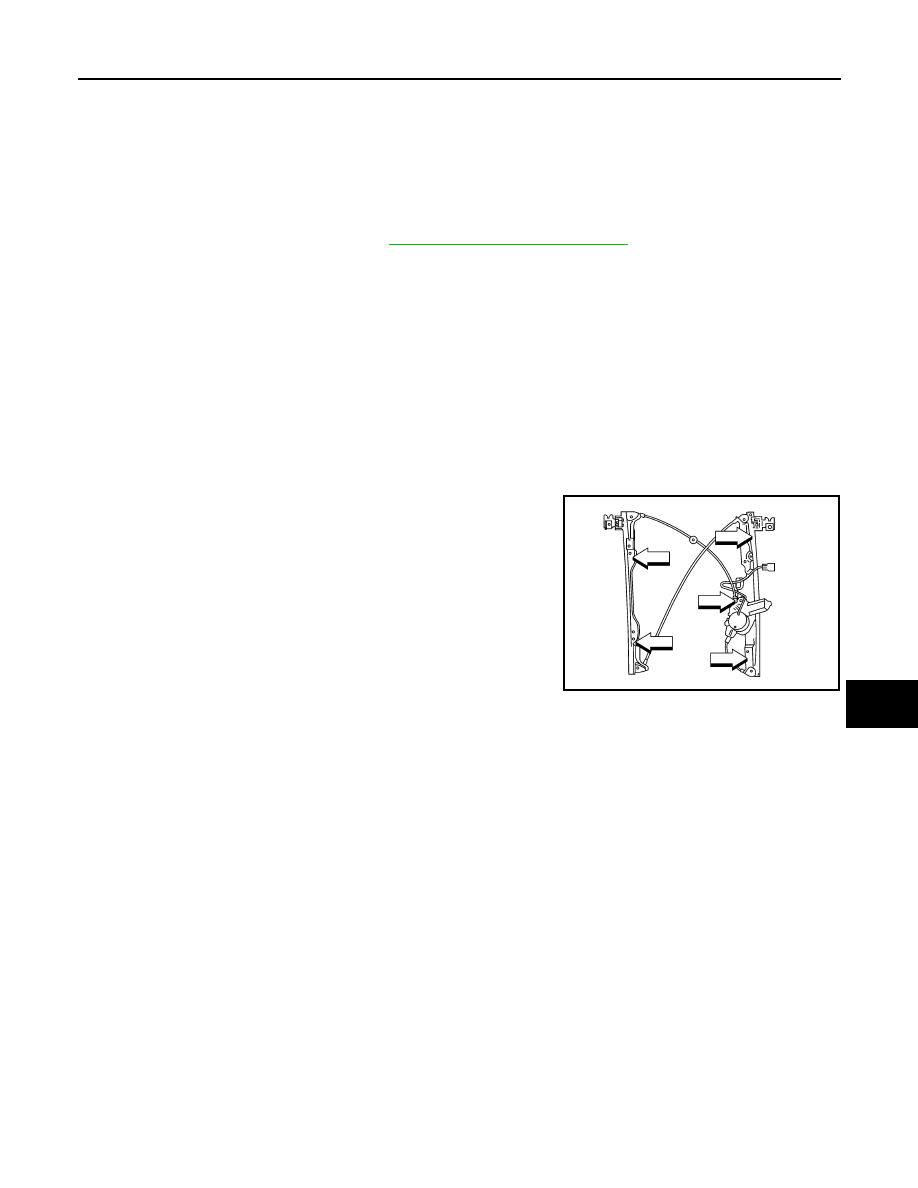

The arrows in the figure show the application points of the body

grease.

Installation

If any of the following work has been done, reset the power window motor limit switch.

• Removal and installation of the regulator assembly.

• Removal and installation of the power window motor from the regulator.

• Installation of a new glass window.

• Installation of a new glass run.

WINDOW REGULATOR RESET PROCEDURE

1. Connect the door harness connector to the power window motor, and rotate the motor more than 5 turns

in the glass raising (up) direction.

2. Install the power window motor onto the regulator.

3. Install the regulator assembly into the door and secure regulator assembly with the nuts and bolt.

4. Install the glass into the door and align with the regulator, then install the glass bolts.

5. Raise the glass to the top position.

CAUTION:

LIIA0670E

Power Window Motor Up Direction

• LH motor rotate counterclockwise
• RH motor rotate clockwise

Regulator assembly nuts
and bolt

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

GW-20

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

Do not operate the glass automatically to raise the glass to the top.

6. Reposition the vapor barrier.

7. Install the front door finisher panel. Refer to

INT-10, "Removal and Installation"

.
