REAR DOOR GLASS AND REGULATOR

Rear Door Glass

INFOID:0000000006158485

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

 .

2. Position aside the vapor barrier.
3. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

4. Remove the inside seal.
5. Remove the glass bolts and the glass.

INSTALLATION

1. Install the glass from outside to ensure that it is in both the front and rear glass channels. Tighten glass

the bolts to the specified torque.

2. Install the inside seal.
3. Reposition the vapor barrier.
4. Install the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolt, guide

rail bolts, and glass and carrier plate bolts to correct the glass position.

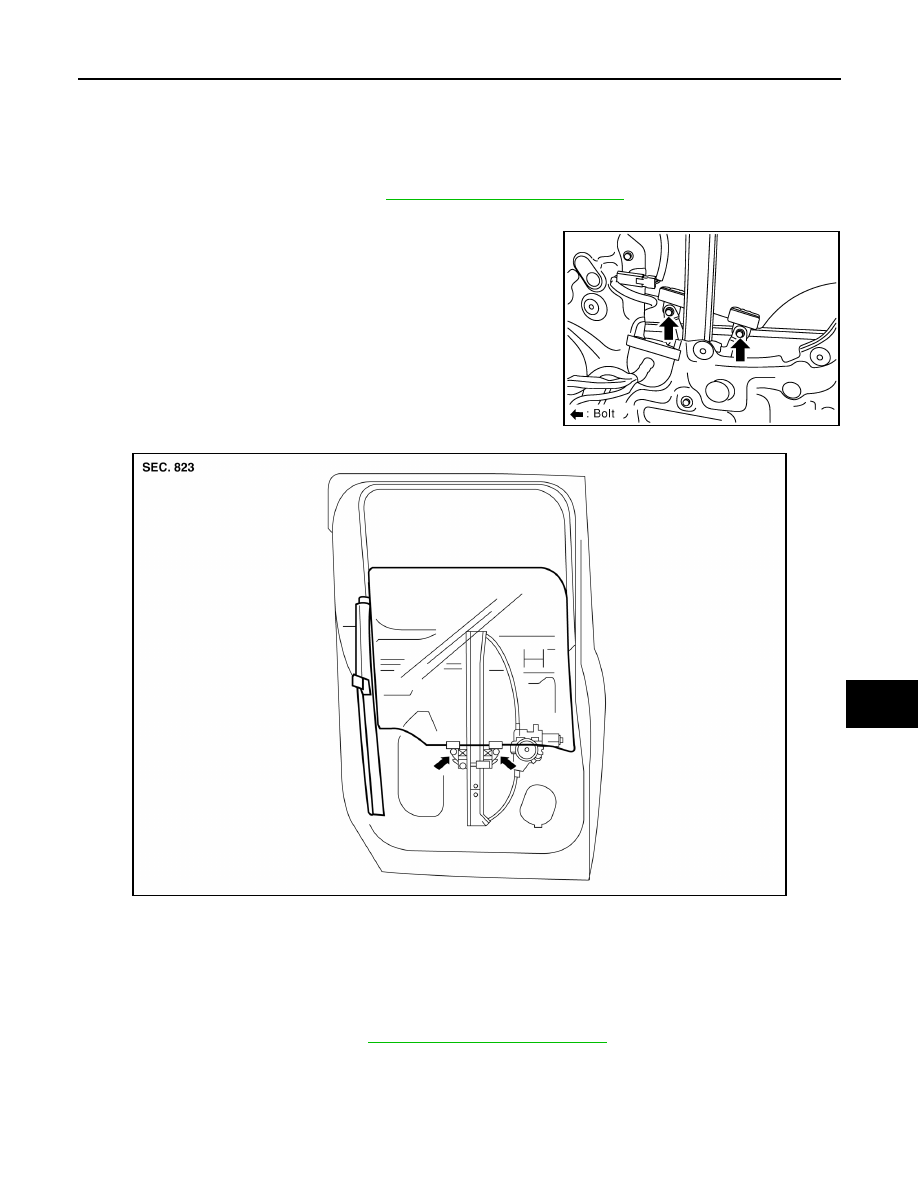

SIIA0290E

AWKIA1734ZZ

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

GW-22

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

Rear Door Glass Regulator Assembly

INFOID:0000000006158486

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2. Position aside the vapor barrier.
3. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

4. Remove the inside seal.
5. Remove the glass bolts, raise the glass and hold in place with

suitable tool.

6. Remove the bolts and the regulator and guide channel from the

panel.

7. Disconnect the connector for the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

INSTALLATION

Installation is in the reverse order of removal.

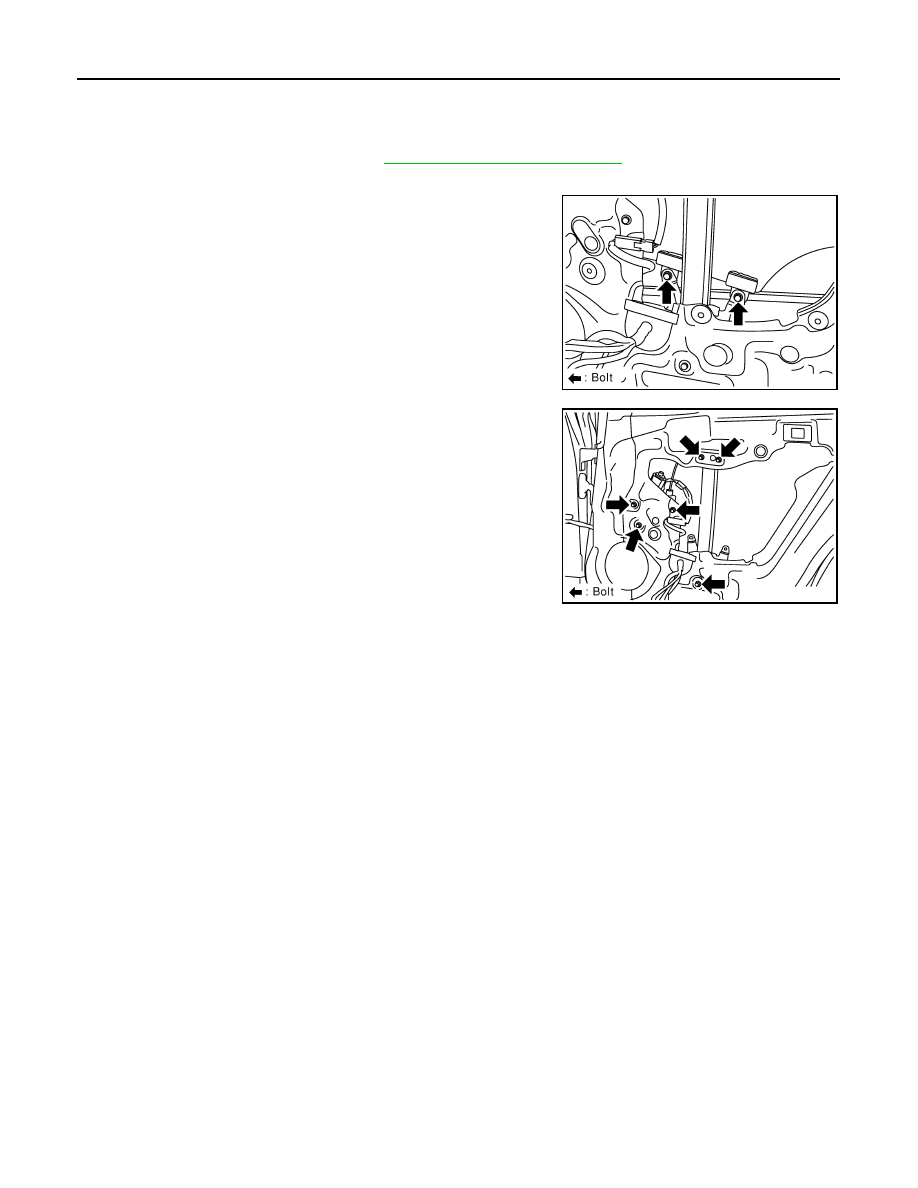

SIIA0290E

SIIA0291E

SIDE WINDOW GLASS

GW-23

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

SIDE WINDOW GLASS

Removal

INFOID:0000000006158487

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2. If the window glass is to be reused, mark the body and the glass with mating marks.
3.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-

vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• When the side window glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

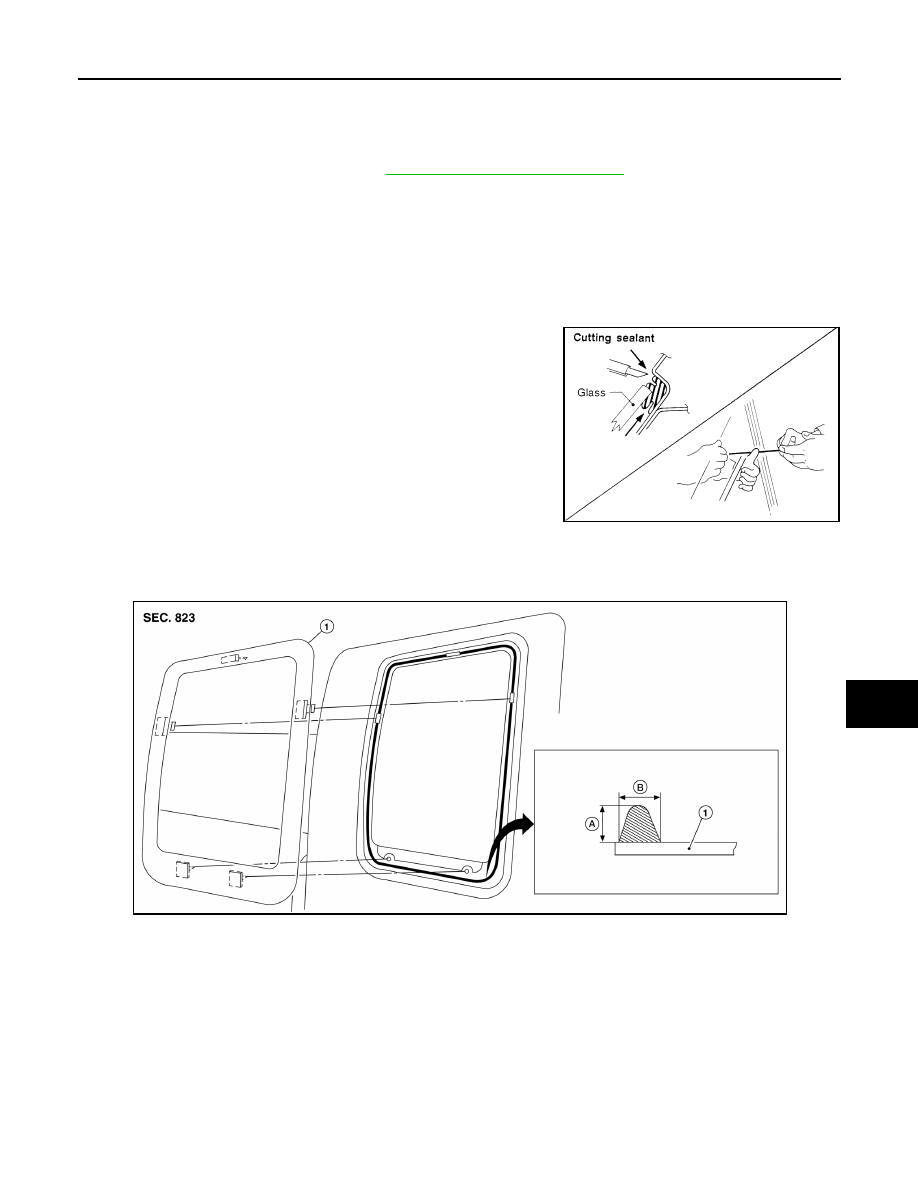

Remove glass using piano wire or power cutting tool and an

inflatable pump bag.

Installation

INFOID:0000000006158488

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

SBF034B

1.

Side window glass

A.

12.0 mm (0.47 in)

B.

7.0 mm (0.28 in)

AWKIA1733ZZ

GW-24

< UNIT REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidities.

Repairing Water Leaks for Side Window Glass

INFOID:0000000006158489

Leaks can be repaired without removing or reinstalling glass.

If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the side window area while pushing glass outward.

To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.
