REAR WINDOW GLASS AND MOLDING

Removal and Installation

INFOID:0000000006158483

FIXED AND SLIDING REAR WINDOW GLASS

Removal

1. Remove the rear pillar finishers. Refer to

INT-14, "Removal and Installation"

.

2. If the rear window glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent

glass splinters from entering your eyes or cutting your hands.

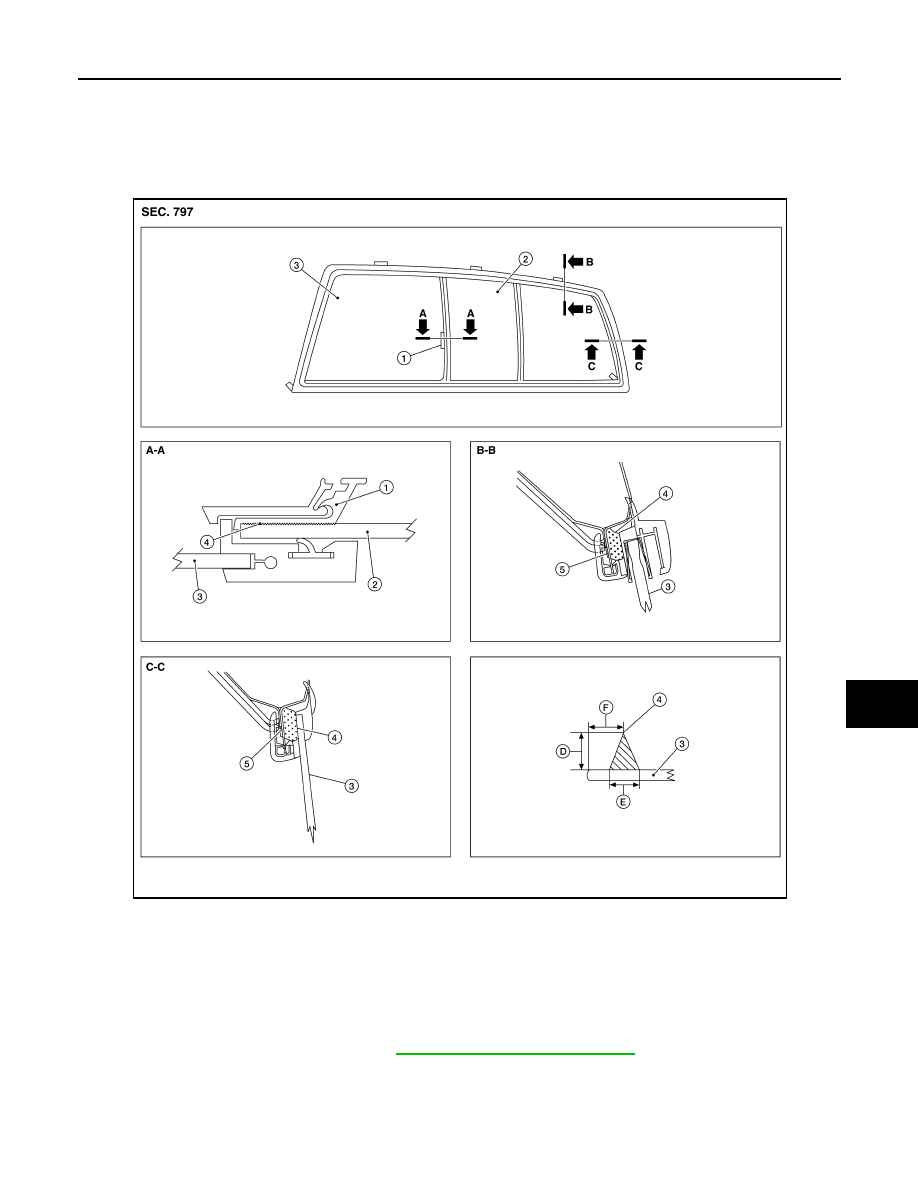

1.

Latch

2.

Sliding glass

3.

Rear window glass

4.

Urethane

5.

Body panel

D.

15 mm (0.59 in)

E.

8.5 mm (0.31 in)

F.

16.9 mm (0.67 in) - Top of glass
17.5 mm (0.69 in) - Side of glass
14.9 mm (0.59 in) - Bottom of glass

AWHIA1315GB

GW-14

< UNIT REMOVAL AND INSTALLATION >

REAR WINDOW GLASS AND MOLDING

CAUTION:

• When the rear window glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

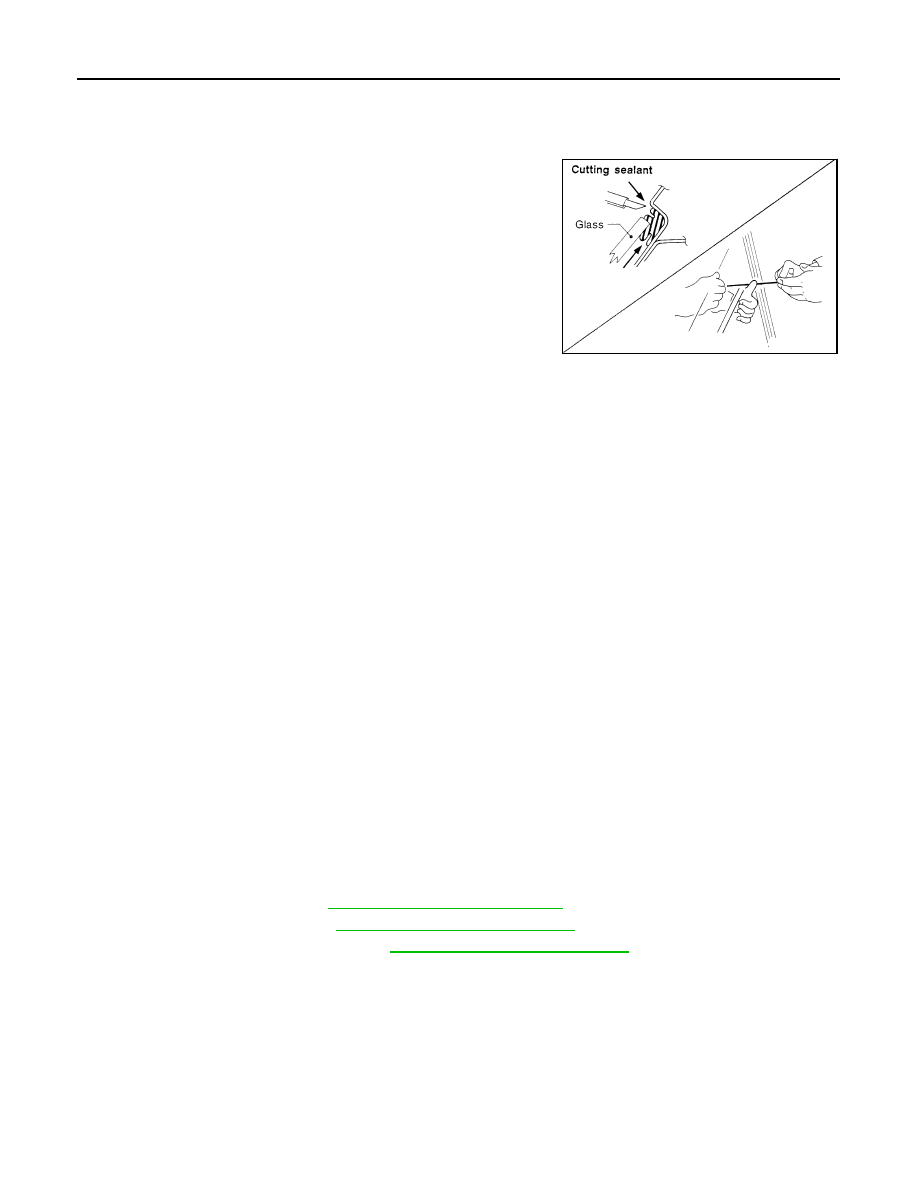

3. Remove glass using piano wire or power cutting tool and an

inflatable pump bag.

Installation

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidities.

REAR WINDOW GLASS AND REGULATOR

Removal

1. Remove the rear seat. Refer to

SE-36, "Removal and Installation"

2. Remove the rear panel. Refer to

INT-14, "Removal and Installation"

3. Lower the rear of the headliner. Refer to

INT-21, "Removal and Installation"

.

4. Remove the sealing screen.

SBF034B

REAR WINDOW GLASS AND MOLDING

GW-15

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

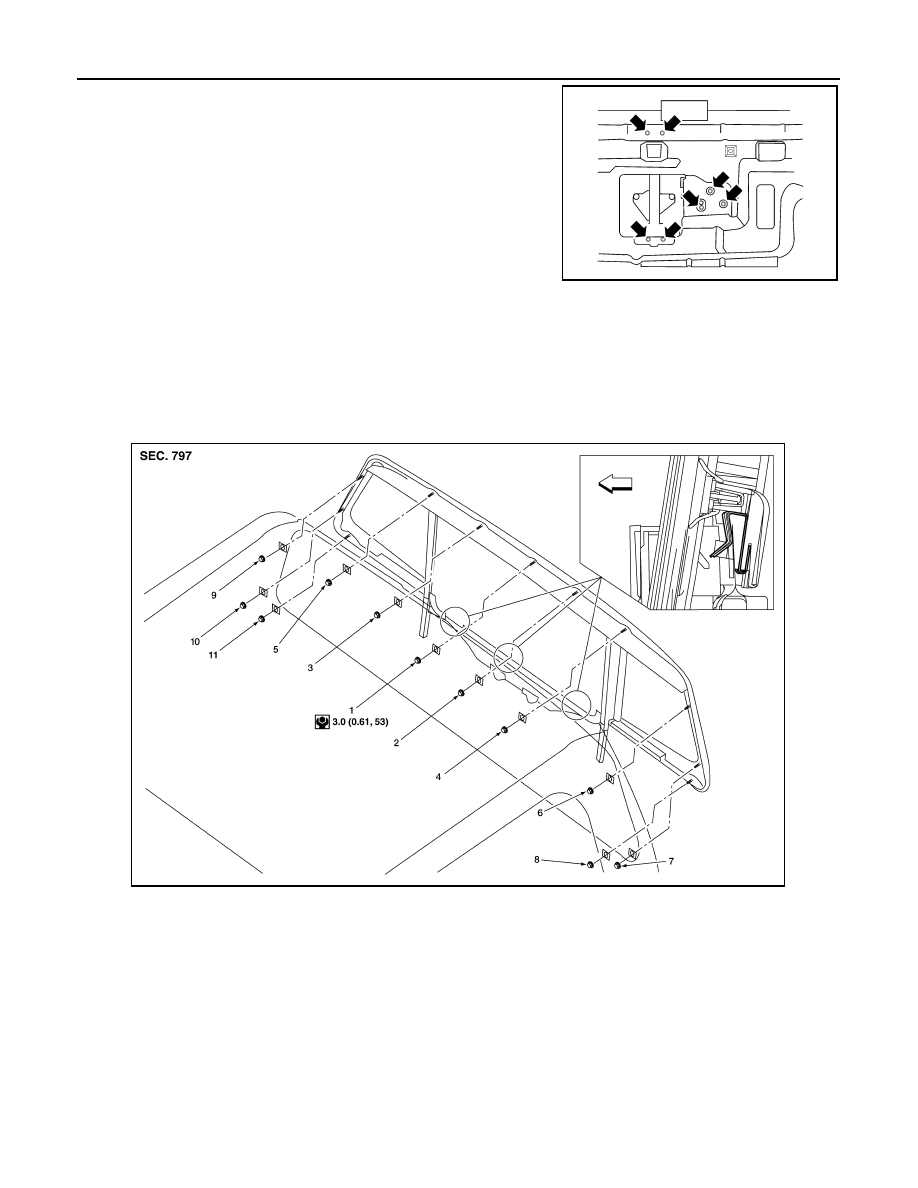

5. If equipped, lower the window and remove the rear window

glass bolts.

6. If equipped, raise the window and hold it in place with tape.
7. Disconnect the rear window defogger harness connector.
8. Remove the nuts and rear window glass assembly.

9. Disconnect the rear window motor wiring harness connector.
10. Remove the bolts and the regulator and motor assembly.

Installation

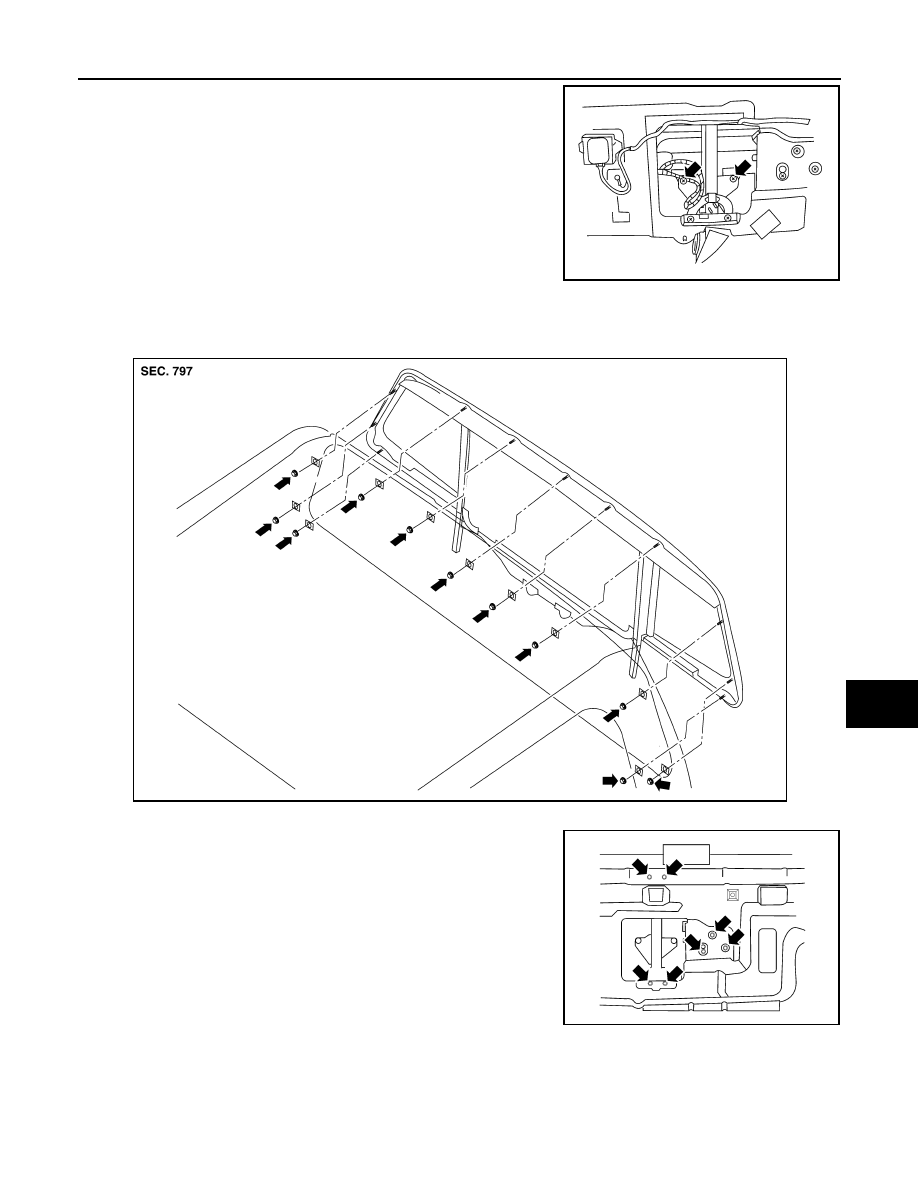

LIIA1826E

WIIA0938E

LIIA1827E

GW-16

< UNIT REMOVAL AND INSTALLATION >

REAR WINDOW GLASS AND MOLDING

1. Position the regulator and motor assembly and install the bolts.

2. Connect the rear window motor wiring harness connector.

3. Install the rear window.

• While installing the rear window, make sure that the bottom clips are engaged on the back panel, then

rotate the glass into position.

- If reusing the existing window assembly, clean the opening and assembly, then apply new butyl to the

window assembly.

- If installing a new window, clean the opening and remove the plastic liner from the butyl on the new win-

dow assembly.

4. Connect the rear window defogger.
5. Lower the window and install the rear window glass bolts.

Regulator and motor as-
sembly

7.5 N·m (0.76 Kg-m, 66 in-lb)

LIIA1827E

⇐

Vehicle front

AWIIA1302GB
