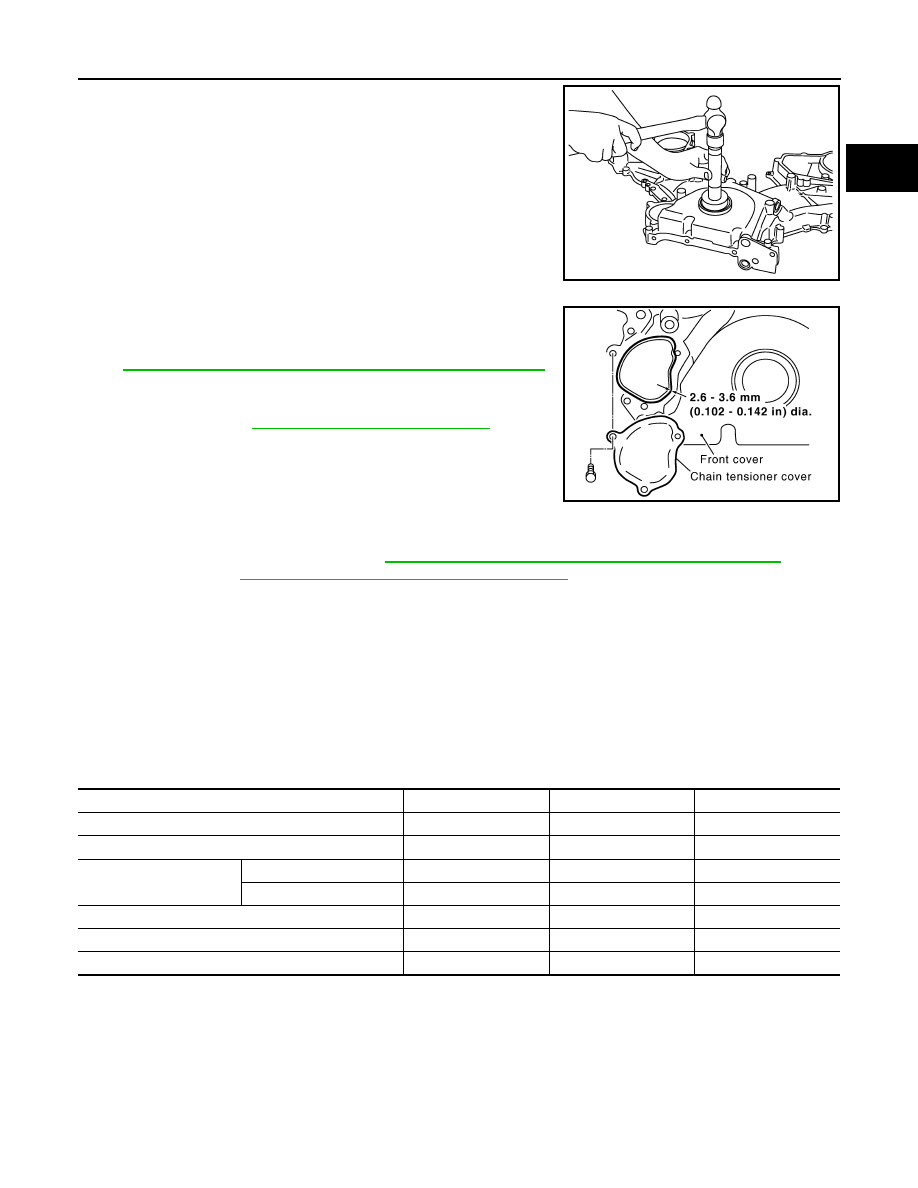

8. Install the front oil seal using suitable tool.

CAUTION:

Do not scratch or make burrs on the circumference of the

oil seal.

9. Install the chain tensioner cover. If removed.

• Apply liquid gasket as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

10. Installation of the remaining components is in the reverse order

of removal. Refer to

EM-48, "Removal and Installation"

.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-21, "FOR NORTH AMERICA : Fluids and Lubricants"

. (United

States and Canada),

MA-22, "FOR MEXICO : Fluids and Lubricants"

  (Mexico).

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oils/fluids including engine oil and engine coolant. Refill to specified

level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

PBIC0059E

KBIA2547E

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

 Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—

EM-58

< REMOVAL AND INSTALLATION >

CAMSHAFT

CAMSHAFT

Exploded View

INFOID:0000000006179405

Removal and Installation

INFOID:0000000006179406

NOTE:

Do not remove the engine assembly to perform this procedure.

REMOVAL

1. Remove the power steering fluid reservoir tank bolts and position the power steering fluid reservoir tank

aside.

2. Remove the RH bank and LH bank rocker covers. Refer to

EM-39, "Removal and Installation"

.

3. Remove the spark plugs. Refer to

EM-16, "Removal and Installation"

.

4. Remove the drive belt. Refer to

EM-13, "Removal and Installation"

.

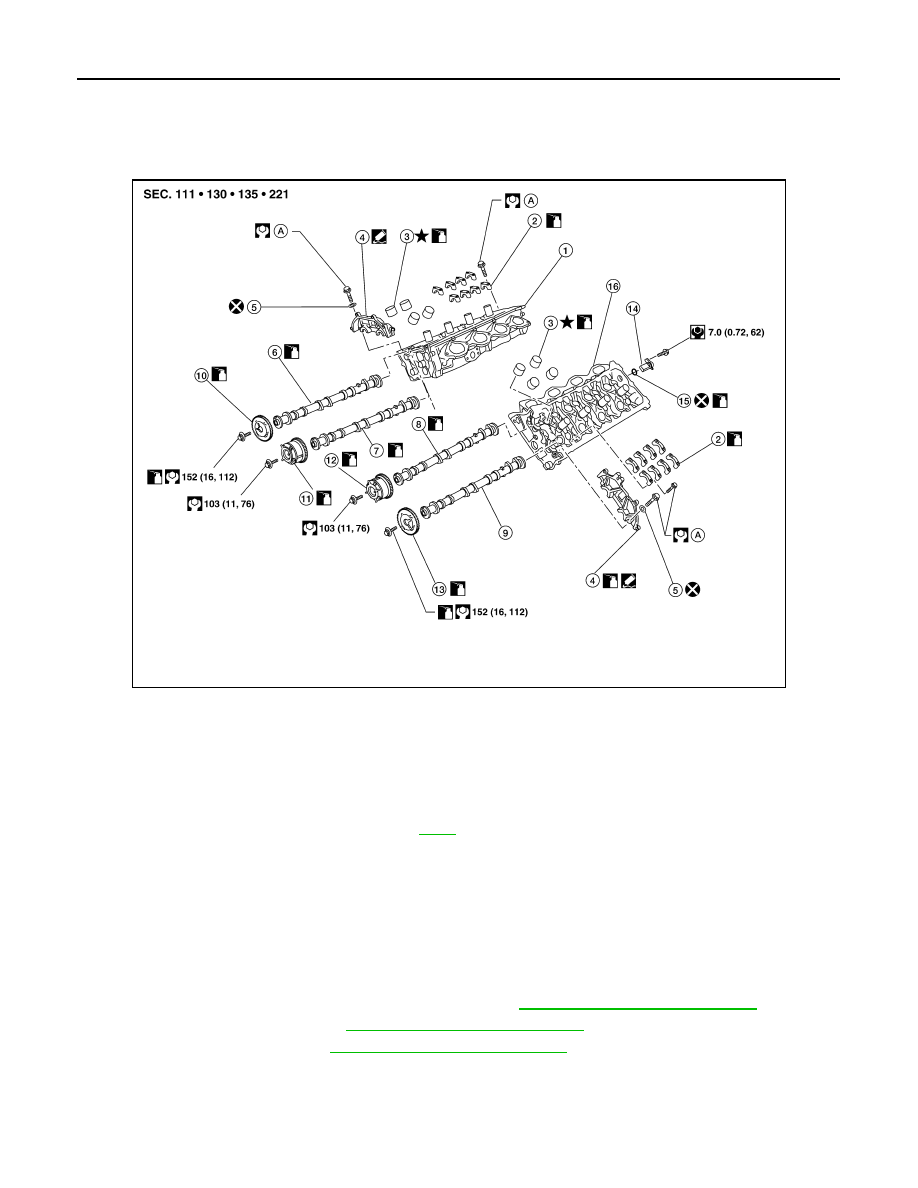

AWBIA0846GB

1.

Cylinder head RH bank

2.

Camshaft bracket (No. 2, 3, 4, 5)

3.

Valve lifter

4.

Camshaft bracket (No. 1)

5.

Seal washer

6.

Camshaft RH bank EXH

7.

Camshaft RH bank INT

8.

Camshaft LH bank INT

9.

Camshaft LH bank EXH

10. Camshaft sprocket RH bank EXH

11. Camshaft sprocket RH bank INT

(VTC)

12. Camshaft sprocket LH bank INT

(VTC)

13. Camshaft sprocket LH bank EXH

14. Camshaft position sensor (PHASE)

15. O-ring

16. Cylinder head LH bank

A.

Refer to

EM-58

CAMSHAFT

EM-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

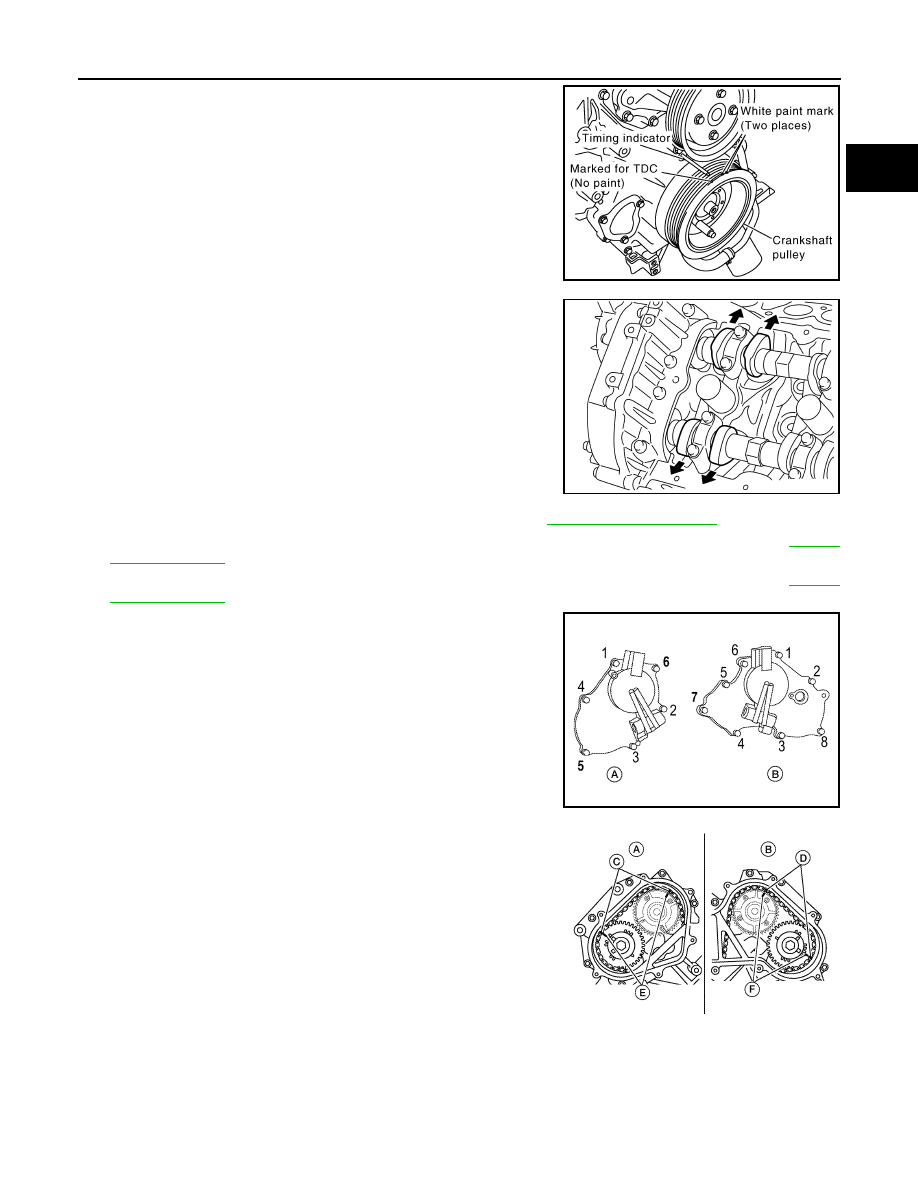

5. Obtain compression TDC of No. 1 cylinder as follows:
a. Turn the crankshaft pulley clockwise to align the TDC identifica-

tion notch (without paint mark) with the timing indicator on the

front cover.

b. At this time, make sure both intake and exhaust cam lobes of

No. 1 cylinder (top front on LH bank) point outside.

• If they do not point outside, turn crankshaft pulley once more.

6. Disconnect and remove the camshaft position sensor. Refer to

EM-52, "Exploded View"

.

7. Disconnect and remove the intake valve timing control position sensor (RH and LH). Refer to

EM-52,

"Exploded View"

.

8. Disconnect and remove the intake valve timing control solenoid valve (RH and LH). Refer to

EM-52,

"Exploded View"

.

9. Remove the intake valve timing control solenoid valve cover

(RH) (A) and intake valve timing control solenoid valve cover

(LH) (B) as follows:

a. Loosen and remove the bolts in reverse order as shown.
b. Cut the liquid gasket and remove the covers using Tool.

CAUTION:

Do not damage mating surfaces.

10. Paint alignment marks on the RH bank (A) timing chain links (C)

and LH bank (B) timing chain links (D) and align with the cam-

shaft sprocket alignment marks (E) and (F).

11. Remove the chain tensioner (LH) using the following steps.

WARNING:

Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding

plunger head. It may cause serious injuries. Always hold plunger head when removing.

KBIA2476E

KBIA0400J

Tool number

: KV10111100 (J-37228)

AWBIA0815ZZ

AWBIA0154ZZ

EM-60

< REMOVAL AND INSTALLATION >

CAMSHAFT

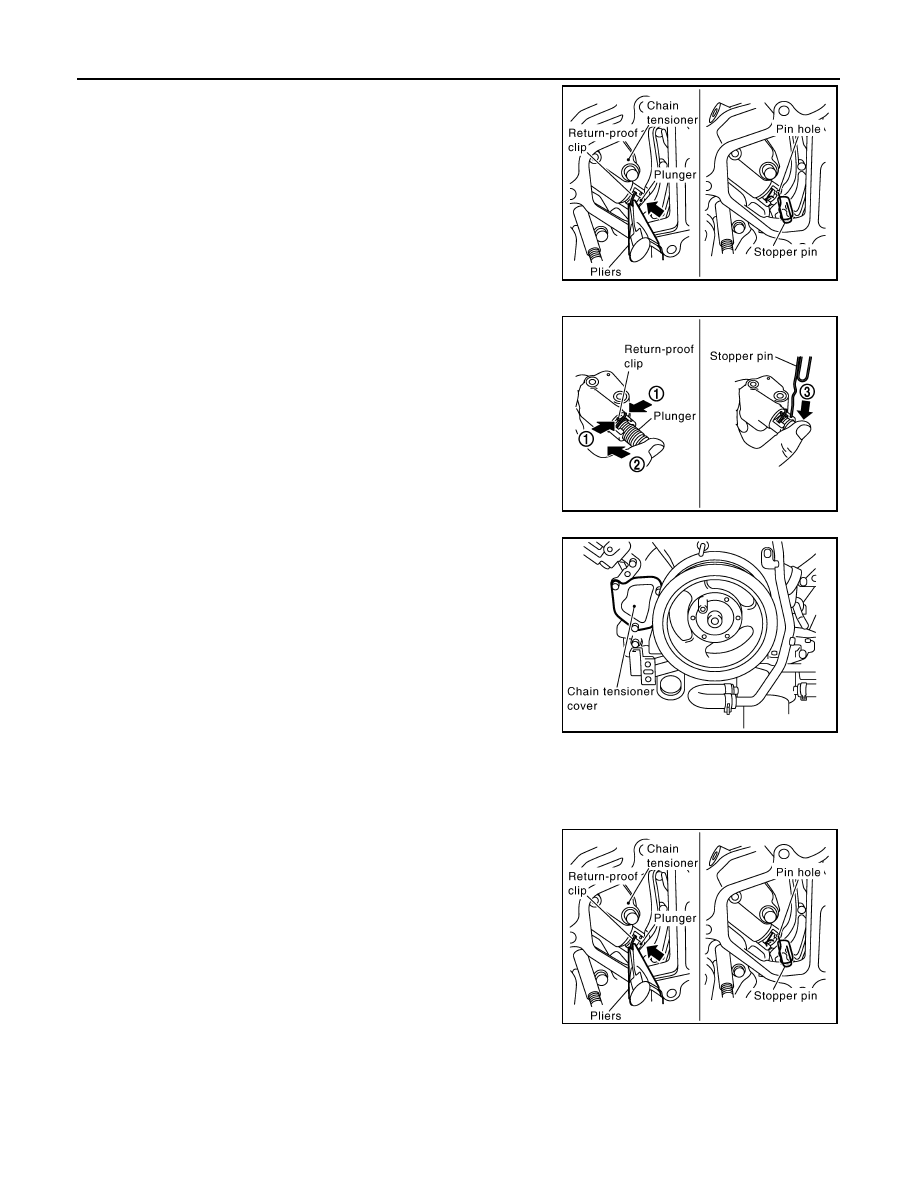

a. Squeeze return-proof clip ends using suitable tool and push the

plunger into the tensioner body.

b. Secure plunger using stopper pin.

• Stopper pin is made from hard wire approximately 1 mm (0.04

in) in diameter.

c.

Remove the bolts and the chain tensioner.

NOTE:

• Stop plunger in the fully extended position using return-proof clip

(1) if stopper pin is removed.

• Push the plunger (2) into the chain tensioner body while squeezing

the return-proof clip (1). Secure it using stopper pin (3).

12. Remove the chain tensioner cover from the front cover using

Tool.

CAUTION:

Do not damage mating surfaces.

13. Remove the chain tensioner (RH) using the following steps.

WARNING:

Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding

plunger head. It may cause serious injuries. Always hold plunger head when removing.

a. Squeeze return-proof clip ends using suitable tool and push the

plunger into the chain tensioner body.

b. Secure plunger using stopper pin.

• Stopper pin is made from hard wire approximately 1 mm (0.04

in) in diameter.

KBIA2479E

KBIA2483E

Tool number

: KV10111100 (J-37228)

KBIA2521E

KBIA2479E
