Nissan Titan A60. Manual - part 465





INTAKE VALVE TIMING CONTROL

EM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE VALVE TIMING CONTROL

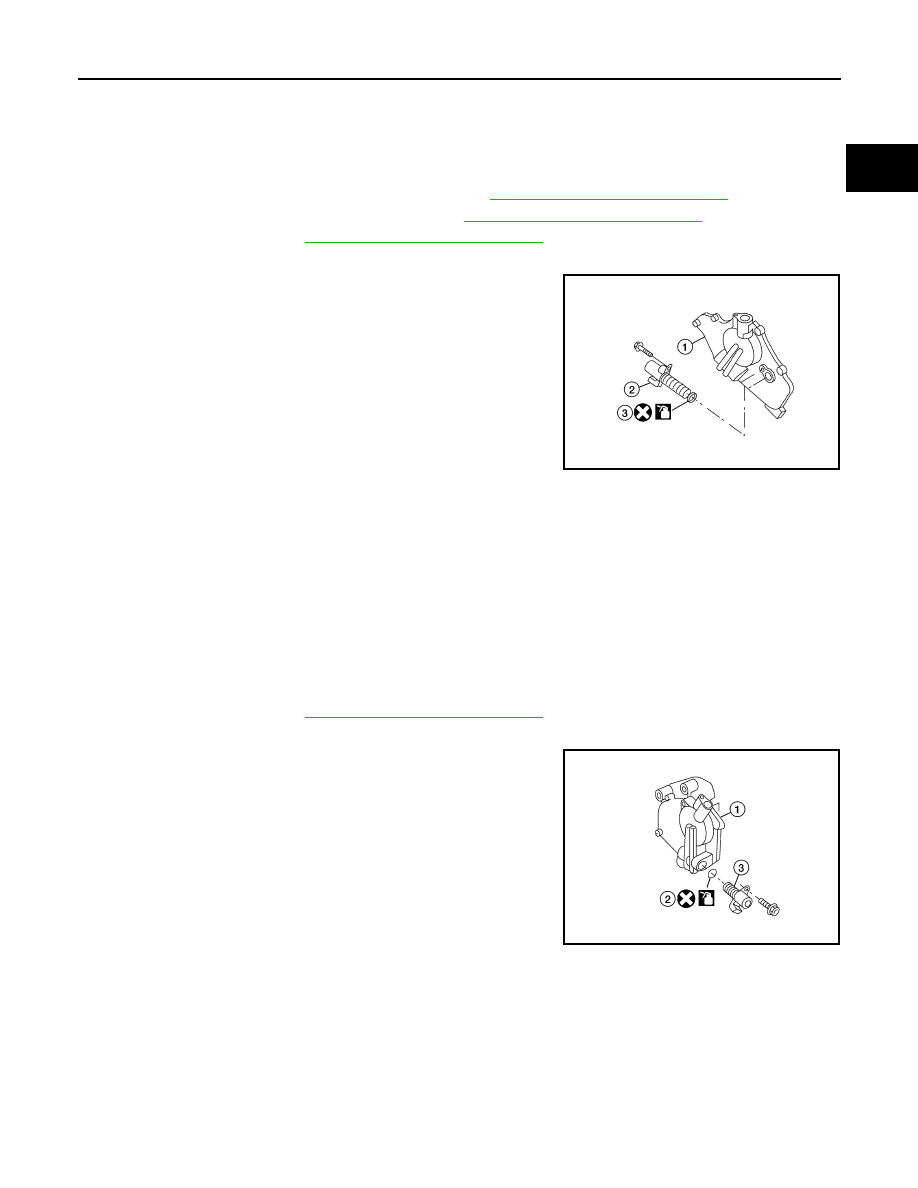

Intake Valve Timing Control Solenoid Valve (LH)

INFOID:0000000006628776

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

4. Disconnect Intake valve timing control solenoid valve connector (LH).
5. Remove Intake valve timing control solenoid valve (LH) (2) and

O-ring (3) from Intake valve timing control solenoid valve cover

(LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring for the Intake valve timing control solenoid valve with a new one, then lubricate O-

ring with engine oil before installing.

Intake Valve Timing Control Solenoid Valve (RH)

INFOID:0000000006628777

REMOVAL

1. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

2. Disconnect Intake valve timing control solenoid valve connector (RH).
3. Remove Intake valve timing control solenoid valve (RH) (3) and

O-ring (2) from Intake valve timing control solenoid valve cover

(RH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring for the Intake valve timing control solenoid valve with a new one, then lubricate O-

ring with engine oil before installing.

AWBIA0145ZZ

Intake valve timing control
solenoid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0144ZZ

Intake valve timing control
solenoid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

EM-46

< REMOVAL AND INSTALLATION >

INTAKE VALVE TIMING CONTROL

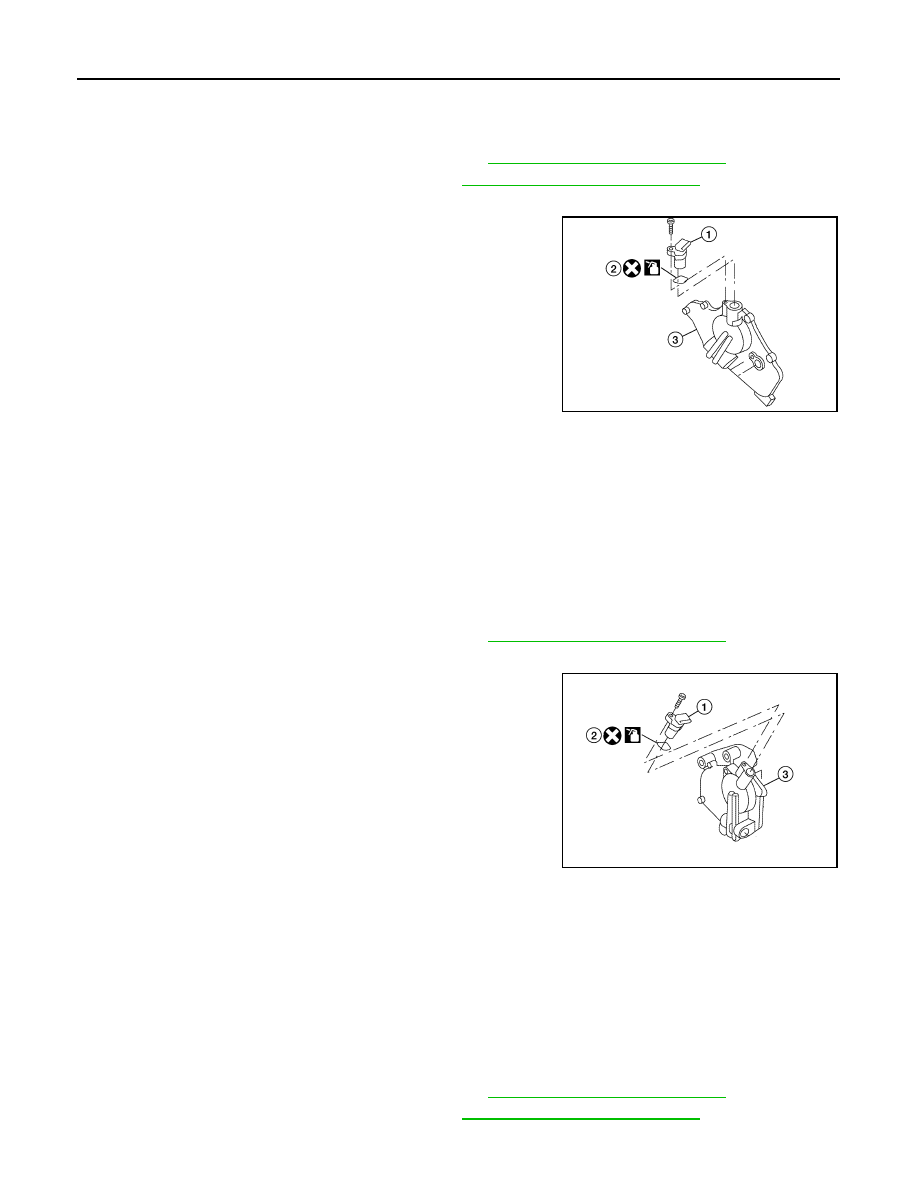

Intake Valve Timing Control Position Sensor (LH)

INFOID:0000000006628778

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect intake valve timing control position sensor connector (LH).
4. Remove intake valve timing control position sensor (LH) (1) and

O-ring (2) from Intake valve timing control solenoid valve cover

(LH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring for the intake valve timing control position sensor with a new one, then lubricate O-

ring with engine oil before installing.

Intake Valve Timing Control Position Sensor (RH)

INFOID:0000000006628779

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Disconnect intake valve timing control position sensor connector (RH).
3. Remove intake valve timing control position sensor (RH) (1) and

O-ring (2) from Intake valve timing control solenoid valve cover

(RH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring for the intake valve timing control position sensor with a new one, then lubricate O-

ring with engine oil before installing.

Camshaft Position Sensor (PHASE)

INFOID:0000000006628780

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect camshaft position sensor connector.

AWBIA0141ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0143ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

INTAKE VALVE TIMING CONTROL

EM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

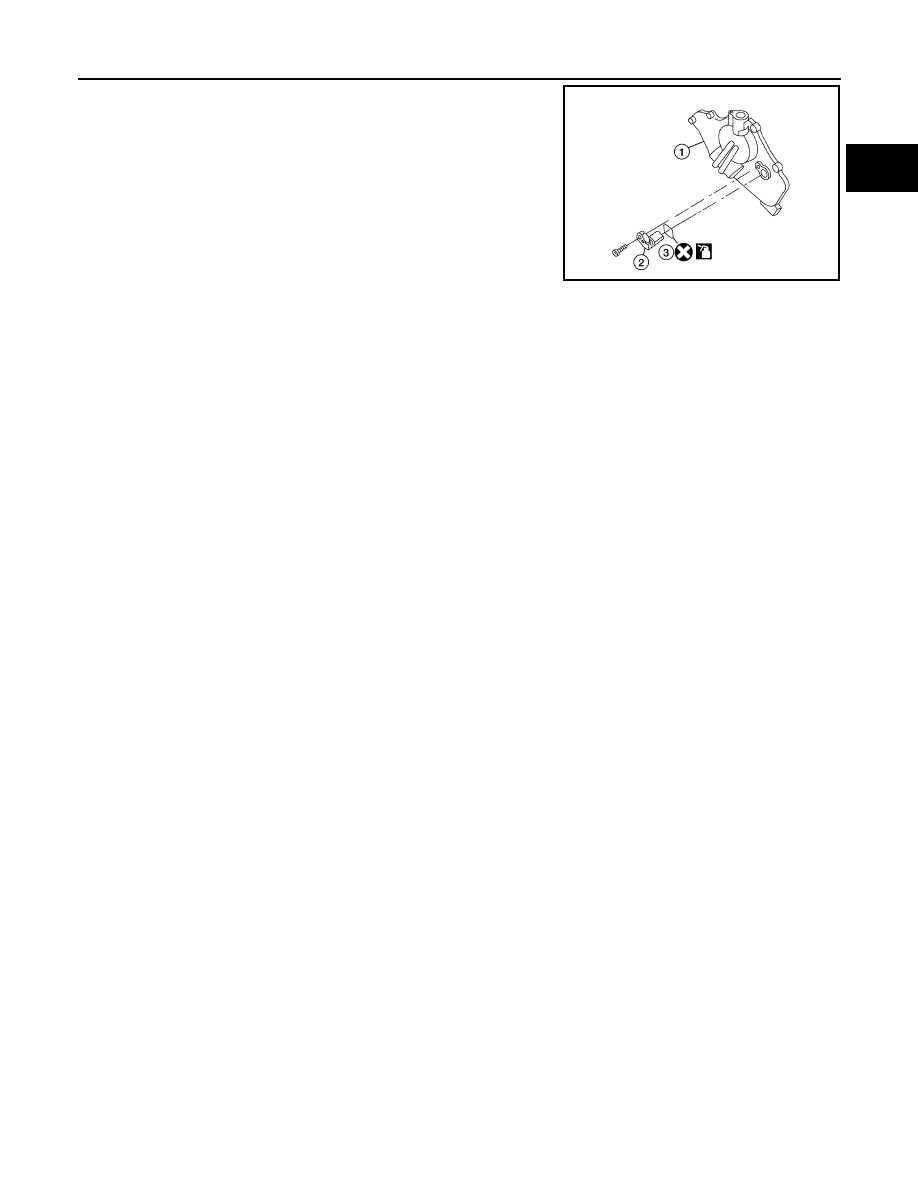

4. Remove camshaft position sensor (2) and O-ring (3) from Intake

valve timing control solenoid valve cover (LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring for the camshaft position sensor with a new one, then lubricate O-ring with engine

oil before installing.

AWBIA0142ZZ

Camshaft position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

EM-48

< REMOVAL AND INSTALLATION >

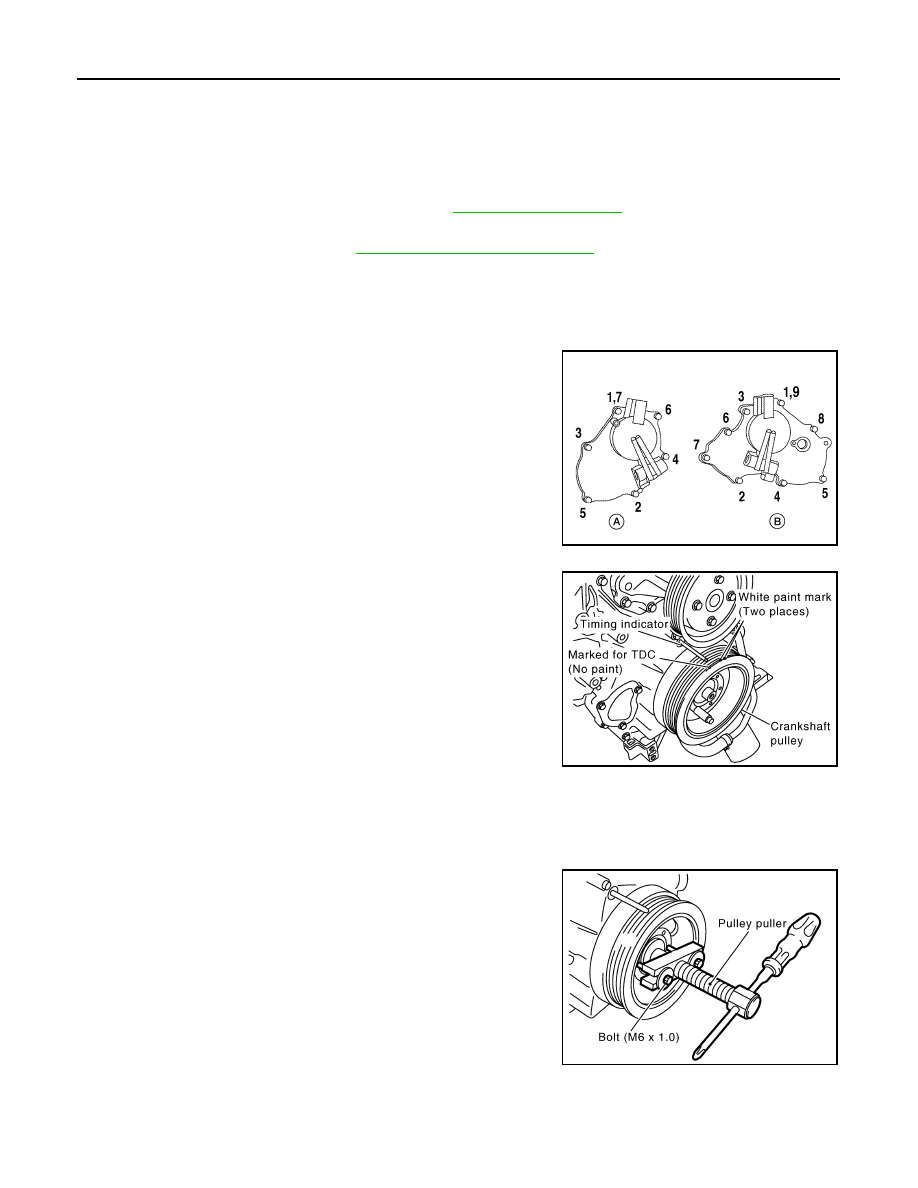

TIMING CHAIN COVER

TIMING CHAIN COVER

Removal and Installation

INFOID:0000000006596402

REMOVAL

NOTE:

For exploded view and torque specifications, Refer to

EM-52, "Exploded View"

.

1. Remove the upper oil pan. Refer to

EM-33, "Removal and Installation"

.

2. Remove variable timing control solenoids.
3. Remove intake valve timing control sensors.
4. Remove the crankshaft driven fan pulley and pulley bracket.
5. Remove the drive belt auto tensioner and idler pulley.
6. Remove the intake valve timing control solenoid valve cover

(RH) (A) and intake valve timing control solenoid valve cover

(LH) (B) as follows:

a. Loosen and remove the bolts in the reverse of order as shown.
b. Cut the liquid gasket and remove the covers using Tool.

CAUTION:

Do not damage mating surfaces.

7. Obtain compression TDC of No. 1 cylinder as follows:
a. Turn the crankshaft pulley clockwise to align the TDC identifica-

tion notch (without paint mark) with the timing indicator on the

front cover.

8. Remove access cover
9. Loosen the crankshaft pulley bolts using Tool to secure the crankshaft.

a. Remove the crankshaft pulley from the crankshaft using suitable

tool.

• Set the bolts in the two bolt holes [M6 x 1.0 mm (0.04 in)] on

the front surface.

NOTE:

The dimension between the centers of the two bolt holes is 61

mm (2.40 in).

Tool number

: KV10111100 (J-37228)

WBIA0798E

KBIA2476E

Tool number

( — ) J-47245

KBIA2477E
