4. Check engine oil level again.

EM-38

< REMOVAL AND INSTALLATION >

IGNITION COIL

IGNITION COIL

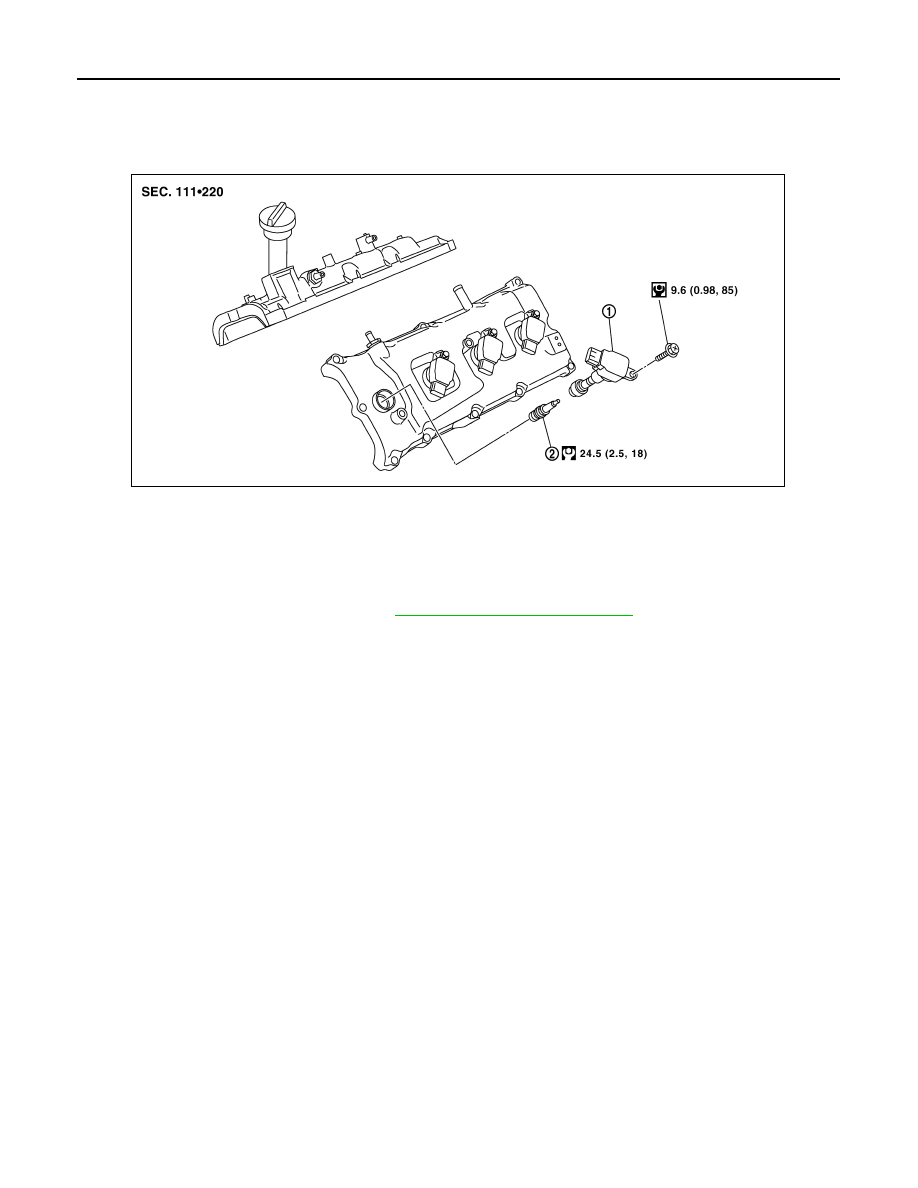

Exploded View

INFOID:0000000006179397

Removal and Installation

INFOID:0000000006179398

REMOVAL

1. Remove the engine room cover. Refer to

EM-24, "Removal and Installation"

.

2. Disconnect the harness connector from the ignition coil.
3. Remove the ignition coil.

CAUTION:

Do not shock ignition coil.

INSTALLATION

Installation is in the reverse order of removal.

1.

Ignition coil

2.

Spark plug

WBIA0796E

ROCKER COVER

EM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ROCKER COVER

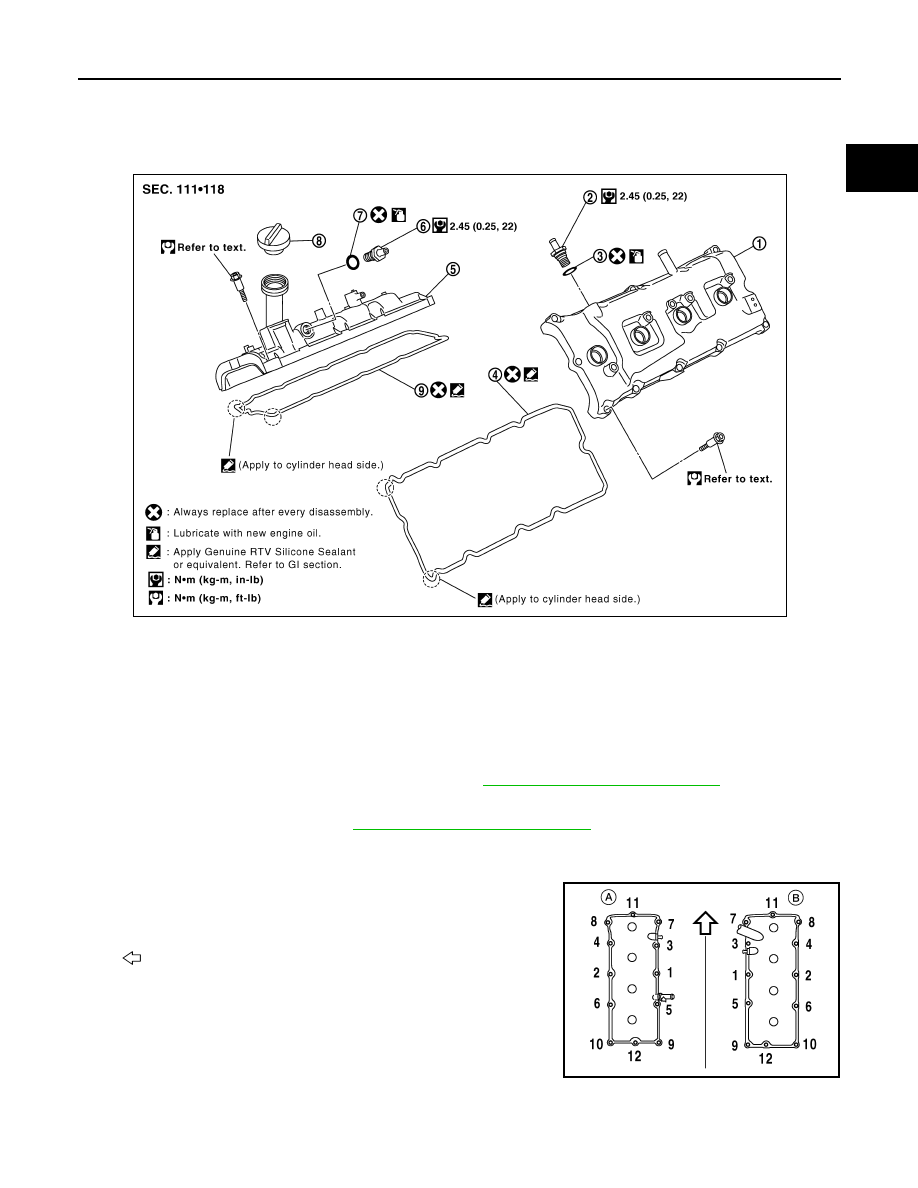

Exploded View

INFOID:0000000006179399

Removal and Installation

INFOID:0000000006179400

REMOVAL

1. Remove the engine room cover, if equipped. Refer to

EM-24, "Removal and Installation"

.

2. Move the harness on the upper rocker cover and its peripheral aside.
3. Remove the ignition coils. Refer to

EM-38, "Removal and Installation"

.

4. Disconnect crankcase ventilation hoses from rocker covers.
5. Remove the PCV hose from the PCV control valves.
6. Loosen the rocker cover bolts in reverse order as shown using

power tool.

CAUTION:

Do not hold the rocker cover (RH) (B) by the oil filler neck.
•

: Engine front

• A: Rocker cover LH

• B: Rocker cover RH

7. Remove the rocker cover.

INSTALLATION

1.

Rocker cover (LH)

2.

PCV control valve

3.

O-ring

4.

Rocker cover gasket (LH)

5.

Rocker cover (RH)

6.

PCV control valve

7.

O-ring

8.

Oil filler cap

9.

Rocker cover gasket (RH)

KBIA2508E

WBIA0697E

EM-40

< REMOVAL AND INSTALLATION >

ROCKER COVER

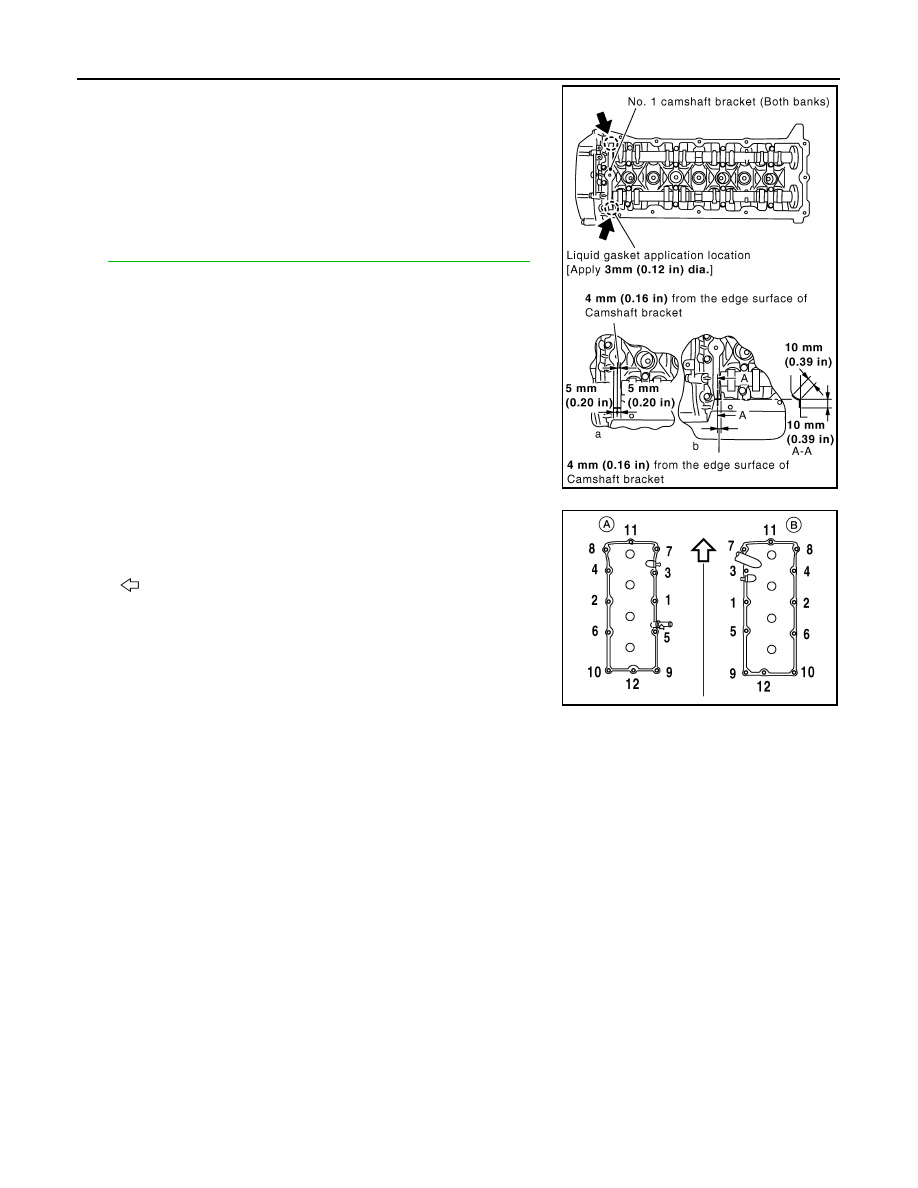

1. Apply liquid gasket to the joint part of the cylinder head and

camshaft bracket following the steps below.

NOTE:

Illustration shows an example of (LH) side (zoomed in shows

No.1 camshaft bracket).

a. Use illustration

″a″ to apply liquid gasket to the joint part of No.1

camshaft bracket and cylinder head.

b. Use illustration

″b″ to apply liquid gasket 90° to illustration ″a″.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

2. Install the rocker cover and tighten the bolts in two steps in the

order shown.

• A: Rocker cover LH

• B: Rocker cover RH
•

: Engine front

CAUTION:

• Do not hold the rocker cover (RH) (B) by the oil filler neck.

• Make sure the new rocker cover gasket is installed in the

groove of the rocker cover.

3. Install the PCV hoses.

NOTE:

• Remove foreign materials from inside the hose using compressed air.

• The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].

4. Installation of the remaining components is in the reverse order of removal.

Tool number

: WS39930000 ( — )

KBIA2510E

1st step

: 2.0 N·m (0.2 kg-m, 18 in-lb)

2nd step

: 8.3 N·m (0.85 kg-m, 73 in-lb)

WBIA0697E
