OIL PAN AND OIL STRAINER

EM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL PAN AND OIL STRAINER

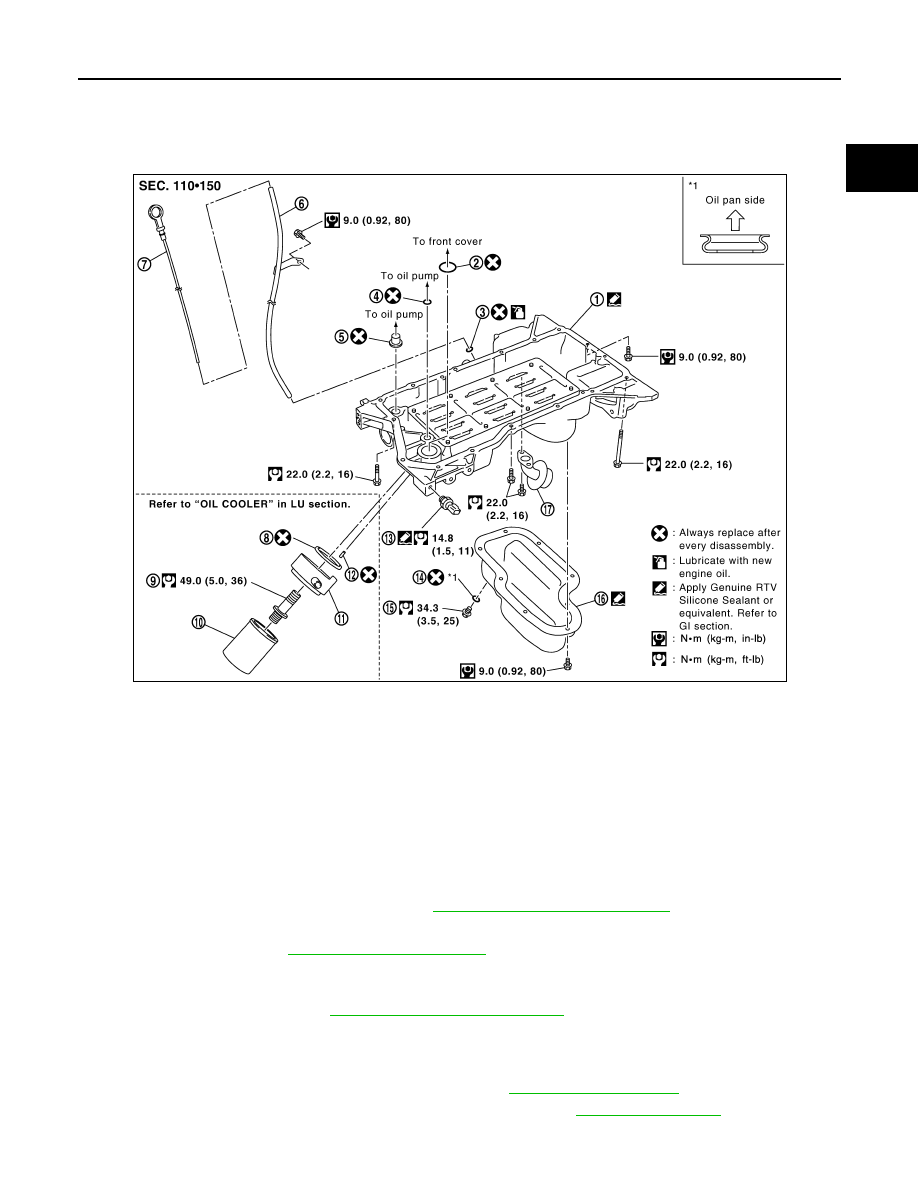

Exploded View

INFOID:0000000006179395

Removal and Installation

INFOID:0000000006628775

REMOVAL

1. Disconnect battery negative terminal. Refer to

PG-76, "Removal and Installation"

.

2. Remove the air dam and necessary undercovers if equipped.
3. Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

.

WARNING:

To avoid the danger of being scalded, never drain the engine oil when the engine is hot.

4. Remove the oil cooler. Refer to

LU-12, "Removal and Installation"

.

5. Disconnect A/T cooler hoses from radiator.

NOTE:

Cap or plug opening(s) to prevent fluig from spilling.

6. Remove lower radiator hose and pipe assembly. Refer to

CO-16, "Exploded View"

.

7. Remove RH and LH front wheel and tire using power tool. Refer to

WT-46, "Adjustment"

.

1.

Oil pan (upper)

2.

O-ring

3.

O-ring

4.

O-ring

5.

O-ring (with collar)

6.

Oil level gauge guide

7.

Oil level gauge

8.

O-ring

9.

Connector bolt

10.

Oil filter

11. Oil cooler

12. Relief valve

13.

Oil pressure switch

14. Gasket

15. Drain plug

16.

Oil pan (lower)

17. Oil strainer

KBIA2465E

EM-34

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

8. Remove the power steering pump without disconnecting the power steering hoses and position aside.

Refer to

ST-10, "On-Vehicle Inspection and Service"

.

9. Remove air duct and resonator assembly. Refer to

EM-15, "Removal and Installation (Viscous paper

type)"

.

10. Remove upper radiator hose.

NOTE:

Cap or plug opening(s) to prevent fluig from spilling.

11. Disconnect coolant reservoir hose from radiator.

NOTE:

Cap or plug opening(s) to prevent fluig from spilling.

12. Remove crankshaft driven type cooling fan. Refer to

CO-19, "Removal and Installation (Crankshaft Driven

Type)"

.

13. Disconnect the following connectors.

• Harness ground

• Power steering switch

• A/C compressor

• Oil pressure switch

14. Remove generator and generator bracket. Refer to

CHG-20, "Removal and Installation"

.

15. Remove A/C compressor without disconnecting the A/C pipes and position aside. Refer to

HA-32,

"Removal and Installation for Compressor"

.

16. Remove front frame crossmember using power tool.
17. Remove the front final drive (4WD only). Refer to

FAX-8, "Removal and Installation"

.

18. Remove the steering gear. Refer to

ST-17, "Removal and Installation"

.

19. Remove the oil pressure switch.

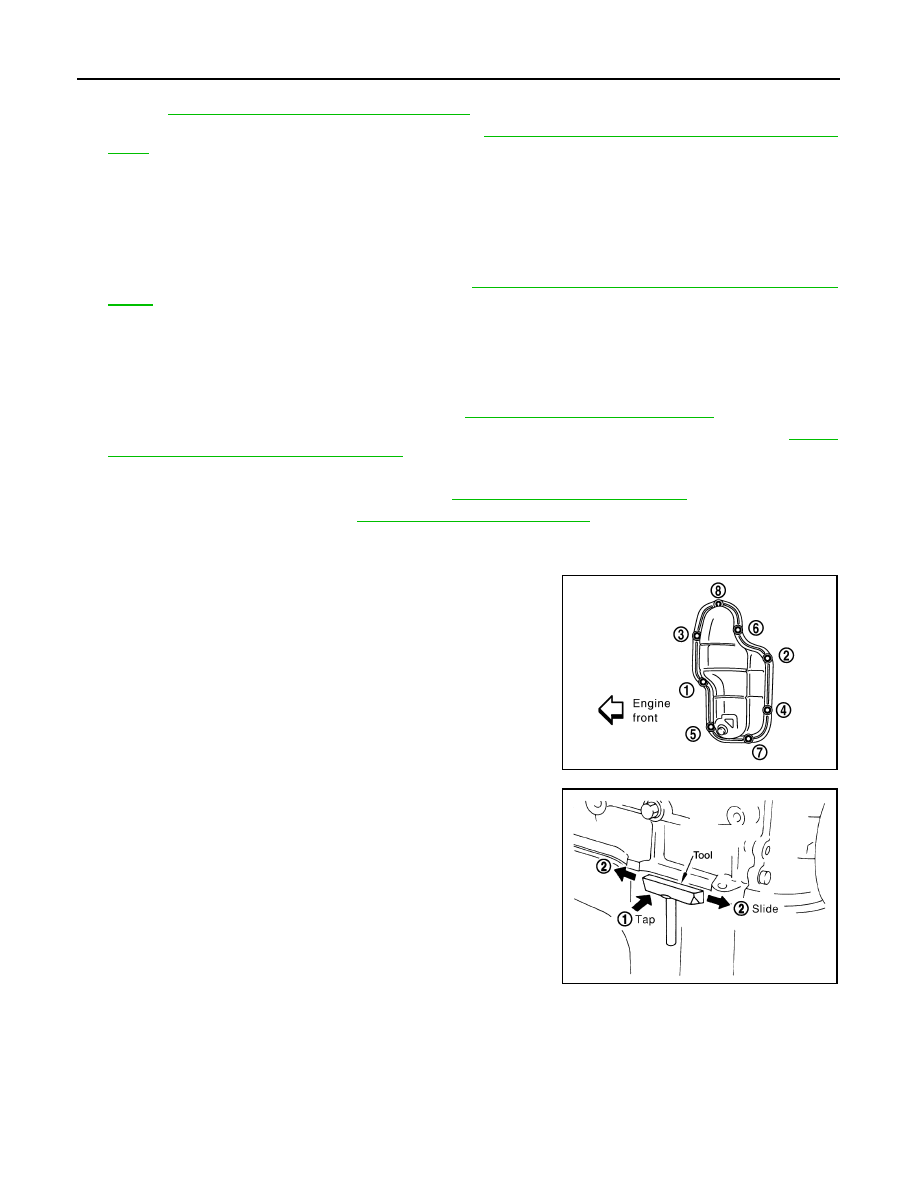

20. Remove the oil pan (lower). Using the following steps.
a. Remove the oil pan (lower) bolts in the reverse order as shown

using power tool.

b. Insert Tool between the oil pan (lower) and the oil pan (upper).

CAUTION:

• Be careful not to damage the mating surface.

• Do not insert a screwdriver, this will damage the mating

surfaces.

c.

Tap (1) Tool to insert it then slide (2) Tool by tapping its side with

a hammer to remove the oil pan (lower) from the oil pan (upper).

21. Remove the oil strainer from the oil pan (upper).
22. Remove the oil pan (upper) using the following steps.

KBIA2466E

Tool number

: KV10111100 (J-37228)

WBIA0566E

OIL PAN AND OIL STRAINER

EM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

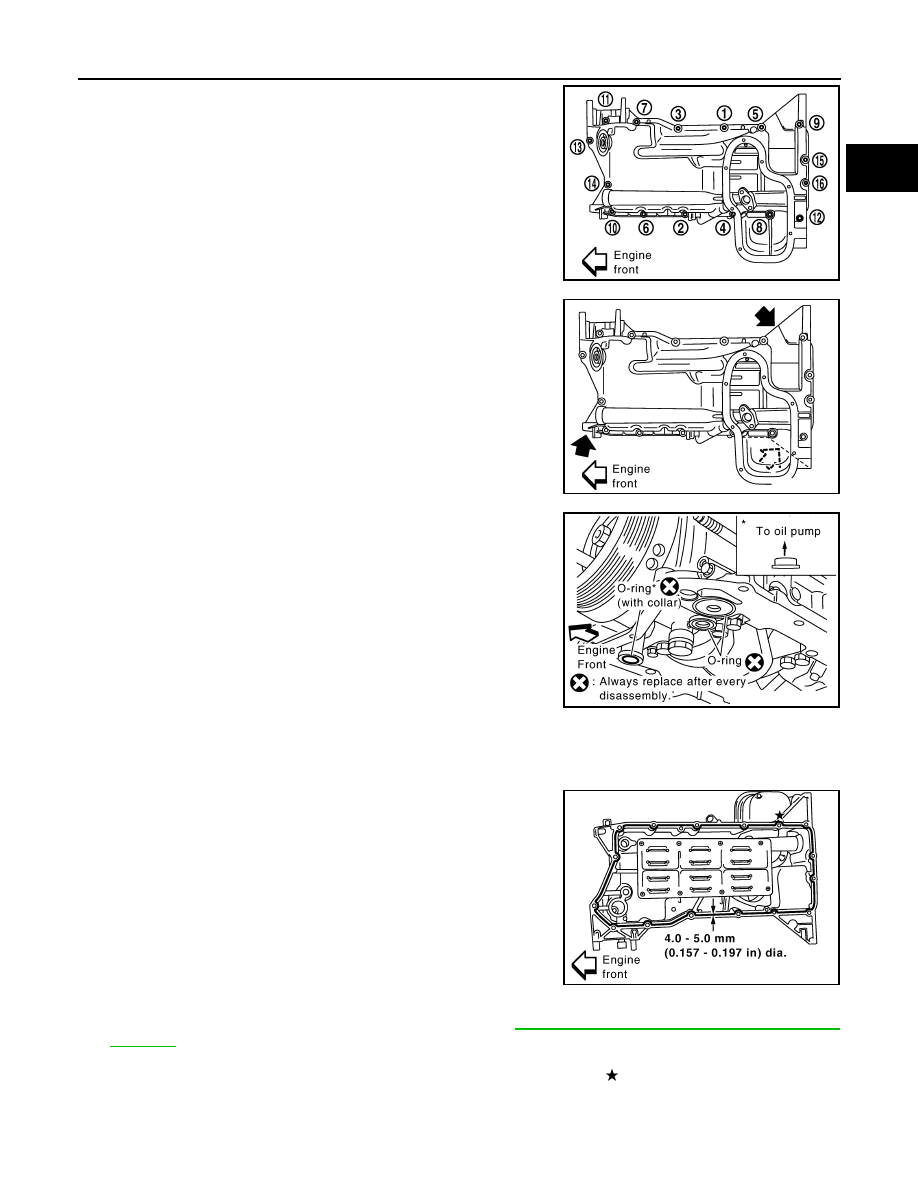

a. Remove the oil pan (upper) bolts in the reverse order as shown.

b. Remove the oil pan (upper) from the cylinder block by prying it at

the points shown, using suitable tool.

CAUTION:

Do not damage mating surface.

23. Remove the O-rings from the oil pump and front cover.

CAUTION:

Do not reuse O-rings.

INSPECTION AFTER REMOVAL

Clean the oil strainer.

INSTALLATION

1. Install the oil pan (upper) using the following steps.
a. Using a scraper to remove old liquid gasket from mating sur-

faces.

• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off old liquid gasket.

b. Apply a continuous bead of liquid gasket as shown using Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and

Sealants"

.

CAUTION:

• Apply liquid gasket to outside of bolt hole for the hole shown by  .

Installation should be done within 5 minutes after applying liquid gasket.

KBIA2467E

KBIA2468E

KBIA2469E

Tool number

: WS39930000 ( — )

KBIA2470E

EM-36

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

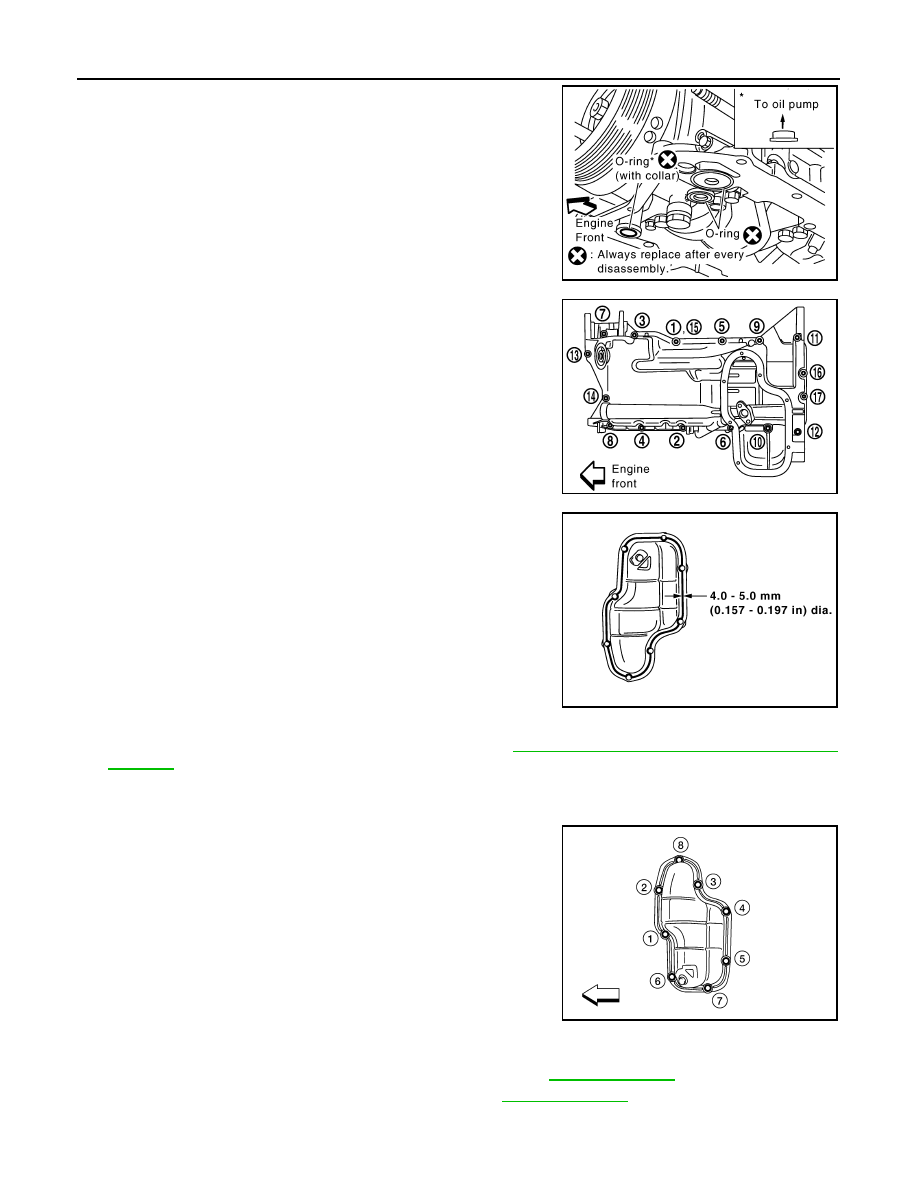

c.

Install new O-rings to the oil pump and front cover side.

d. Tighten the bolts to the specified torque in numerical order as

shown.

2. Install the oil strainer to the oil pan (upper).

3. Install the oil pan (lower).
a. Using a scraper to remove old liquid gasket from mating sur-

faces.

• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from bolt holes and thread.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off old liquid gasket.

b. Apply a continuous bead of liquid gasket using Tool as shown.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Installation should be done within 5 minutes after applying liquid gasket.

c.

Tighten the oil pan (lower) bolts to the specified torque in numer-

ical order as shown.

INSPECTION AFTER INSTALLATION

1. Check engine oil level and add engine oil if necessary. Refer to

LU-8, "Inspection"

.

2. Start the engine, and check for engine oil leaks. Refer to

LU-8, "Inspection"

.

3. Stop engine and wait for 10 minutes.

KBIA2469E

M6

× 30 mm (1.18 in)

: No. 16, 17

M8

× 25 mm (0.98in)

: No. 1, 3, 5, 7, 9, 13, 15

M8

× 45 mm (1.77 in)

: No. 2, 4, 6, 8, 10, 14

M8

× 123 mm (4.84in) : No. 11, 12

PBIC2553E

Tool number

: WS39930000 ( — )

KBIA2471E
