BODY CONSTRUCTION

BRM-23

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

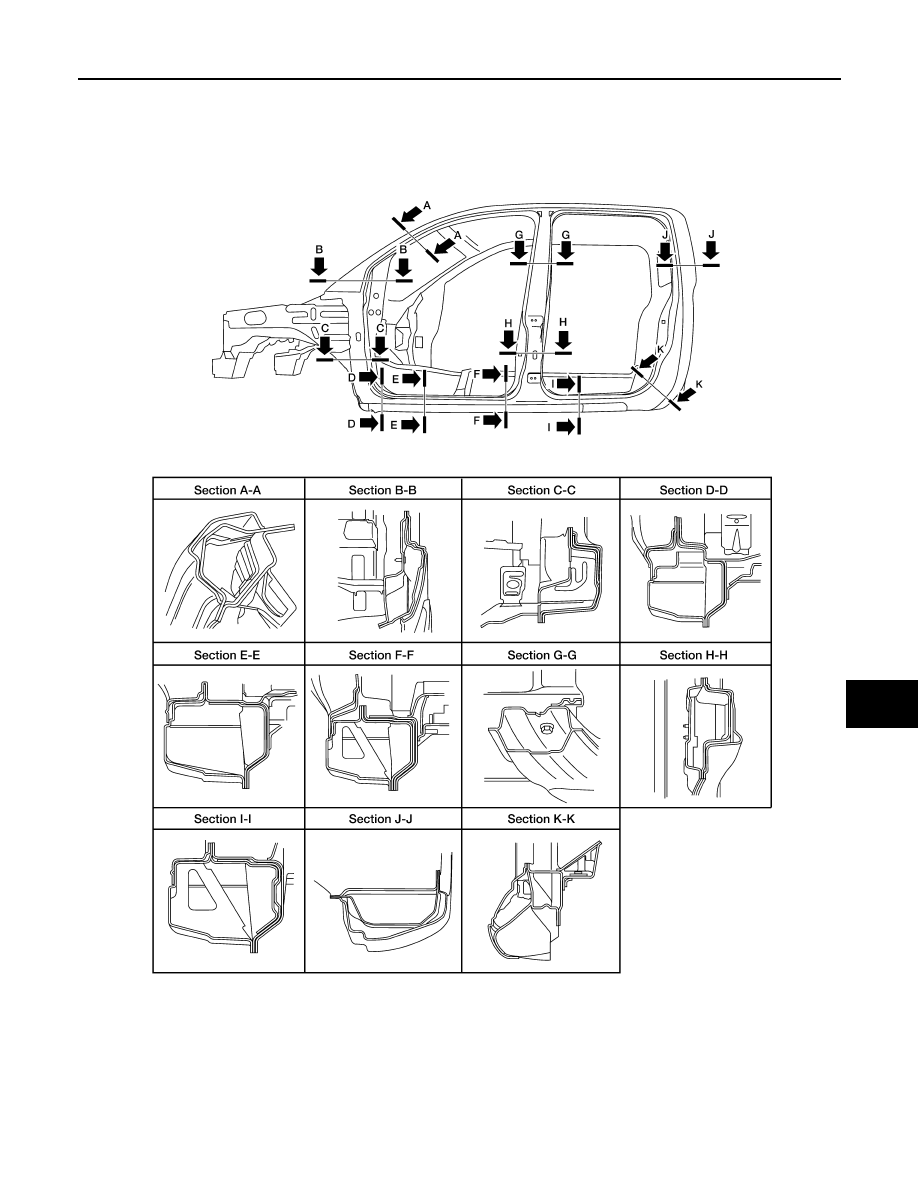

Crew Cab

LIIA1318E

BRM-24

< UNIT REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

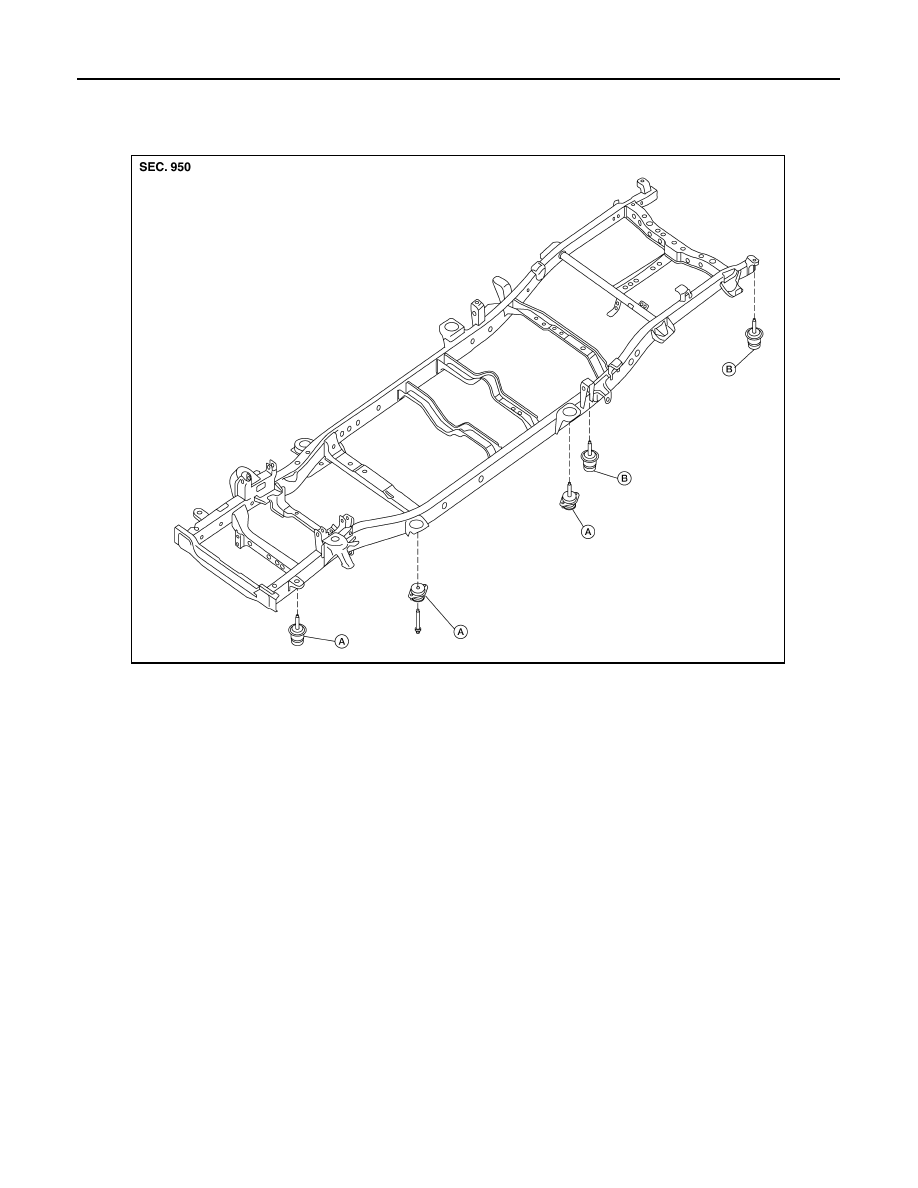

Body Mounting, King Cab

INFOID:0000000006158468

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

Frame to Cab (A)

: 87.5 N·m (8.9 kg-m, 65 ft-lb)

Frame to Bed (B)

: 21.6 N·m (2.2 kg-m, 16 ft-lb)

AWIIA1110GB

BODY CONSTRUCTION

BRM-25

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

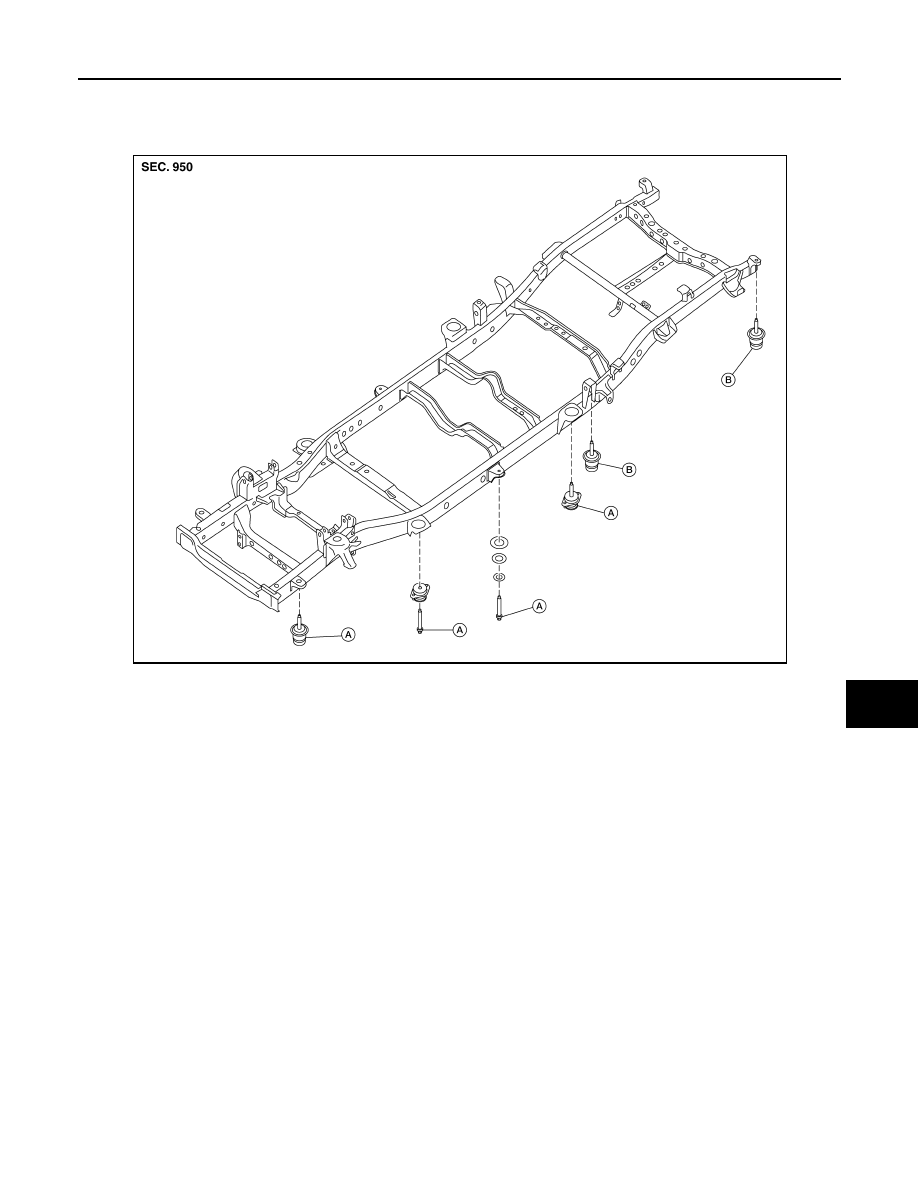

Body Mounting, Crew Cab

INFOID:0000000006158469

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

Rear Body

INFOID:0000000006158470

REMOVAL AND INSTALLATION

Frame to Cab (A)

: 87.5 N·m (8.9 kg-m, 65 ft-lb)

Frame to Bed (B)

: 21.6 N·m (2.2 kg-m, 16 ft-lb)

AWIIA1111GB

BRM-26

< UNIT REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

Removal

1. If equipped, remove the floor rails. Refer to

EXT-31, "Removal and Installation"

.

2. Disconnect both of the rear combination lamp wire harnesses.
3. If equipped, remove the bed power point. Refer to

PWO-7, "Removal and Installation"

.

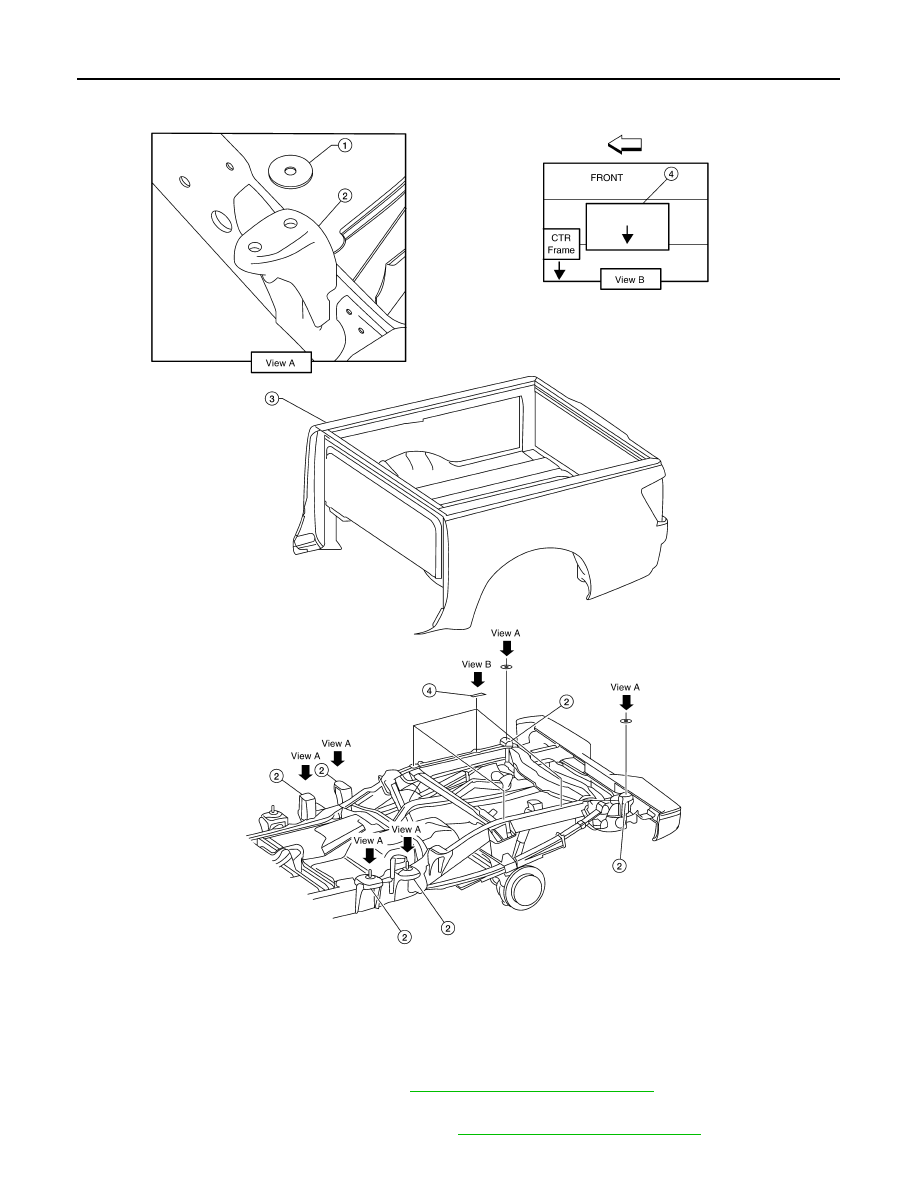

1.

Shim (pick-up bed mount)

2.

Body rear mount

3.

Pick-up bed assembly

4.

Shim (bed floor crossmember)

LIIA2153E
