BODY COMPONENT PARTS

BRM-15

< UNIT REMOVAL AND INSTALLATION >

BRM

10. Front brake hose bracket (RH & LH)
11. Front shock absorber bracket (RH & LH)
12. Panhard rod reinforcement
13. 4th crossmember gusset (RH & LH)
14. 2nd cab mounting bracket (RH & LH)
15. 3rd cab mounting bracket (RH & LH)
16. 4th cab mounting bracket (RH & LH)
17. Rear spring front bracket assembly (RH & LH)
18. 2nd rear body mounting bracket (RH & LH)
19. Rear bound bumper bracket (RH & LH)
20. Rear bound bumper reinforcement (RH & LH)
21. Rear spring rear bracket assembly (RH & LH)
22. 5th rear body mounting bracket (RH & LH)
23. 9th crossmember assembly
24. Exhaust bracket assembly
25. 8th crossmember assembly
26. Rear shock absorber bracket assembly (RH & LH)
27. Canister bracket, RH
28. Canister bracket, LH
29. 7th crossmember assembly
30. 6th crossmember assembly
31. 5th crossmember assembly
32. 4th crossmember assembly
33. 3rd crossmember assembly
34. 2nd crossmember assembly
35. Frame assembly

BRM-16

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

CORROSION PROTECTION

Body Sealing

INFOID:0000000006158465

DESCRIPTION

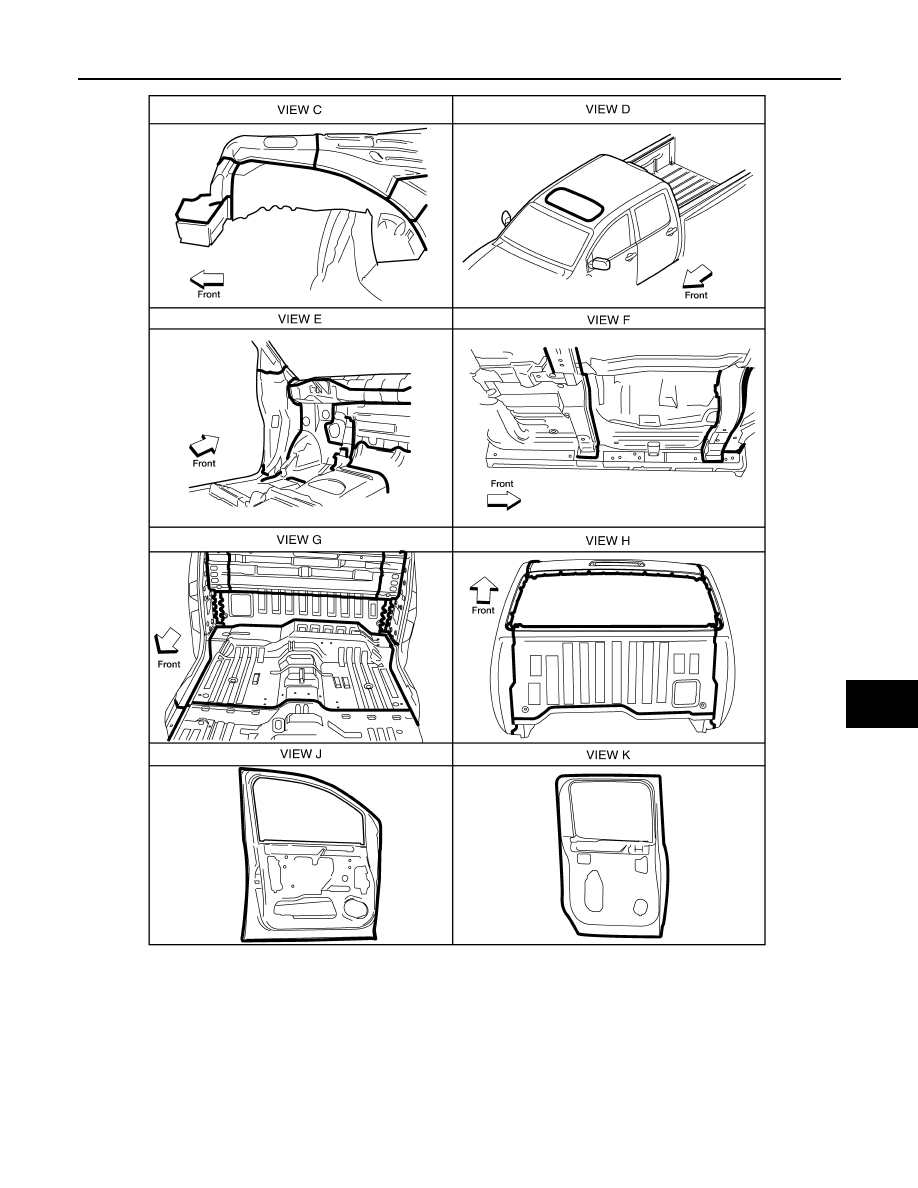

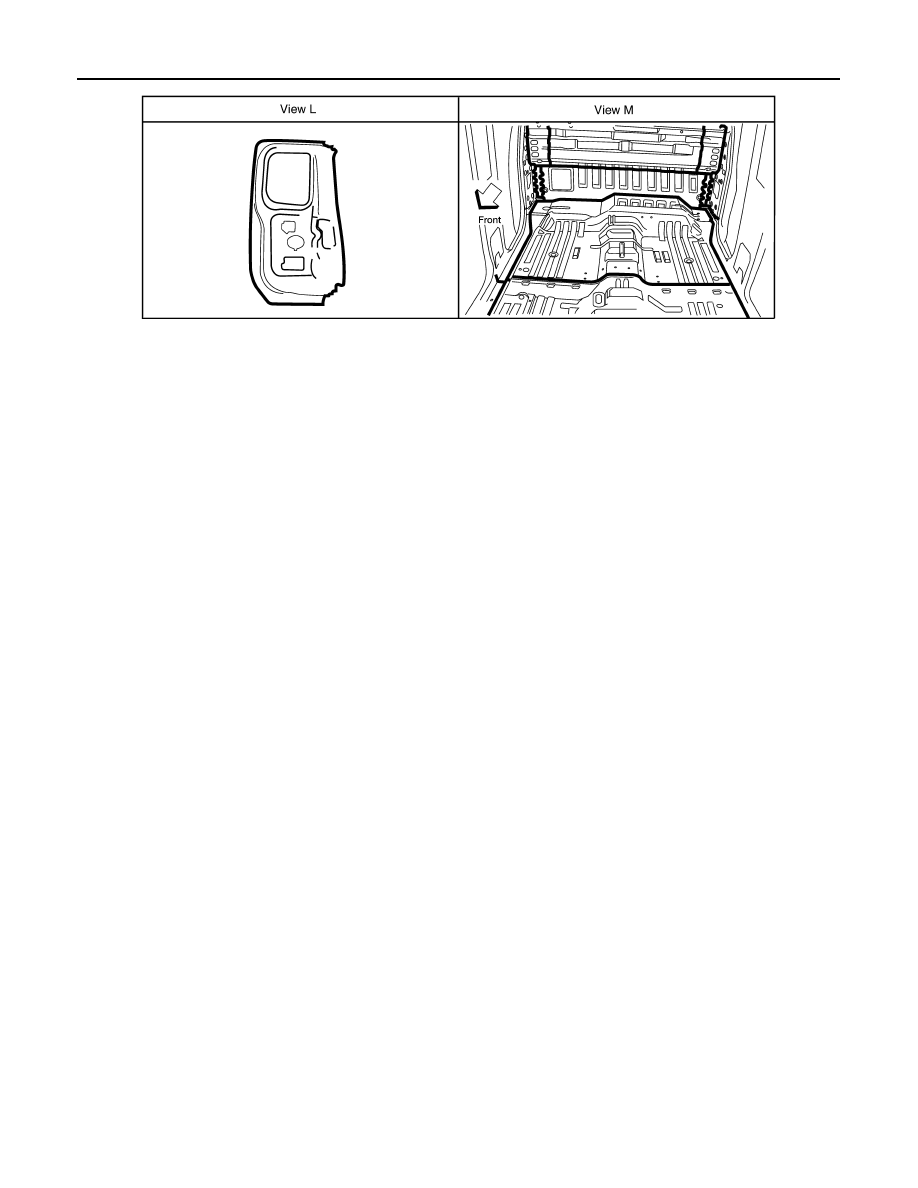

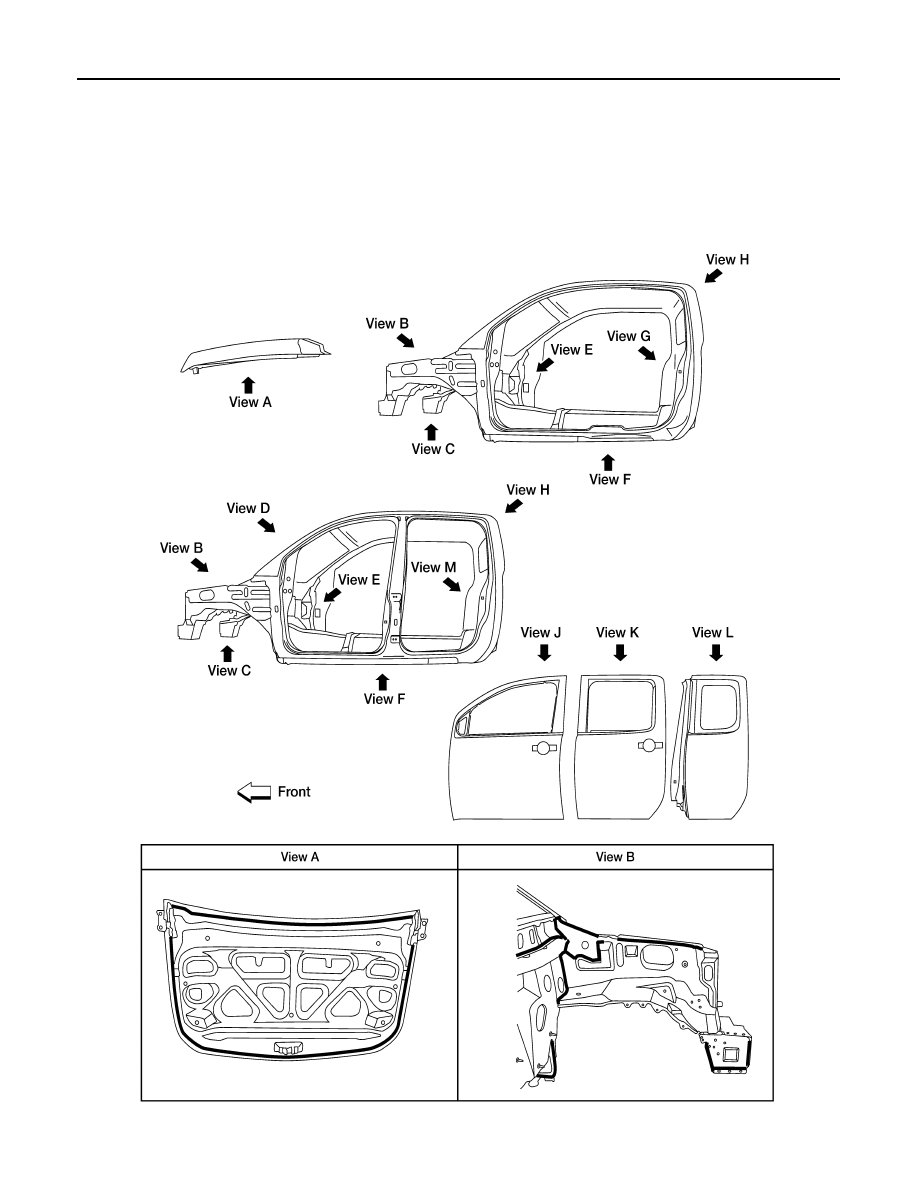

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of

sealant and not to allow other unaffected parts to come into contact with the sealant.

LIIA1303E

CORROSION PROTECTION

BRM-17

< UNIT REMOVAL AND INSTALLATION >

BRM

AWKIA0005GB

BRM-18

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

Corrosion Protection

INFOID:0000000006158466

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

LIIA1316E
