Nissan Titan A60. Manual - part 177





BRC-86

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

RR RH IN SOL

Operation status of each solenoid valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III) or actua-
tor relay is inactive (in fail-safe mode)

ON

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

RR RH OUT SOL

Operation status of each solenoid valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III) or actua-
tor relay is inactive (in fail-safe mode)

ON

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

RR LH IN SOL

Operation status of each solenoid valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III) or actua-
tor relay is inactive (in fail-safe mode)

ON

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

RR LH OUT SOL

Operation status of each solenoid valve

Actuator (solenoid valve) is active (“AC-
TIVE TEST” with CONSULT-III) or actua-
tor relay is inactive (in fail-safe mode)

ON

When the actuator (solenoid valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

EBD WARN LAMP

EBD warning lamp
(Note 2)

When EBD warning lamp is ON

ON

When EBD warning lamp is OFF

OFF

STOP LAMP SW

Stop lamp switch signal status

When brake pedal is depressed

ON

When brake pedal is released

OFF

MOTOR RELAY

Motor and motor relay operation

When the motor relay and motor are op-
erating

ON

When the motor relay and motor are not
operating

OFF

ACTUATOR RLY

Actuator relay operation

When the actuator relay is operating

ON

When the actuator relay is not operating

OFF

ABS WARN LAMP

ABS warning lamp
(Note 2)

When ABS warning lamp is ON

ON

When ABS warning lamp is OFF

OFF

OFF LAMP

VDC OFF indicator lamp
(Note 2)

When VDC OFF indicator lamp is ON

ON

When VDC OFF indicator lamp is OFF

OFF

OFF SW

VDC OFF switch ON/OFF

VDC OFF switch ON
(When VDC OFF indicator lamp is ON)

ON

VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF)

OFF

SLIP LAMP

SLIP indicator lamp
(Note 2)

When SLIP indicator lamp is ON

ON

When SLIP indicator lamp is OFF

OFF

BATTERY VOLT

Battery voltage supplied to the ABS actuator
and electric unit (control unit)

Ignition switch ON

10 – 16 V

GEAR

Gear position determined by TCM

1st gear
2nd gear
3rd gear
4th gear
5th gear

1
2
3
4
5

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-87

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

 SLCT LVR POSI

A/T selector lever position

P position
R position
N position
D position

P
R
N
D

ENGINE SPEED

With engine running

With engine stopped

0 rpm

Engine running

Almost in accor-
dance with tachome-
ter display

YAW RATE SEN

Yaw rate detected by yaw rate/side/decel G
sensor

When vehicle is stopped

Approx. 0 d/s

When vehicle turning

−75 to 75 d/s

R POSI SIG

Transmission range switch signal ON/OFF
condition

A/T shift position = R position

ON

A/T shift position = other than R position

OFF

4WD FAIL REQ
(Note 3)

Transfer control unit fail-safe signal

When transfer control unit is in fail-safe
mode

ON

When transfer control unit is normal

OFF

N POSI SIG

Transmission range switch signal ON/OFF
condition

A/T shift position = N position

ON

A/T shift position = other than N position

OFF

P POSI SIG

Transmission range switch signal ON/OFF
condition

A/T shift position = P position

ON

A/T shift position = other than P position

OFF

CV1

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
or actuator relay is inactive (when in fail-
safe mode)

ON

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

CV2

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
or actuator relay is inactive (when in fail-
safe mode)

ON

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

SV1

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
or actuator relay is inactive (when in fail-
safe mode)

ON

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

SV2

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
or actuator relay is inactive (when in fail-
safe mode)

ON

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

OFF

2WD/4WD

Drive axle

2WD model

2WD

4WD model

4WD

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

BRC-88

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ACCEL POS SIG

Throttle actuator opening/closing is dis-
played (linked with accelerator pedal)

Accelerator pedal not depressed (ignition
switch is ON)

0 %

Accelerator pedal depressed (ignition
switch is ON)

0 - 100 %

SIDE G-SENSOR

Transverse G detected by side G sensor

Vehicle stopped

Approx. 0 m/s

2

Vehicle turning right

Negative value

(m/s

2

)

Vehicle turning left

Positive value

(m/s

2

)

STR ANGLE SIG

Steering angle detected by steering angle
sensor

Straight-ahead

Approx. 0

±2.5°

Steering wheel turned

–720 to +720

°

BST OPER SIG

Brake booster operation is displayed

Brake booster is active

ON

Brake booster is inactive

OFF

PRESS SENSOR

Brake fluid pressure detected by front pres-
sure sensor

With ignition switch turned ON and brake
pedal released

Approx. 0 bar

With ignition switch turned ON and brake
pedal depressed

–40 to 300 bar

EBD SIGNAL

EBD operation

EBD is active

ON

EBD is inactive

OFF

ABS SIGNAL

ABS operation

ABS is active

ON

ABS is inactive

OFF

TCS SIGNAL

TCS operation

TCS is active

ON

TCS is inactive

OFF

VDC SIGNAL

VDC operation

VDC is active

ON

VDC is inactive

OFF

EBD FAIL SIG

EBD fail-safe signal

In EBD fail-safe

ON

EBD is normal

OFF

ABS FAIL SIG

ABS fail-safe signal

In ABS fail-safe

ON

ABS is normal

OFF

TCS FAIL SIG

TCS fail-safe signal

In TCS fail-safe

ON

TCS is normal

OFF

VDC FAIL SIG

VDC fail-safe signal

In VDC fail-safe

ON

VDC is normal

OFF

CRANKING SIG

Crank operation

Crank is active

ON

Crank is inactive

OFF

FLUID LEV SW

Brake fluid level switch signal status

When brake fluid level switch ON

ON

When brake fluid level switch OFF

OFF

PRESS SEN2

Brake fluid pressure detected by rear pres-
sure sensor

With ignition switch turned ON and brake
pedal released

Approx. 0 bar

With ignition switch turned ON and brake
pedal depressed

–40 to 300 bar

DELTA S SEN

 Value detected by delta stroke sensor

When brake pedal is depressed

1.05 - 1.80 mm

When brake pedal is released

0.00 mm (+0.6/-0.4)

RELEASE SW NO

 Active booster signal status

When brake pedal is depressed

ON

When brake pedal is released

OFF

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-89

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

NOTE:
• 1: Confirm tire pressure is normal.
• 2: On and off timing for warning lamp and indicator lamp.
• 3: Only 4WD models.
- ABS warning lamp: Refer to

BRC-80, "Description"

.

- Brake warning lamp: Refer to

BRC-81, "Description"

.

- VDC OFF indicator lamp: Refer to

BRC-82, "Description"

.

- SLIP indicator lamp: Refer to

BRC-84, "Description"

.

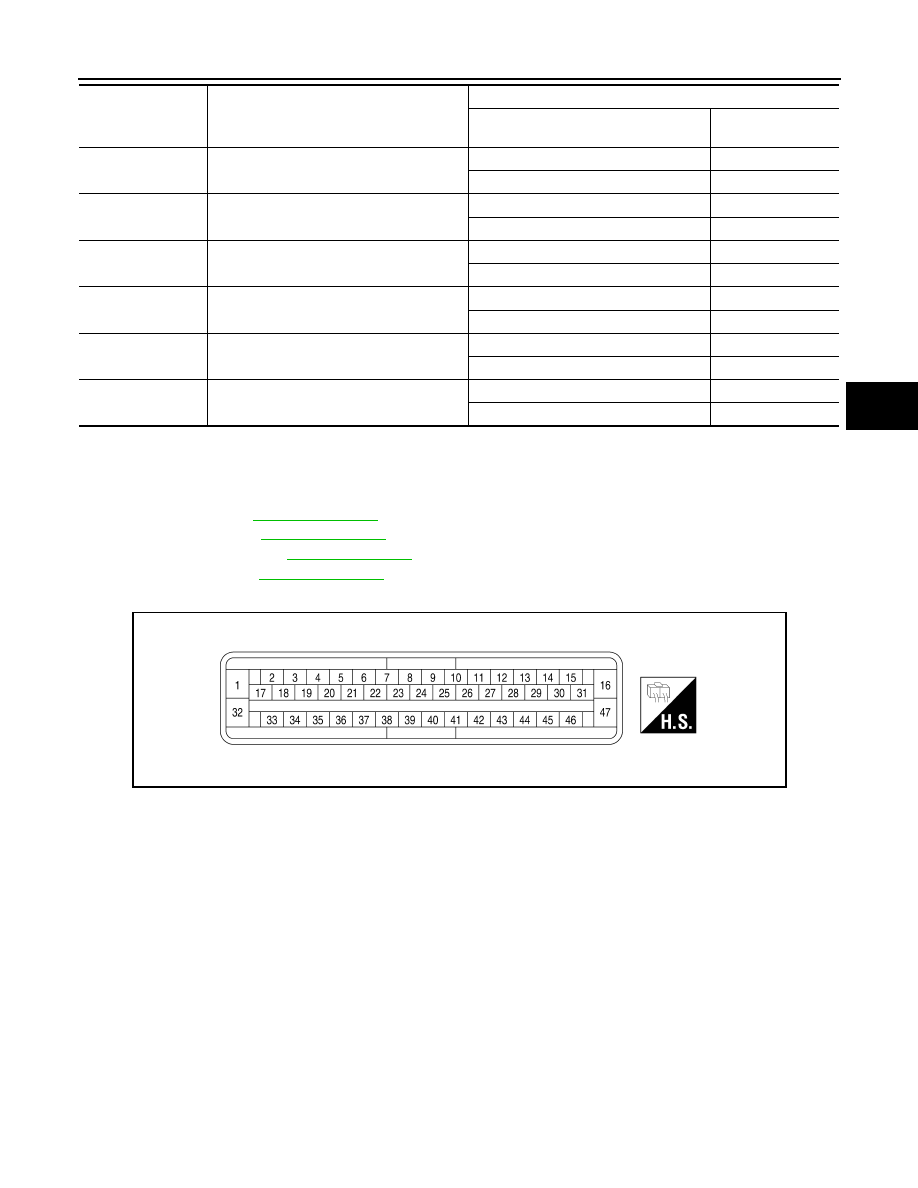

TERMINAL LAYOUT

Fail-Safe

INFOID:0000000006165951

CAUTION:

If the Fail-Safe function is activated, perform Self Diagnosis for ABS/TCS/VDC system.

ABS/EBD SYSTEM

In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP

indicator lamp will turn on. In case of an electrical malfunction with the EBD system, the BRAKE warning lamp,

ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on.

The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of

vehicles without ABS/TCS/VDC system.

2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same

as the condition of vehicles without ABS/TCS/VDC or EBD system.

VDC/TCS SYSTEM

In case of TCS/VDC system malfunction, the VDC OFF indicator lamp and SLIP indicator lamp are turned on

and the condition of the vehicle is the same as the condition of vehicles without TCS/VDC system. In case of

an electrical malfunction with the TCS/VDC system, the ABS control continues to operate normally without

TCS/VDC control.

RELEASE SW NC

 Active booster signal status

When brake pedal is depressed

OFF

When brake pedal is released

ON

OHB FAIL

OHB fail safe signal

OHB is active

ON

OHB is inactive

OFF

HBA FAIL

HBA fail safe signal

HBA is active

ON

HBA is inactive

OFF

OHB SIG

OHB operation

In OHB fail-safe

ON

OHB is normal

OFF

HBA SIG

HBA operation

In HBA fail-safe

ON

HBA is normal

OFF

STP OFF RLY

Stop lamp relay signal

When stop lamp relay is ON

ON

When stop lamp relay is OFF

OFF

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

AWFIA0032ZZ
