ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

DTC No. Index

INFOID:0000000006165952

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-29, "Description"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-32, "Description"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-35, "Description"

C1110

CONTROLLER FAILURE

BRC-37, "DTC Logic"

C1111

PUMP MOTOR

BRC-38, "Description"

C1113

G-SENSOR

BRC-40, "Description"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-42, "Description"

C1116

STOP LAMP SW

BRC-45, "Description"

C1120

FR LH IN ABS SOL

BRC-47, "Description"

C1121

FR LH OUT ABS SOL

BRC-50, "Description"

C1122

FR RH IN ABS SOL

BRC-47, "Description"

C1123

FR RH OUT ABS SOL

BRC-50, "Description"

C1124

RR LH IN ABS SOL

BRC-47, "Description"

C1125

RR LH OUT ABS SOL

BRC-50, "Description"

C1126

RR RH IN ABS SOL

BRC-47, "Description"

C1127

RR RH OUT ABS SOL

BRC-50, "Description"

C1130

ENGINE SIGNAL 1

BRC-53, "Description"

C1131

ENGINE SIGNAL 2

C1132

ENGINE SIGNAL 3

C1133

ENGINE SIGNAL 4

C1136

ENGINE SIGNAL 6

C1140

ACTUATOR RLY

BRC-54, "Description"

C1142

PRESS SEN CIRCUIT

BRC-56, "Description"

C1143

ST ANG SEN CIRCUIT

BRC-59, "Description"

C1144

ST ANG SEN SIGNAL

C1145

YAW RATE SENSOR

BRC-40, "Description"

C1146

SIDE G-SEN CIRCUIT

C1155

BR FLUID LEVEL LOW

BRC-62, "Description"

C1156

ST ANG SEN COM CIR

BRC-65, "Description"

C1160

DECEL G SEN SET

BRC-66, "Description"

C1163

ST ANGL SEN SAFE

BRC-67, "Description"

C1164

CV1

BRC-68, "Description"

C1165

CV2

C1166

SV1

C1167

SV2

C1170

VARIANT CODING

BRC-37, "DTC Logic"

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-91

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1178

ABS ACTIVE BOOSTER SV NG

BRC-71, "Description"

C1179

ABS DELTA S SEN NG

BRC-74, "Description"

C1181

ABS ACTIVE BOOSTER RESPONSE NG

BRC-71, "Description"

C1184

ABS BRAKE RELEASE SW NG

C1187

ABS DIFLOCK CONTROLLER NG

BRC-76, "Description"

C1189

ABS BRAKE BOOSTER DEFECT

BRC-71, "Description"

U1000

CAN COMM CIRCUIT

BRC-77, "Description"

DTC

Items (CONSULT screen terms)

Reference

BRC-92

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM - VDC

WIRING DIAGRAM

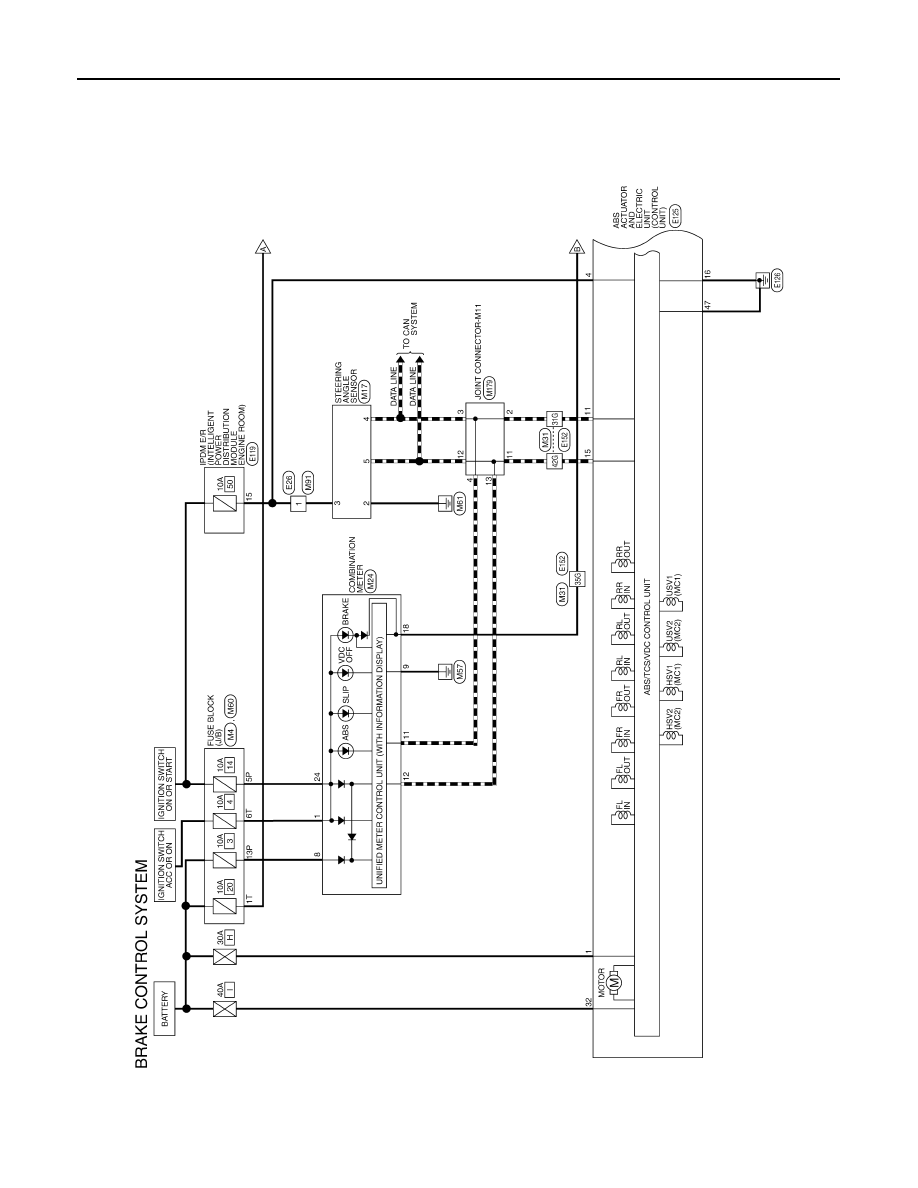

BRAKE CONTROL SYSTEM - VDC

Wiring Diagram

INFOID:0000000006460708

ABFWA0182GB

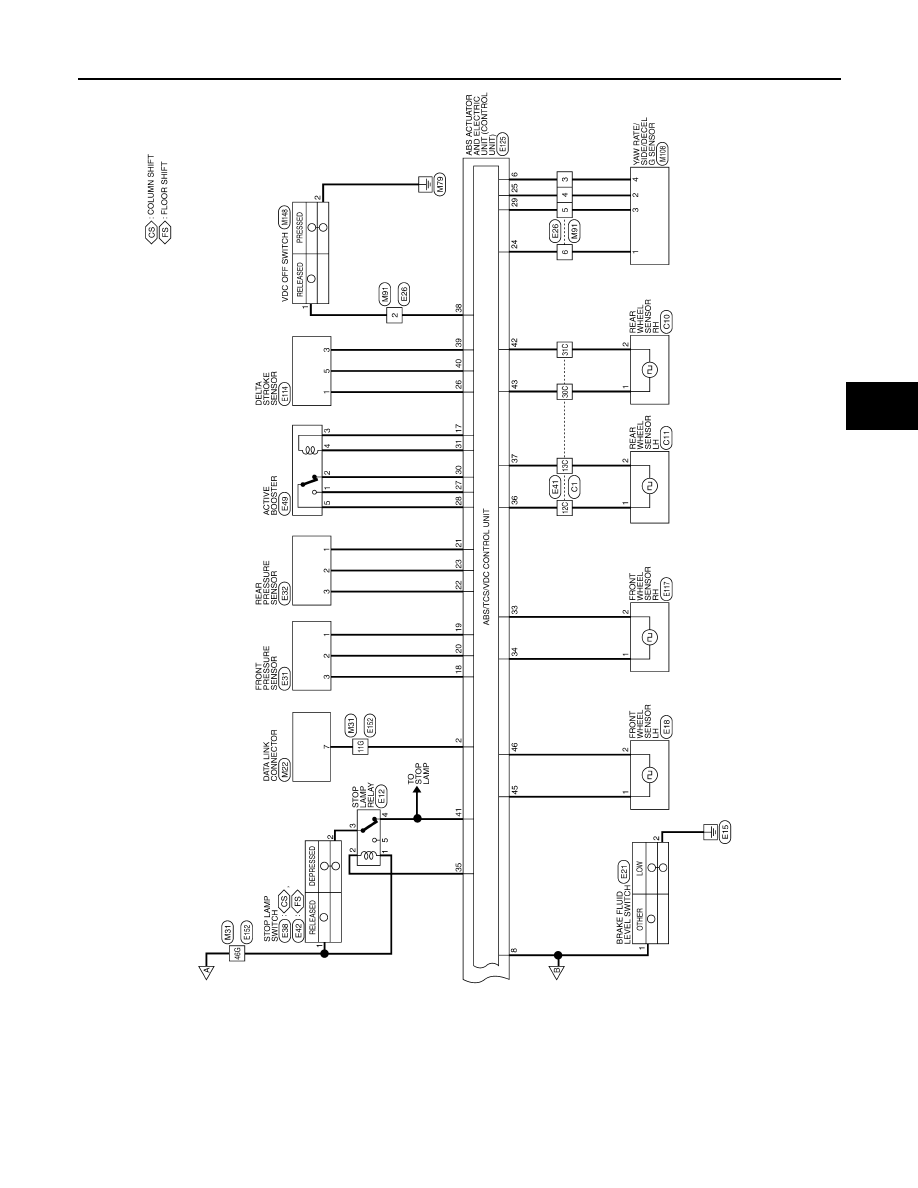

BRAKE CONTROL SYSTEM - VDC
