STEERING SWITCH

Removal and Installation

INFOID:0000000006166643

STEERING WHEEL AUDIO CONTROL SWITCHES

Removal

1. Remove the steering wheel. Refer to

ST-11, "Removal and Installation"

.

2. Remove the steering wheel rear cover screws and remove the steering wheel rear cover.

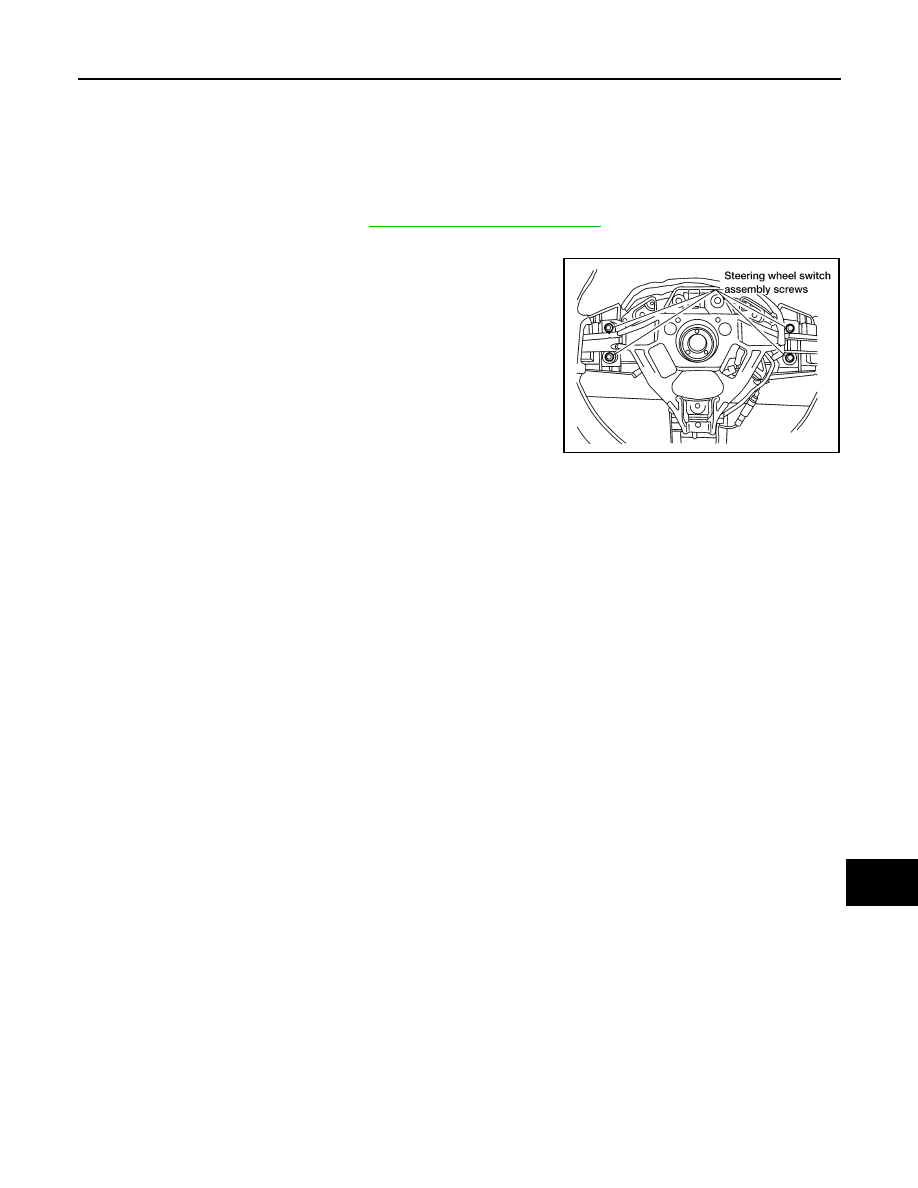

3. Remove the steering wheel switch assembly screws and

remove the steering wheel switches.

Installation

Installation is in the reverse order of removal.

WKIA1226E

AV-334

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

REAR AUDIO REMOTE CONTROL UNIT

REAR AUDIO REMOTE CONTROL UNIT

Removal and Installation

INFOID:0000000006166644

REAR AUDIO REMOTE CONTROL UNIT

Removal

1. Carefully remove the rear audio remote control unit from the rear

roof console assembly.

CAUTION:

Wrap removal tool with clean shop cloth to prevent damage

to the headliner.

2. Disconnect the connector and remove the rear audio remote

control unit.

Installation

Installation is in the reverse order of removal.

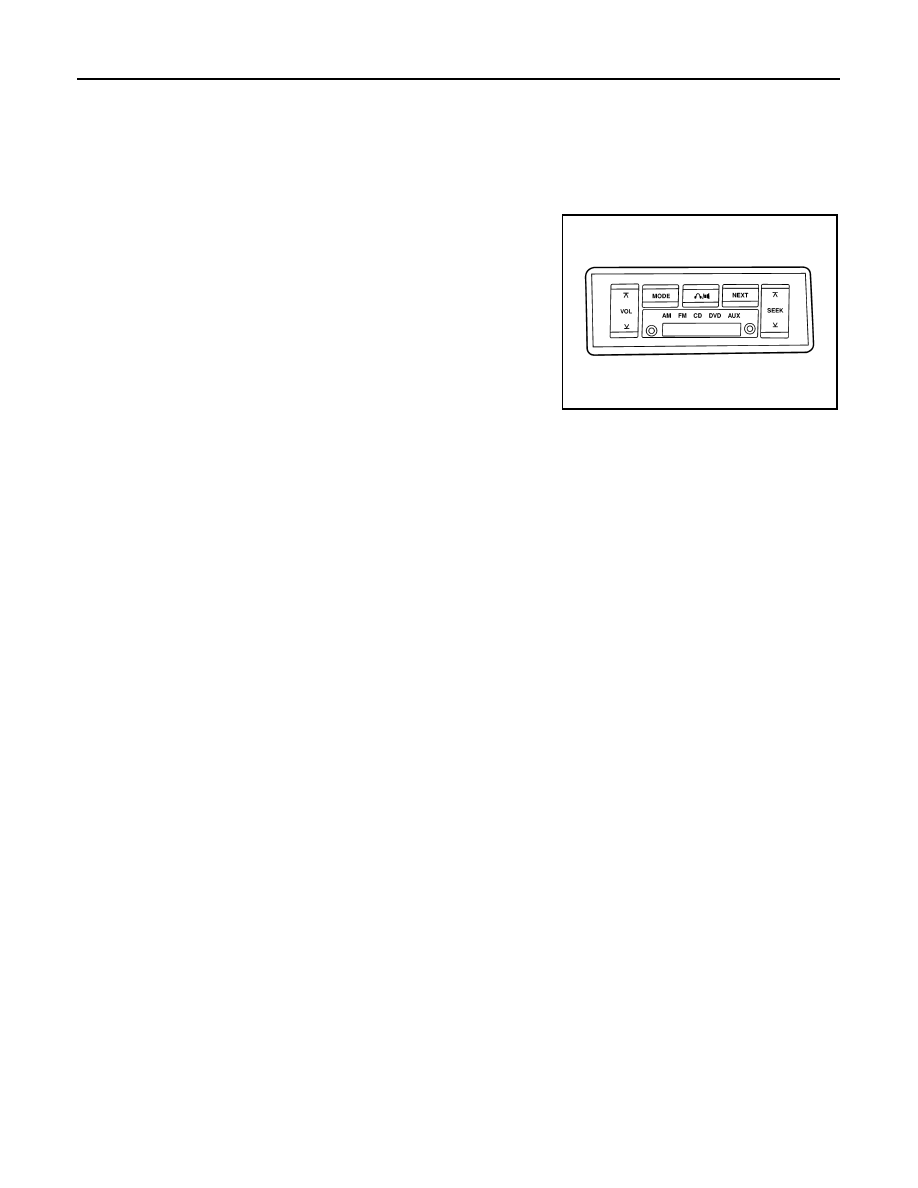

WKIA1201E

AV

AUDIO AMP.

AV-335

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO AMP.

Removal and Installation

INFOID:0000000006166645

REMOVAL

1. Remove the accelerator pedal. Refer to

ACC-3, "Removal and Installation"

.

2. Remove the BCM. Refer to

BCS-53, "Removal and Installation"

.

3. Disconnect the audio amp. speaker amp. connectors.
4. Remove the audio amp. speaker amp. and bracket assembly

screws and slide the audio amp. speaker amp. bracket assem-

bly down.

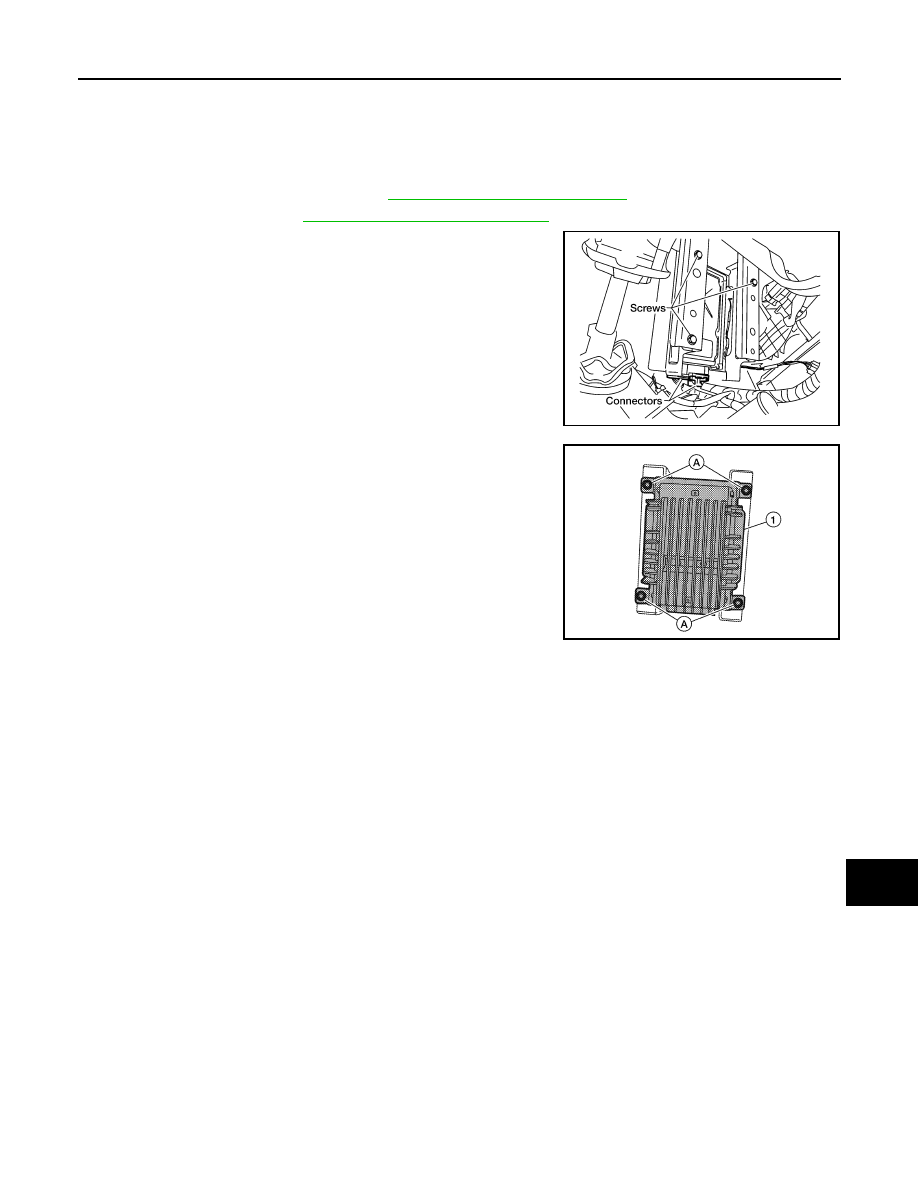

5. Remove the audio amp. speaker amp.screws (A). then remove

the audio amp. speaker amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

WKIA1605E

ALNIA0268ZZ

AV-336

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

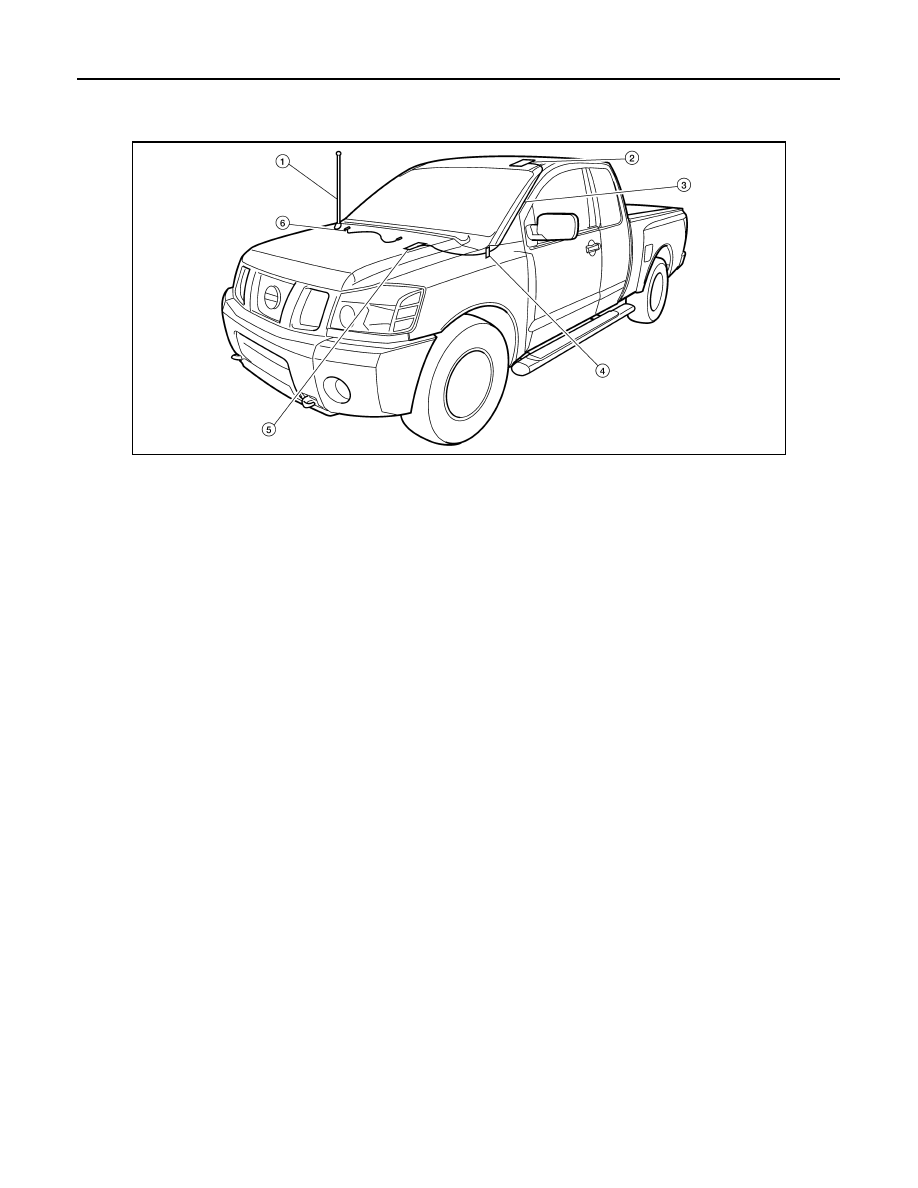

Location of Antenna

INFOID:0000000006166646

WKIA4646E

1.

Antenna

2.

Satellite antenna M351

3.

Satellite antenna feeder

4.

M69, M350

5.

Satellite radio tuner M129

6.

Main feeder cable
