AUXILIARY INPUT JACK

AV-337

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000006713612

Removal

1. Remove the Cluster lid D. Refer to

IP-15, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

AV-338

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000006166647

SATELLITE RADIO ANTENNA

Removal

1. Lower the headliner. Refer to

INT-21, "Removal and Installa-

tion"

.

2. Disconnect the satellite radio antenna connector.
3. Remove the satellite radio antenna nut.
4. Remove the satellite radio antenna.

Installation

Installation is in the reverse order of removal.

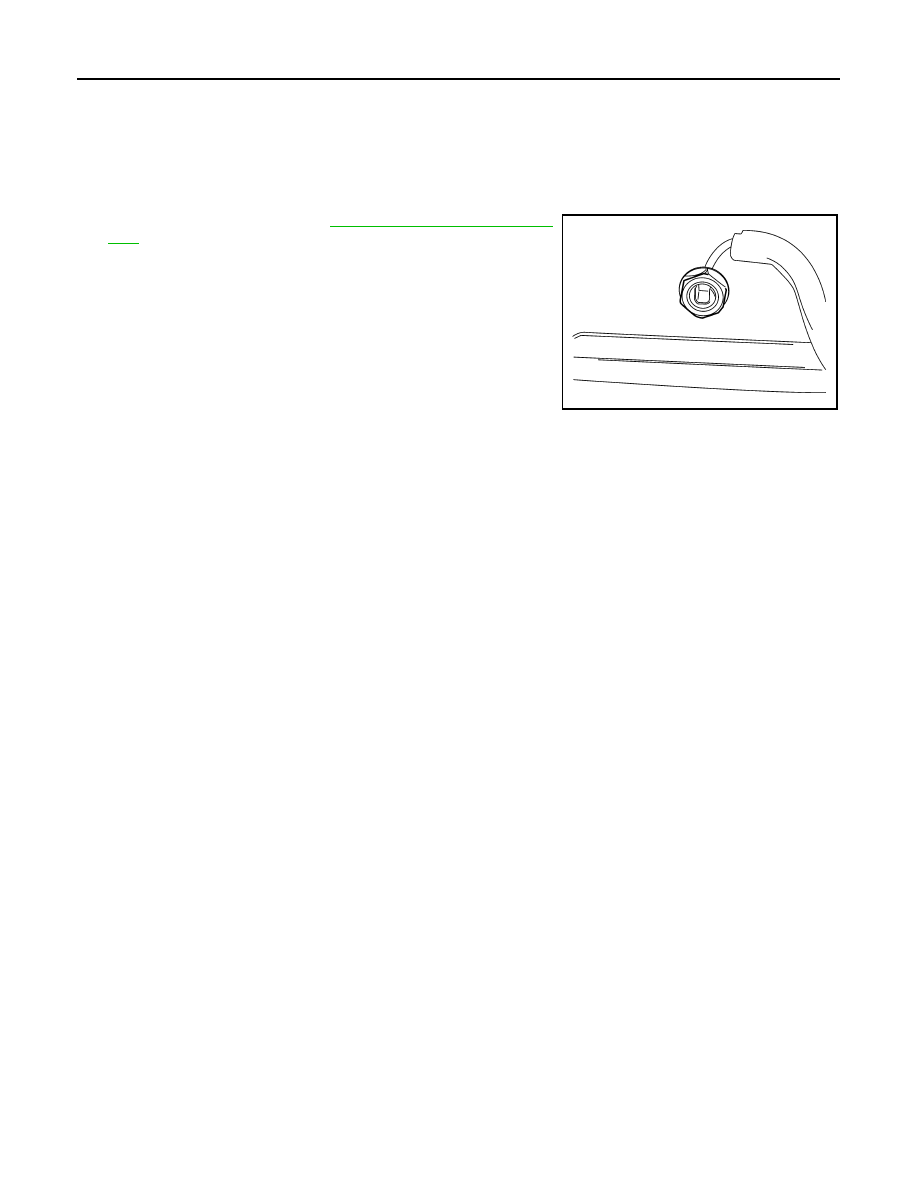

LKIA0679E

AV

SATELLITE RADIO TUNER

AV-339

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000006166648

SATELLITE RADIO TUNER

Removal

1. Remove the accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

2. Remove the BCM. Refer to

BCS-53, "Removal and Installation"

.

3. Disconnect the audio amp. and the satellite radio tuner connectors.
4. Remove the audio amp./satellite radio tuner bracket screws and

slide the audio amp./satellite radio tuner bracket down.

5. Remove the satellite radio tuner screws (A) and remove the sat-

ellite radio tuner from the audio amp./satellite radio tuner

bracket (1).

Installation

Installation is in the reverse order of removal.

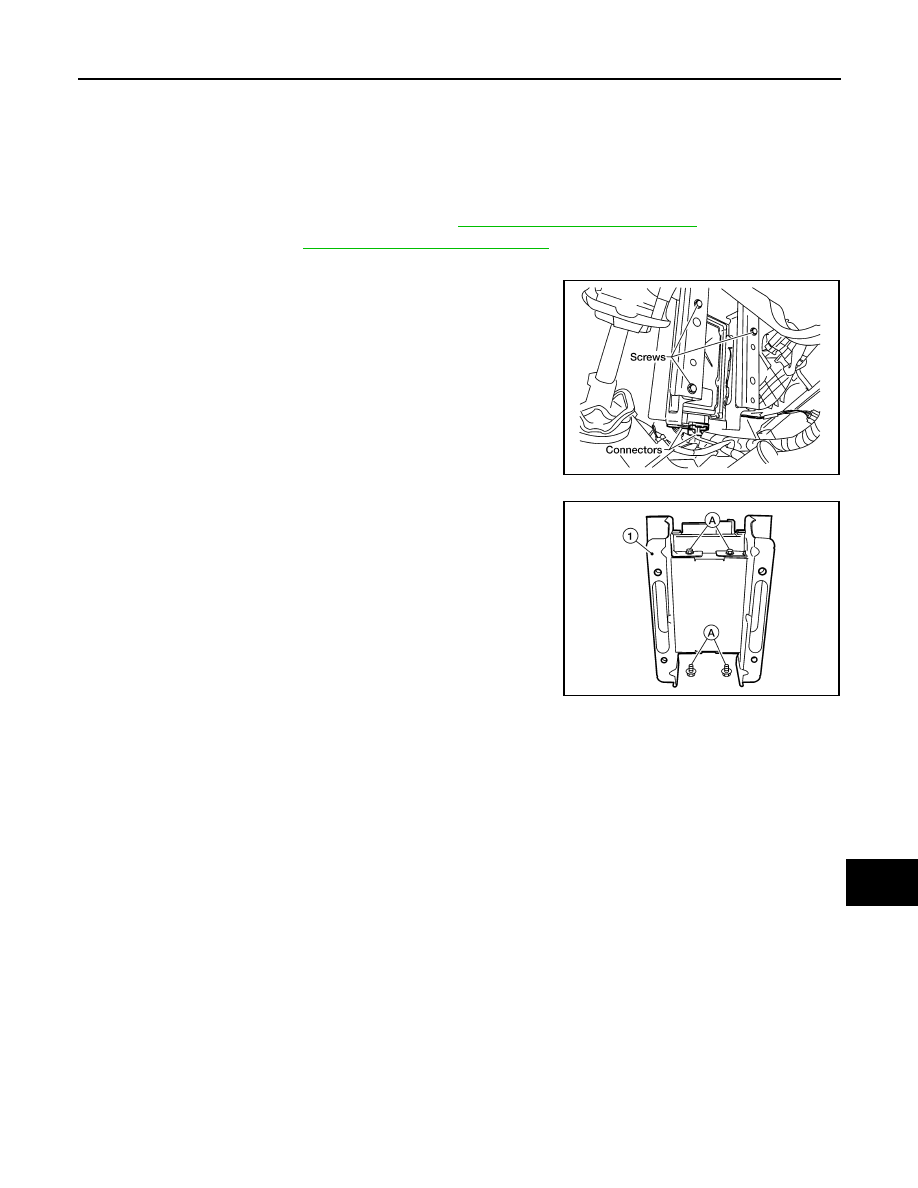

WKIA1605E

LKIA0677E

AV-340

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

DVD ENTERTAINMENT SYSTEM

DVD ENTERTAINMENT SYSTEM

Removal and Installation

INFOID:0000000006166649

DVD PLAYER

Removal

1. Disconnect the battery negative terminal.
2. Remove the center console bin. Refer to

IP-19, "Removal and Installation"

.

3. Remove the DVD player screws.

4. Remove the DVD player.

Installation

Installation is in reverse order of removal.

VIDEO MONITOR

Removal

1. Remove the rear roof console assembly. Refer to

INT-21, "Removal and Installation"

.

2. Disconnect the video monitor connector.
3. Remove the video housing screws.

4. Remove the video monitor and housing.
5. Remove the video monitor hinge screws and remove the video

monitor.

Installation

Installation is in the reverse order of removal.

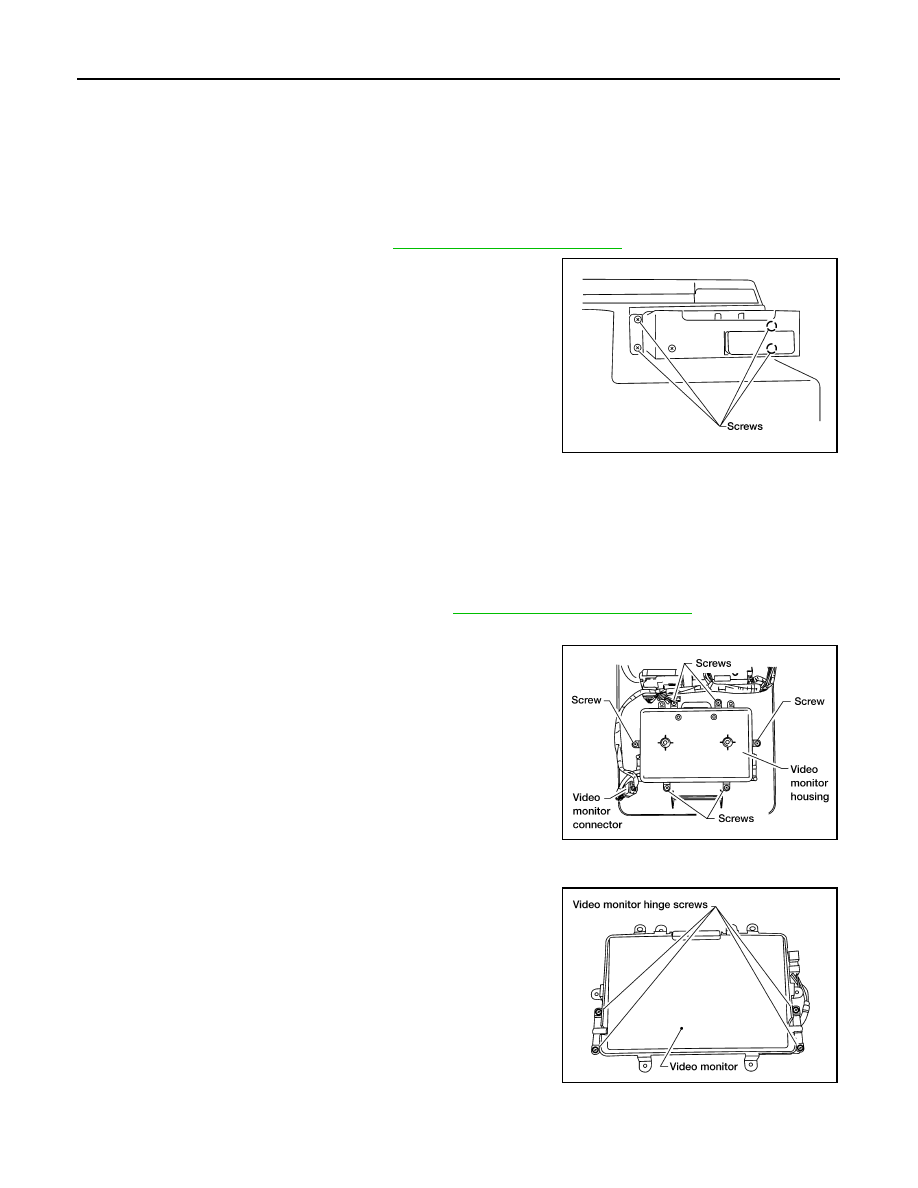

WKIA1503E

WKIA1502E

WKIA1219E
